Throttle W/Motor Body ASSY (2GR-FE): Replacement

DRAIN ENGINE COOLANT (SEE COOLANT (2GR-FE) )
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE V-BANK COVER SUB-ASSY (SEE REPLACEMENT )
REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE (SEE REPLACEMENT )
SEPARATE WATER BY-PASS HOSE
1. Disconnect the 2 water by-pass hoses from the throttle w/motor body assy.

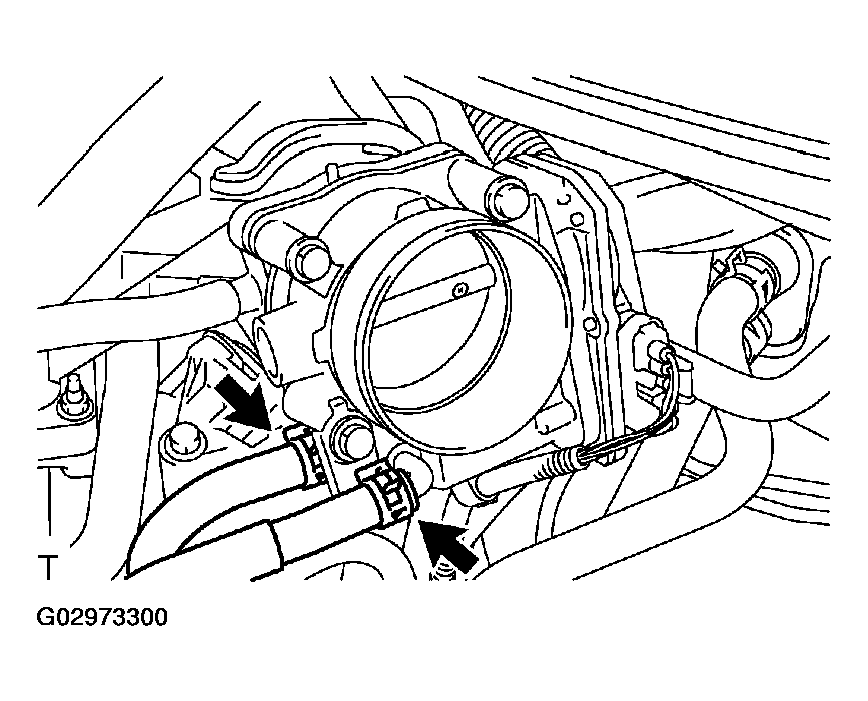

  Fig 1: Disconnecting Water By-Pass Hoses From Throttle W/Motor Body Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE THROTTLE W/MOTOR BODY ASSY
1. Disconnect the throttle w/motor body assy connector.
2. Remove the 4 bolts and throttle w/motor body assy from the intake airsurge tank.
3. Remove the throttle body gasket from the intake air surge tank.

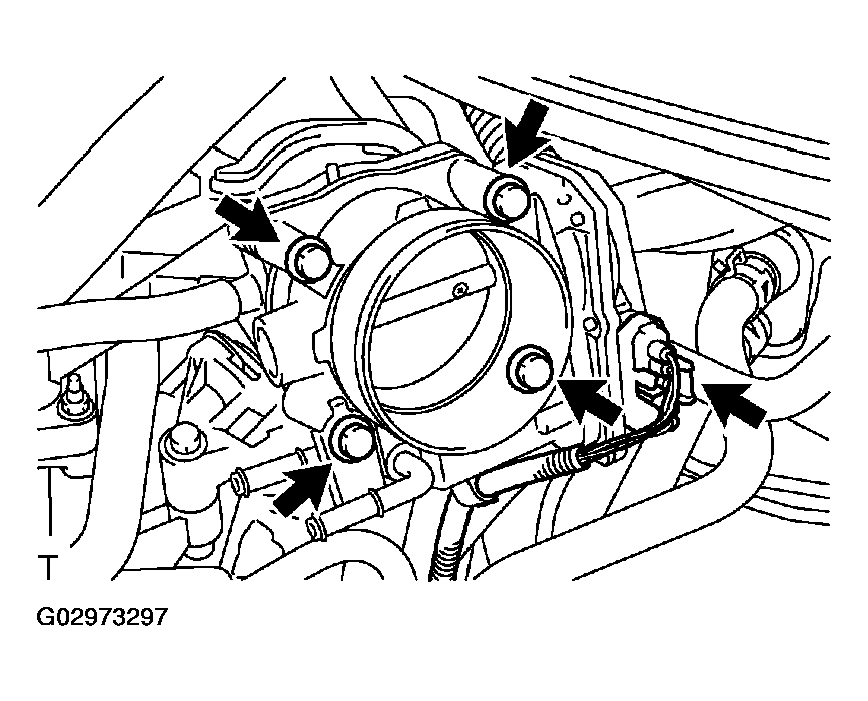

  Fig 2: Removing Throttle W/Motor Body Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL THROTTLE W/MOTOR BODY ASSY
1. Install a new throttle body gasket to the intake air surge tank.

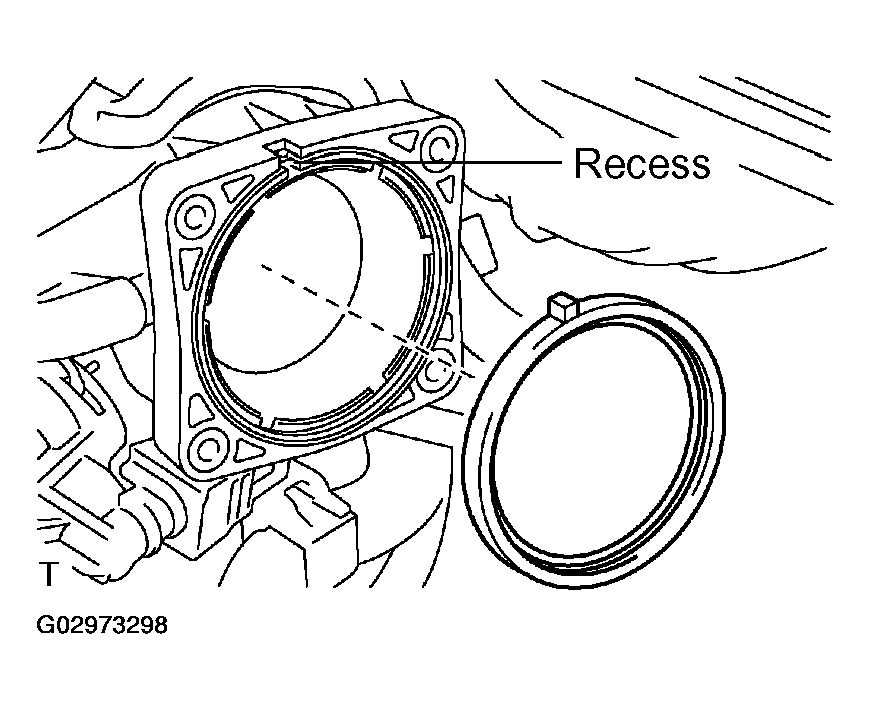

  Fig 3: Installing Throttle Body Gasket To Intake Air Surge Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the throttle w/motor body assy and wire harness clamp stay to the intake air surge tank with the 4 bolts.
  Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)

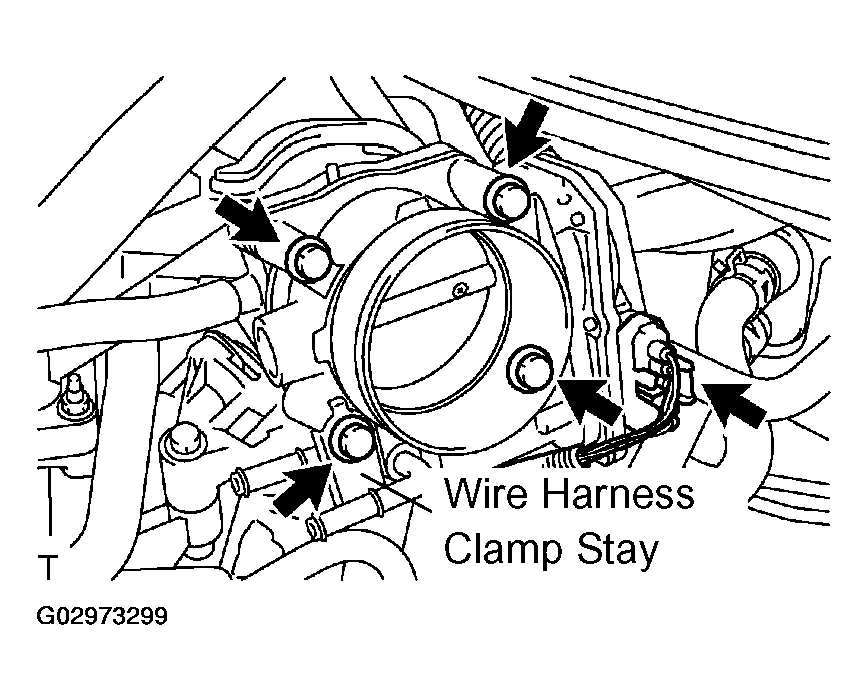

  Fig 4: Installing Throttle W/Motor Body Assy And Wire Harness Clamp Stay
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the throttle w/motor body assy connector.
CONNECT WATER BY-PASS HOSE
1. Connect the 2 water by-pass hoses to the throttle w/motor body assy.

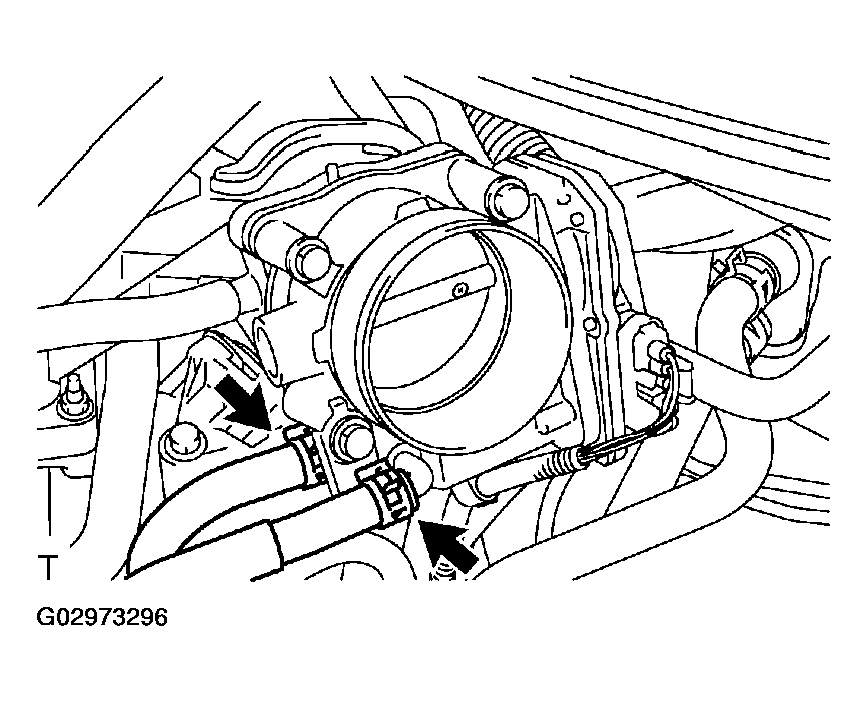

  Fig 5: Connecting Water By-Pass Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE (SEE REPLACEMENT )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
ADD ENGINE COOLANT (SEE COOLANT (2GR-FE) )
CHECK FOR ENGINE COOLANT LEAKS (SEE ON-VEHICLE INSPECTION )
INSTALL V-BANK COVER SUB-ASSY (SEE REPLACEMENT )
PERFORM INITIALIZATION (SEE INITIALIZATION )
Some systems need initialization when disconnecting the battery terminal.
CHECK FUNCTION OF THROTTLE BODY (SEE ON-VEHICLE INSPECTION )
