Fuel Injector ASSY (2GR-FE): Components

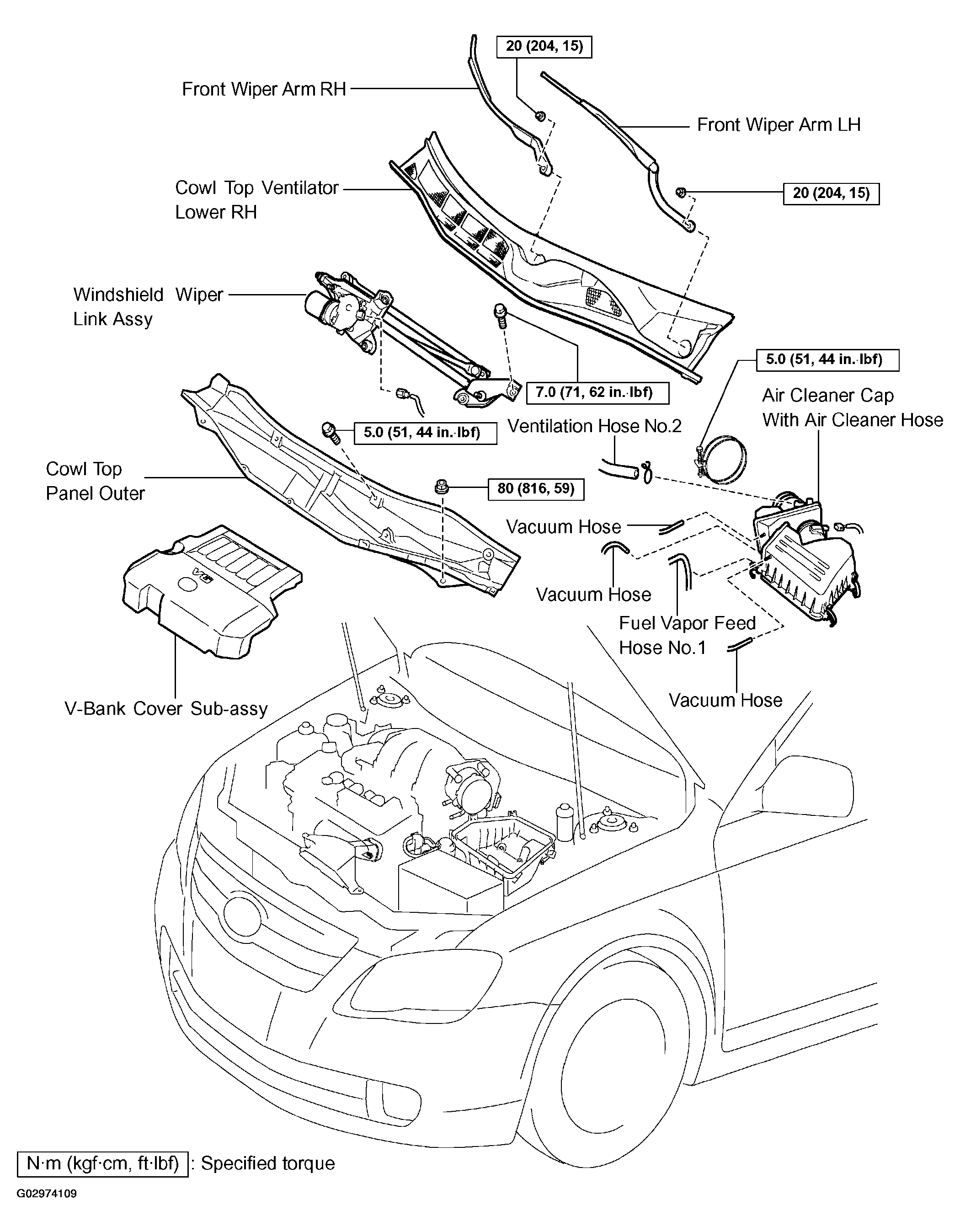

Fig 1: Identifying Components And Tightening Torques (1 Of 3)
G02974109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Components And Tightening Torques (2 Of 3)
G02974110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

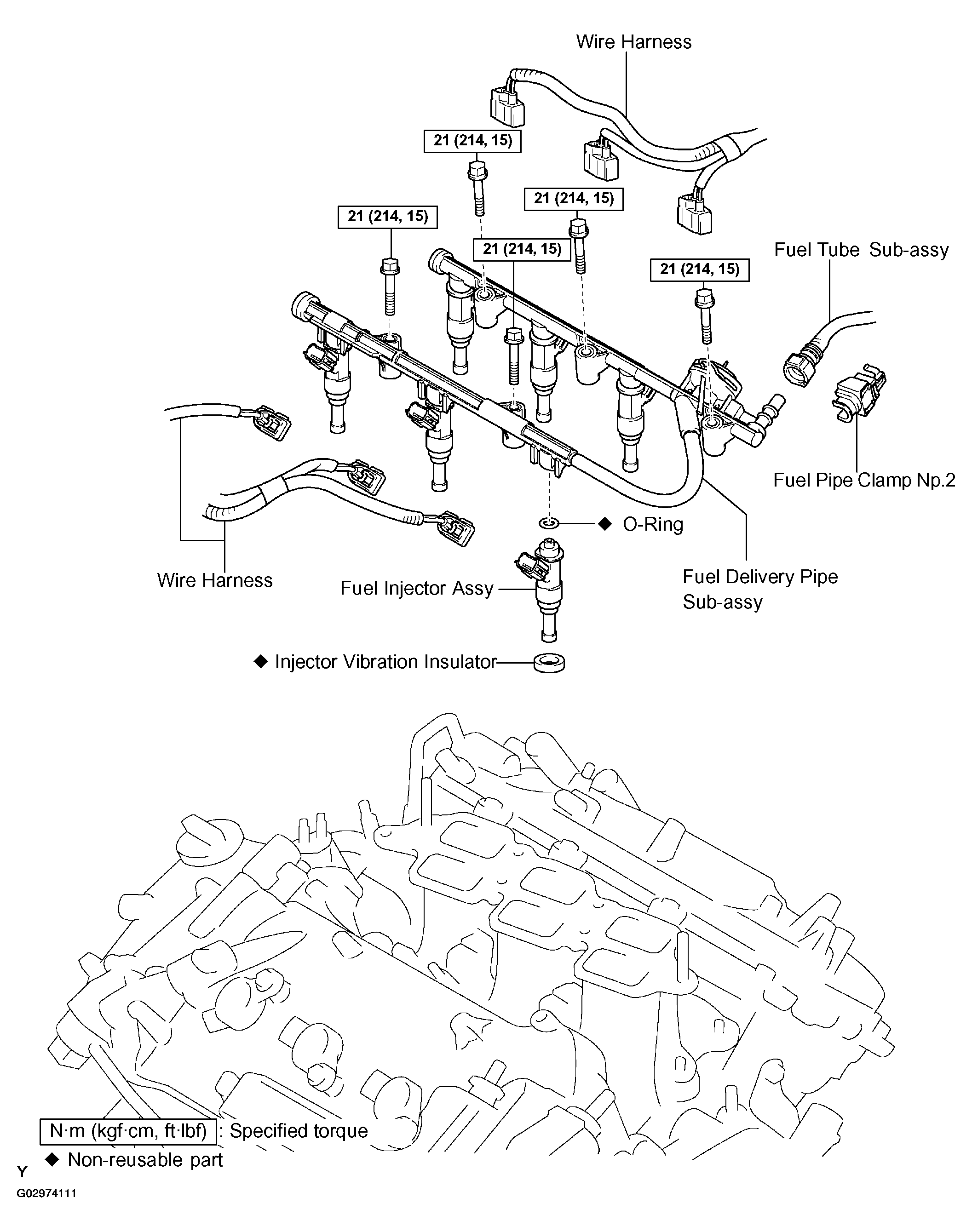

Fig 3: Identifying Components And Tightening Torques (3 Of 3)
G02974111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
