Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Engine Fuel System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

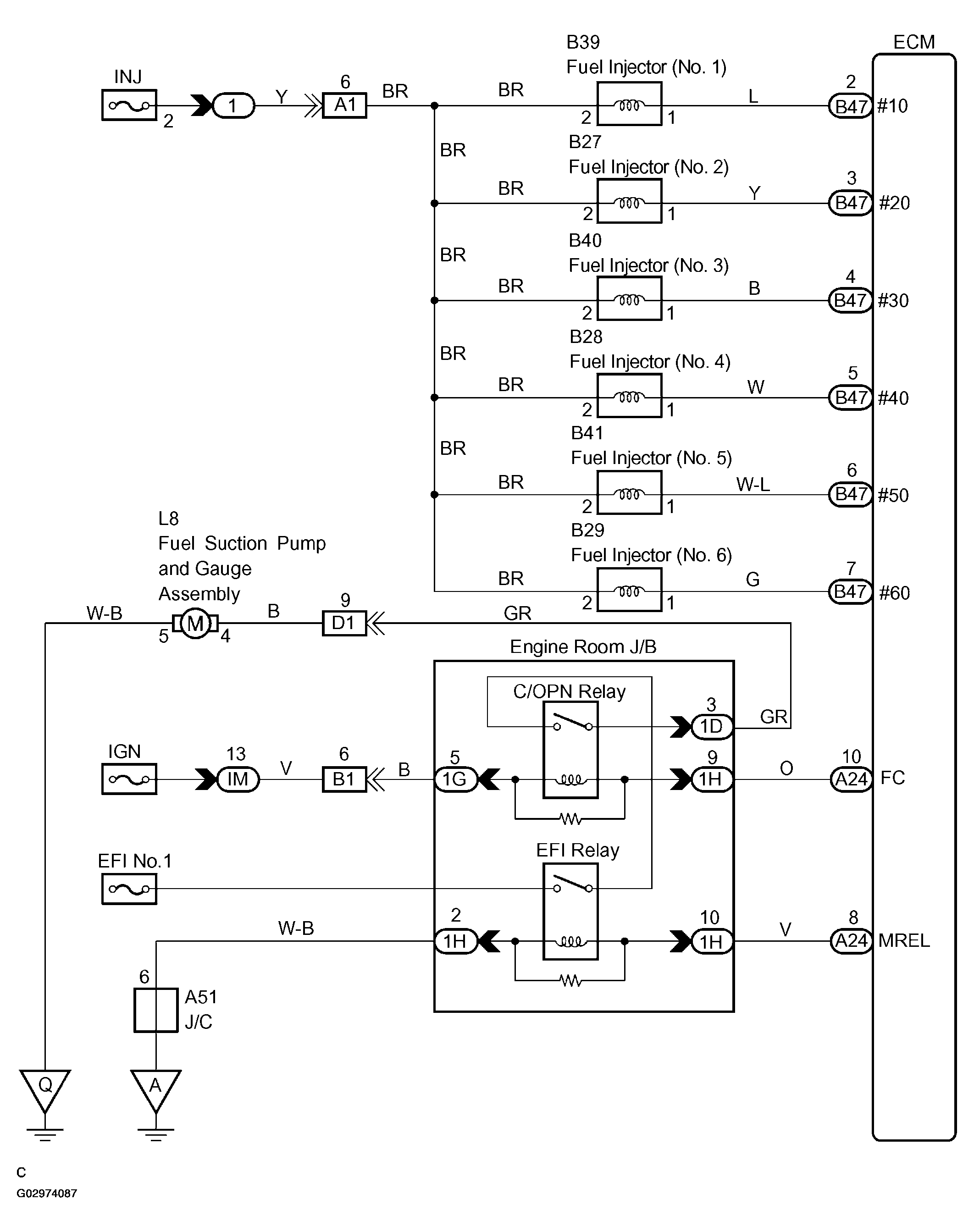

Fig 1: Fuel System (2GR-FE) Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
