Engine Ignition System: Location

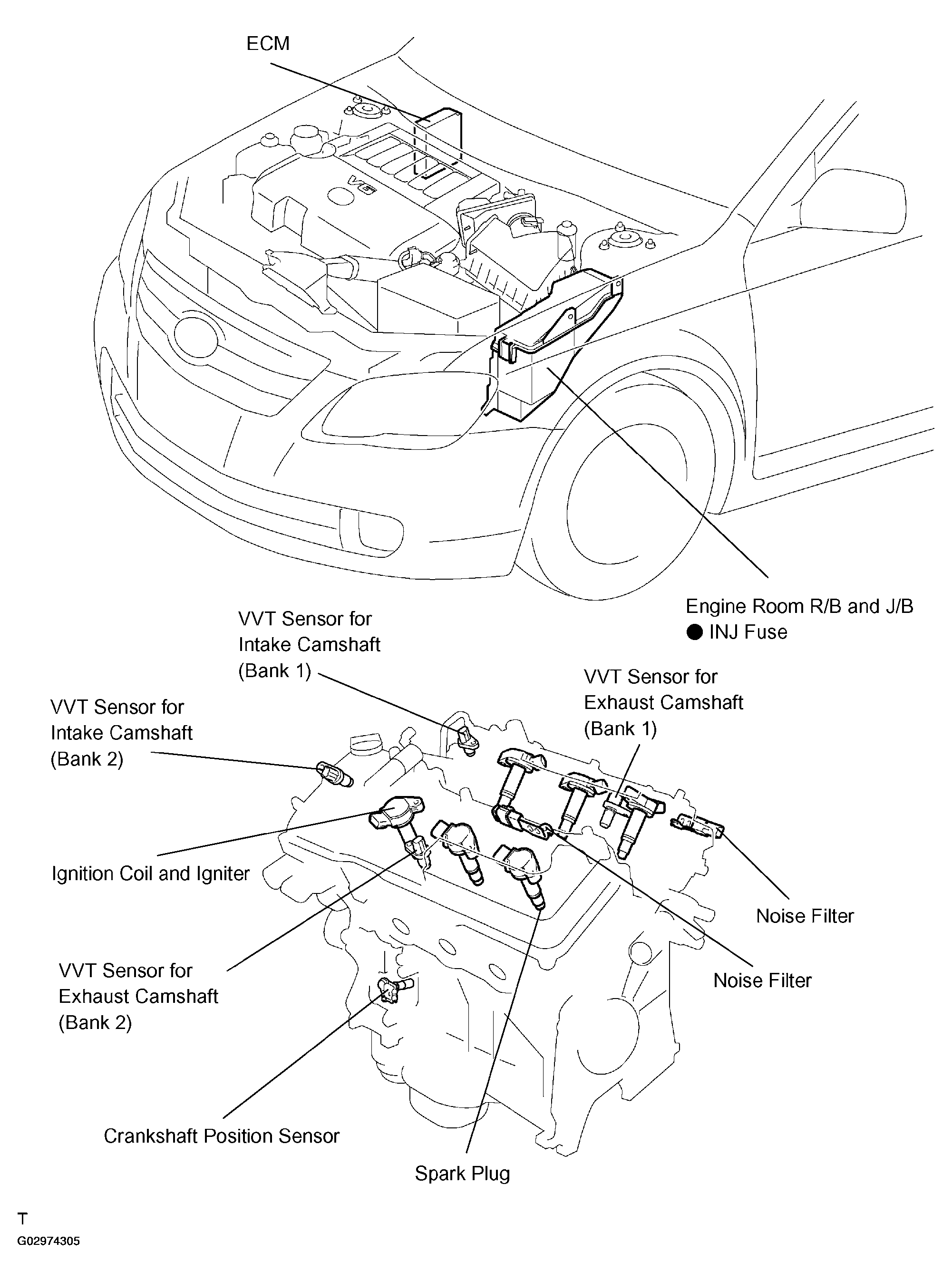

Fig 1: Identifying Ignition System Components Location
G02974305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
