VVT Sensor (2GR-FE): Replacement

REMOVE V-BANK COVER SUB-ASSY (SEE REPLACEMENT )
REMOVE VVT SENSOR
1. Intake camshaft (Bank 1).
  1. Disconnect the VVT sensor connector.
  2. Remove the bolt and the VVT sensor.

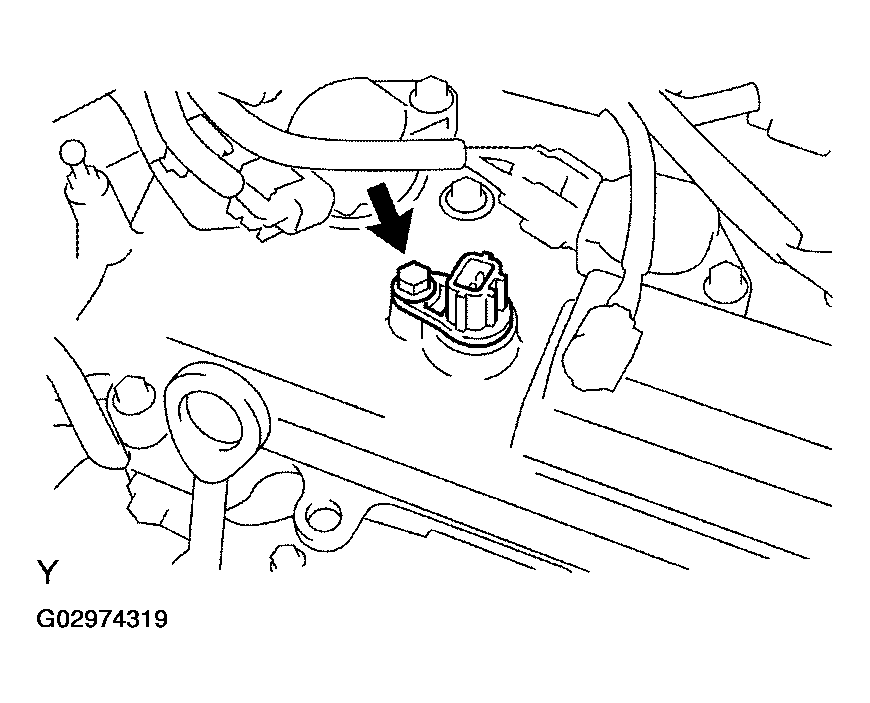

    Fig 1: Removing VVT Sensor (Intake Camshaft (Bank 1))
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Exhaust camshaft (Bank 1).
  1. Remove the windshield wiper link assy (see REPLACEMENT ).
  2. Remove the cowl top outside panel front (see REPLACEMENT ).
  3. Disconnect the VVT sensor connector.
  4. Remove the bolt and the VVT sensor.

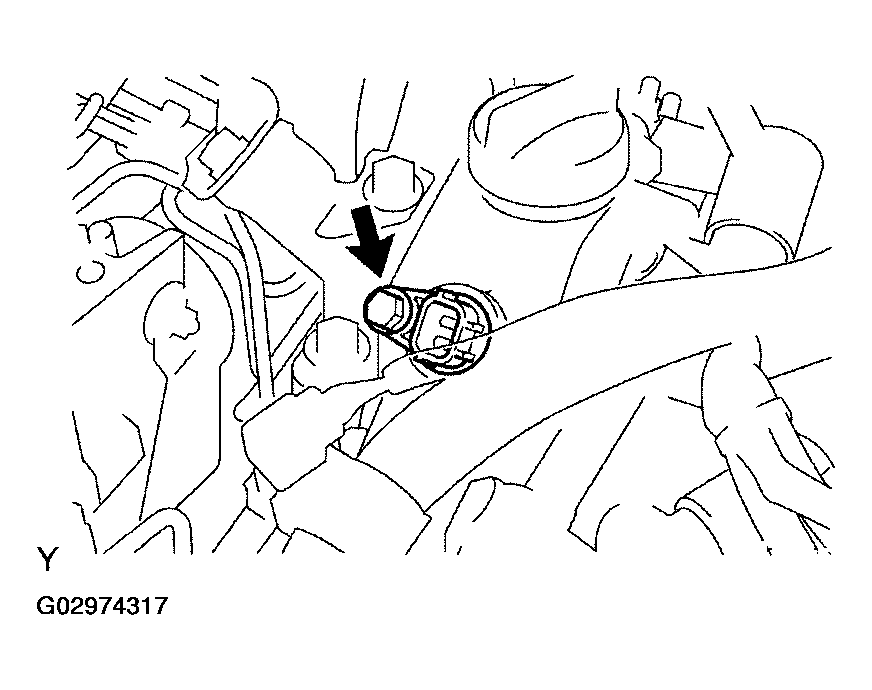

    Fig 2: Removing VVT Sensor (Exhaust Camshaft (Bank 1))
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Exhaust camshaft (Bank 2).
  1. Disconnect the VVT sensor connector.
  2. Remove the bolt and the VVT sensor.

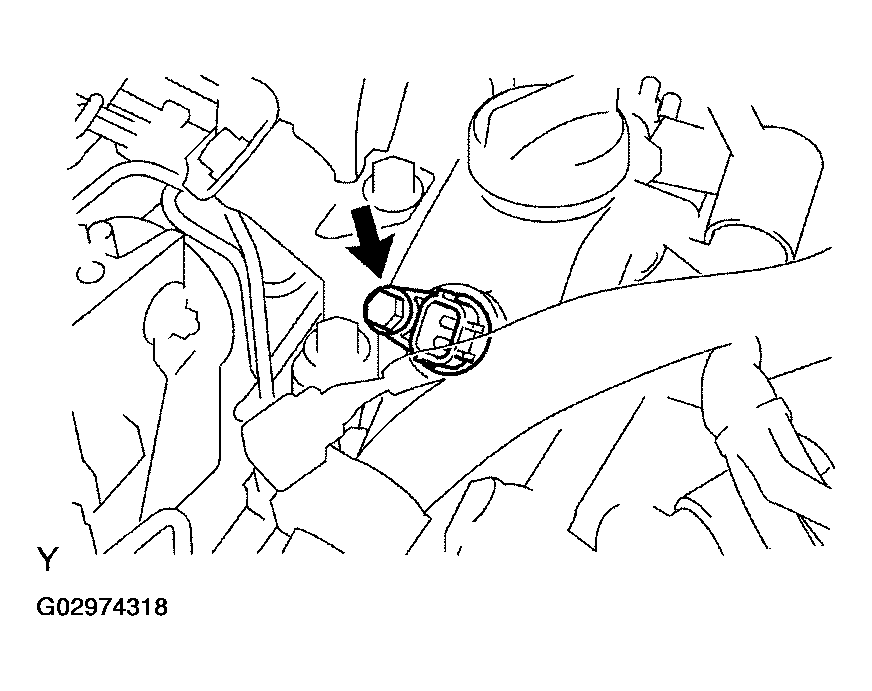

    Fig 3: Removing VVT Sensor (Exhaust Camshaft (Bank 2))
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Intake camshaft (Bank 2).
  1. Disconnect the VVT sensor connector.
  2. Remove the bolt and the VVT sensor.

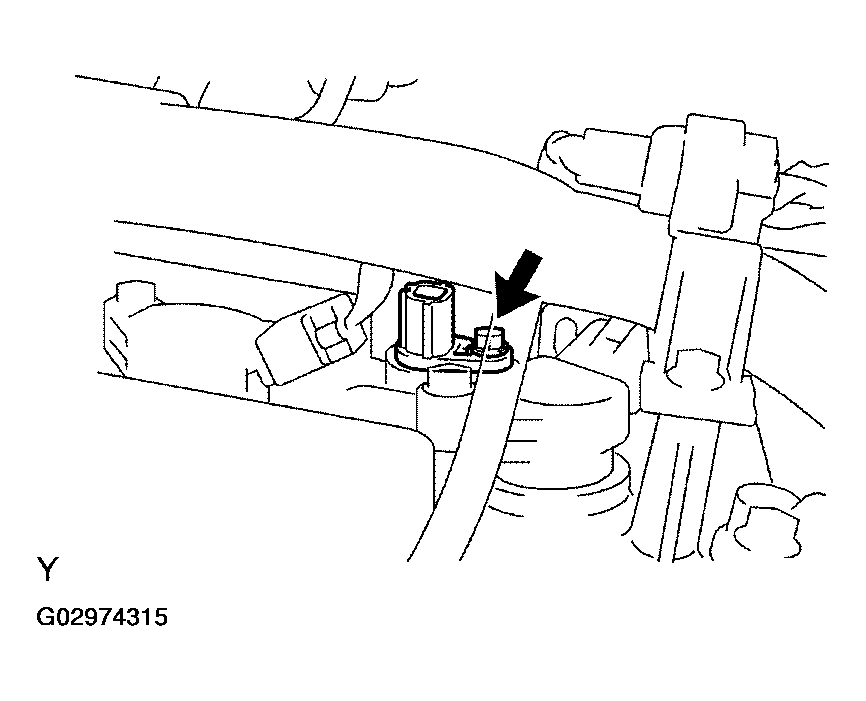

    Fig 4: Removing VVT Sensor (Intake Camshaft (Bank 2))
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VVT SENSOR
1. Intake camshaft (Bank 2).
  1. Install the sensor with the bolt.
    Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)
  2. Connect the VVT sensor connector.

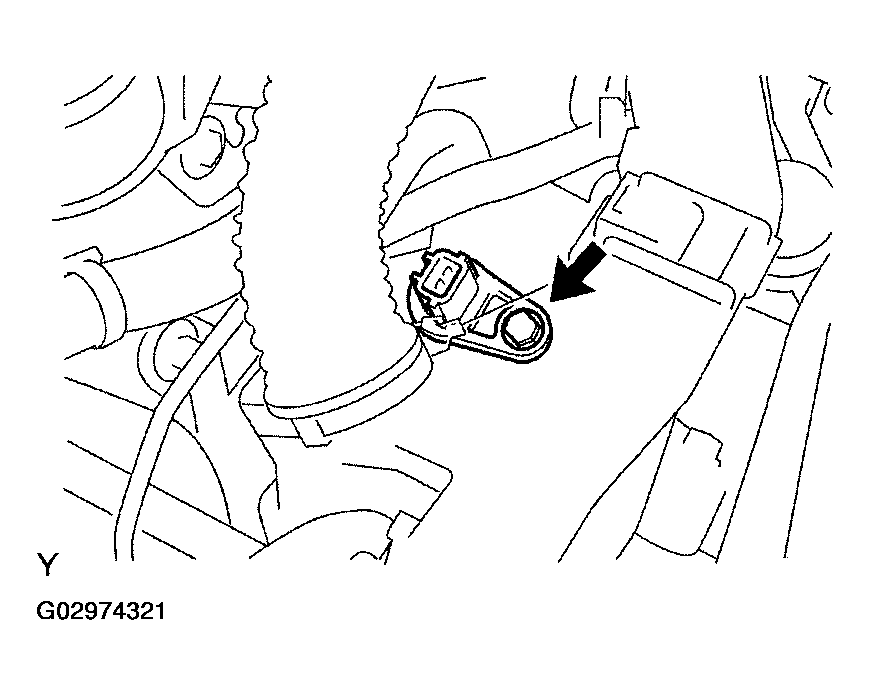

    Fig 5: Installing VVT Sensor (Intake Camshaft (Bank 2))
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Exhaust camshaft (Bank 2).
  1. Install the sensor with the bolt.
    Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)
  2. Connect the VVT sensor connector.

    Fig 6: Installing VVT Sensor (Exhaust Camshaft (Bank 2))
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Exhaust camshaft (Bank 1).
  1. Install the sensor with the bolt.
    Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)
  2. Connect the VVT sensor connector.
  3. Install the cowl top outside panel front (see REPLACEMENT ).
  4. Install the windshield wiper link assy (see REPLACEMENT ).

    Fig 7: Installing VVT Sensor (Exhaust Camshaft (Bank 1))
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Intake camshaft (Bank 1).
  1. Install the sensor with the bolt.
    Torque: 10 N.m (102 kgf.cm, 7 ft.lbf)
  2. Connect the VVT sensor connector.

    Fig 8: Installing VVT Sensor (Intake Camshaft (Bank 1))
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL V-BANK COVER SUB-ASSY (SEE REPLACEMENT )
