Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in the illustration.
  A : Vehicle Identification Number Plate

  B : Certification Label

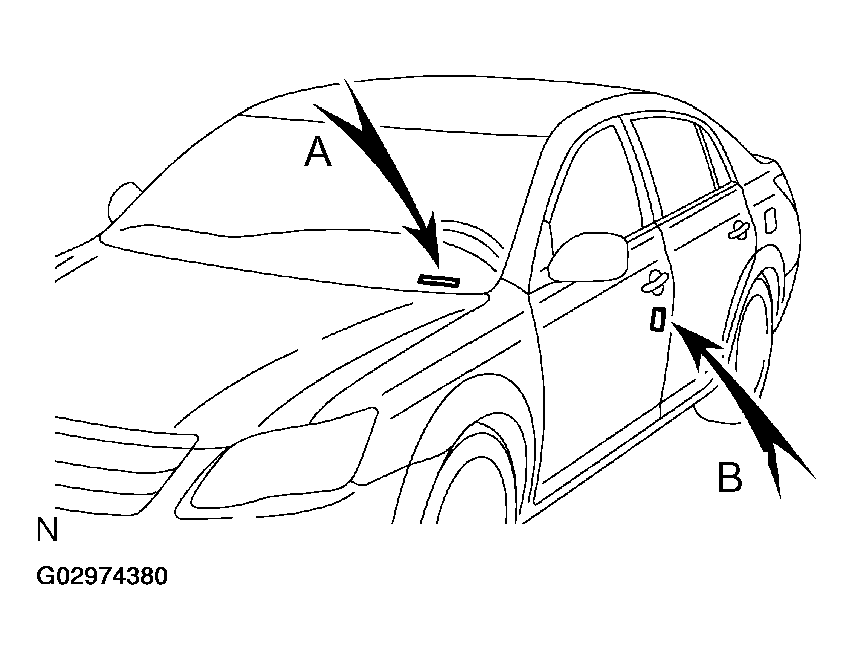

  Fig 1: Identifying Vehicle Identification Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER
1. The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in the illustration.
  A : Engine Serial Number

  B : Transmission Serial Number

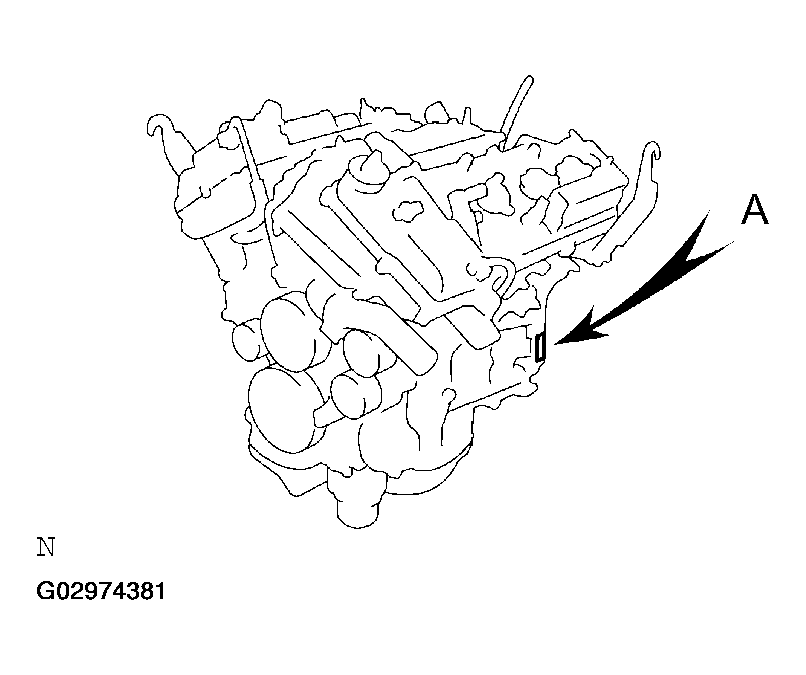

  Fig 2: Locating Engine Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

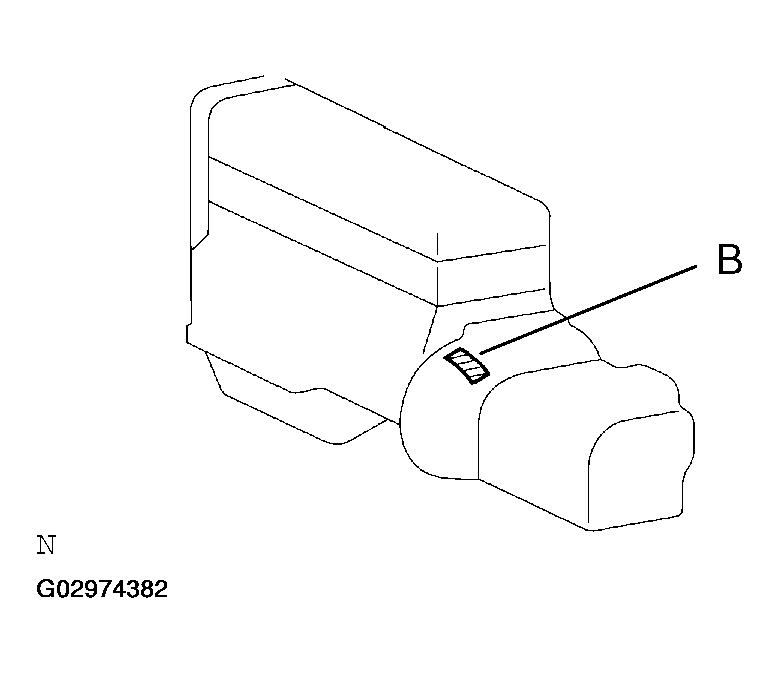

  Fig 3: Locating Transmission Serial Number
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
