Customize Parameters

HINT:

The following can be customized.

NOTE:
  • After confirming whether the items of the customer's request are applicable or not for the customized items, perform the customize operation.
  • Be sure to record the current value before customizing.
  • In case of performing the troubleshooting, pay attention as there is a possibility that the function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function" is displayed, check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)
  1. AIR CONDITIONING SYSTEM

    AIR CONDITIONER

    AIR CONDITIONER PARAMETERS

    DISPLAY(ITEM) DEFAULT CONTENTS SETTING
    SET TEMP SHIFT (Set Temperature Shift) NORMAL To control with the shifted temperature against the display temperature. +2C/+1C/NORMAL -1C / -2C
    AIR INLET MODE (Air Inlet Mode) AUTO In case of turning the A/C ON when you desire to make the compartment cool down quickly, this is the function to change the mode automatically to RECIRCULATED mode. MANUAL/AUTO
    COMPRESSOR MODE (Compressor Mode) AUTO Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF. MANUAL/AUTO
    COMPRS/DEFOPER (Compressor/Air Inlet DEF Operation) LINK Function to turn the A/C ON automatically linking with the FRONT DEF button when A/C OFF. NORMAL/LINK
    EVAP CTRL (Evaporator Control) AUTO Function to set the evaporator control to the AUTOMATIC position (AUTO) to save power or to the coldest position (MANUAL) to dehumidify the air and to prevent the windows fogging up. MANUAL/AUTO
    BUTTON PRS BUZ (Button Press Buzzer) ON Function to sound a buzzer when a button is pressed. OFF/ON
    FOOT/DEF MODE (Foot/DEF auto mode) ON Function to turn the air flow from FOOT/DEF ON automatically when AUTO MODE is ON. OFF/ON
    AUTO BLOW UP (Foot/DEF automatic blow up function) ON Function to switch the blower level automatically when the defroster is ON. OFF/ON
    AMBIENT TMPSFT (Ambient Temperature Shift) NORMAL To control with the shifted ambient temperature against the display ambient temperature. +3C / +2C / +1C /NORMAL / -1C/ -2C/ -3C
    FOOT AIR LEAK (Foot Air Leak) ON Function to cut off the airstream felt underfoot while the vehicle is moving. OFF/ON
  2. LIGHTING SYSTEM

    ILLUMINATED ENTRY

    LIGHTING SYSTEM PARAMETERS

    DISPLAY (ITEM) DEFAULT CONTENTS SETTING
    LIGHTING TIME (Lighting Time) 15s To change the lighting time after closing the door. (It will quickly fade out in case of turning the ignition on (IG).) 7.5 s/15 s/30 s
    ILLUMI SYSTEM (Operation of illumination) ON Function to turn on the step light, center console light and door inside handle light when one of the following occurs; the ignition turned on (IG), door unlock or door open. ON/OFF
    LIGHT CONTROL (Light control) ON Function to turn on the step light and door inside handle light when the ignition switch is turned on (IG) and the shift lever is not in the P position. ON/OFF
    I/L ON/UNLOCK (Interior light ON w/door key unlock) ON Function to turn on the interior light*, ignition light and step light when unlocking with the door key cylinder. *: Interior light comes on when the interior light switch is in the DOOR position. ON/OFF
    I/L ON/ACC OFF (Illumination system ON with ACC OFF) ON Function to turn on the interior light* and door courtesy light when the ignition switch is turned from on (ACC) to off. *: interior light comes on when the interior light switch is in the DOOR position. ON/OFF

    LIGHT CONTROL

    HINT:

    Sensitivity adjustment is dependent on the owner's preference. Actual driving by the owner is required.

    LIGHT CONTROL PARAMETERS

    DISPLAY (ITEM) DEFAULT CONTENTS SETTING
    LIGHT OFF DELAY (Light Auto OFF Delay) 30 s Function to keep the headlight on for a certain period of time after closing all the doors when turning the ignition switch on (IG) under the condition that the light control switch is in the HEAD or AUTO position with the headlight ON. OFF / 30 s / 60 s / 90 s
    LIGHT CTRL TYPE (Control Type) CURRENT To change the control logic when the light control switch is in the AUTO position. Refer to the LIGHTING BRIGHTNESS PARAMETERS . CURRENT/OLD
    SENSITIVITY (Turn ON luminous intensity) NORMAL To adjust the sensitivity of the lighting illumination. Refer to the Fig 1. DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2
    DISP EX ON SEN (Display Extinction Luminous Intensity) NORMAL To dim the lights such as the indicator light of the combination meter, A/C indicator light, and clock. Refer to Fig 2. DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2
    DISP EX OFF SEN (Display Extinction Release Luminous Intensity) NORMAL To cancel to dim the lights such as the indicator light of the combination meter, A/C indicator light, and clock. Refer to Fig 3. DARK2 / DARK1 / NORMAL / LIGHT1 / LIGHT2

    TABLE 1

    LIGHTING BRIGHTNESS PARAMETERS

    - Brightness of the surrounding when lighting Lighting delay Delay of turning light off (2)
    OLD Old logic 6 sec. 6 sec. 3 sec.
    CURRENT New logic (1) ('97/8-) 15 sec. 15 sec. 15 sec.
    (1) The new system has the ability to light up two times brighter than the old system.
    (2) Delay time until the headlight is turned on when the outside suddenly gets dark.

    Illustration 1

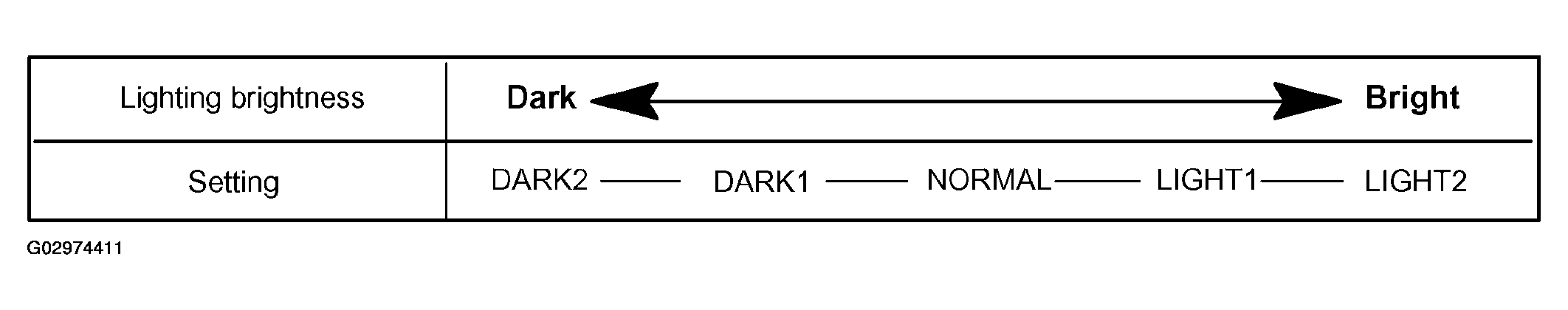

    Fig 1: Lighting Brightness Illustration 1
    G02974411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

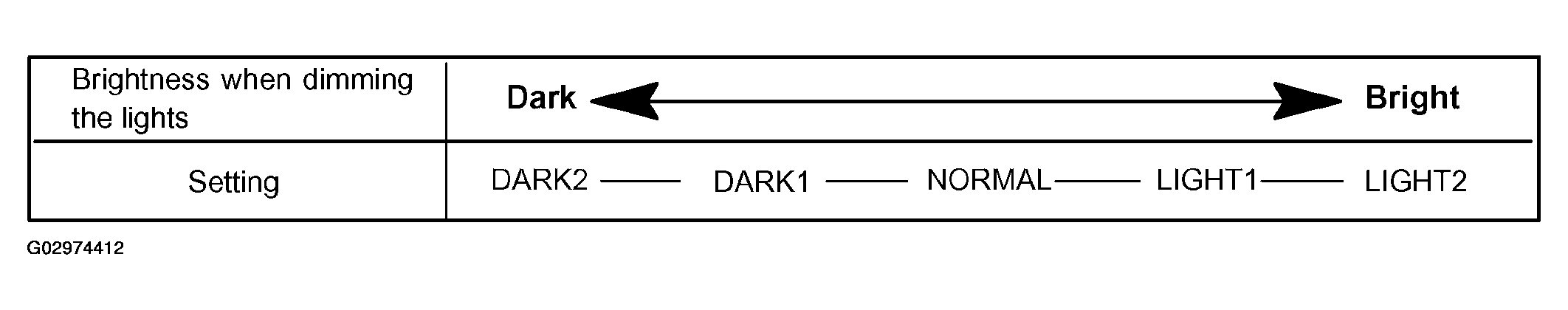

    Fig 2: Lighting Brightness Illustration 2
    G02974412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

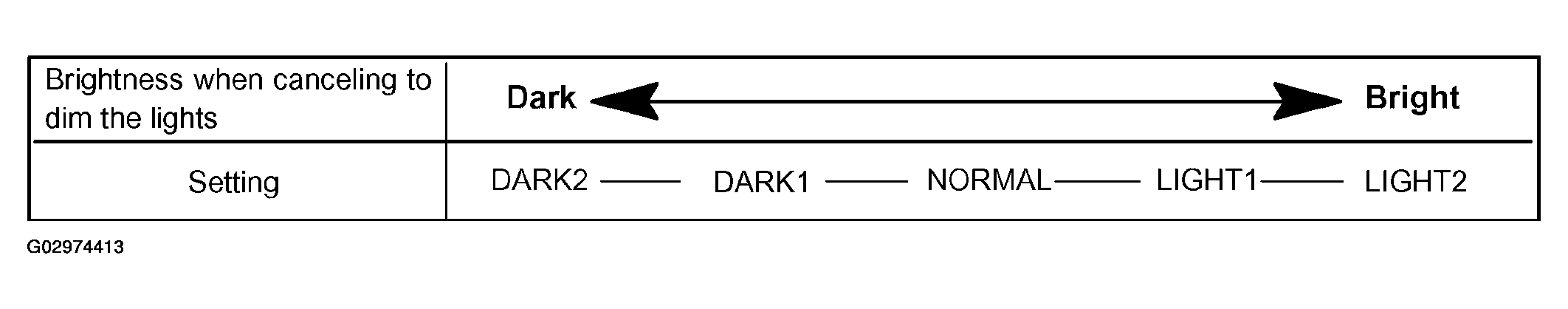

    Fig 3: Lighting Brightness Illustration 3
    G02974413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. WIPER AND WASHER SYSTEM

    WIPER

    WIPER AND WASHER SYSTEM PARAMETERS

    DISPLAY(ITEM) DEFAULT CONTENTS SETTING
    AUTO WIPE (Auto wipe) AVAIL Function to operate the wiper automatically when it is raining. NOT AVAIL/AVAIL
    REWIPE CONTROL (Rewipe Control) SPD MOD Function to change the time between end of the washer motor operation and start of wiper operation, to prevent streaking from washer fluid. OFF/3s/SPD MOD
    SPEED MODE (Speed Mode) AVAIL Function to change to the intermittent operation mode when the vehicle comes to a stop (0 vehicle speed) from a driving condition where the wiper switch is in the LO position. NOT AVAIL/AVAIL
  4. COMBINATION METER

    WARNING BUZZER:

    COMBINATION METER PARAMETERS

    DISPLAY (ITEM) DEFAULT CONTENTS SETTING
    KEY REMND VOLUM LARGE Function to change volume of key remind warning buzzer. Big / Middle / Small
    KEY REMND SOUND 900 ms Function to change cycle of key remind warning buzzer. 600 ms/ 900 ms/1,200 ms
  5. POWER DOOR LOCK CONTROL SYSTEM
    POWER DOOR LOCK CONTROL SYSTEM PARAMETERS

    Display (Item) Default Contents Setting
    Auto Lock OFF Function that locks the doors once when the vehicle speed reaches a certain level. ON/OFF
    Unlk/Key Twice ON Function that unlocks only driver side door when driver side door key cylinder is turned to unlock once and unlocks all the doors when it is turned to unlock twice. In OFF setting, turning it once unlocks all doors. ON/OFF
    All Unlk/Opn-Cl   ON ON/OFF
    Unlock/Park OFF Function that unlocks doors when lever is shifted to P position from any position other than P while the ignition switch is ON. ON/OFF
  6. WIRELESS DOOR LOCK CONTROL SYSTEM
    WIRELESS DOOR LOCK CONTROL SYSTEM PARAMETERS

    Display (item) Default Function Setting
    OPEN DOOR WARN (Open door warning) ON If any door is not completely closed and transmitter lock switch is pressed, this function sounds buzzer for 10 seconds. ON/OFF
    WIRELESS OPER (Wireless door lock control function) ON Function that turns wireless door lock function ON/OFF. ON/OFF
    ALARM FUNCTION ((1)) (Panic function) ON Function that operates theft deterrent system when transmitter panic switch on transmitter is pressed and held for 2.5 seconds. ON/OFF
    UNLOCK/2OPER (Wireless unlock operated twice) ON Function that unlocks driver side door when unlock switch on transmitter is pressed once, and unlocks all doors when pressed twice. If setting is OFF, pressing unlock switch once makes all doors unlock. ON/OFF
    AUTO LOCK DELAY (Auto lock time) 30 s This function regulates the interval between unlocking and automatic relocking of doors. 30 s/60 s
    WIRLS BUZZ RESP (Buzzer answer-back for wireless door lock control) ON Function that sounds wireless door lock buzzer for answer-back when lock/unlock switch on transmitter is pressed. ON/OFF
    HAZARD ANS BACK (Hazard answer-back for wireless door lock control) ON When lock switch on transmitter is pressed, this function blinks all hazard warning lights once. When unlock switch is pressed, all hazard warning lights blink twice. ON/OFF
    TRUNK LID OPER (Wireless trunk opener function setting) 3.8 s PR Changes operation method of transmitter to open trunk. 1 TIME/2 TIMES/0.8 s PR/OFF
    (1) (*1): This function cannot be turned on or off if the security system is turned off.
  7. SMART KEY SYSTEM

    WIRELESS DOOR LOCK

    WIRELESS DOOR LOCK PARAMETERS

    Display (Item) Default Contents Setting
    OPEN DOOR WARN (Open door warning) ON Function to make the buzzer sound for 10 seconds if the door is open when locking with the wireless door lock function. ON/OFF
    WIRELESS OPER (Wireless door lock control function) ON ON/OFF of the wireless door lock function. ON/OFF
    ALARM FUNCTION ((1)) (Panic function) ON Function to operate the theft deterrent system by keeping pressing the lock button of the transmitter for 2.5 seconds. If there is a panic button, press the panic button instead of the lock button. ON/OFF
    UNLOCK/2 OPER (2 times operation wireless unlock) ON Function to unlock the driver's door by pressing the unlock button of the transmitter once and to unlock all the doors by pressing it twice. In the OFF setting, pressing one time makes all the doors unlocked. ON/OFF
    LUGGAGE COMPARTMENT LID OPER (Trunk lid open function type) 0.8 s PR To change the operation method of opening the luggage compartment by the transmitter. 1 TIME/ 2 TIMES/ 0.8 s PR/OFF
    AUTO LOCK DELAY (Auto lock time) 30 s To change the time until re-locking after unlocking with the wireless door lock function. 60 s/30 s
    HAZARD AND BACK (Hazard answer back of the wireless) ON Function to light up the all turn signal lights once when pressing the transmitter lock button and twice when pressing the unlock button. ON/OFF
    WIRLS BUZZ RESP (Wireless buzzer response) ON ON/OFF of the wireless buzzer response function. ON/OFF
    (1) w/Theft deterrent system

    WARNING (COMBINATION METER)

    WARNING (COMBINATION METER) PARAMETERS

    Display (Item) Default Contents Setting
    SMART WARN3 (Warn a key is taken out by fellow passengers) ON Function to warn that a key is taken out by fellow passengers (it means the key is taken out from except the driver's door) when ignition is not OFF. ON/OFF
    KEY LOW-BATT WRN (Warn when the key battery becomes weak) ON Setting a warning function for the first time when a key battery becomes weak. ON/OFF
    KEY REMND VOLUM (Key reminder buzzer volume) LARGE To change the volume of the key reminder buzzer. LARGE/MEDIUM/SMALL
    KEY REMND SOUND (Key reminder buzzer sound) NORMAL To change the frequency of the key reminder buzzer. NORMAL/FAST/SLOW/0 s

    SMART SYSTEM

    SMART PARAMETERS

    Display (Item) Default Contents Setting
    SMART IGNITION (SMART ignition available area) ALL Function to choose the available area for smart key to start E/G and cancel the Steering Lock. FRONT/ALL
    PARK WAIT TIME (Wait time to permit opening door after locking) 2.5 s Setting a wait time to permit opening a door after it being locked with SMART entry. 0.5s/1.5s/2.5s/5s
    SMARTTRUNK (Luggage compartment opening operation when vehicle is locked) ON Function to open a luggage compartment when the driver has the key and press the luggage open button. ON/OFF
    KEY LOW-BATT WRN ON Function to set a warning function for the time when a key battery becomes weak. ON/OFF
  8. THEFT DETERRENT SYSTEM

    THEFT DETERRENT SYSTEM

    THEFT DETERRENT SYSTEM PARAMETERS

    DISPLAY (ITEM) DEFAULT CONTENTS SETTING
    PASSIVE MODE OFF For vehicles with the smart key system, PASSIVE MODE is the function that sets the theft deterrent system 30 seconds after the driver's door is closed from the open condition with the key removed from the ignition key cylinder. For vehicles without the smart key system, PASSIVE MODE is the function that sets the theft deterrent system 30 seconds after the driver's door is closed from the open condition with the ignition switch turned from on (IG) to off. ON/OFF
    WARN BY GLS SEN ON Function that turns the glass break sensor on/off. This function is only effective for vehicles with glass break sensors. ON/OFF
    ENTRY DELAY 14s Function that changes the entry delay time (period before starting the warning) for the passive mode. 0s/14s/30s
    WARNING BY HORN ON Function to make the horn warning available. ON/OFF
