Crankshaft Position Sensor (1MZ-FE/3MZ-FE): Replacement

HINT:

A bolt without torque specification is a standard bolt (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

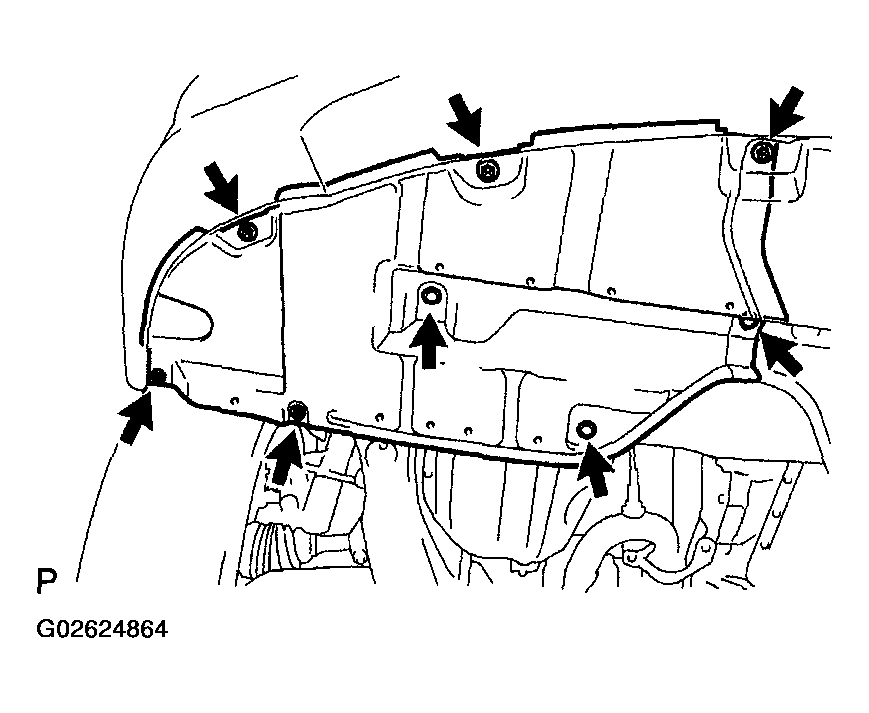

1. REMOVE ENGINE UNDER COVER RH
   1. Remove the 5 screws, 3 clips and the under cover.
      Fig 1: Removing Engine Under Cover (RH)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

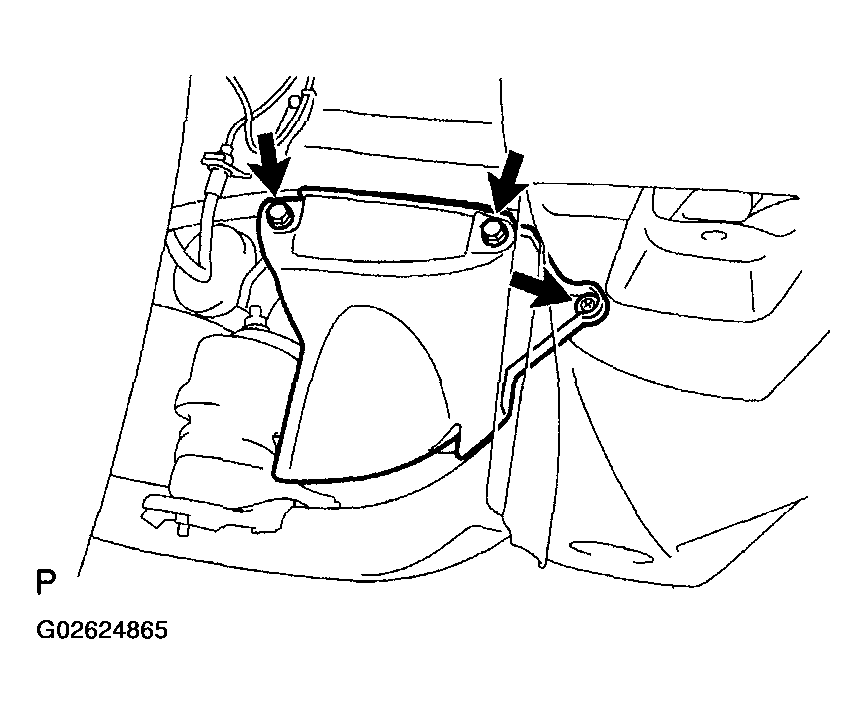

2. REMOVE FRONT FENDER APRON SEAL RH
   1. Remove the clip, 2 bolts and apron seal.
      Fig 2: Removing Front Fender Apron Seal (RH)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

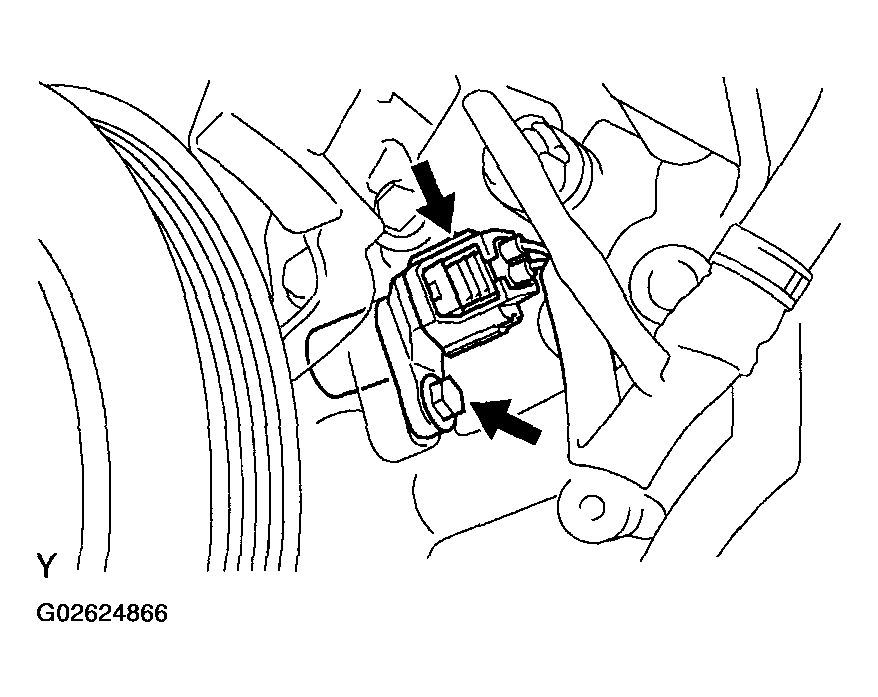

3. REMOVE CRANKSHAFT POSITION SENSOR
   1. Disconnect the sensor connector.
   2. Remove the bolt and sensor.
      Fig 3: Removing Crankshaft Position Sensor

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL CRANKSHAFT POSITION SENSOR

   Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

5. INSTALL FRONT FENDER APRON SEAL RH
6. INSTALL ENGINE UNDER COVER RH
