Engine Mechanical: Preparation

SST

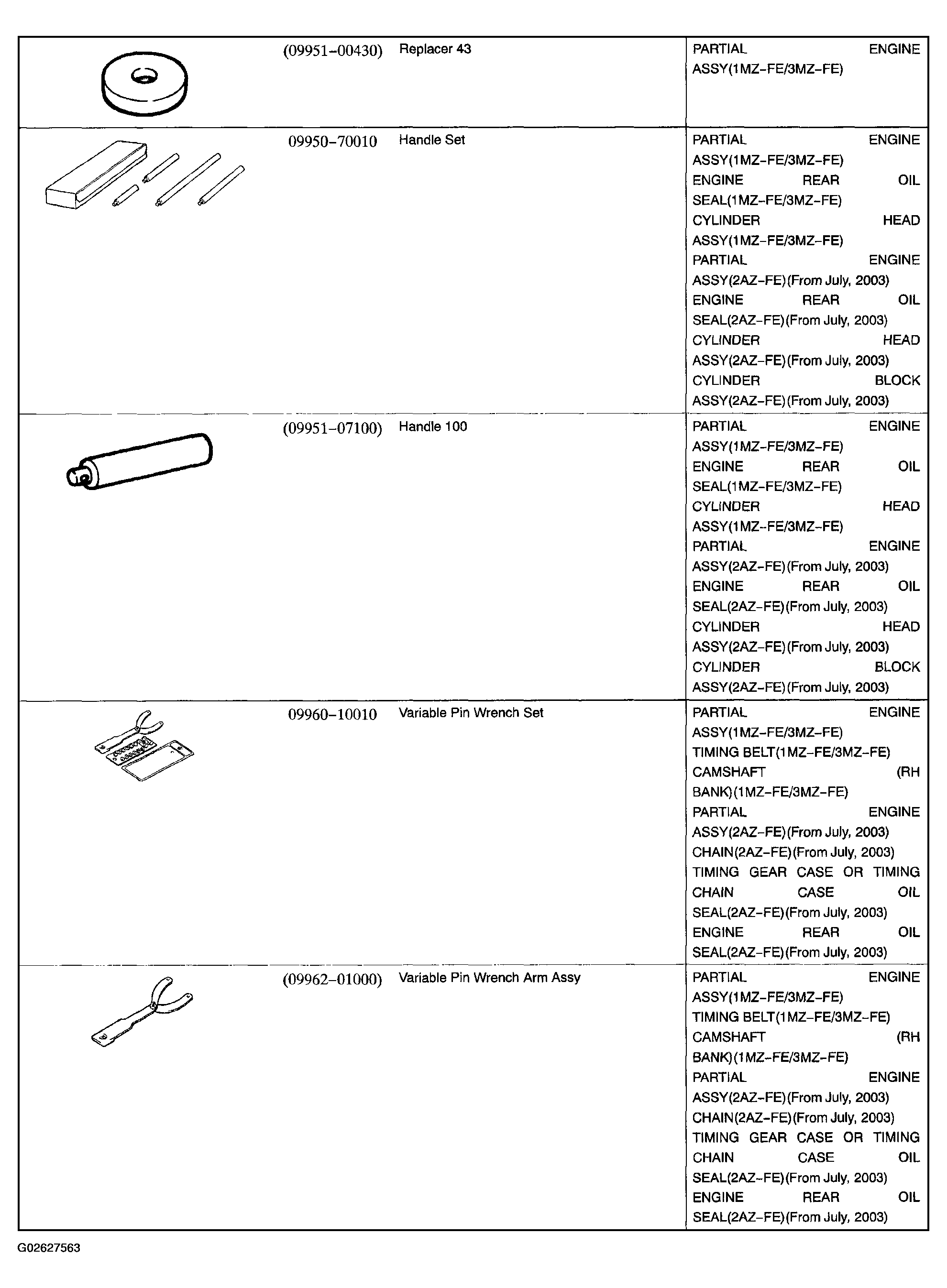

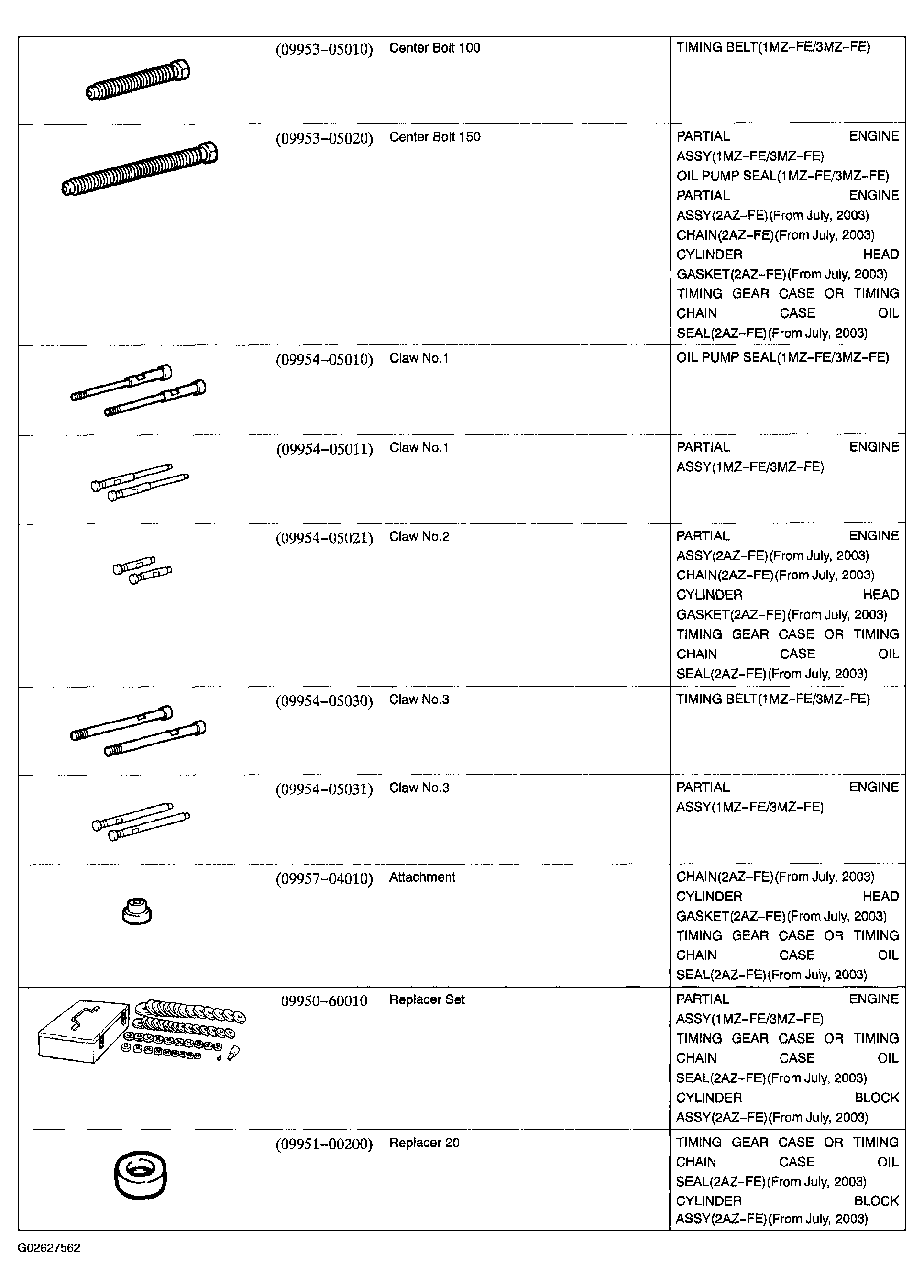

Fig 1: Engine Mechanical Special Tool Description Chart (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

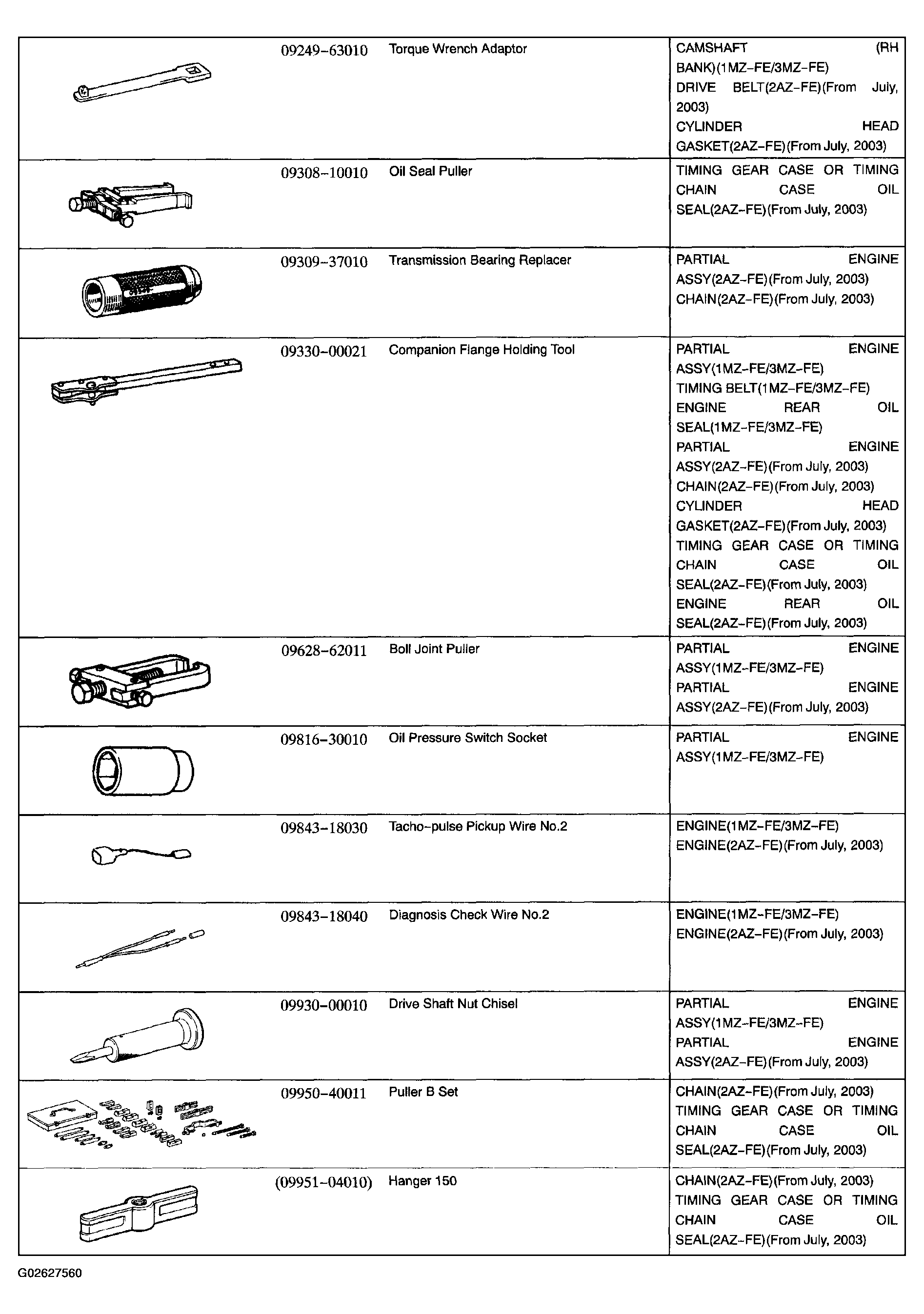

Fig 2: Engine Mechanical Special Tool Description Chart (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

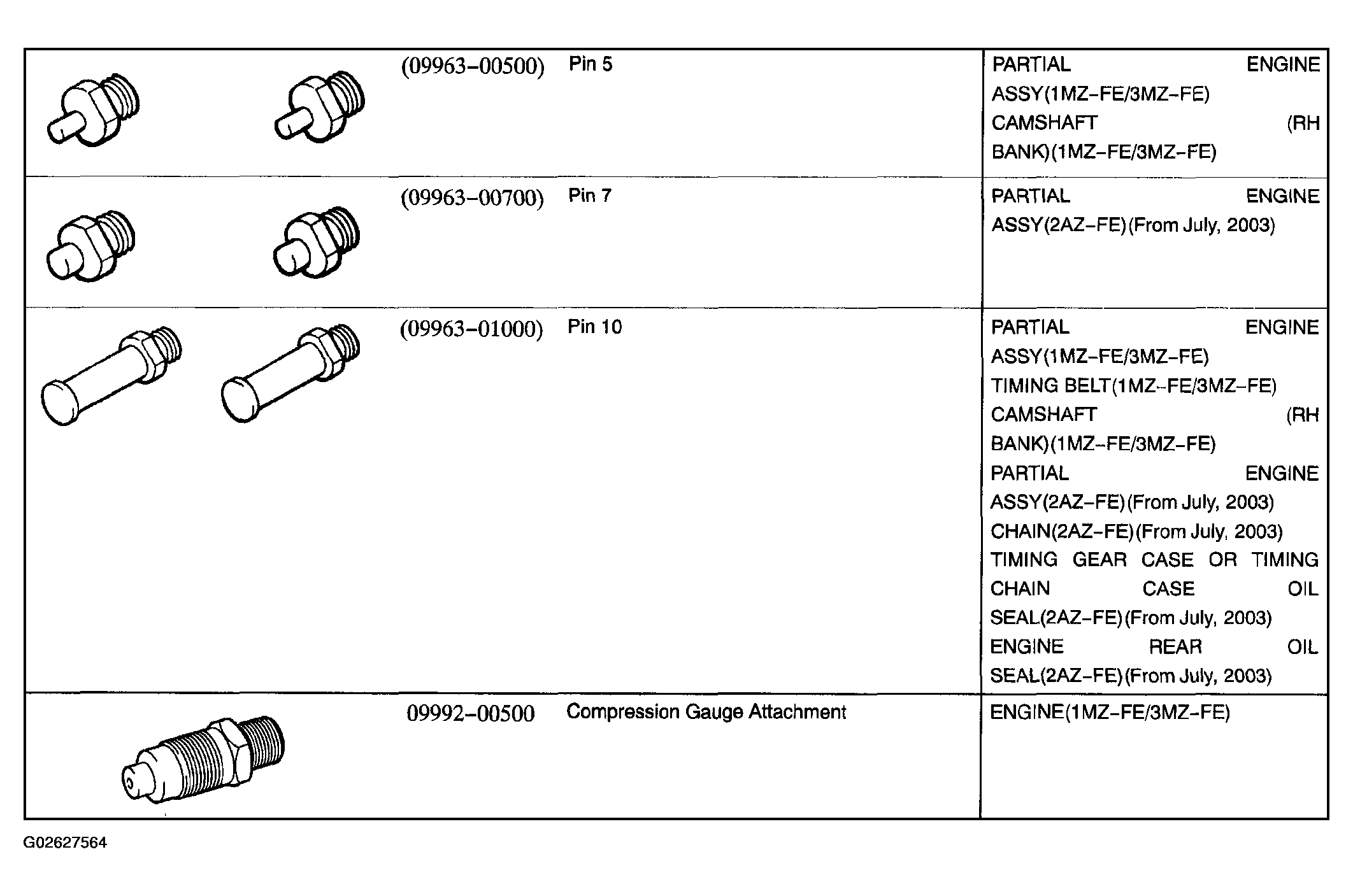

Fig 3: Engine Mechanical Special Tool Description Chart (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

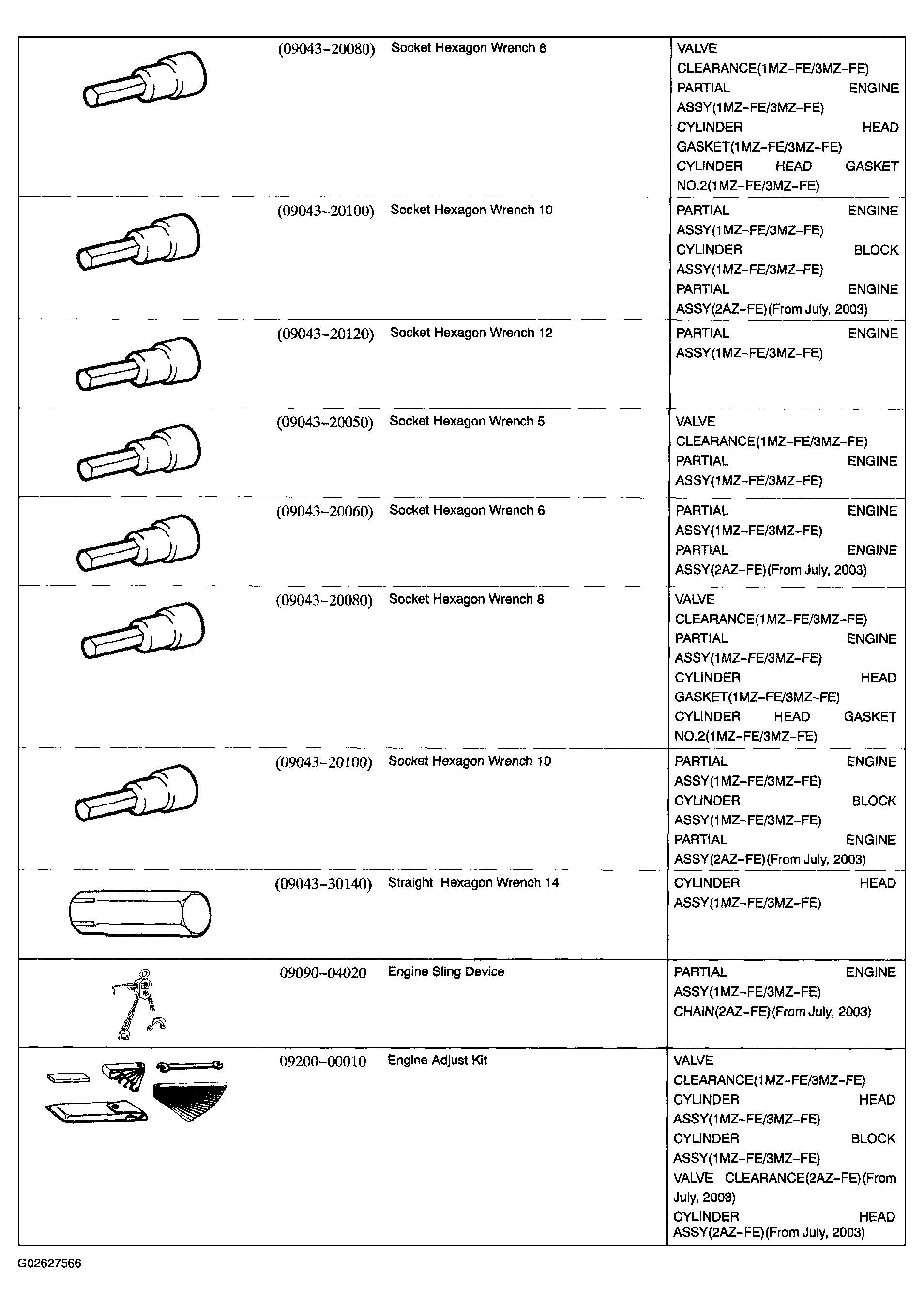

Fig 4: Engine Mechanical Special Tool Description Chart (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

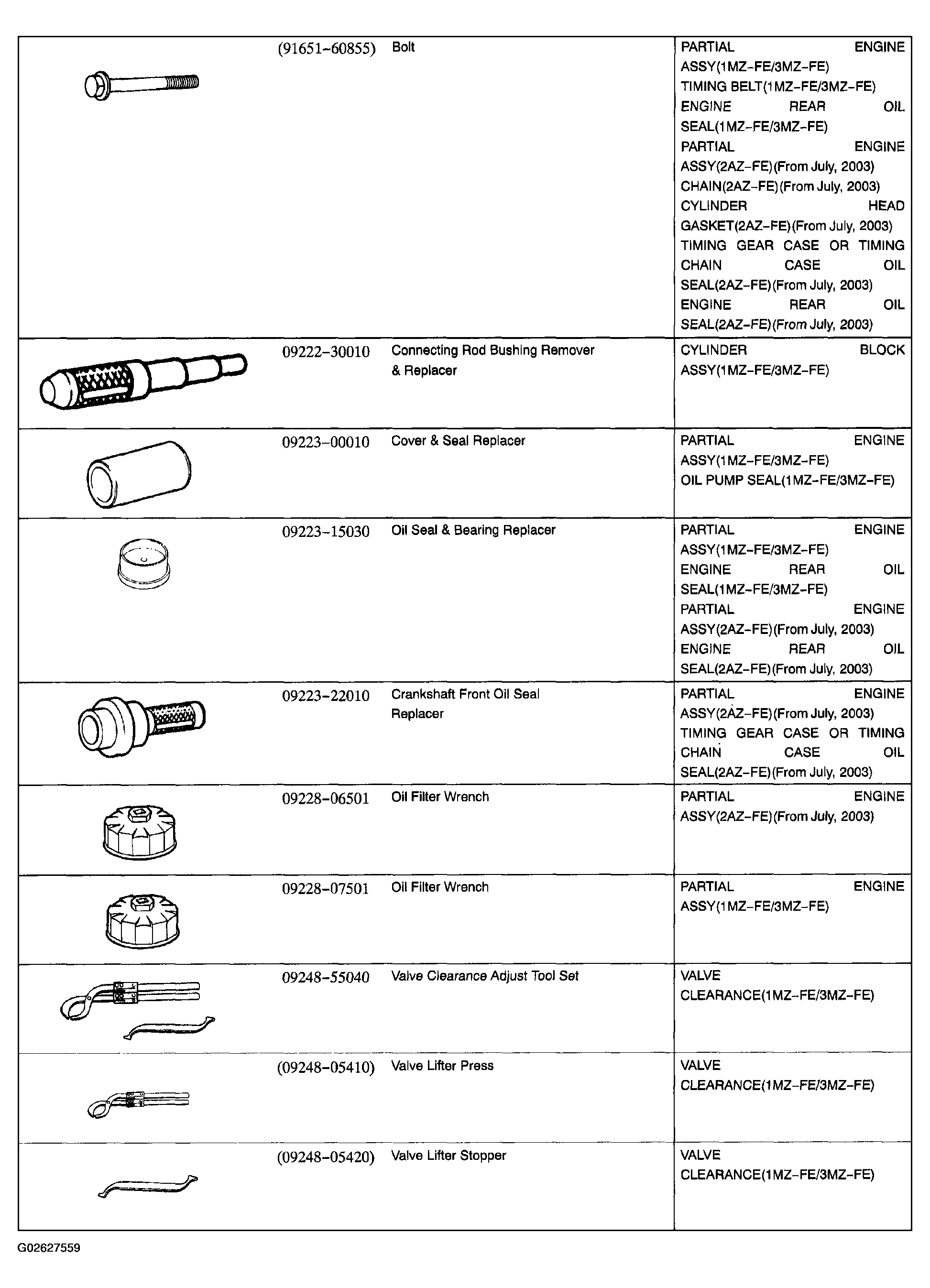

Fig 5: Engine Mechanical Special Tool Description Chart (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

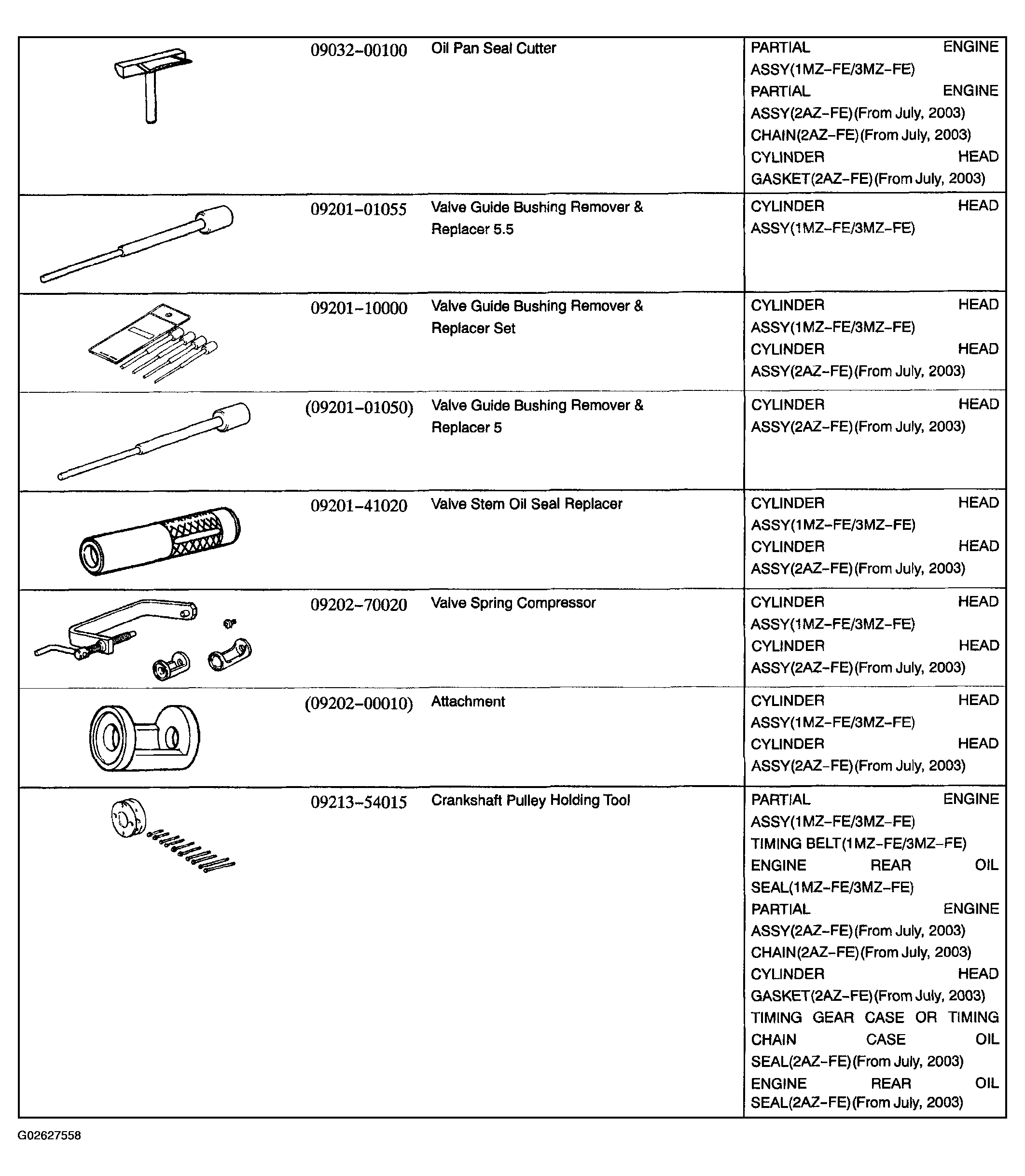

Fig 6: Engine Mechanical Special Tool Description Chart (6 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

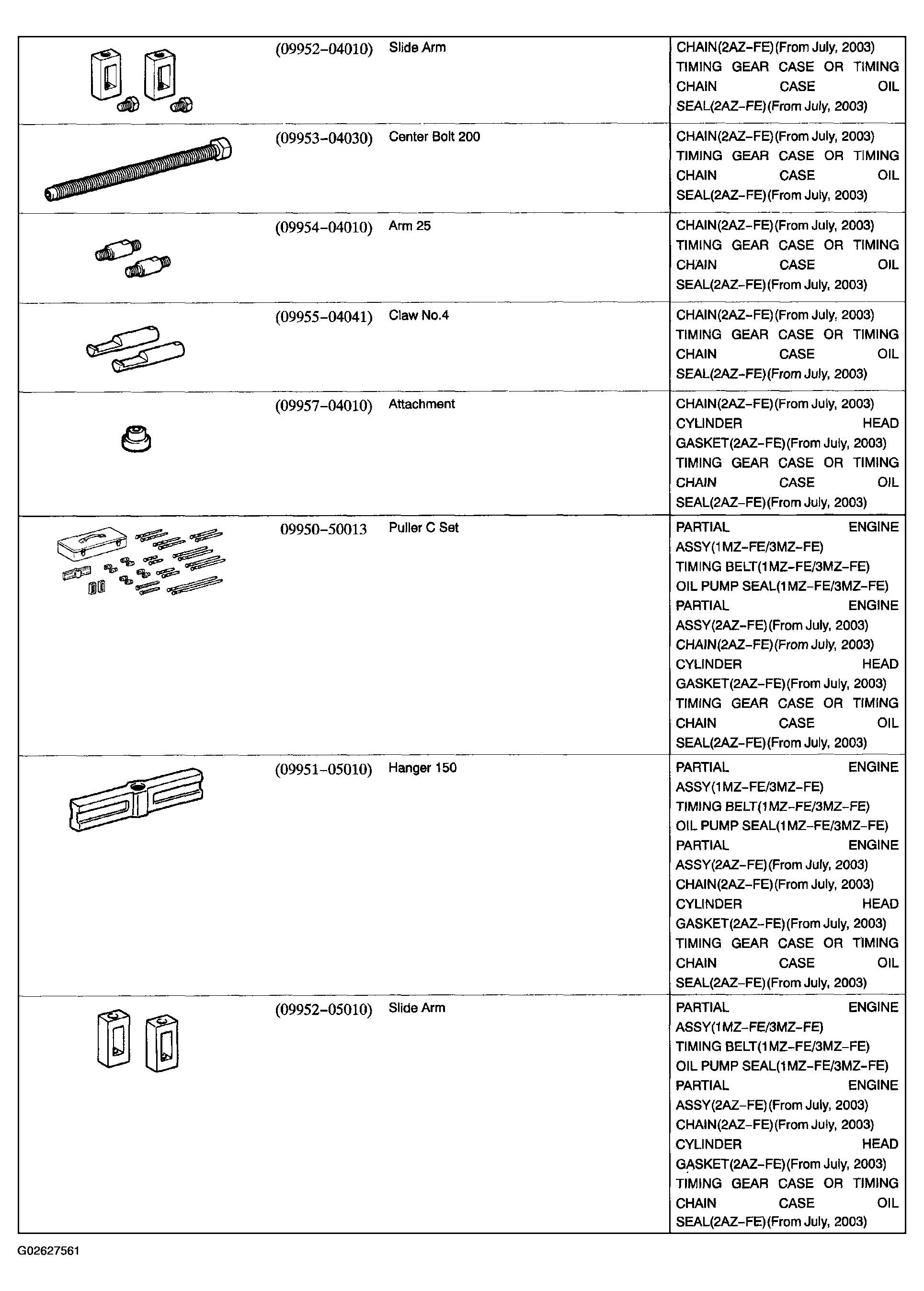

Fig 7: Engine Mechanical Special Tool Description Chart (7 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

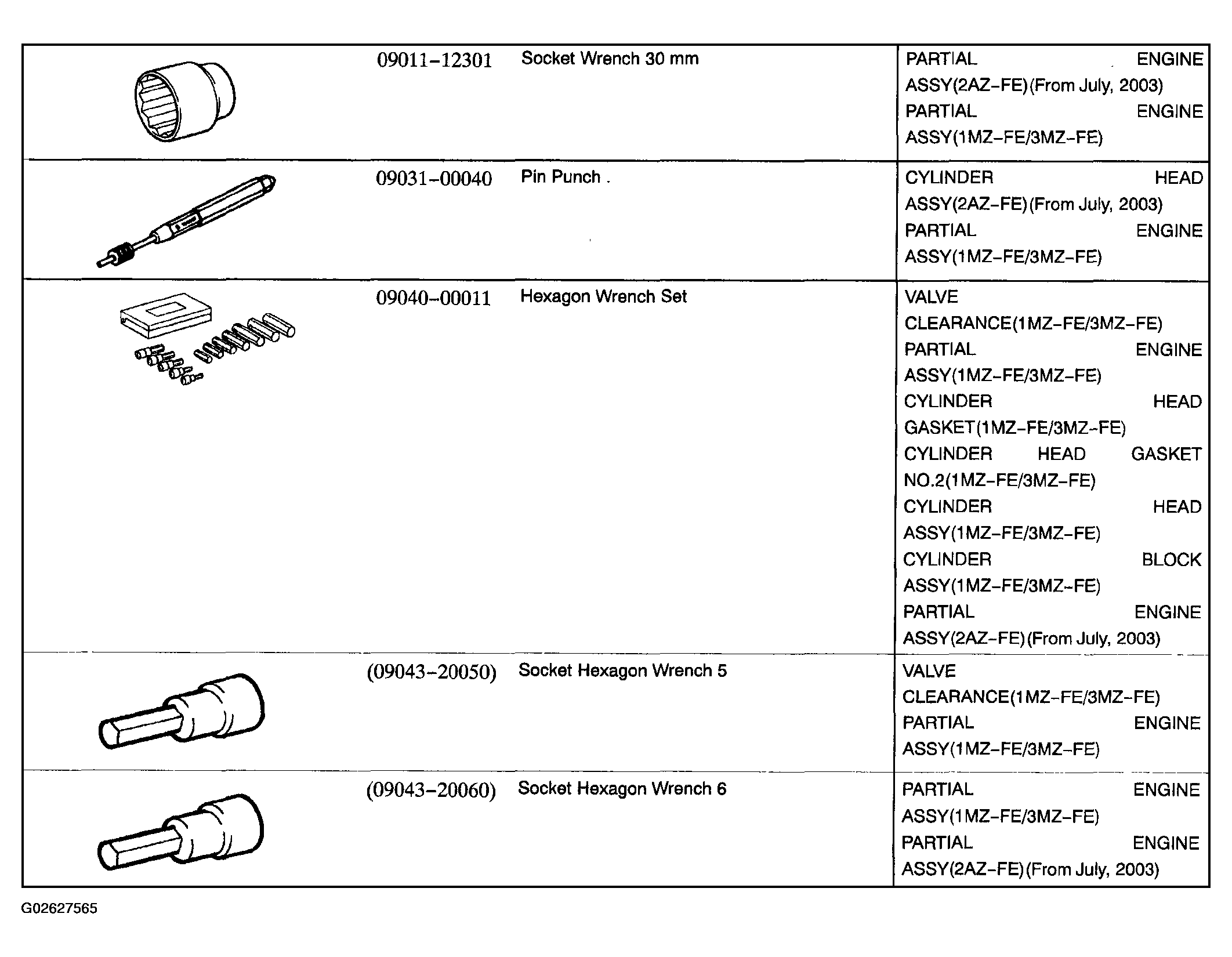

Fig 8: Engine Mechanical Recommended Tools Chart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Mechanical Recommended Tools Chart (2 Of 3)

Fig 10: Engine Mechanical Recommended Tools Chart (3 Of 3)

Equipment

ENGINE MECHANICAL EQUIPMENT DESCRIPTION

Abrasive compound	Valve
Brush	Piston
Caliper gauge
Carbide cutter
CO/HC meter
Compression gauge
Connecting rod aligner
Cylinder gauge
Dial indicator Dye penetrant
Engine tune-up tester
Groove cleaning tool	Piston ring groove
Heater
Hexagon wrench (1.5 mm)	Timing belt tensioner
Micrometer
Pin hole grinder	Connecting rod bushing
Piston ring compressor
Piston ring expander
Plastigage
Precision straight edge
Press
Reamer	Cylinder
Ridge reamer	Cylinder
Soft brush	Cylinder head Cylinder block
Solvent
Spring tester	Valve spring
Steel square	Valve spring
Thermometer
Torque wrench
Valve seat cutter
Valve guide bushing brush
V-block
Vernier caliper
Wire brush	Valve Cylinder head

SSM

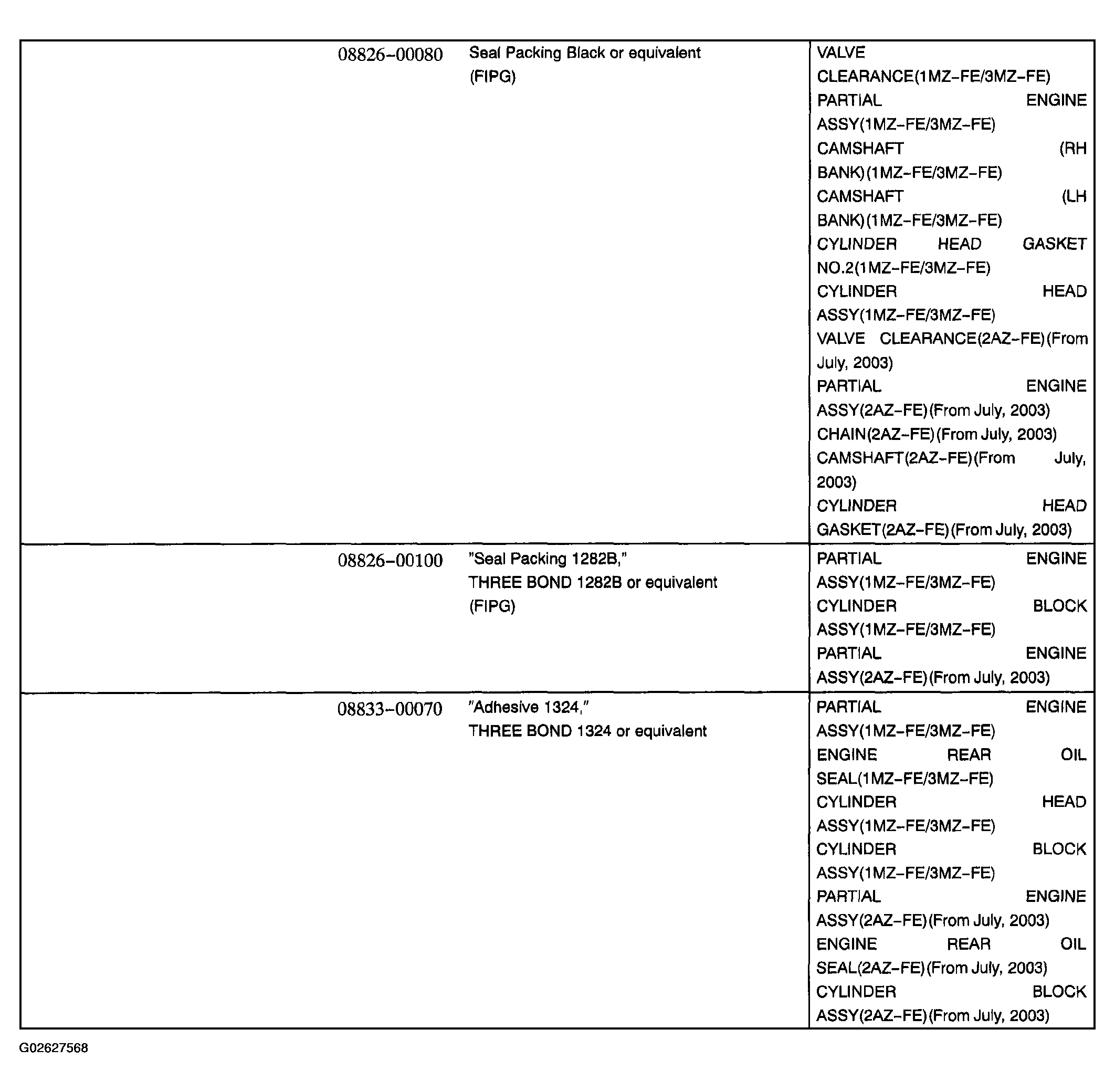

Fig 11: Engine Mechanical SSM Tool No Description
