Power Steering: Preparation

SST

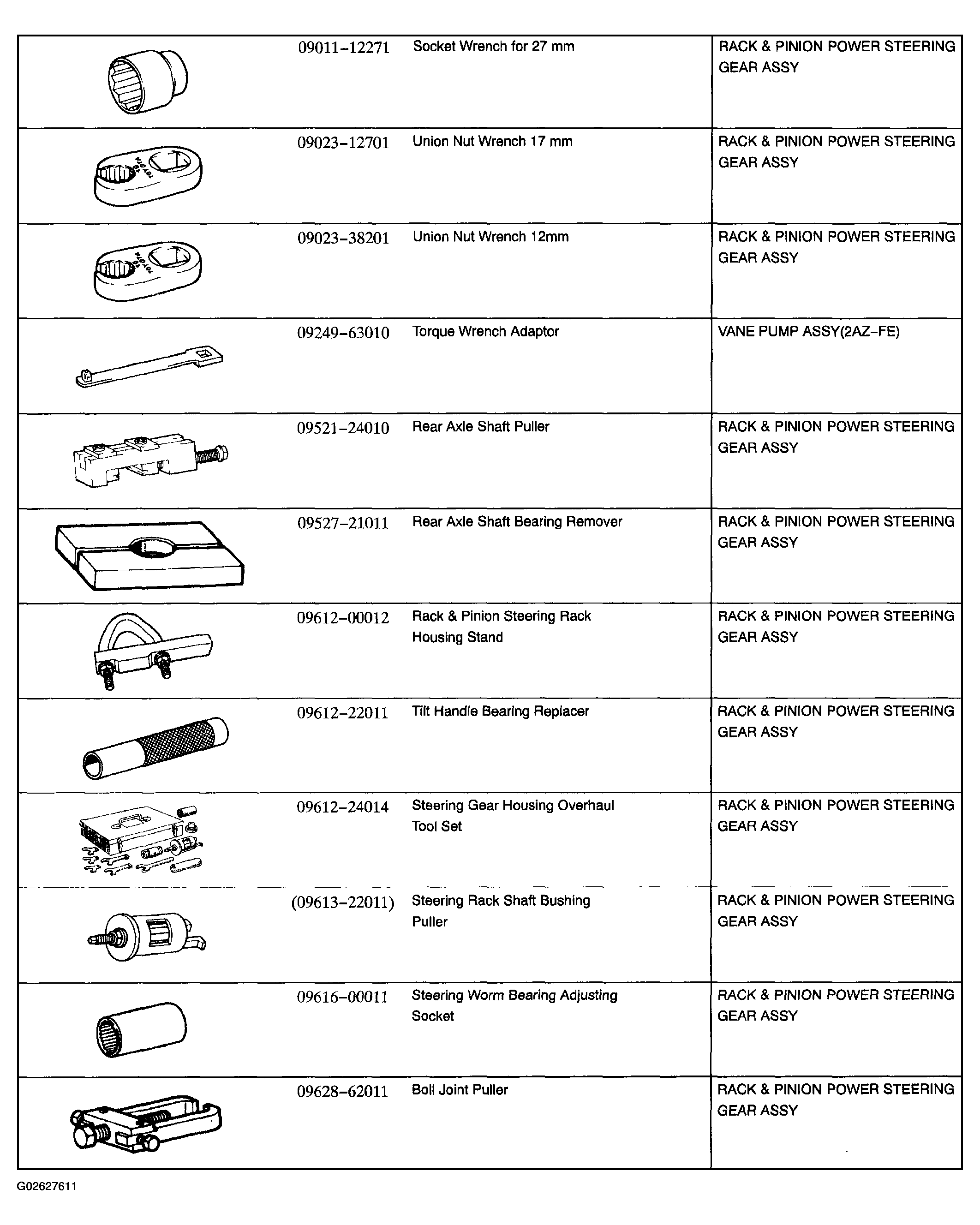

Fig 1: Power Steering Special Tool Description Chart (1 Of 4)
G02627611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

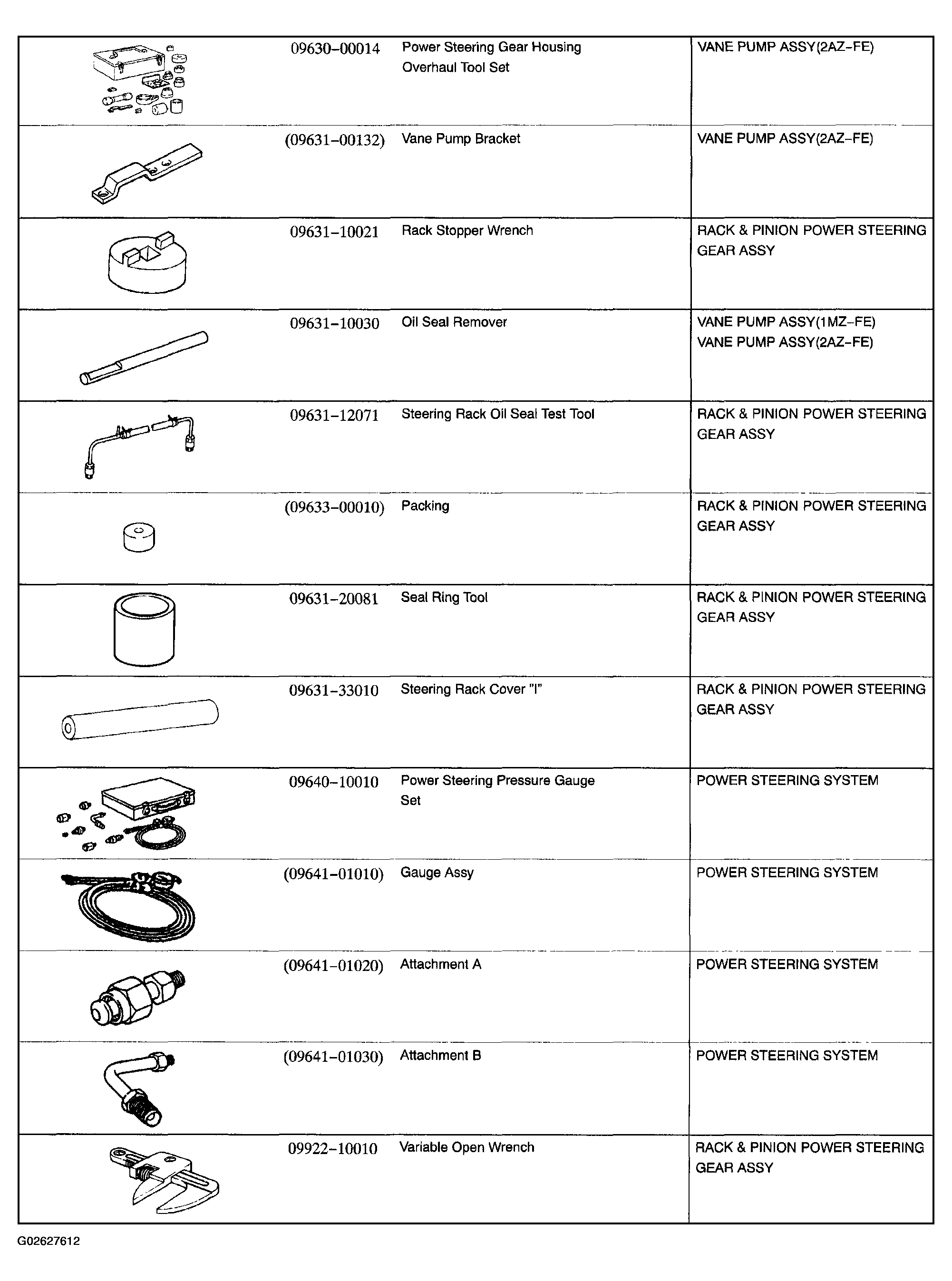

Fig 2: Power Steering Special Tool Description Chart (2 Of 4)
G02627612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Power Steering Special Tool Description Chart (3 Of 4)
G02627613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

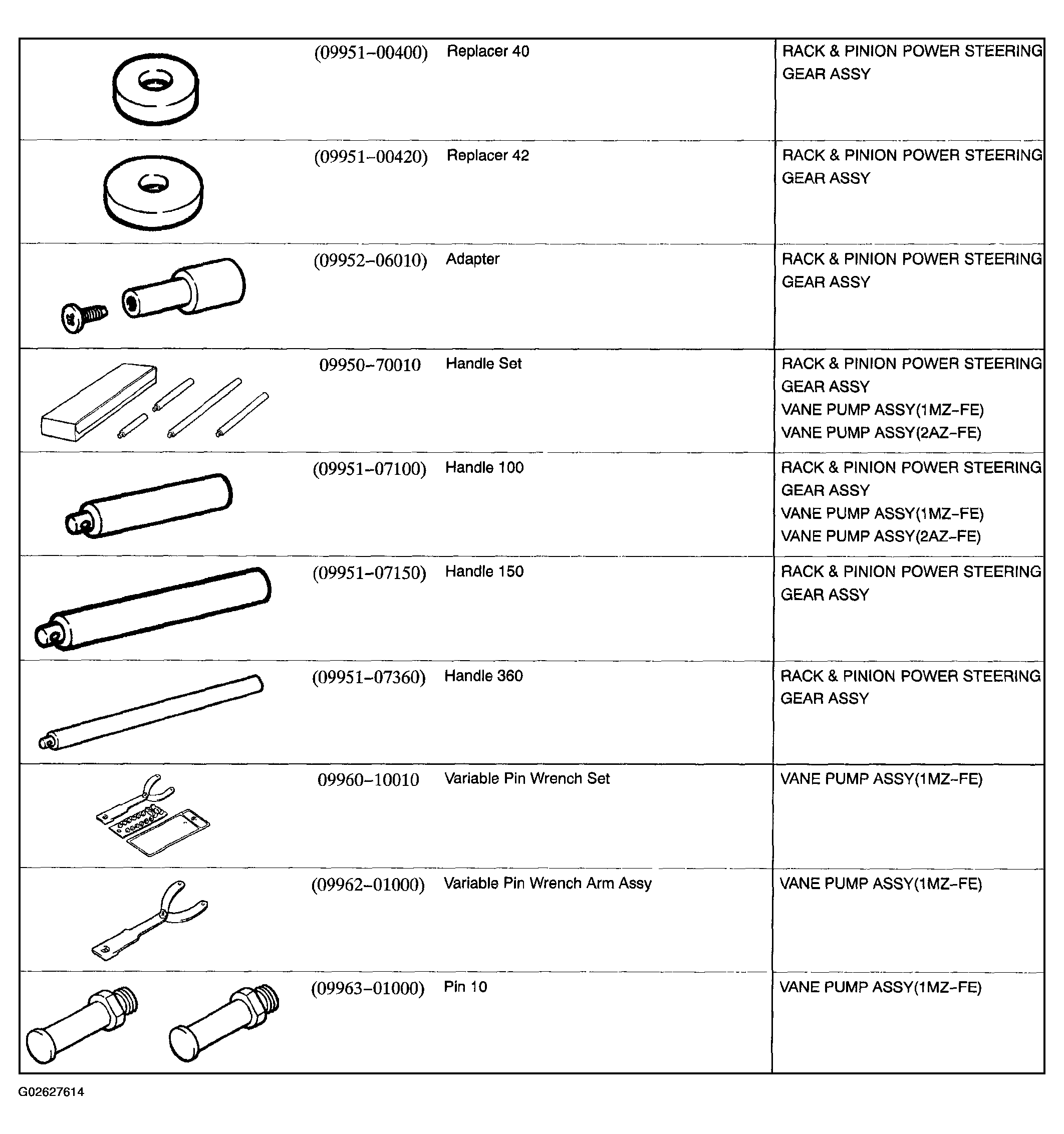

Fig 4: Power Steering Special Tool Description Chart (4 Of 4)
G02627614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

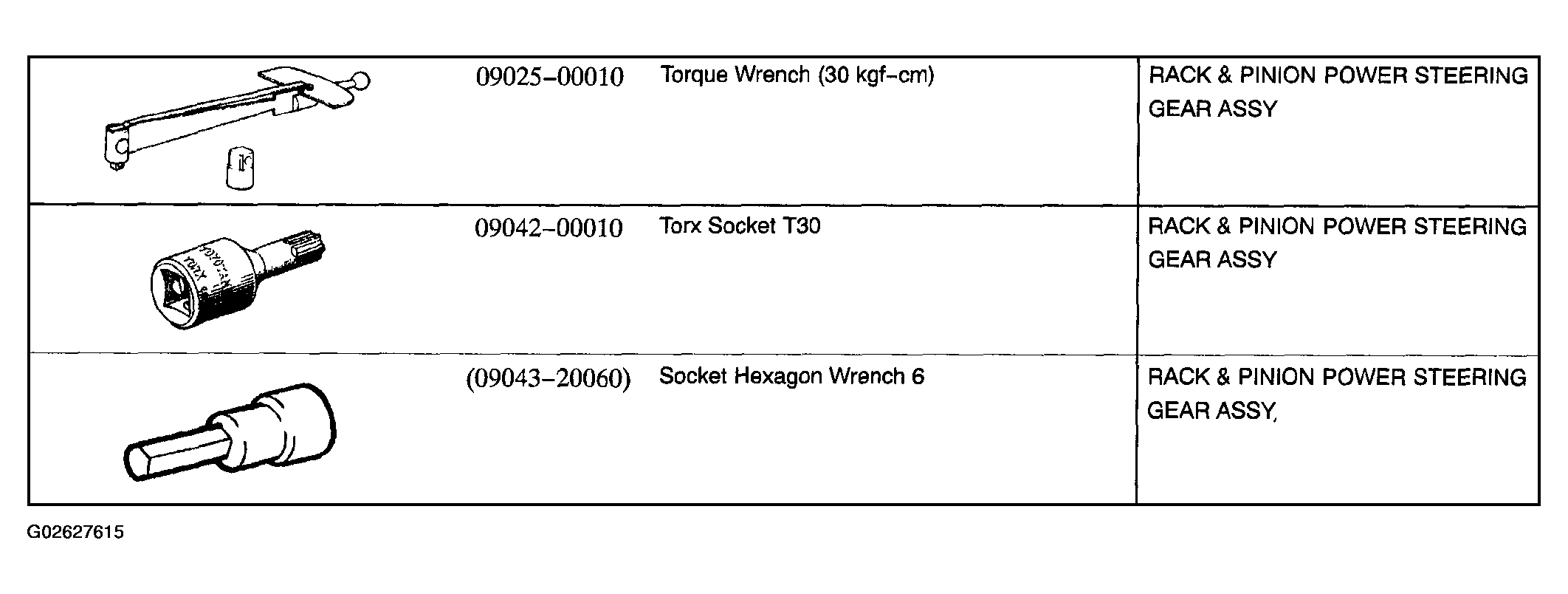

Fig 5: Power Steering Recommended Tools Chart (1 Of 2)
G02627615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

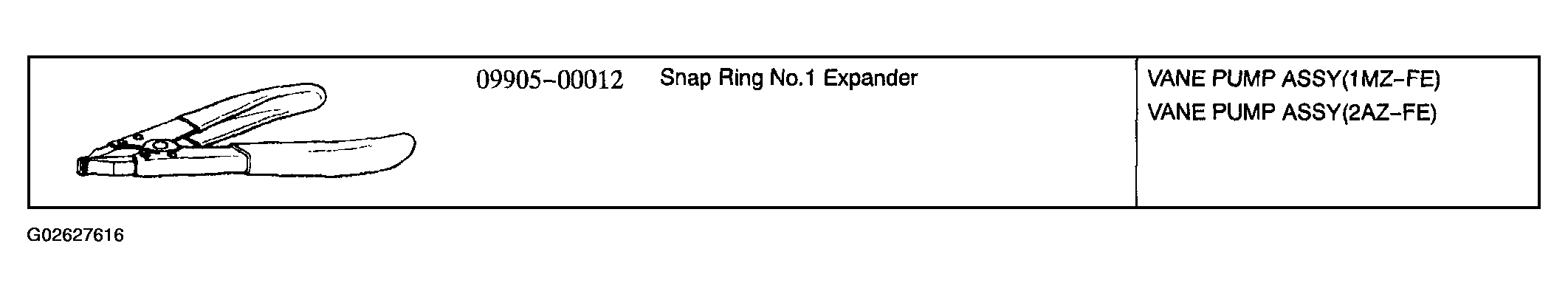

Fig 6: Power Steering Recommended Tools Chart (2 Of 2)
G02627616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torx is a registered trademark of Textron Inc.

Equipment

POWER STEERING EQUIPMENT DESCRIPTION

Caliper gauge Vane pump assy
Belt tension gauge Vane pump assy
Vernier calipers Vane pump assy
Dial indicator Steering gear assy
Feeler gauge Vane pump assy
Micrometer Vane pump assy
Torque wrench

Lubricant

LUBRICANT SPECIFICATION

Item Capacity Classification
Power steering fluid (Total) 2AZ-FE 1MZ-FE 1.0 liters (1.1 US qts, 0.9 lmp.qts) ATF DEXRON® II or III

SSM

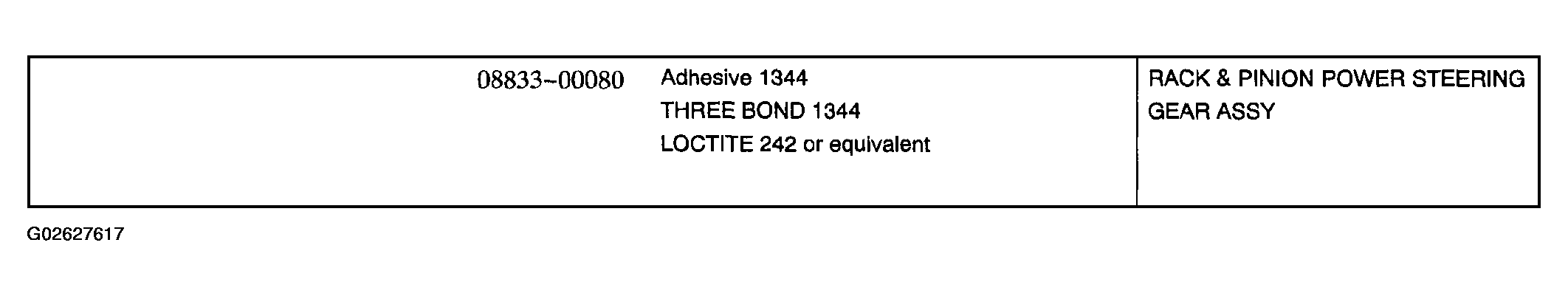

Fig 7: Power Steering SSM Tool No Description
G02627617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
