Steering Column: Preparation

SST

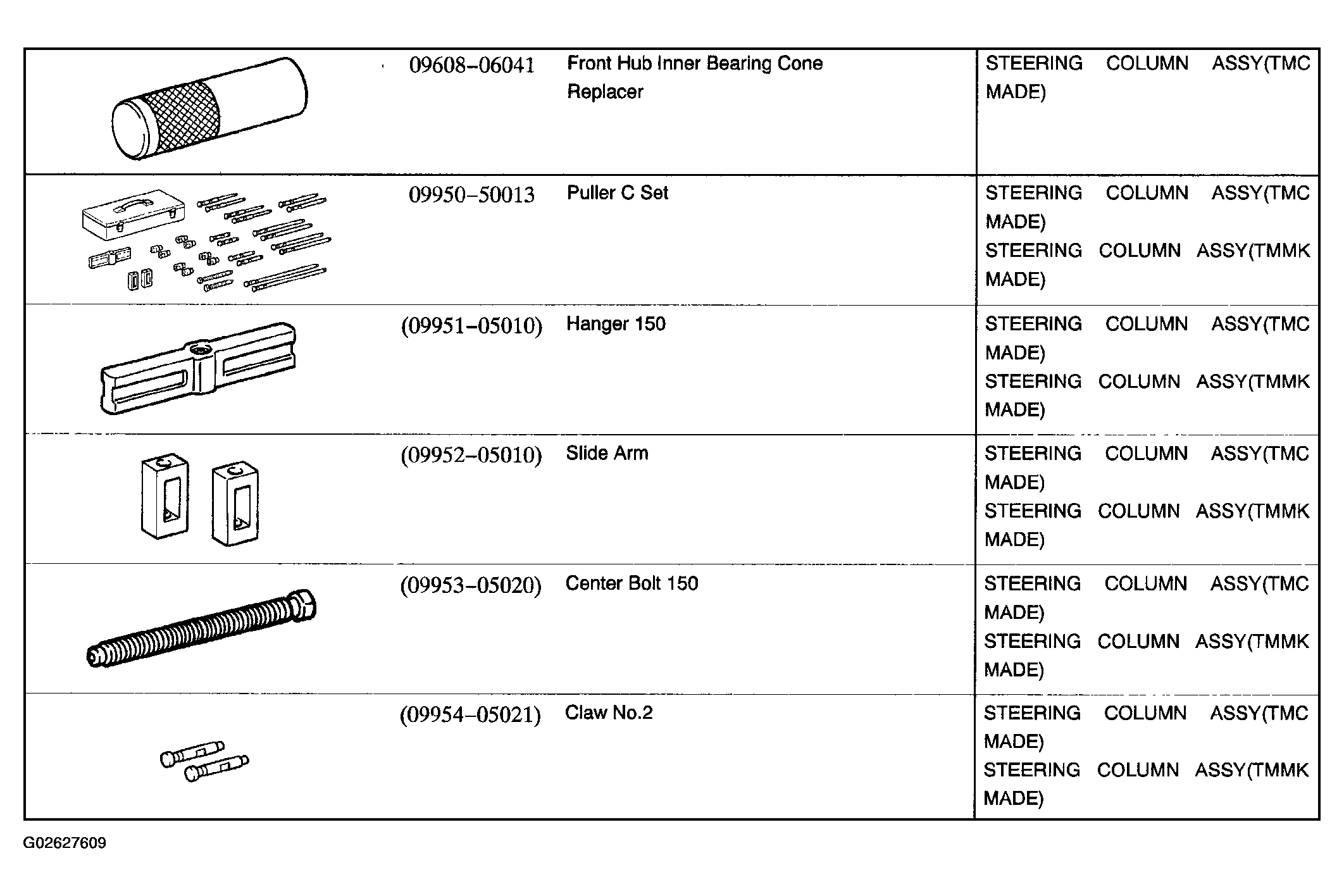

Fig 1: Steering Column Special Tool Description Chart
G02627609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

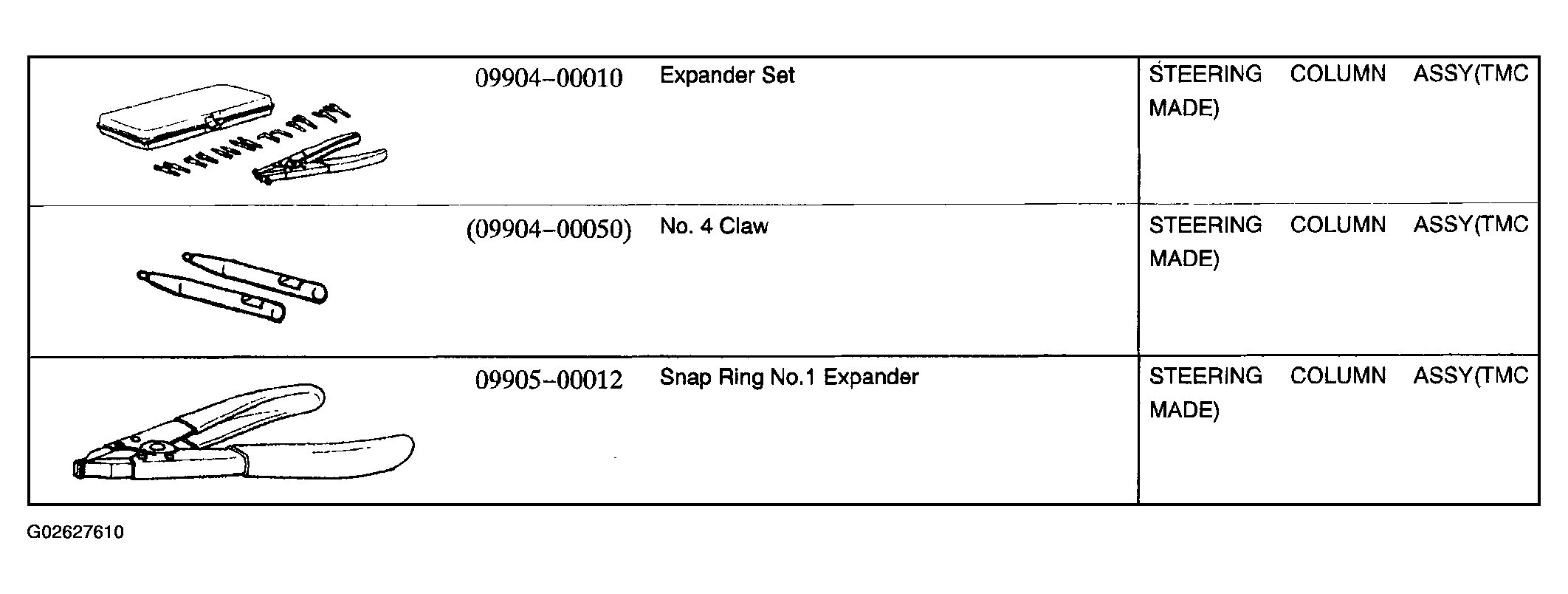

Fig 2: Steering Column Recommended Tools Chart
G02627610Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

STEERING COLUMN EQUIPMENT DESCRIPTION

Torque
