Restraints Control Systems: Preparation: Lubrication: Preparation

SST

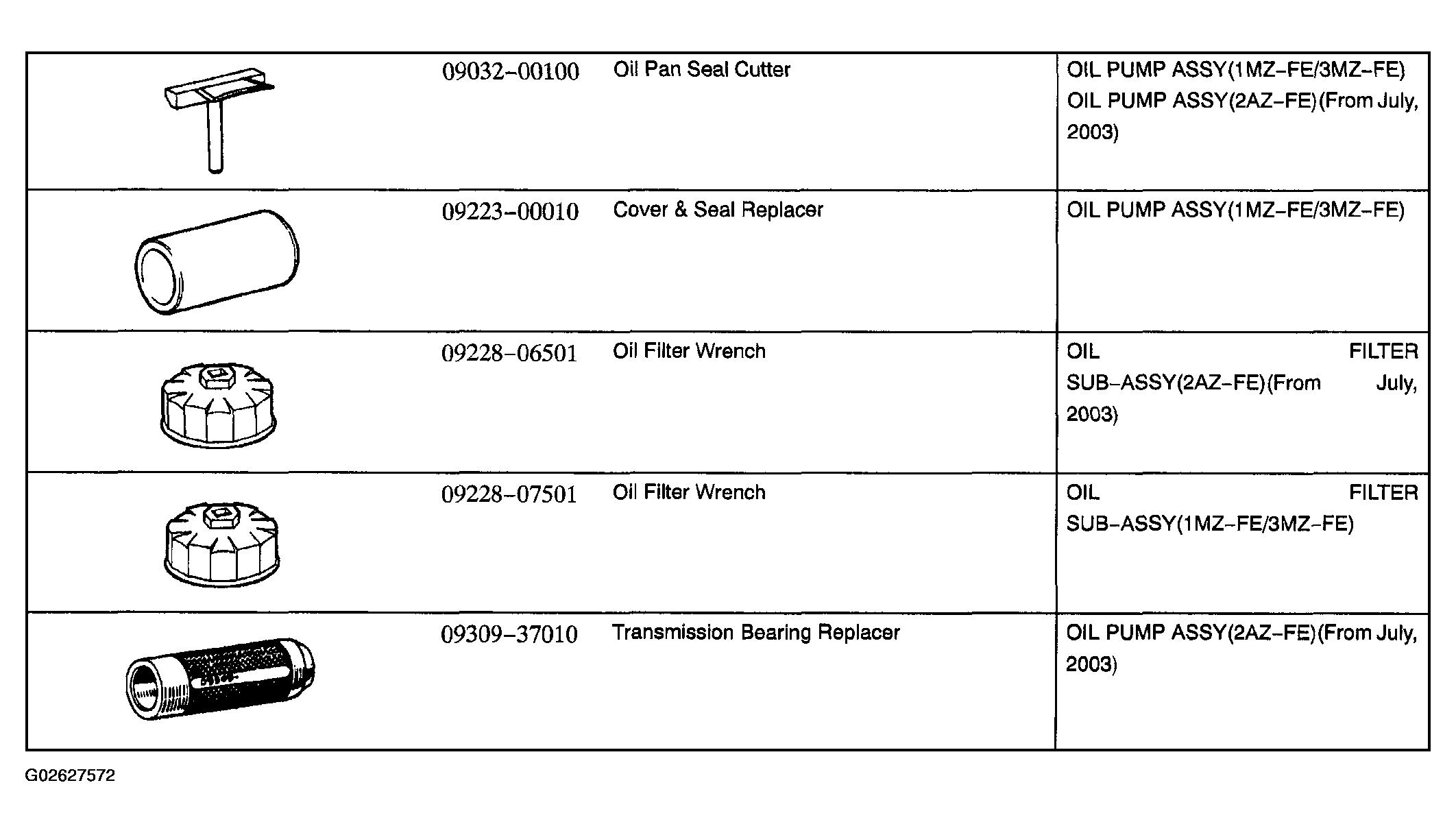

Fig 1: Lubrication Special Tool Description Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

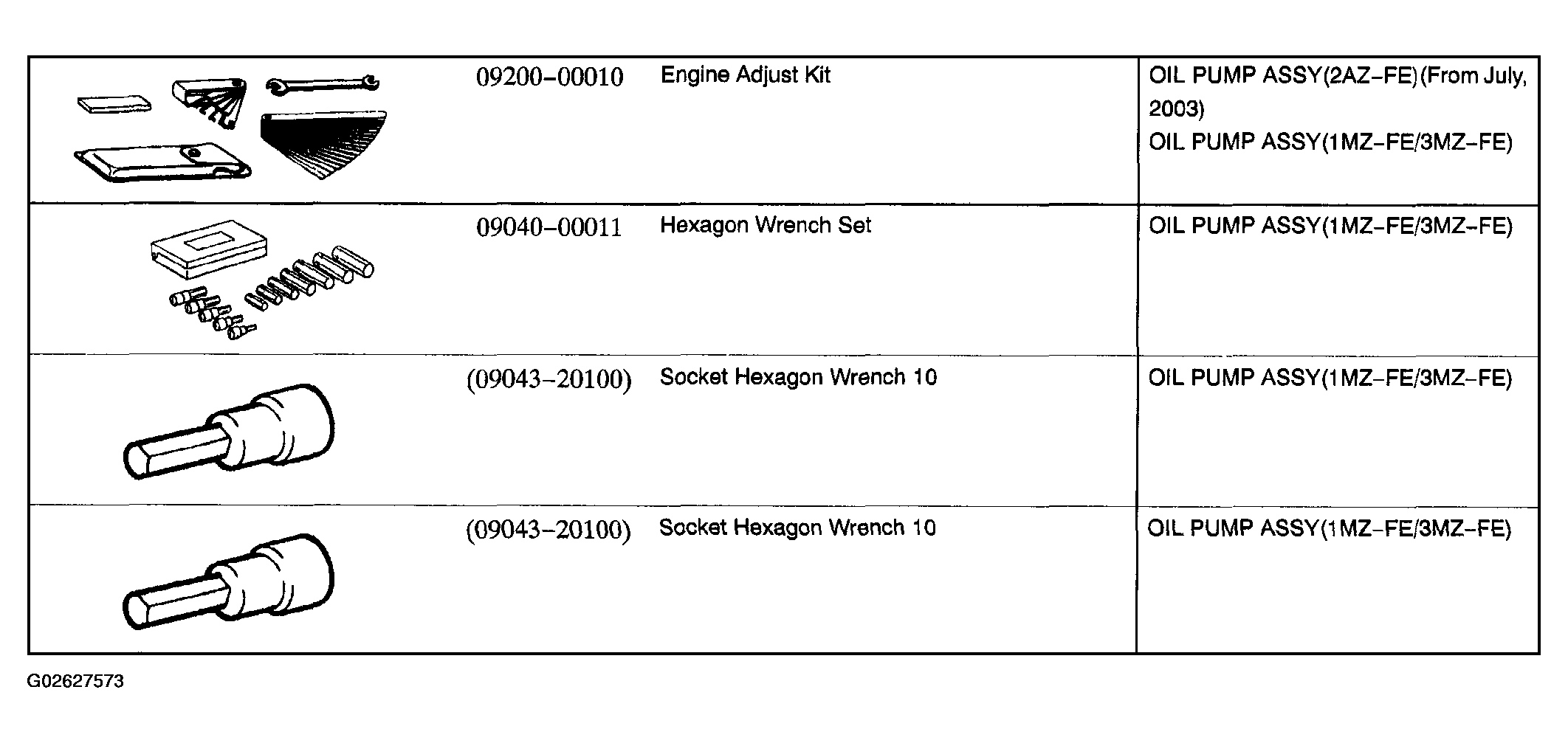

Fig 2: Lubrication Recommended Tools Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

LUBRICATION EQUIPMENT DESCRIPTION

Oil pressure gauge
Straight edge	Oil pump
Torque wrench

SSM

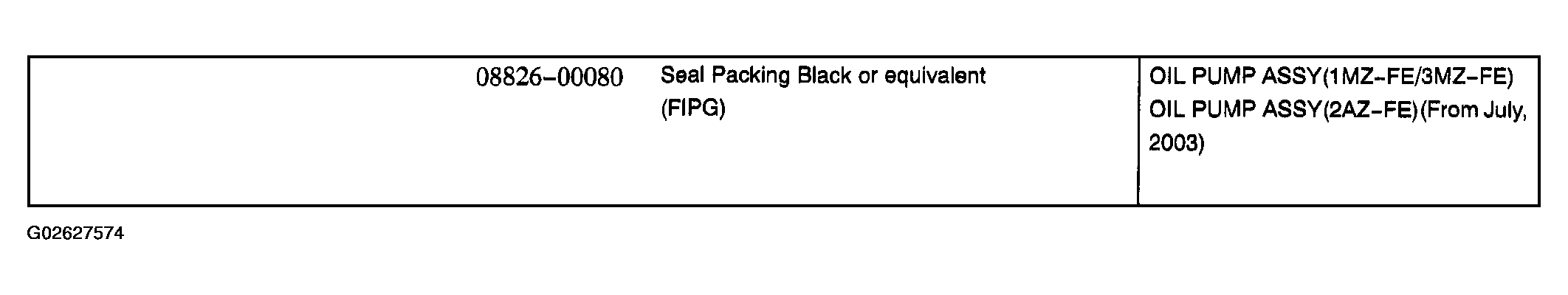

Fig 3: Lubrication SSM Tool No Description

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Lubricant

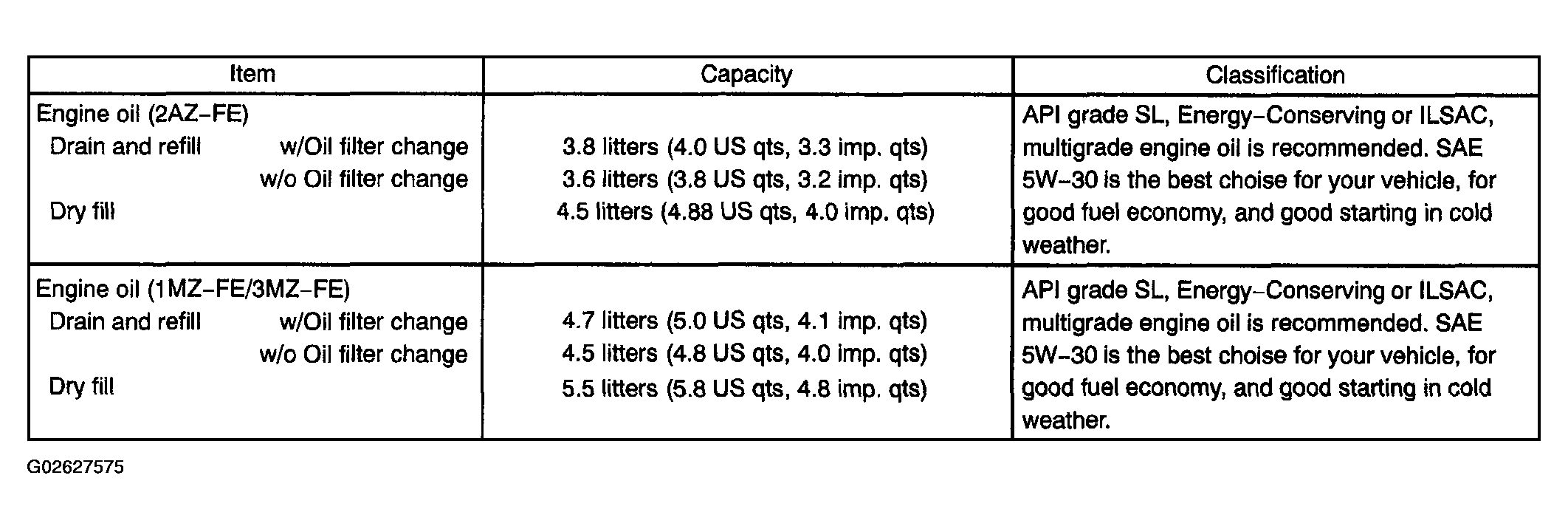

Fig 4: Lubricant Specification Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
