Engine Control System: Preparation

SST

Fig 1: Engine Control System Special Tools Chart
G02627548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

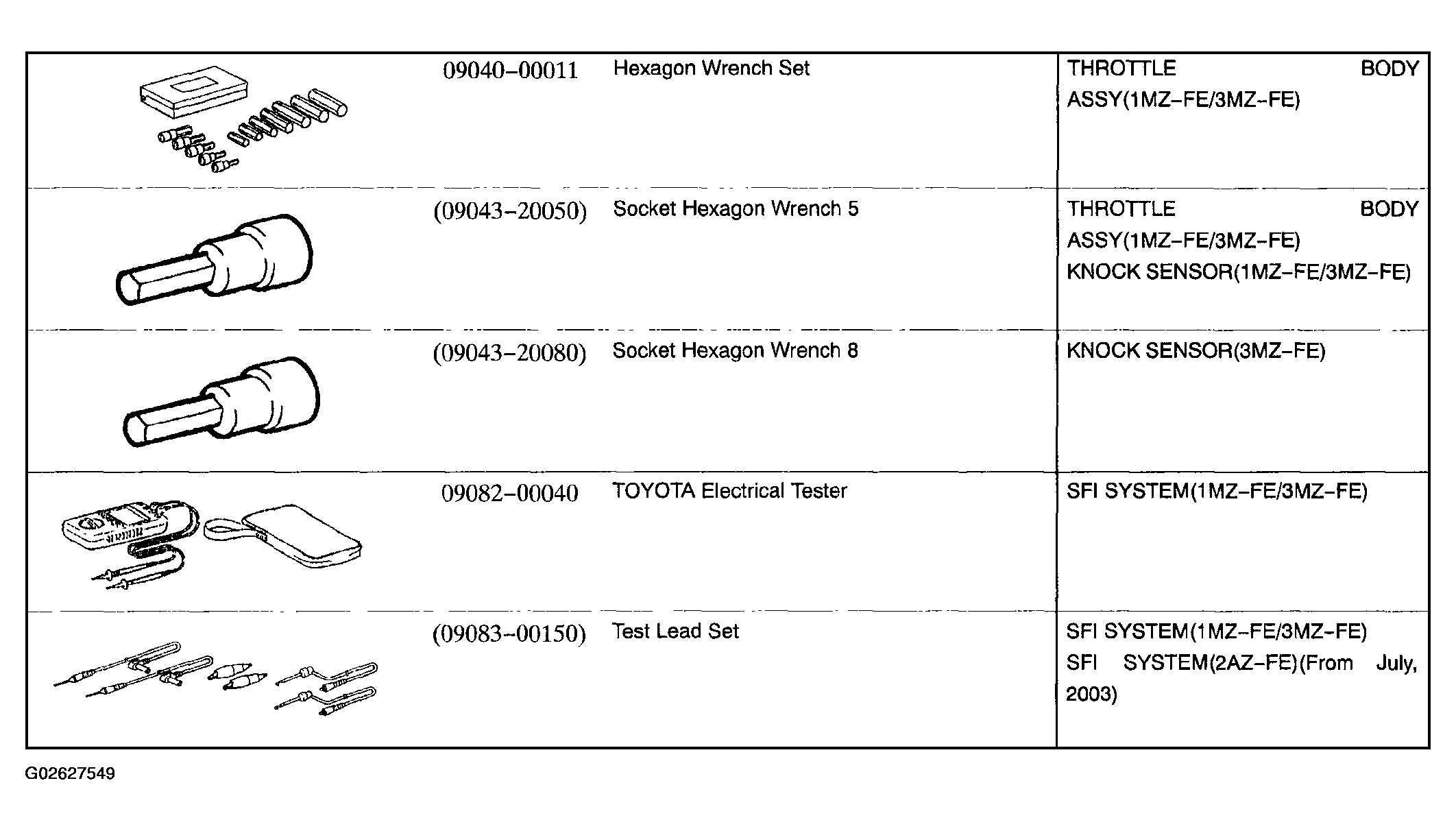

Fig 2: Engine Control System Recommended Tools Chart
G02627549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

ENGINE CONTROL EQUIPMENT DESCRIPTION

Ohmmeter
Radiator cap tester
Service Wire Harness
Torque wrench
