Fuel Tank ASSY: Components

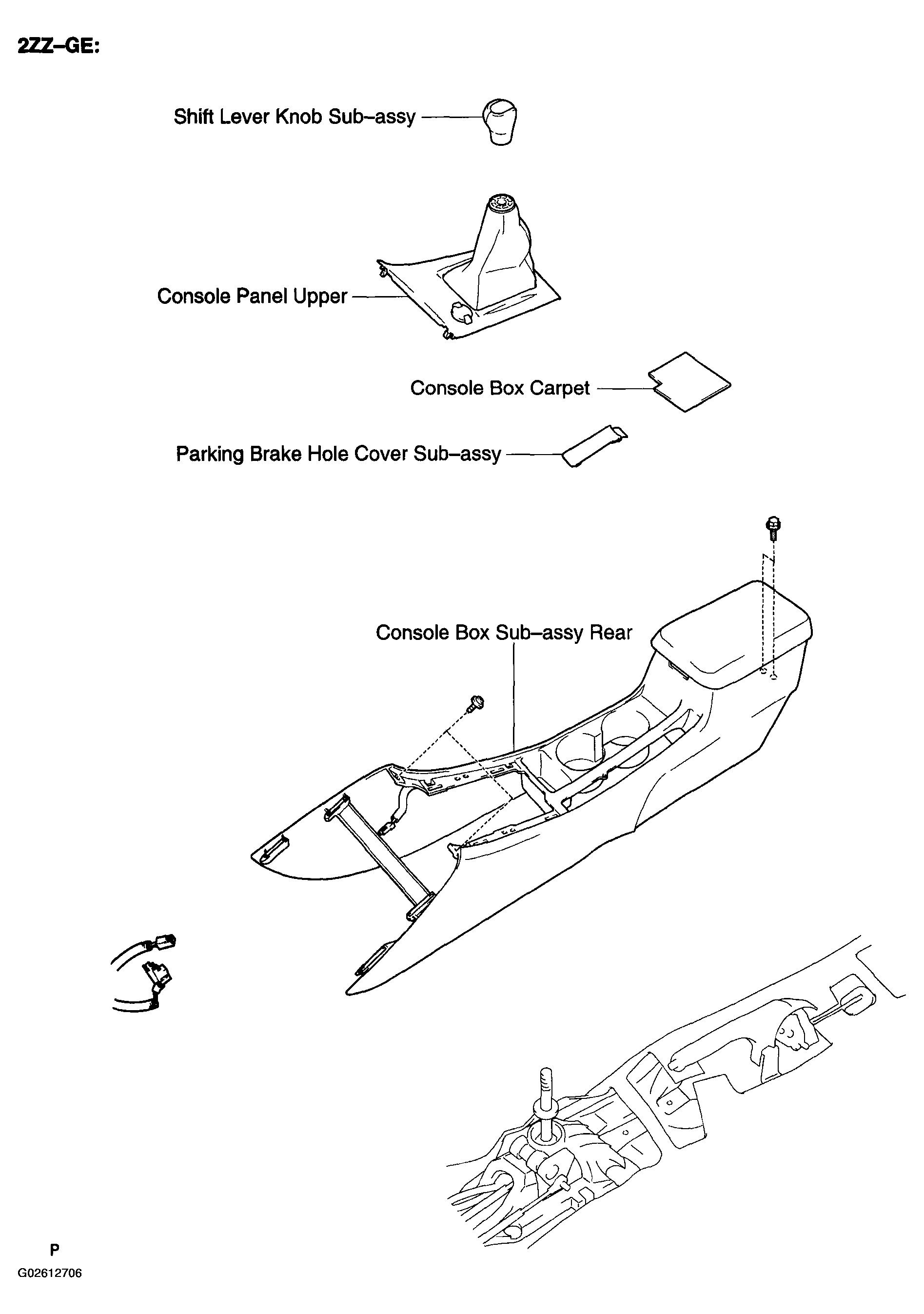

Fig 1: Identifying Fuel Tank Assy Components (1 Of 5)
G02612706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

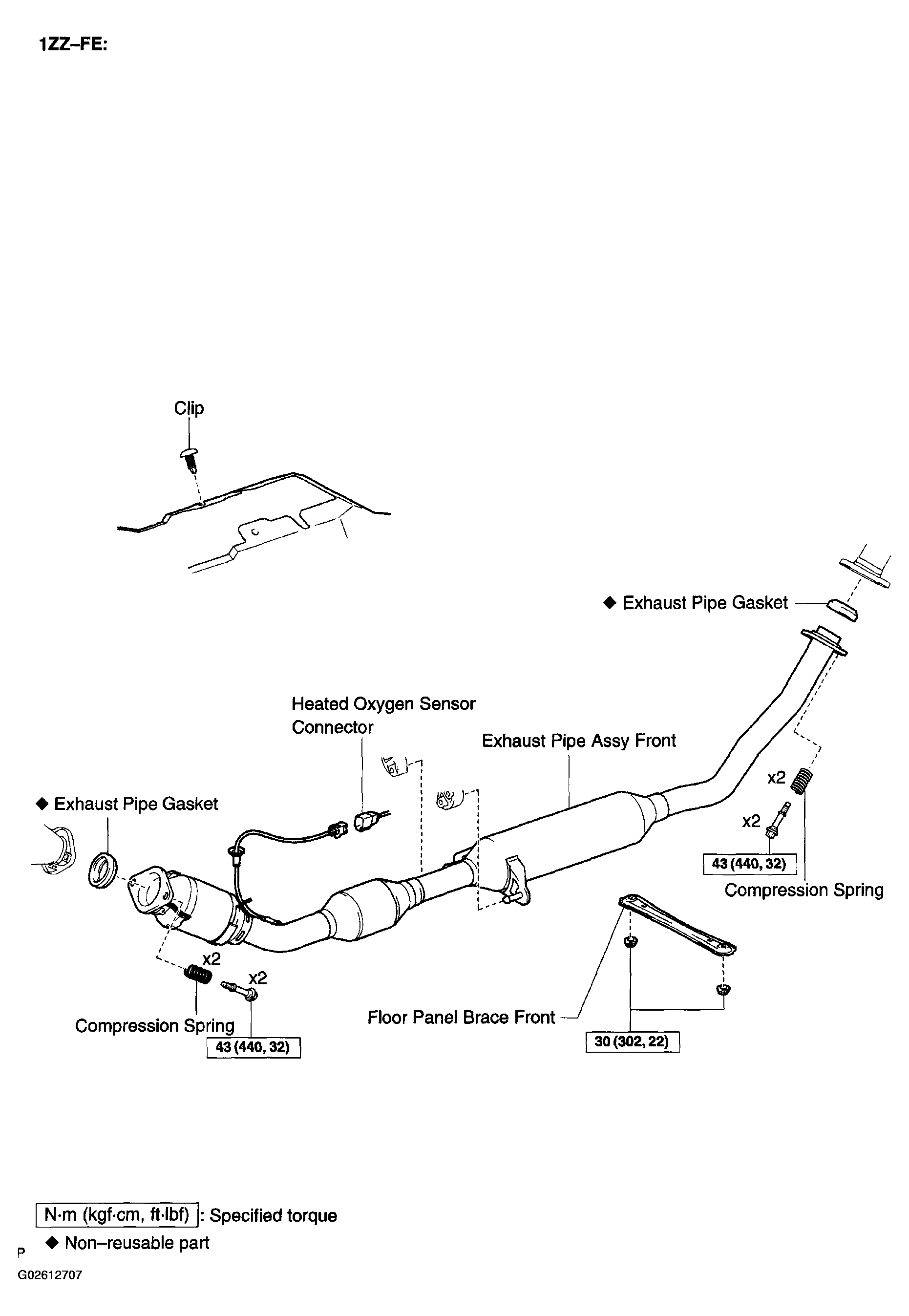

Fig 2: Identifying Fuel Tank Assy Components (2 Of 5)
G02612707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

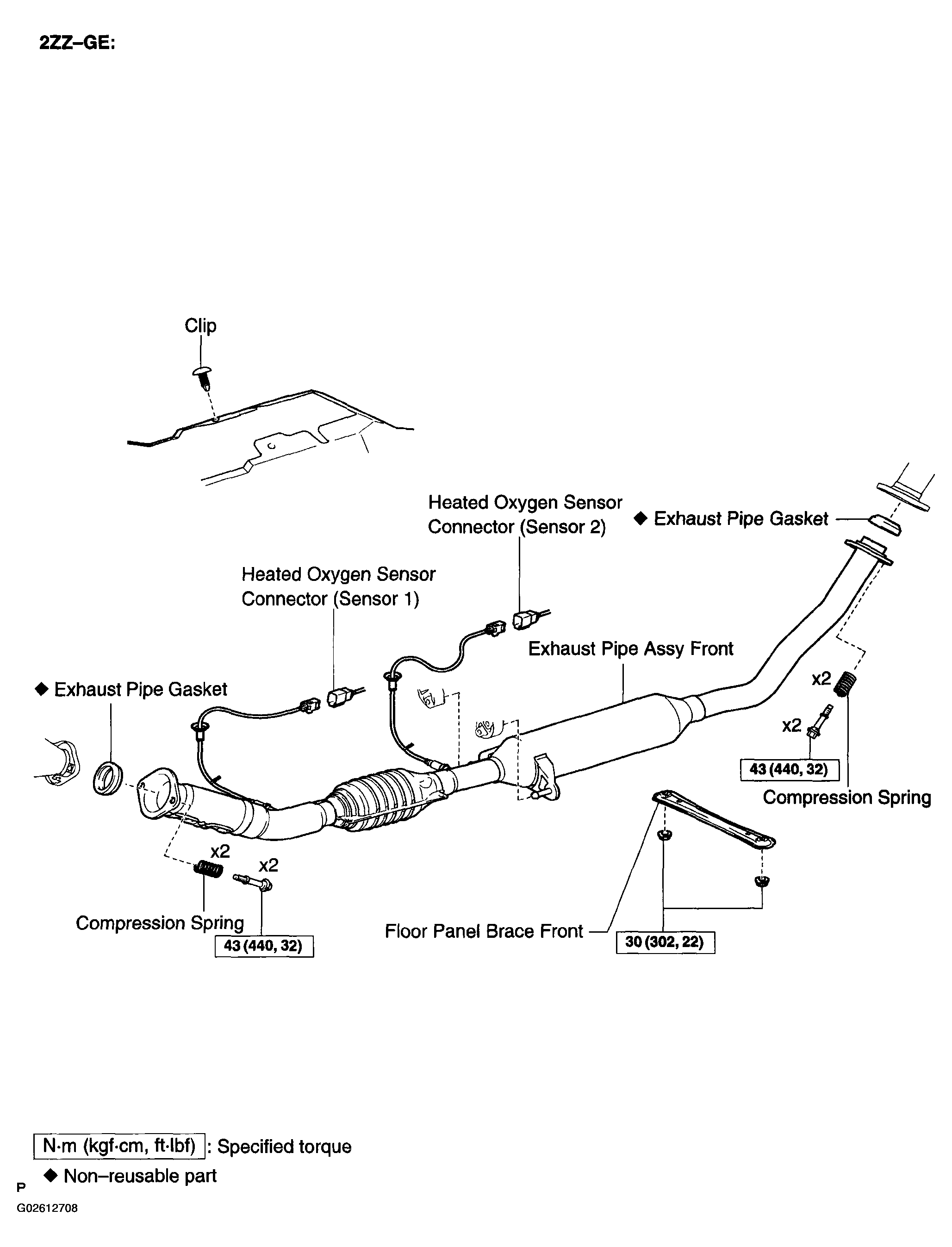

Fig 3: Identifying Fuel Tank Assy Components (3 Of 5)
G02612708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

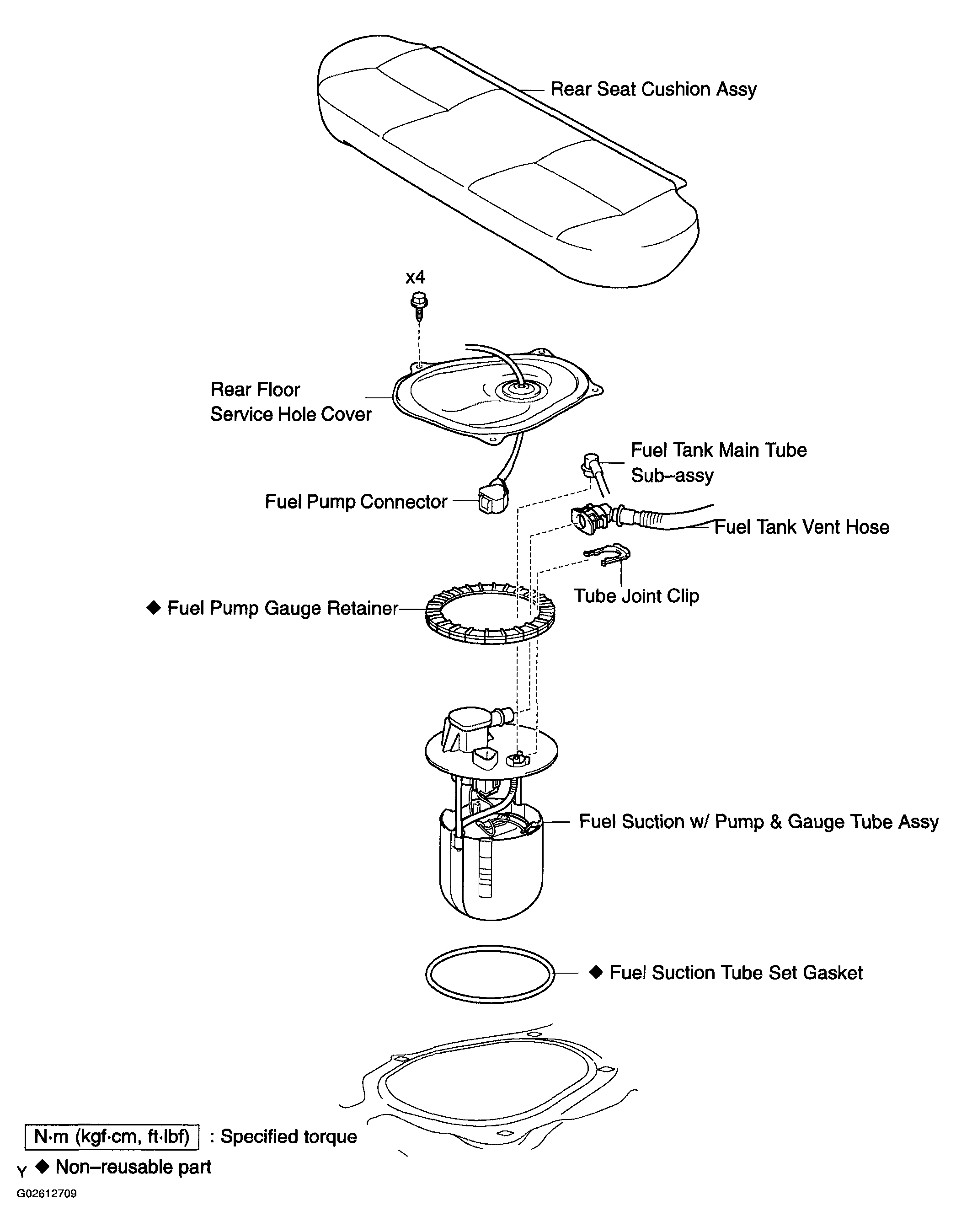

Fig 4: Identifying Fuel Tank Assy Components (4 Of 5)
G02612709Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

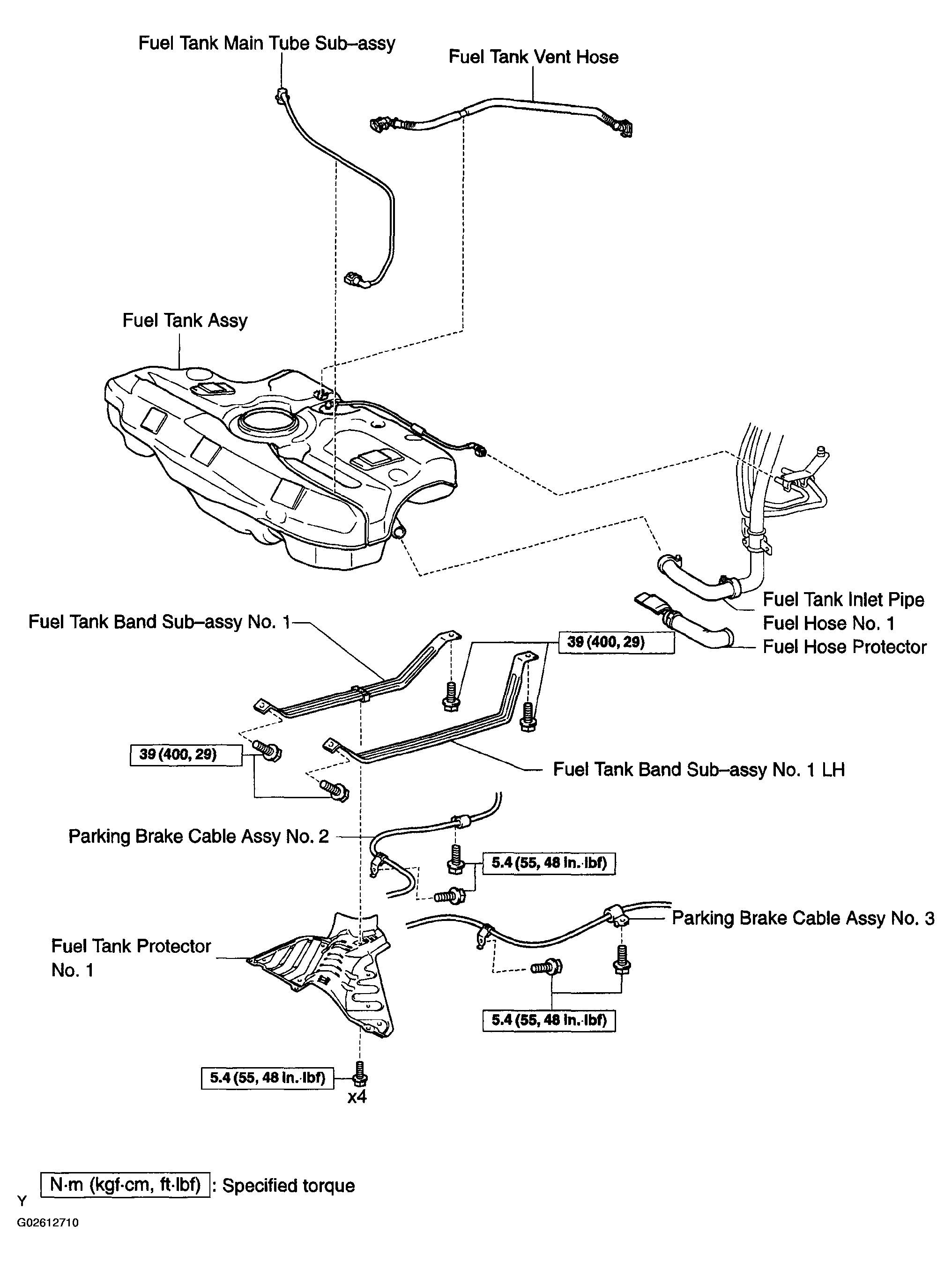

Fig 5: Identifying Fuel Tank Assy Components (5 Of 5)
G02612710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
