Crankshaft Position Sensor (2AZ-FE): Replacement

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. REMOVE ENGINE UNDER COVER NO.1
   1. Remove the 6 screws, 2 clips and under cover.

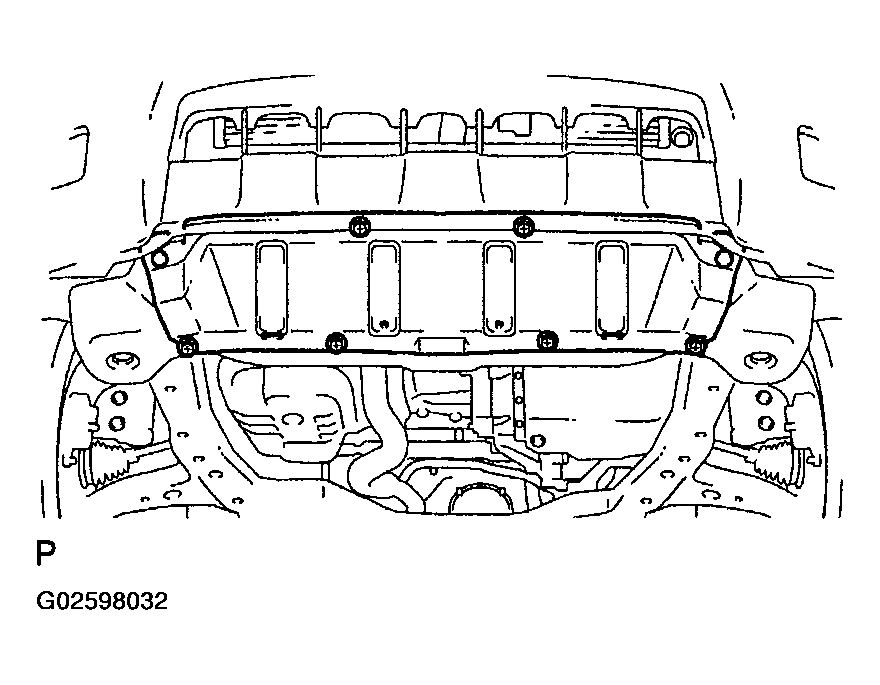

   Fig 1: Removing Engine Under Cover No.1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE FRONT FENDER APRON SEAL RH
   1. Remove the clip, 2 bolts and apron seal.

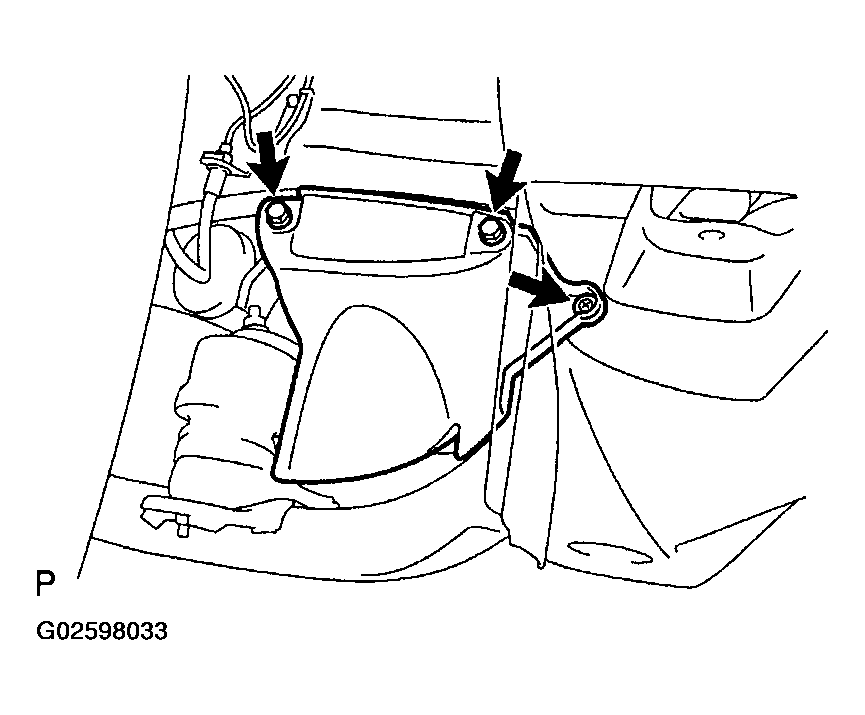

   Fig 2: Removing Front Fender Apron Seal RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE CRANKSHAFT POSITION SENSOR
   1. Disconnect the sensor connector.
   2. Remove the bolt, clamp and sensor.
4. INSTALL CRANKSHAFT POSITION SENSOR
   1. Install the sensor and clamp with the bolt.

      Torque: 9.0 N.m (92 kgf.cm, 80 in..lbf)

   2. Connect the sensor connector.

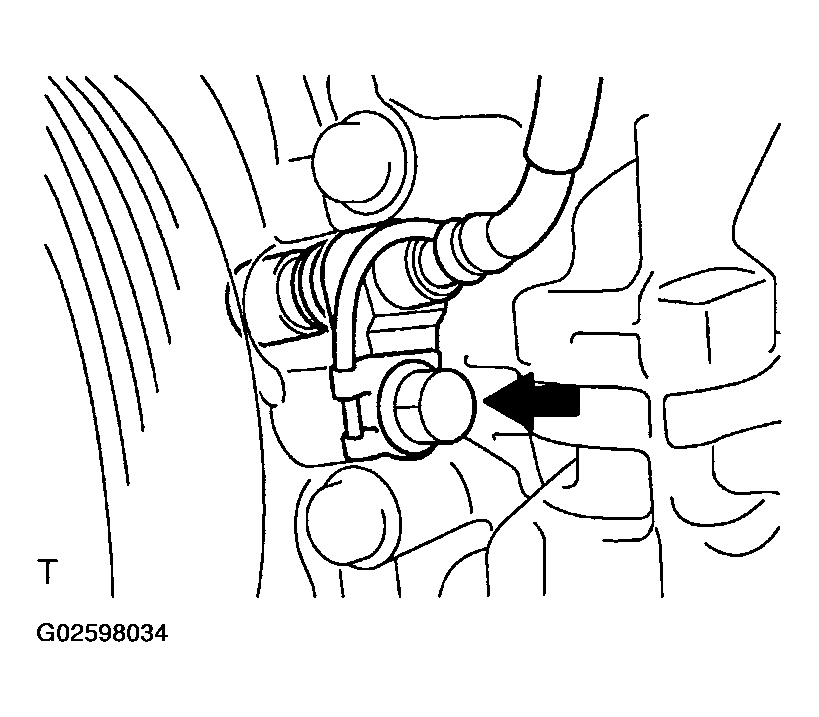

   Fig 3: Removing Crankshaft Position Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. INSTALL FRONT FENDER APRON SEAL RH
   1. Install the clip, 2 bolts and apron seal.
6. INSTALL ENGINE UNDER COVER NO.1
   1. Install the 6 screws, 2 clips and under cover.
