Fuel Injector ASSY (2AZ-FE): Components

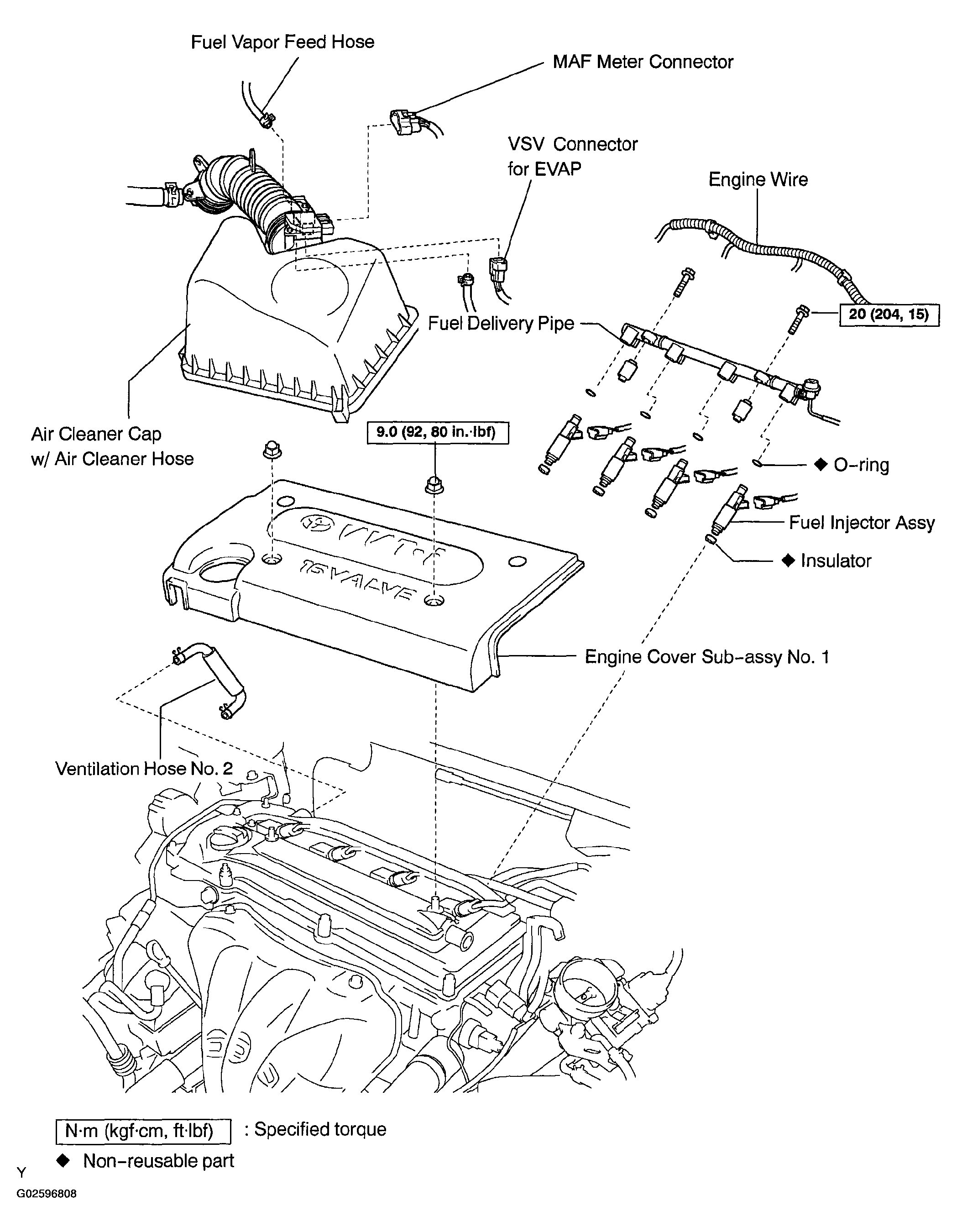

Fig 1: Fuel Injector Assy Replacement Components With Torque Specifications (2AZ-FE)
G02596808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
