Fuel Tank And Line: Inspection

INSPECT FUEL TANK AND LINE
1. Check the fuel lines from cracks or leakage, and all connections for deformation.

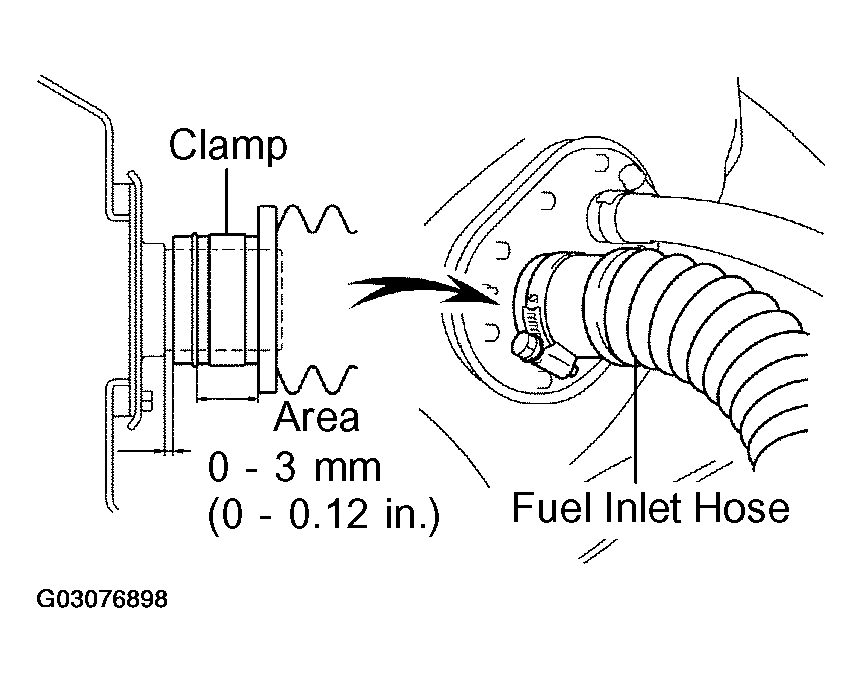

  Fig 1: Checking Fuel Lines From Cracks Or Leakage
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the fuel tank vapor vent system hoses and all connections for looseness, sharp bends or damage.
3. Check the fuel tank for deformation, cracks, fuel leakage or tank band looseness.
4. Check the filler neck for damage or fuel leakage.
5. Hose and pipe connections are as shown in Fig 2 and Fig 3.
  If a problem is found, repair or replace the parts as necessary.

  Fig 2: Identifying Hose & Pipe Connections (1 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 3: Identifying Hose & Pipe Connections (2 Of 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
