Diagnostic Trouble Code Table
DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|

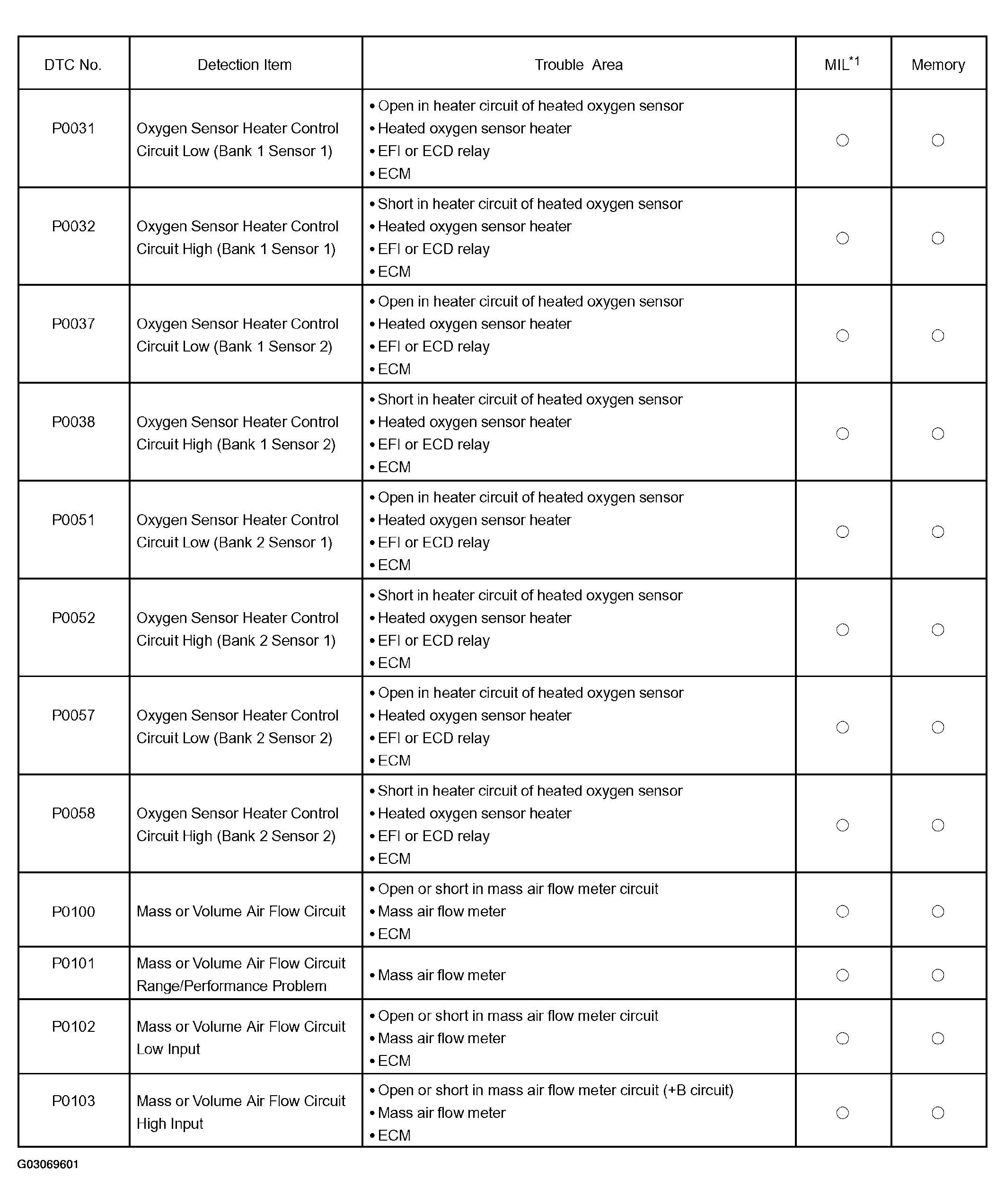

| DTC P0031, P0032, P0037, P0038, P0051, P0052, P0057, P0058 | Oxygen Sensor Heater Control Circuit Low/High (Bank 1 & 2 Sensor 1 & 2) |
| DTC P0100, P0102, P0103 | Mass or Volume Air Flow Circuit Low/High Input |
| DTC P0101 | Mass or Volume Air Flow Circuit Range/Performance Problem |
| DTC P0110, P0112, P0113 | Intake Air Temperature Circuit Low/High Input |
| DTC P0115, P0117, P0118 | Engine Coolant Temperature Circuit Low/High Input |
| DTC P0116 | Engine Coolant Temperature Circuit Range/ Performance Problem |
| DTC P0120, P0122, P0123, P0220, P0222, P0223, P2135 | Throttle/Pedal Position Sensor/Switch "A & B" Circuit Low/High Input, DTC Throttle/Pedal Position Sensor/Switch "A & B" Voltage Correction |
| DTC P0121 | Throttle/Pedal Position Sensor/Switch "A" Circuit Range/Performance Problem |
| DTC P0125 | Insufficient Coolant Temperature for Closed Loop Fuel Control |
| DTC P0128 | Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature) |
| DTC P0130, P0150, P2195, P2196, P2197, P2198 | Oxygen Sensor Circuit (Bank 1 Sensor 1), Oxygen Sensor Signal Stack Lean/Rich (Bank 1 & 2 Sensor 1) |

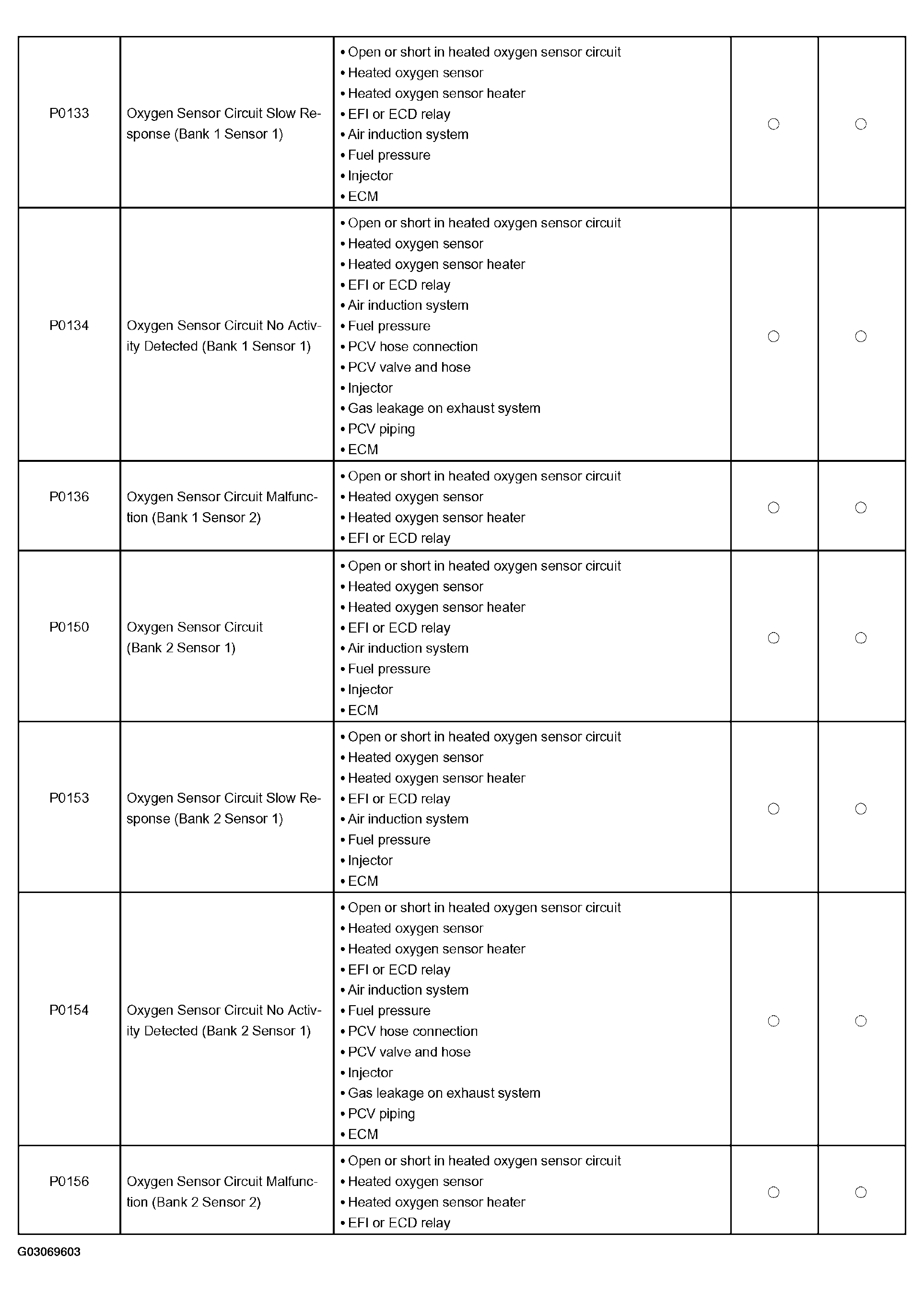

| DTC P0133, P0153 | Oxygen Sensor Circuit Slow Response (Bank 1 & 2 Sensor 1) |
| DTC P0134, P0154 | Oxygen Sensor Circuit No Activity Detected (Bank 1 & 2 Sensor 1) |
| DTC P0136, P0156 | Oxygen Sensor Circuit Malfunction (Bank 1 & 2 Sensor 2) |

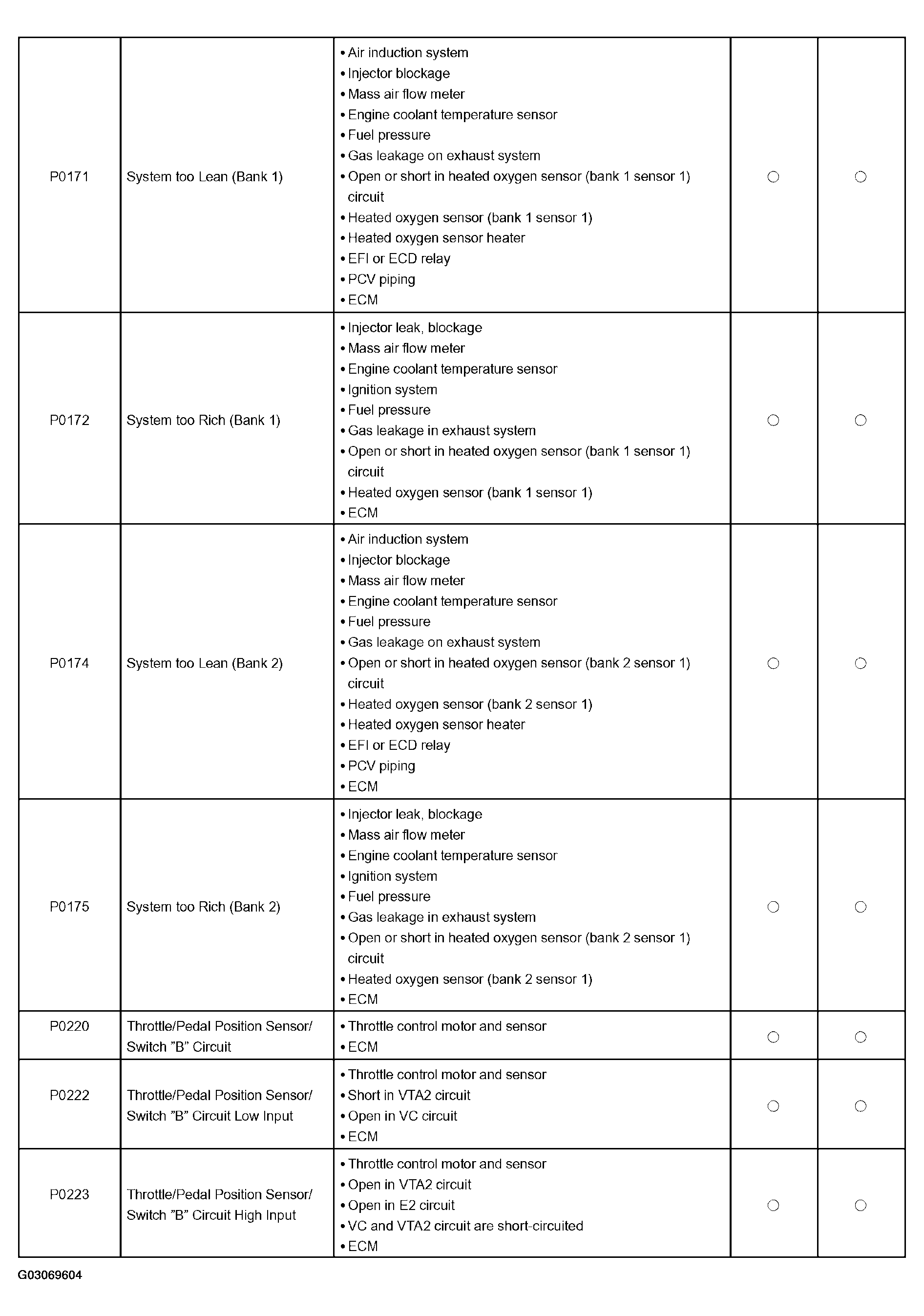

| DTC P0171, P0172, P0174, P0175 | System too Lean/Rich (Bank 1 & 2) |

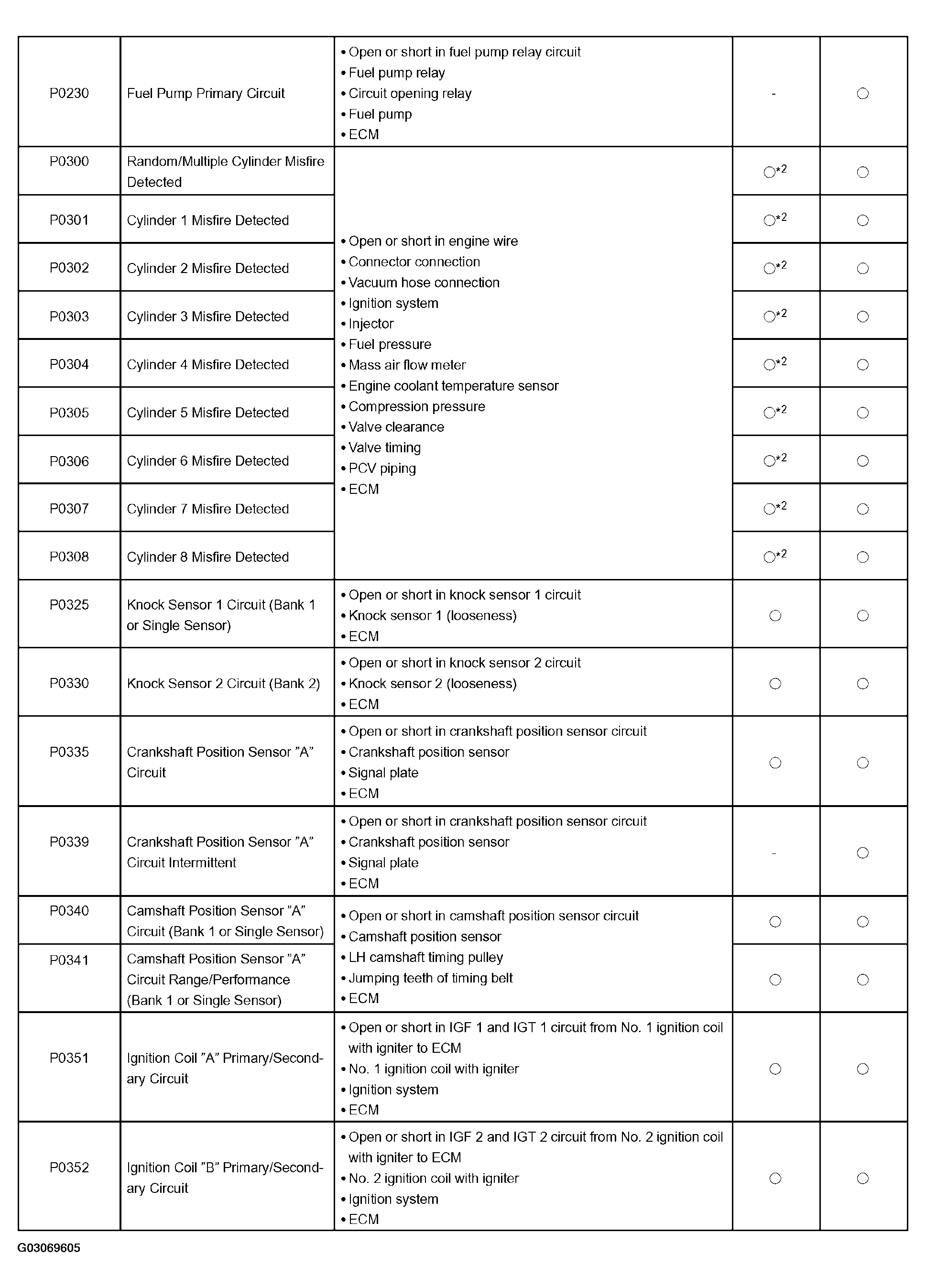

| DTC P0230 | Fuel Pump Primary Circuit |
| DTC P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0307, P0308 | Random/Multiple Cylinder Misfire Detected & Cylinder 1-8 Misfire Detected |
| DTC P0325, P0330 | Knock Sensor 1 & 2 Circuit (Bank 1 & 2 or Single Sensor) |
| DTC P0335, P0339 | Crankshaft Position Sensor "A" Circuit/Intermittent |
| DTC P0340, P0341 | Camshaft Position Sensor "A" Circuit Range/Performance (Bank 1 or Single Sensor) |

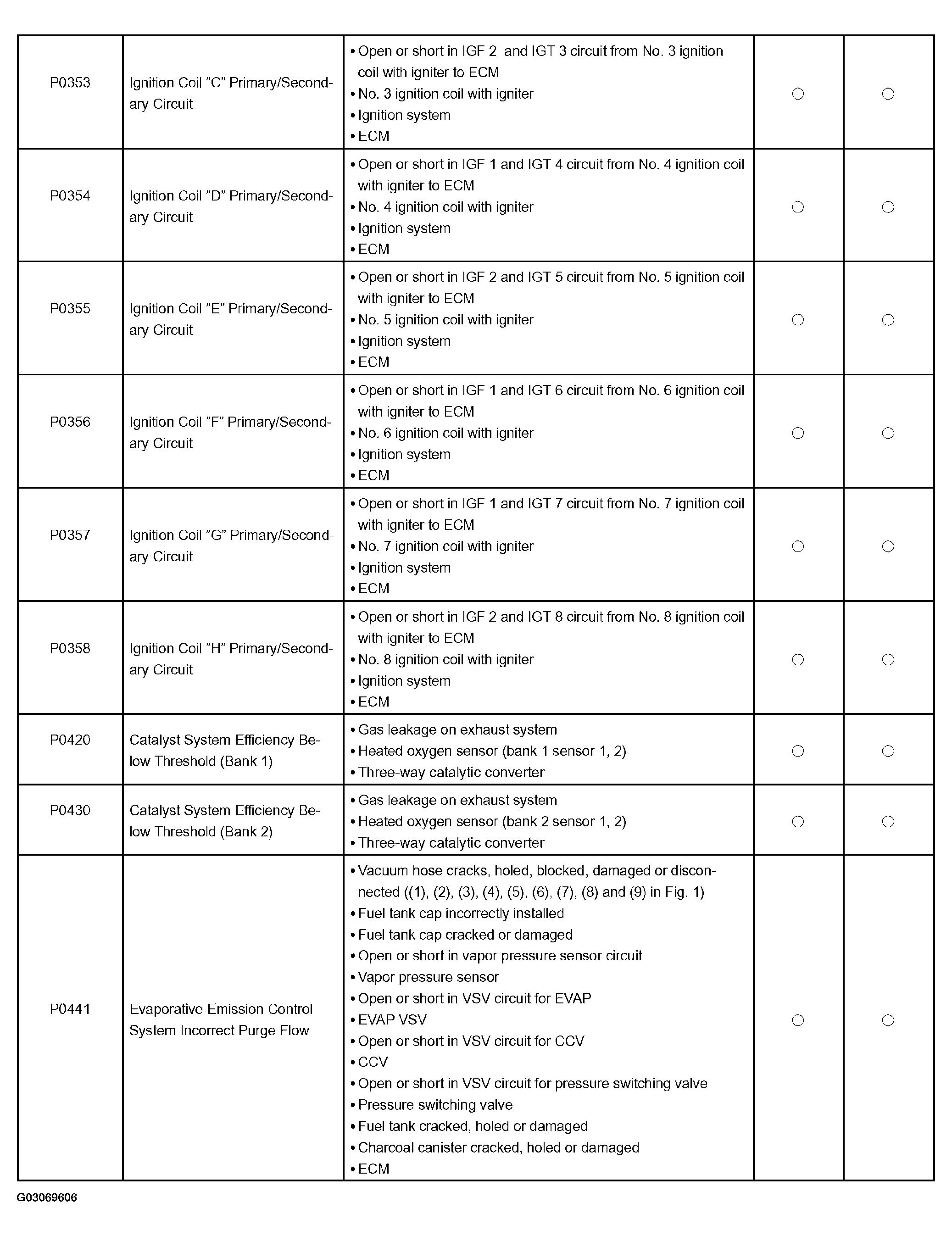

| DTC P0351, P0352, P0353, P0354, P0355, P0356, P0357, P0358 | Igniter Coil "A-H" Primary/Secondary Circuit |
| DTC P0420, P0430 | Catalyst System Efficiency Below Threshold (Bank 1 & 2) |
| DTC P0441, P0446, P2418 | Evaporative Emission Control System Incorrect Purge Flow/Vent Control Circuit/Open |
| DTC P0442, P0455, P0456 | Evaporative Emission Control System Leak Detected (Small Leak/Gross Leak/Very Small Leak) |
| DTC P0451, P0452, P0453 | Evaporative Emission Control System Pressure Sensor/Switch Range/Performance Low/High Input |
| DTC P0500, P0503 | Vehicle Speed Sensor "A" Intermittent/ Erratic/High |
| DTC P0504 | Brake Switch "A"/"B" Correlation |
| DTC P0505 | Idle Air Control System |
| DTC P0560 | System Voltage |
| DTC P0604, P0606, P0607, P0657 | Internal Control Module Random Access Memory (RAM) Error, ECM/PCM Processor, Control Module Performance & Actuator Supply Voltage Circuit/Open |

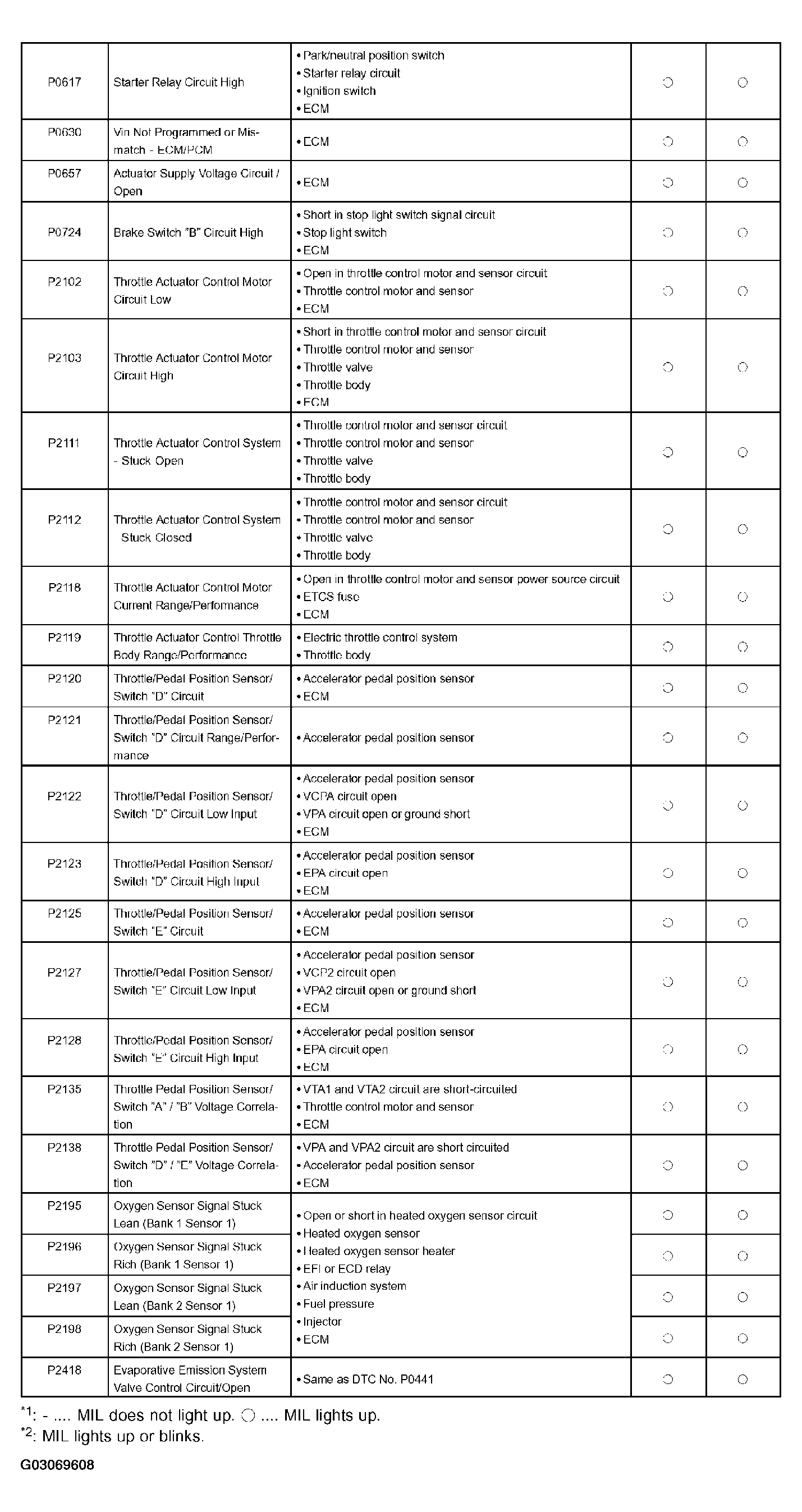

| DTC P0617 | Starter Relay Circuit High |
| DTC P0630 | VIN Not Programmed or Mismatch - ECM/PCM |
| DTC P2102, P2103 | Throttle Actuator Control Motor Circuit Low/High |
| DTC P2111, P2112 | Throttle Actuator Control System - Stuck Open/Closed |
| DTC P2118 | Throttle Actuator Control Motor Current Range/Performance |
| DTC P2119 | Throttle Actuator Control Throttle Body Range/Performance |
| DTC P2120, P2122, P2123, P2125, P2127, P2128, P2138 | Throttle/Pedal Position Sensor/Switch "D & E" Circuit Low Input/High Input & Throttle/Pedal Position Sensor/Switch "D & E" Voltage Correlation |
| DTC P2121 | Throttle/Pedal Position Sensor/Switch "D" Circuit Range/Performance |
HINT:
Parameters listed in the table may not be exactly the same as your reading due to the type of instrument or other factors.
If a malfunction code is displayed during the DTC check in check mode, check the circuit for the codes listed in Fig 1 . For details of each code, refer to the respective "DTC No." in the DTC table.
