How To Proceed With Troubleshooting

Troubleshoot in accordance with the procedure on Fig 1 .

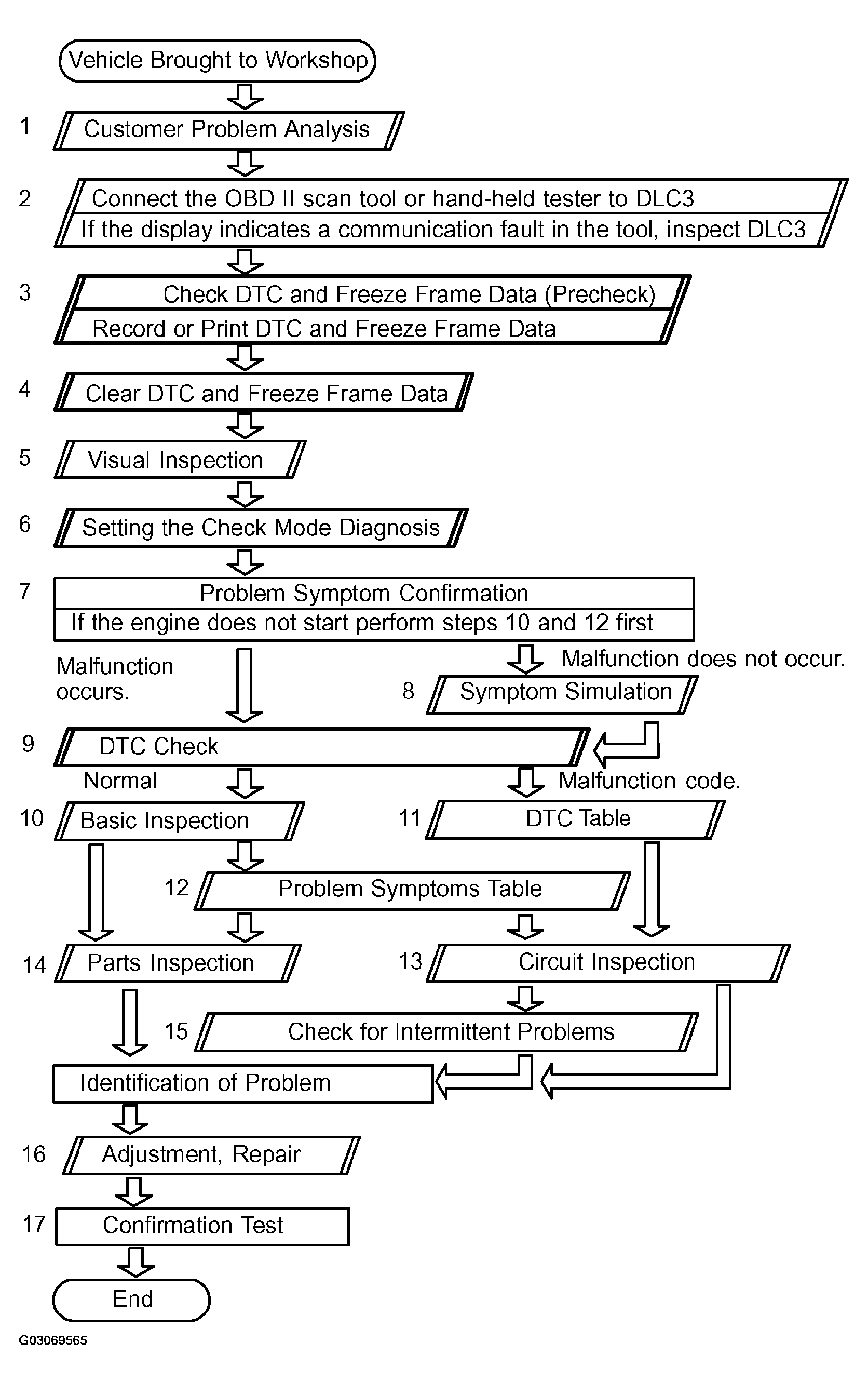

Fig 1: Flow Chart - Troubleshooting
G03069565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
