Camshaft Position Sensor: Components

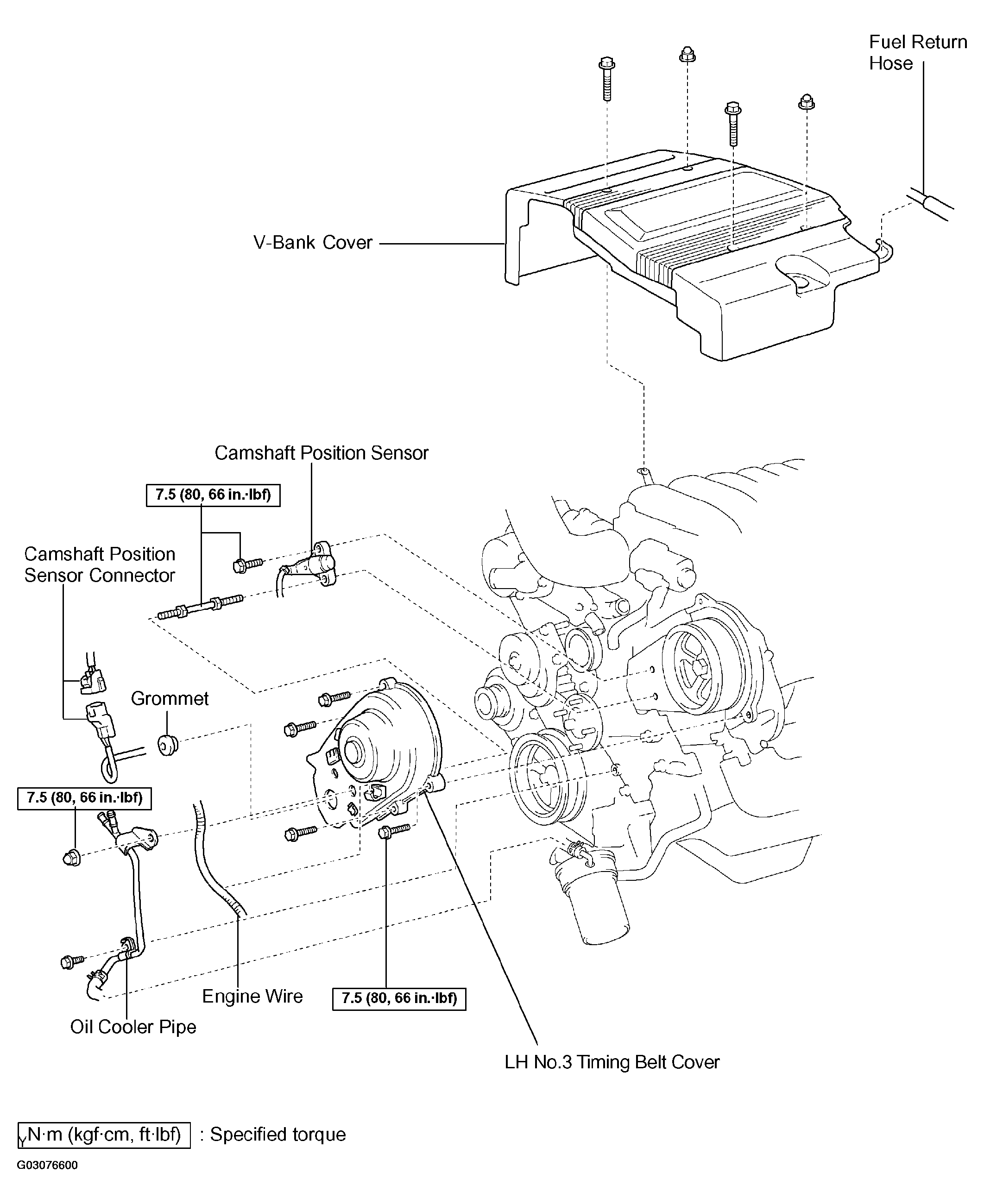

Fig 1: Locating Camshaft Position Sensor & Torque Specification
G03076600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
