Circuit Description

Refer to DTC P0115 in DTC P0115 ENGINE COOLANT TEMPERATURE CIRCUIT  .

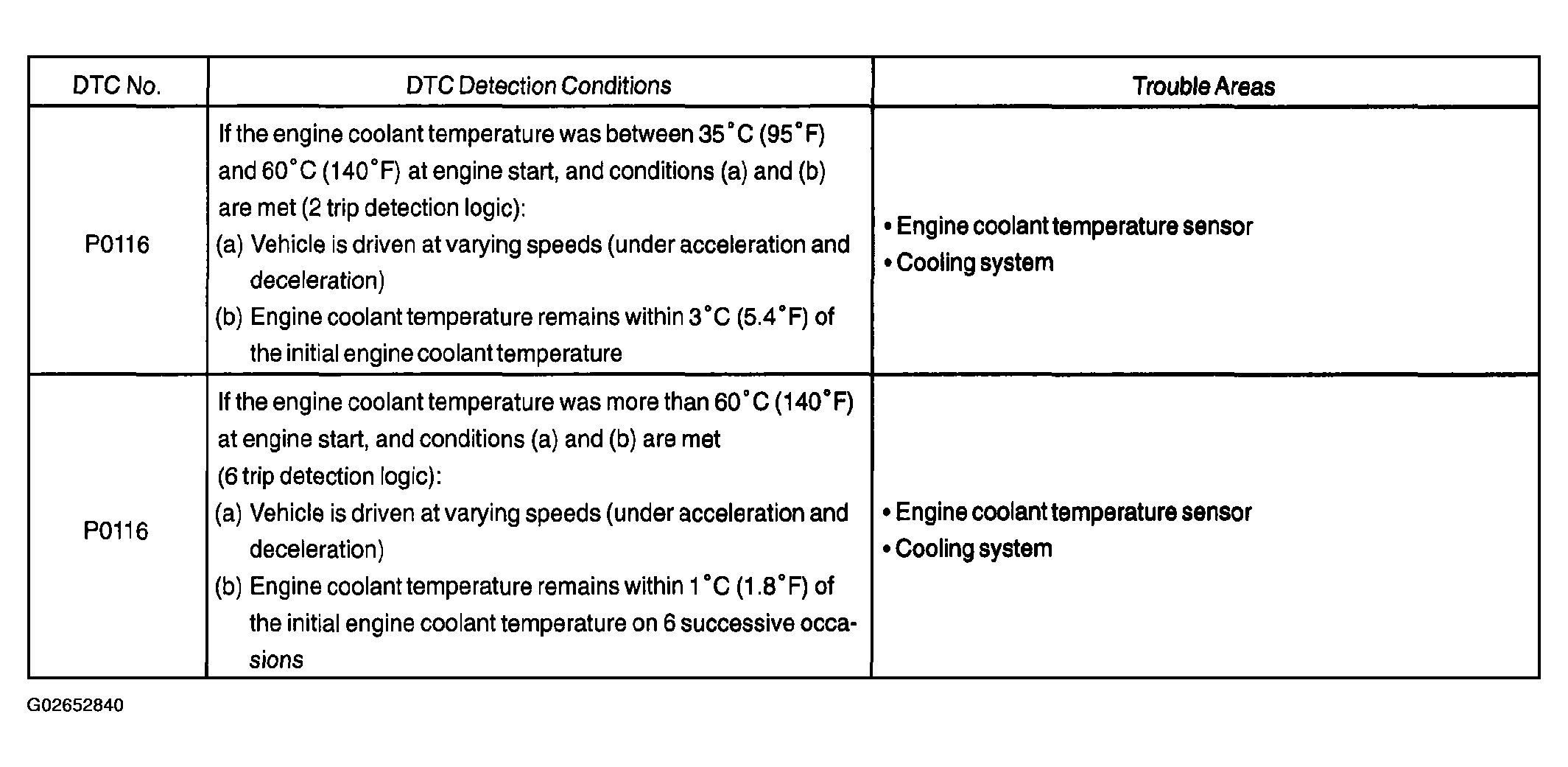

Fig 1: DTC Chart
G02652840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
