Fuel Pressure Regulator: Replacement

REMOVE FUEL PUMP AND SENDER GAUGE ASSEMBLY FROM FUEL TANK (See REPLACEMENT )
REMOVE FUEL SUCTION PLATE
1. Disconnect the fuel sender gauge connector and ground plate.

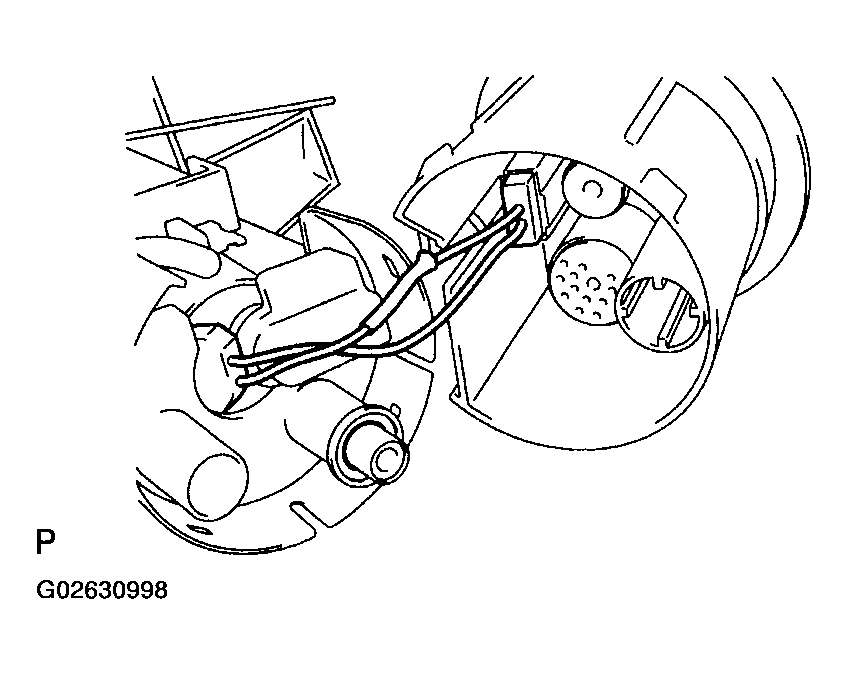

  Fig 1: Disconnecting Fuel Sender Gauge Connector And Ground Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using 2 screwdrivers, pry out the fuel suction plate.
  NOTE: Be careful not to damage the suction support and fuel suction plate.

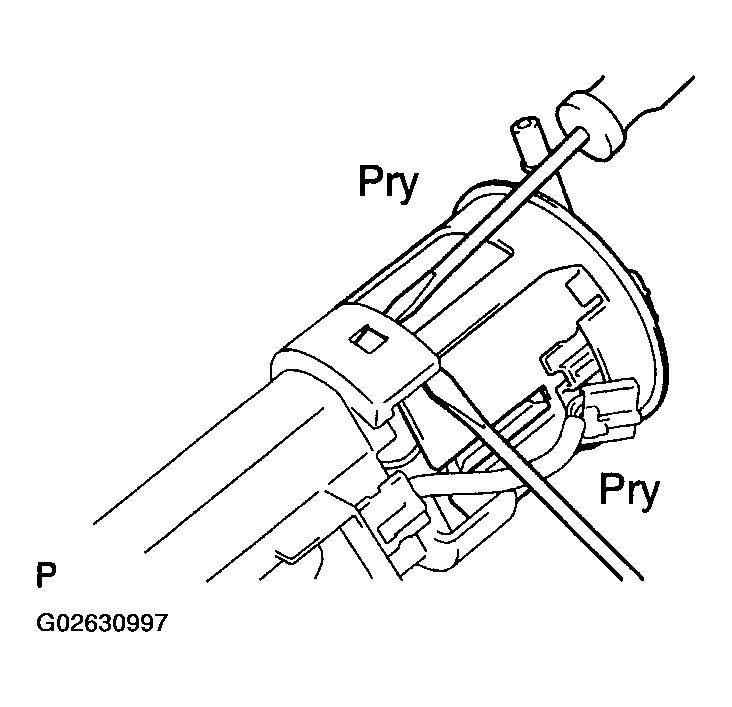

  Fig 2: Prying Out Fuel Suction Plate Using Screwdrivers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the fuel pump connector.

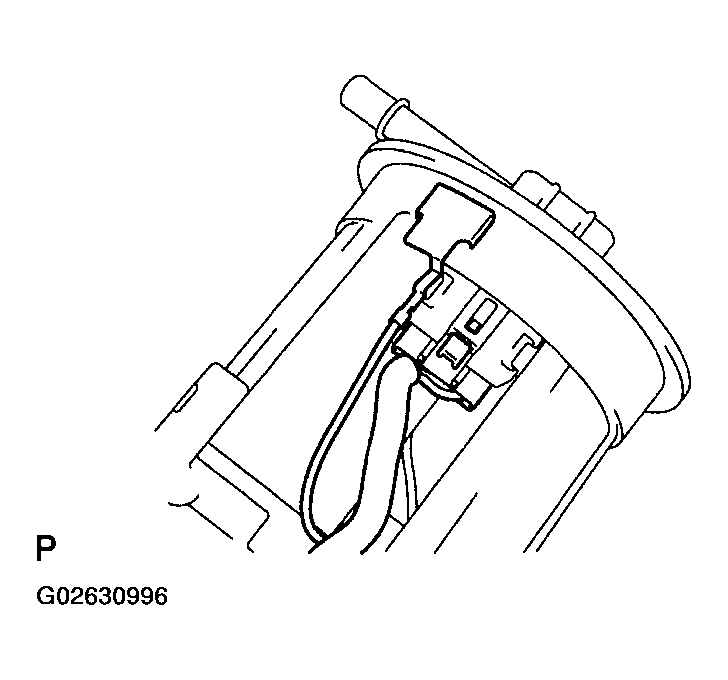

Fig 3: Disconnecting Fuel Pump Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PRESSURE REGULATOR
1. Pull out the pressure regulator.
2. Remove the O-ring from the pressure regulator.

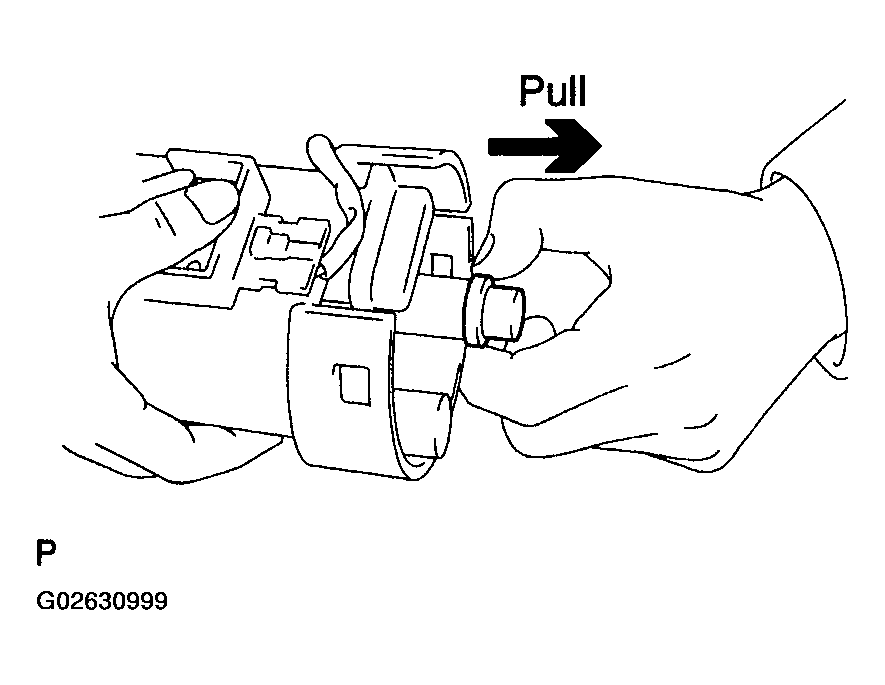

Fig 4: Pulling Out Pressure Regulator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REINSTALL FUEL PRESSURE REGULATOR
1. Install a new O-ring to the pressure regulator.

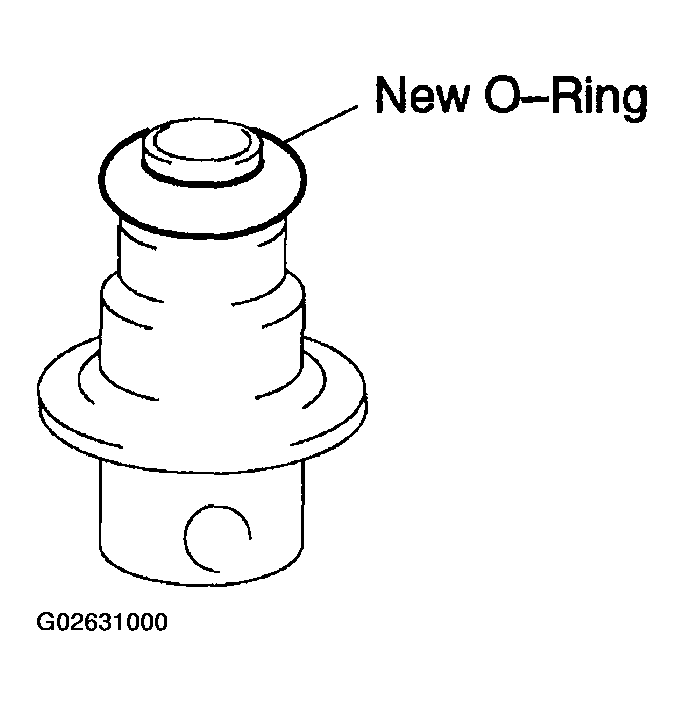

  Fig 5: Installing O-Ring To Pressure Regulator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply a light coat of gasoline to the O-ring, and push in the pressure regulator.

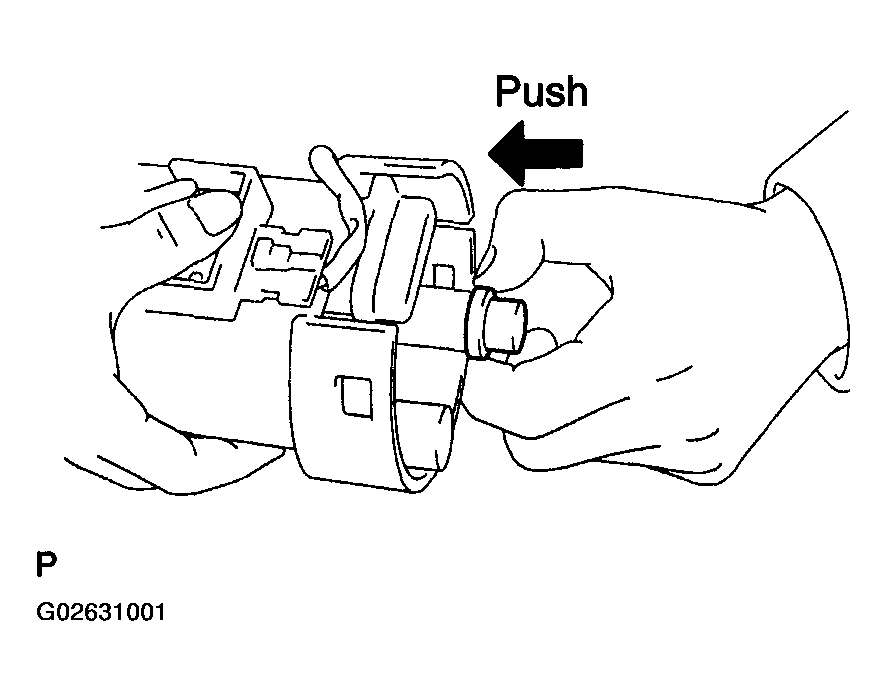

Fig 6: Pushing Pressure Regulator Into O-Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REINSTALL FUEL SUCTION PLATE
1. Connect the fuel pump connector.

  Fig 7: Connecting Fuel Pump Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the fuel suction plate to the fuel filter and fuel pump assembly.

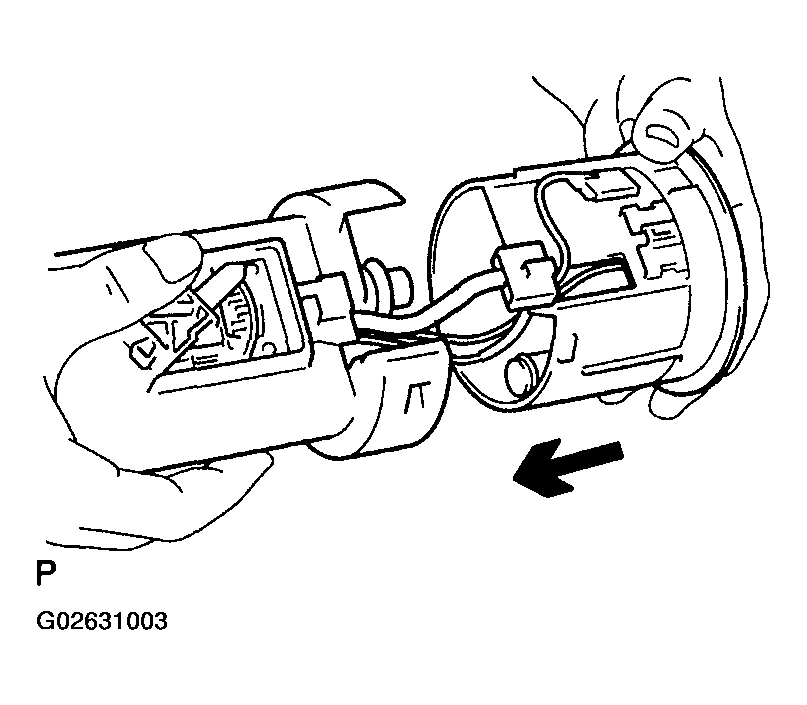

  Fig 8: Installing Fuel Suction Plate To Fuel Filter And Fuel Pump Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the fuel sender gauge connector and ground plate.
REINSTALL FUEL PUMP AND SENDER GAUGE ASSEMBLY TO FUEL TANK (See REPLACEMENT )

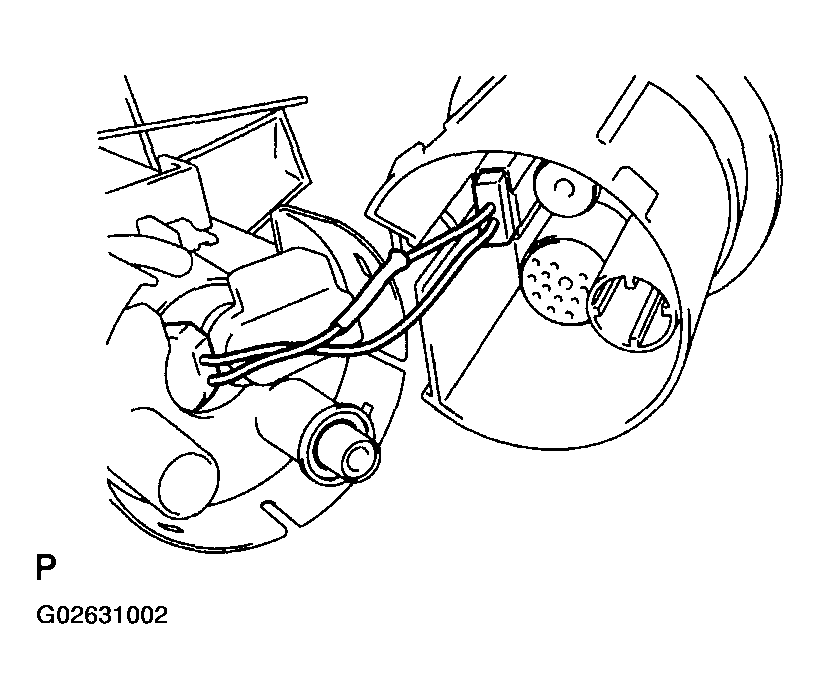

Fig 9: Connecting Fuel Sender Gauge Connector And Ground Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
