Fuel Tank And Line: Inspection

1. Check the fuel lines for cracks or leak, and all the connections for deformation.
2. Check the fuel tank for deformation, cracks fuel, leak or looseness of the tank band.
3. Check the filter neck for damage or fuel leak.

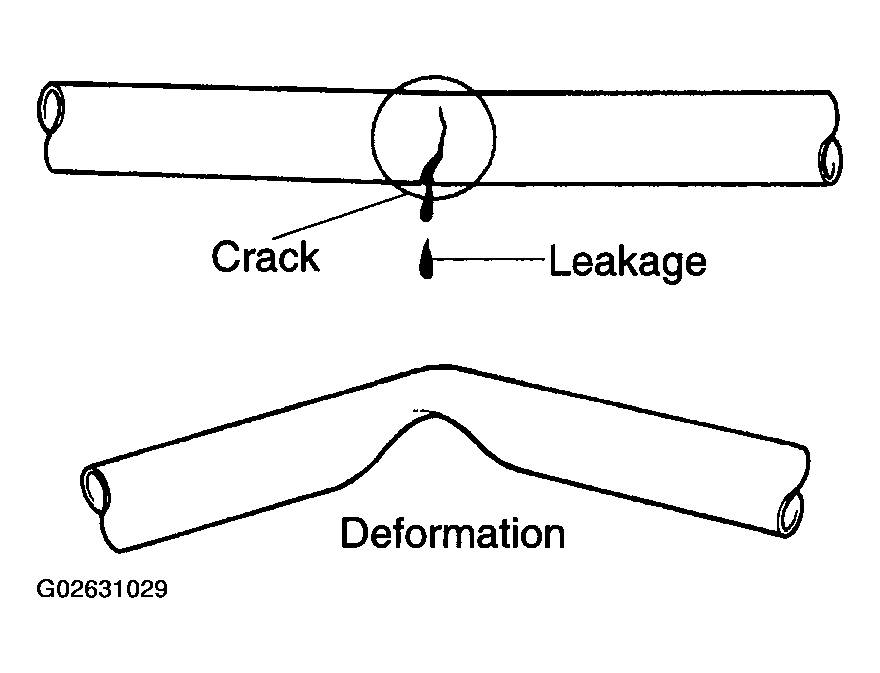

   Fig 1: Checking Fuel Lines For Cracks, Leaks Or Deformation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Hose and tube connections are as shown in the illustration.

If a problem is found, repair or replace the part as necessary.

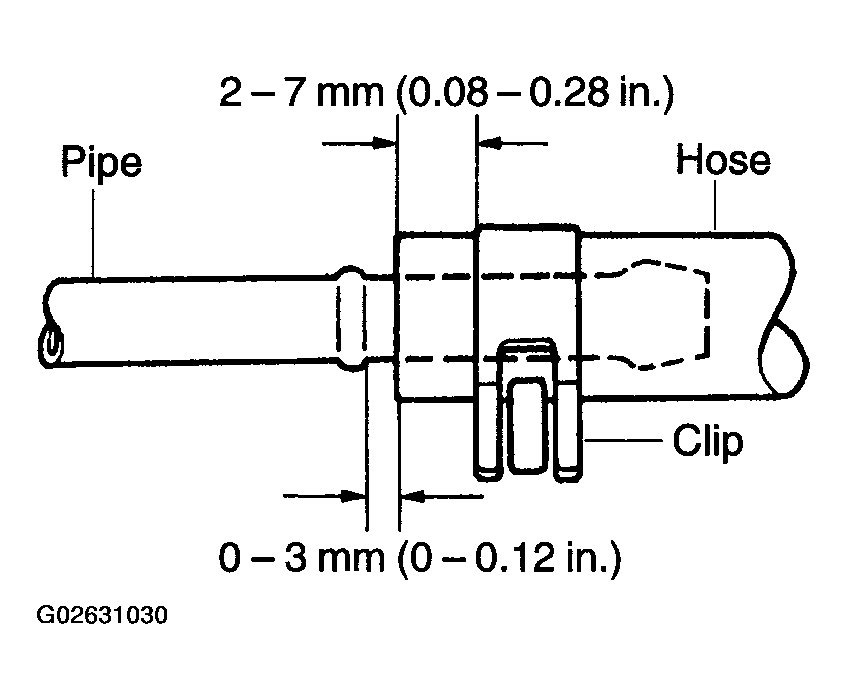

Fig 2: Identifying Hose And Tube Connections

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
