Throttle Body (M/T): Inspection

Check that there is no clearance between the throttle stop screw and throttle lever when the throttle valve is fully closed.

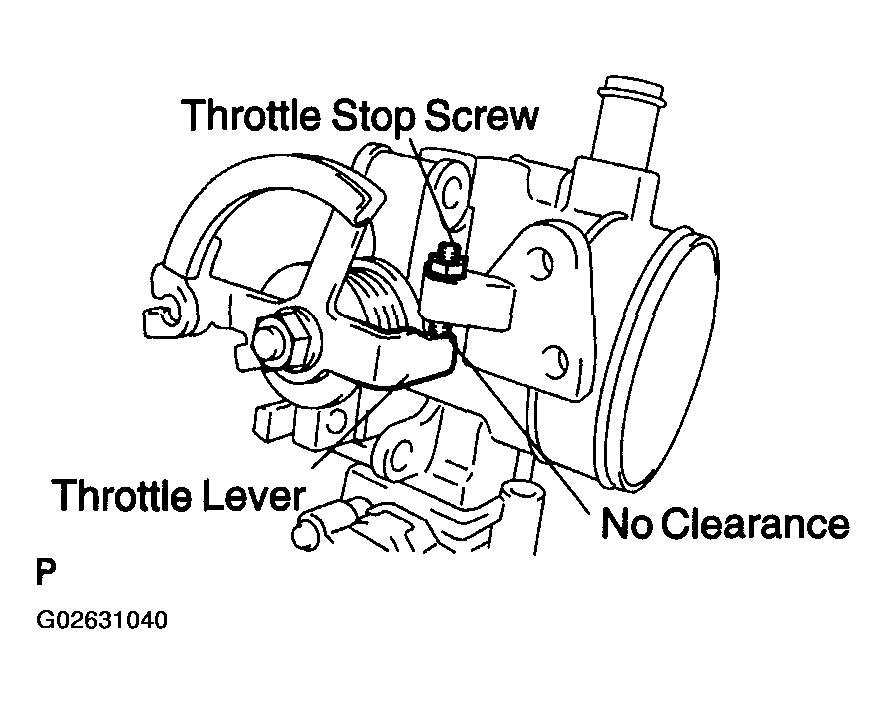

Fig 1: Inspecting Throttle Valve

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
