SST (Special Service Tools)

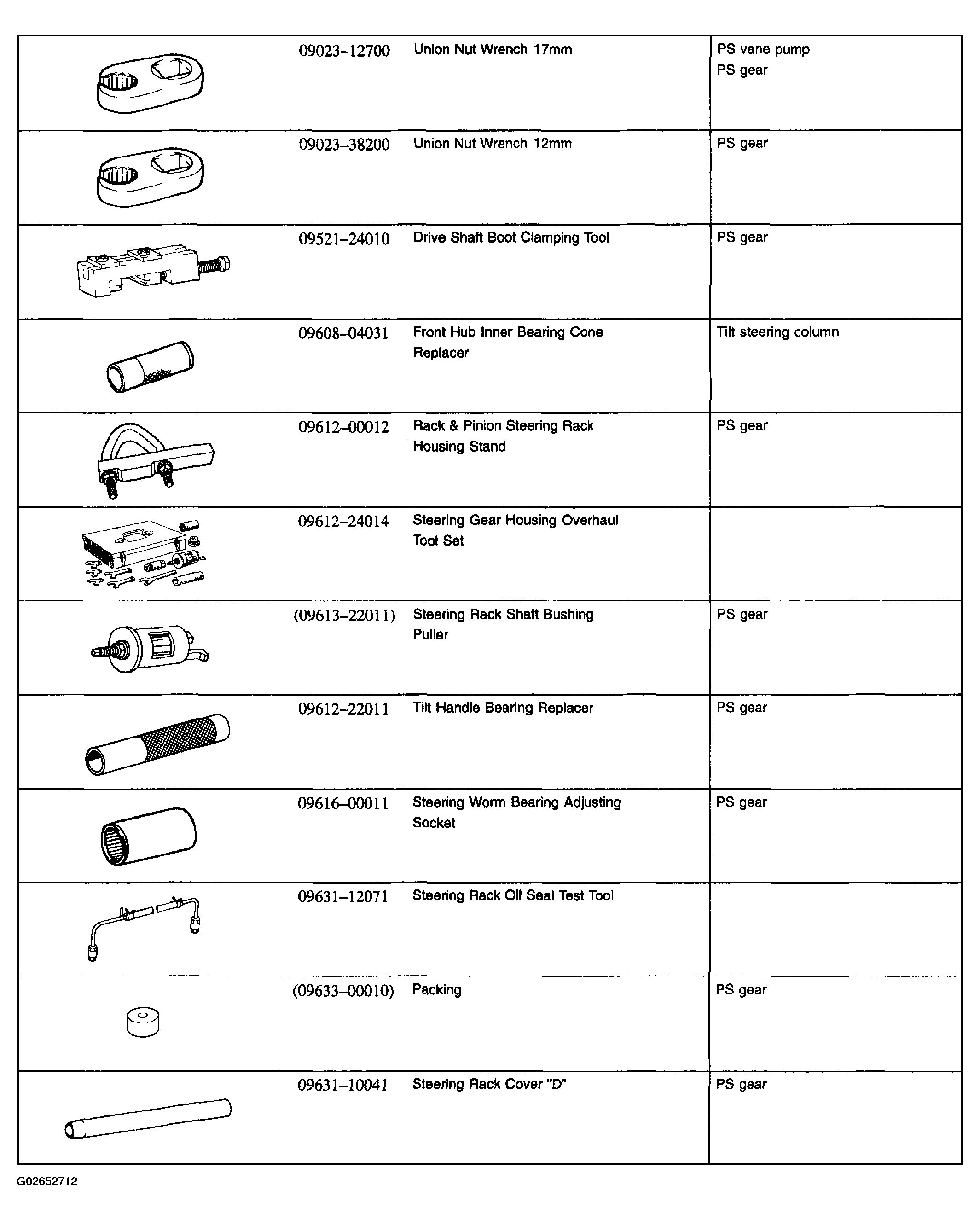

Fig 1: SST (Special Service Tools) - Steering (1 Of 4)
G02652712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

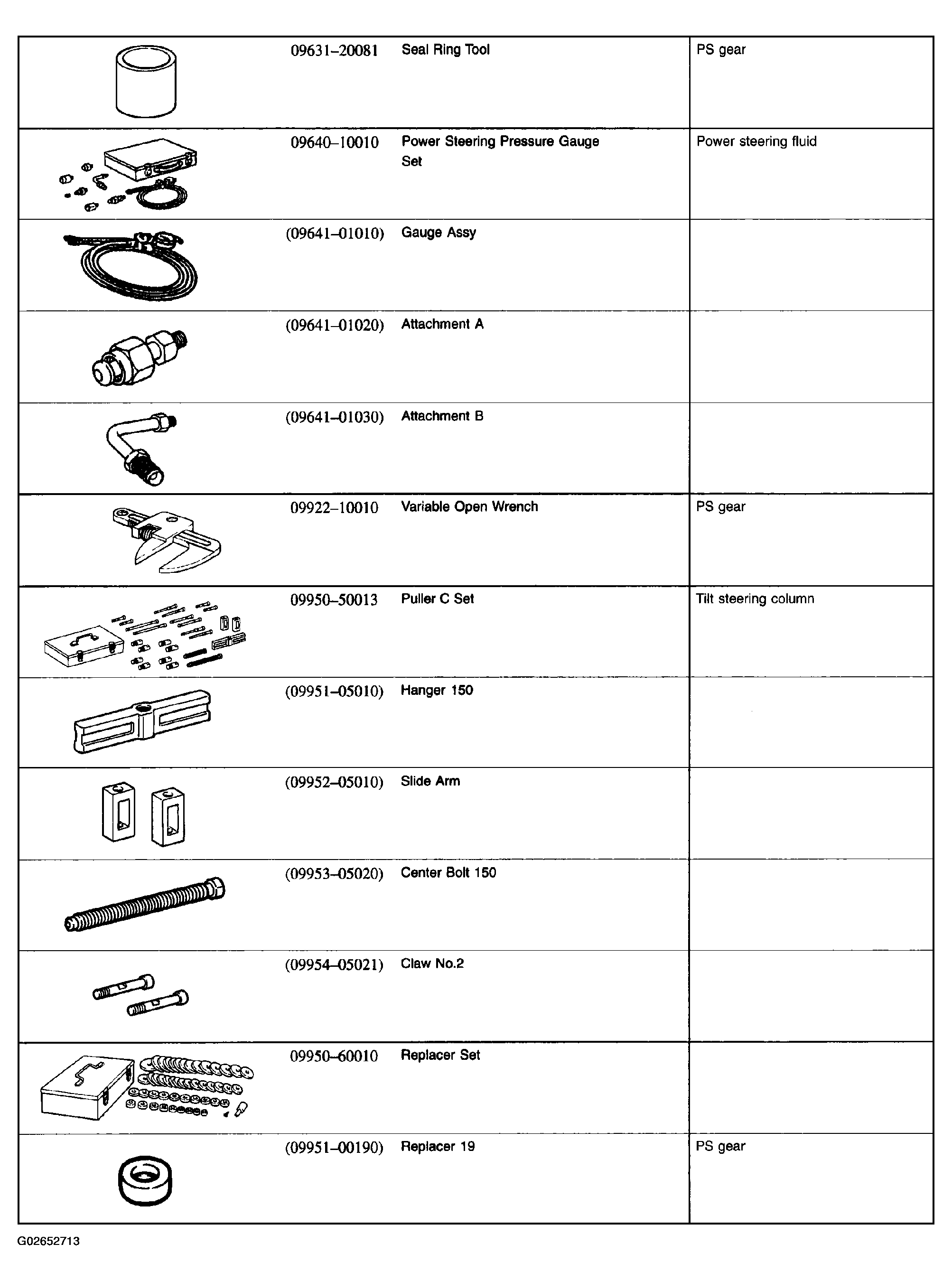

Fig 2: SST (Special Service Tools) - Steering (2 Of 4)
G02652713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

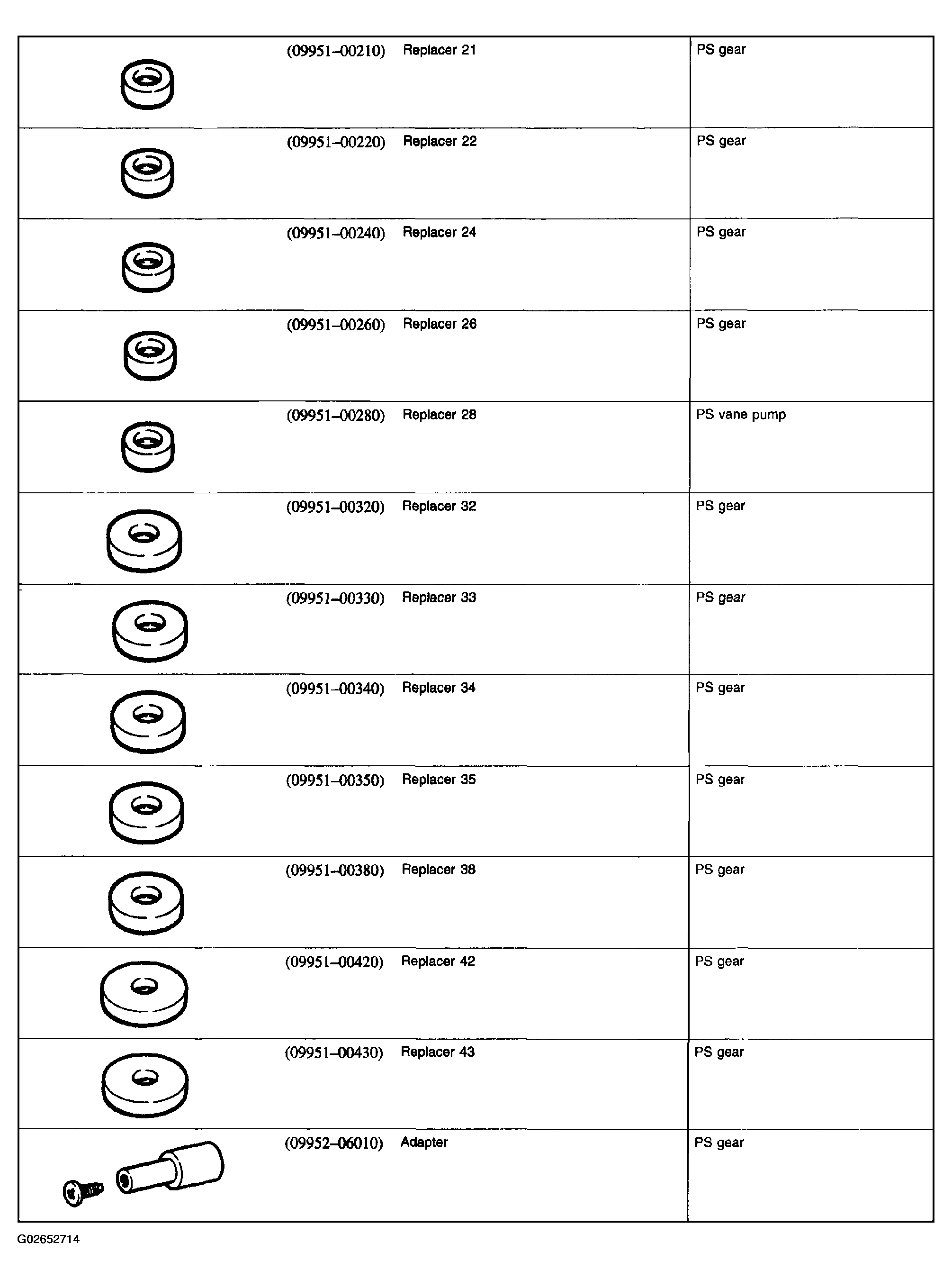

Fig 3: SST (Special Service Tools) - Steering (3 Of 4)
G02652714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

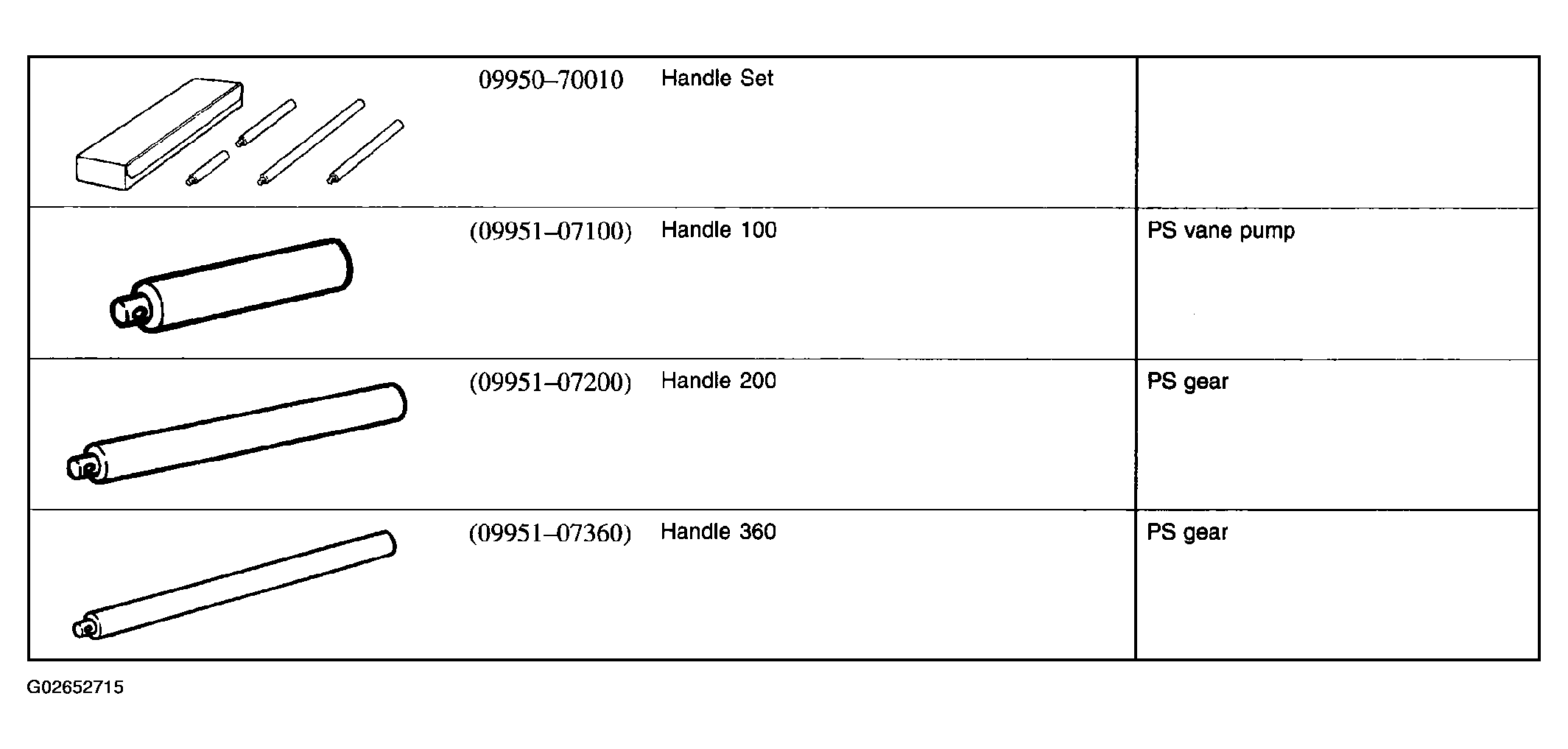

Fig 4: SST (Special Service Tools) - Steering (4 Of 4)
G02652715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
