SST (Special Service Tools)

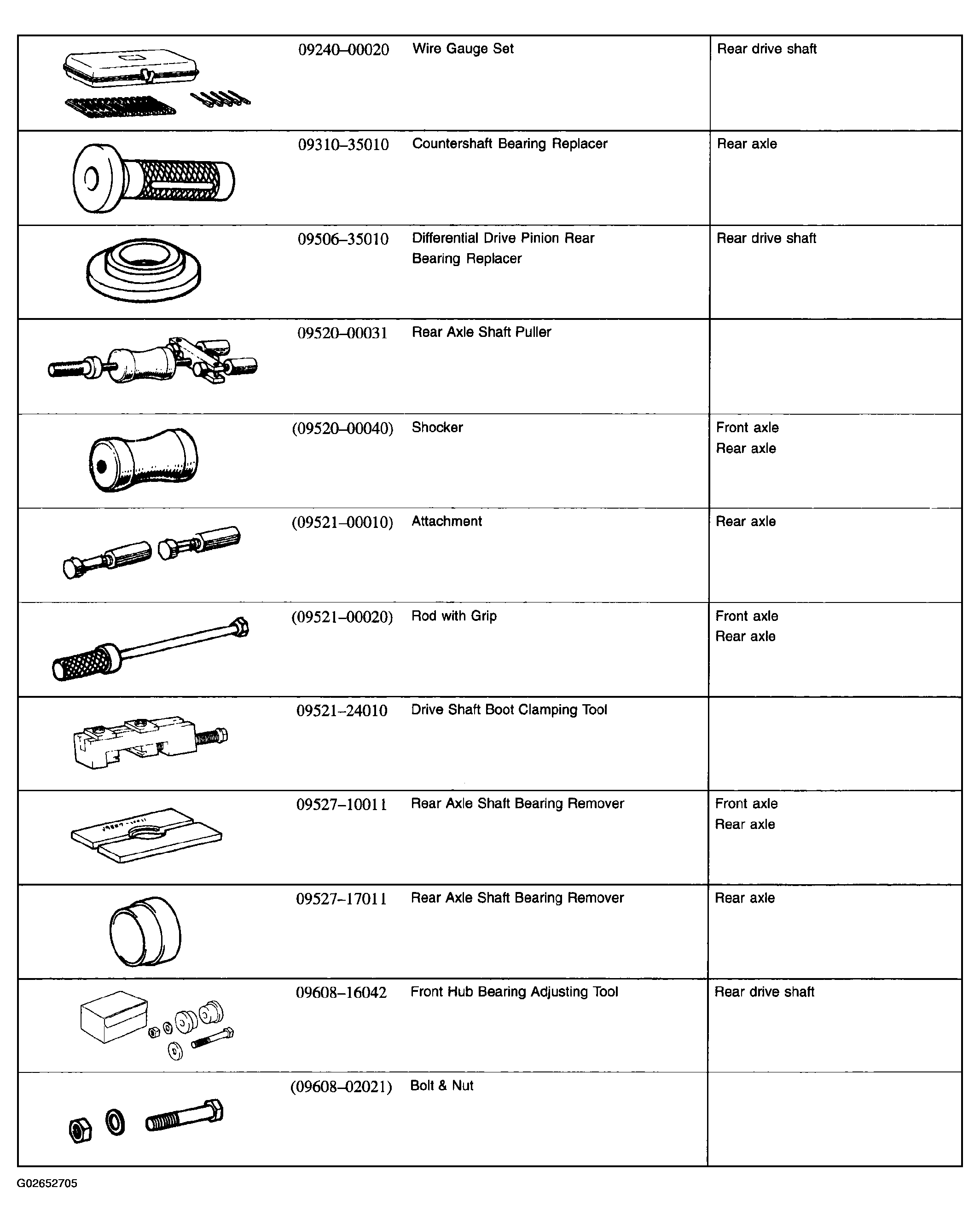

Fig 1: SST (Special Service Tools) - Suspension And Axle (1 Of 3)
G02652705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

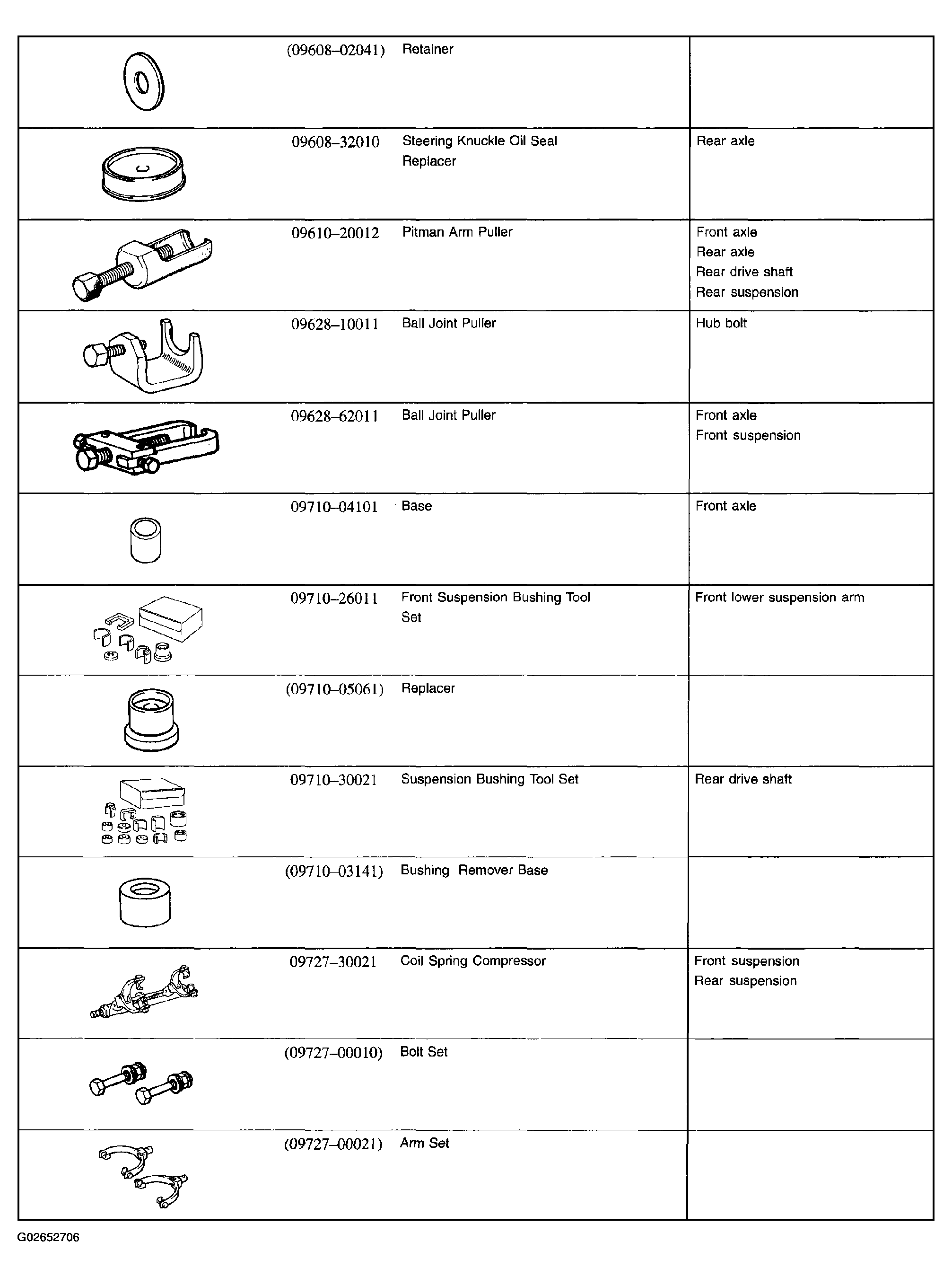

Fig 2: SST (Special Service Tools) - Suspension And Axle (2 Of 3)
G02652706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

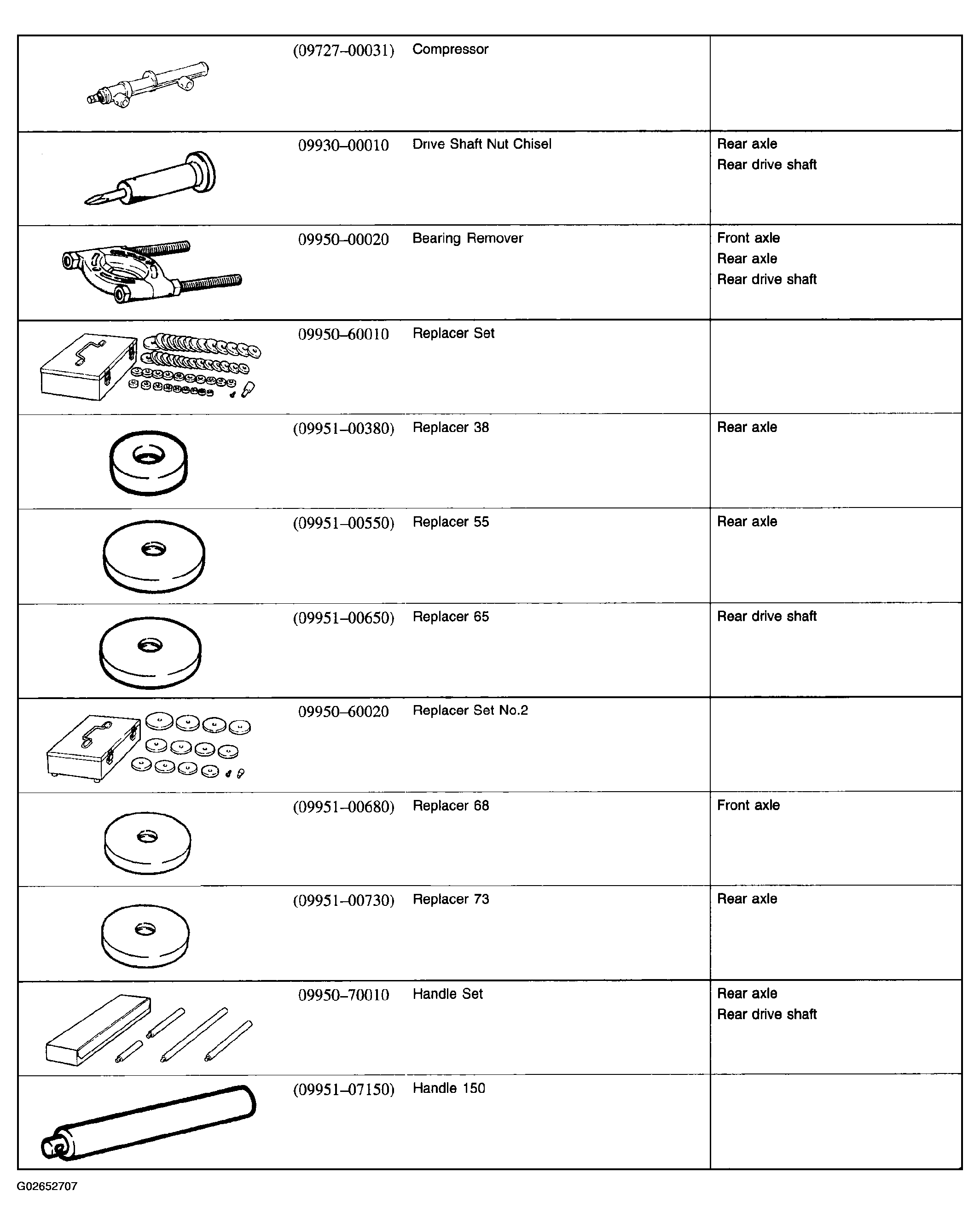

Fig 3: SST (Special Service Tools) - Suspension And Axle (3 Of 3)
G02652707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
