Terminals Of ECM

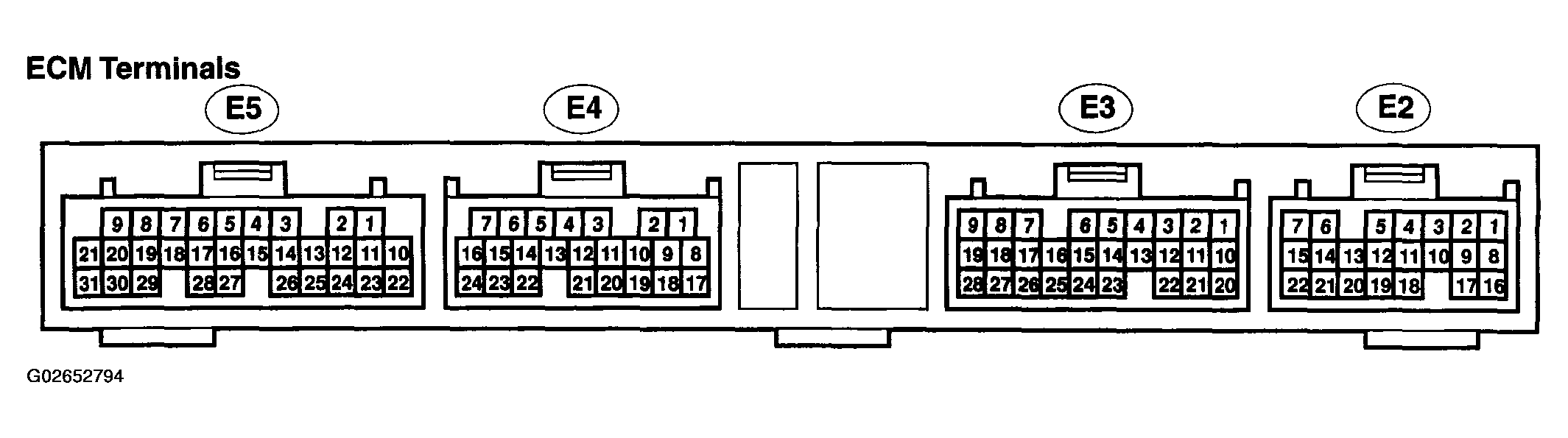

Fig 1: Identifying Terminals Of ECM
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

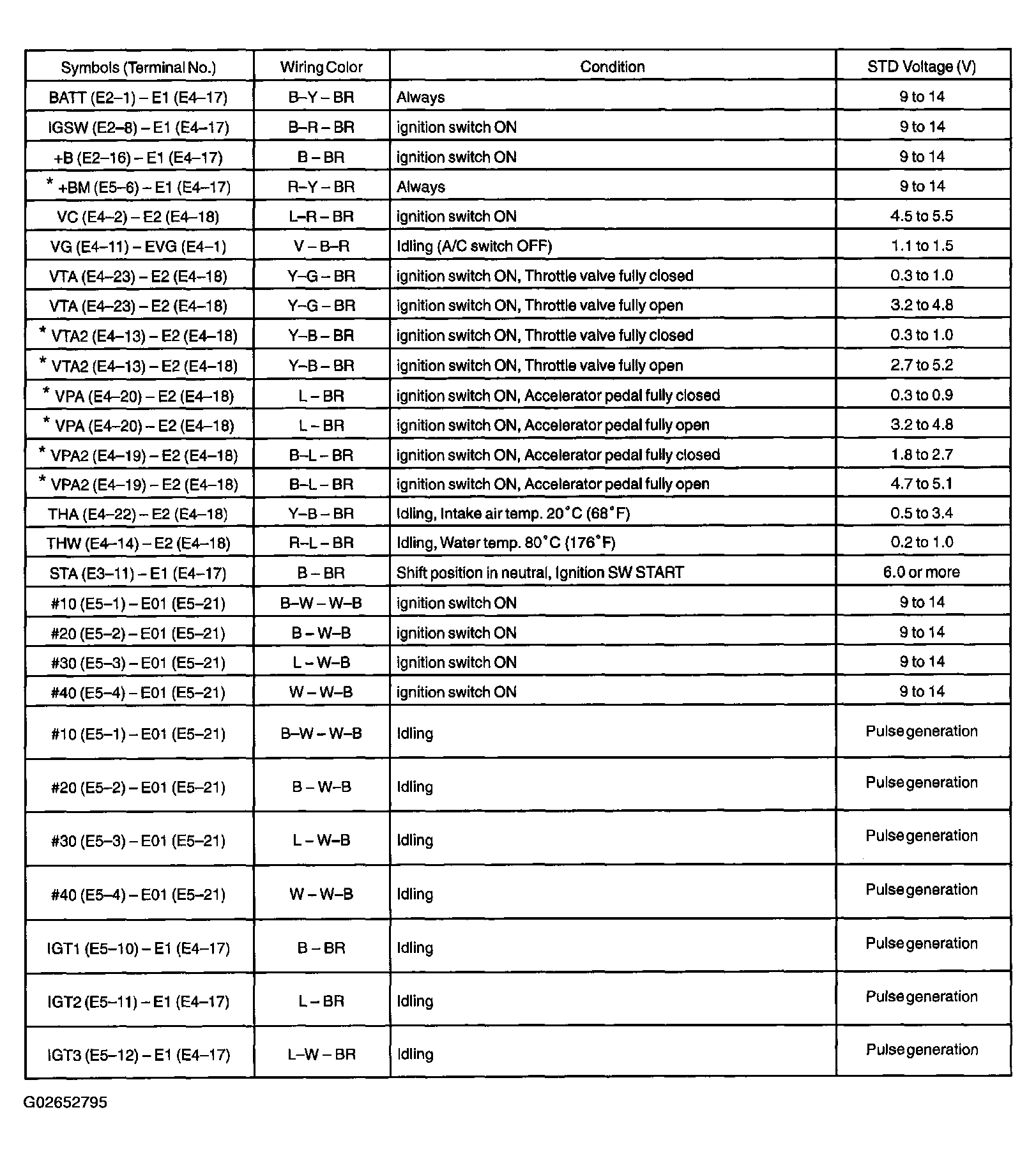

Fig 2: Terminals Of ECM Reference Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

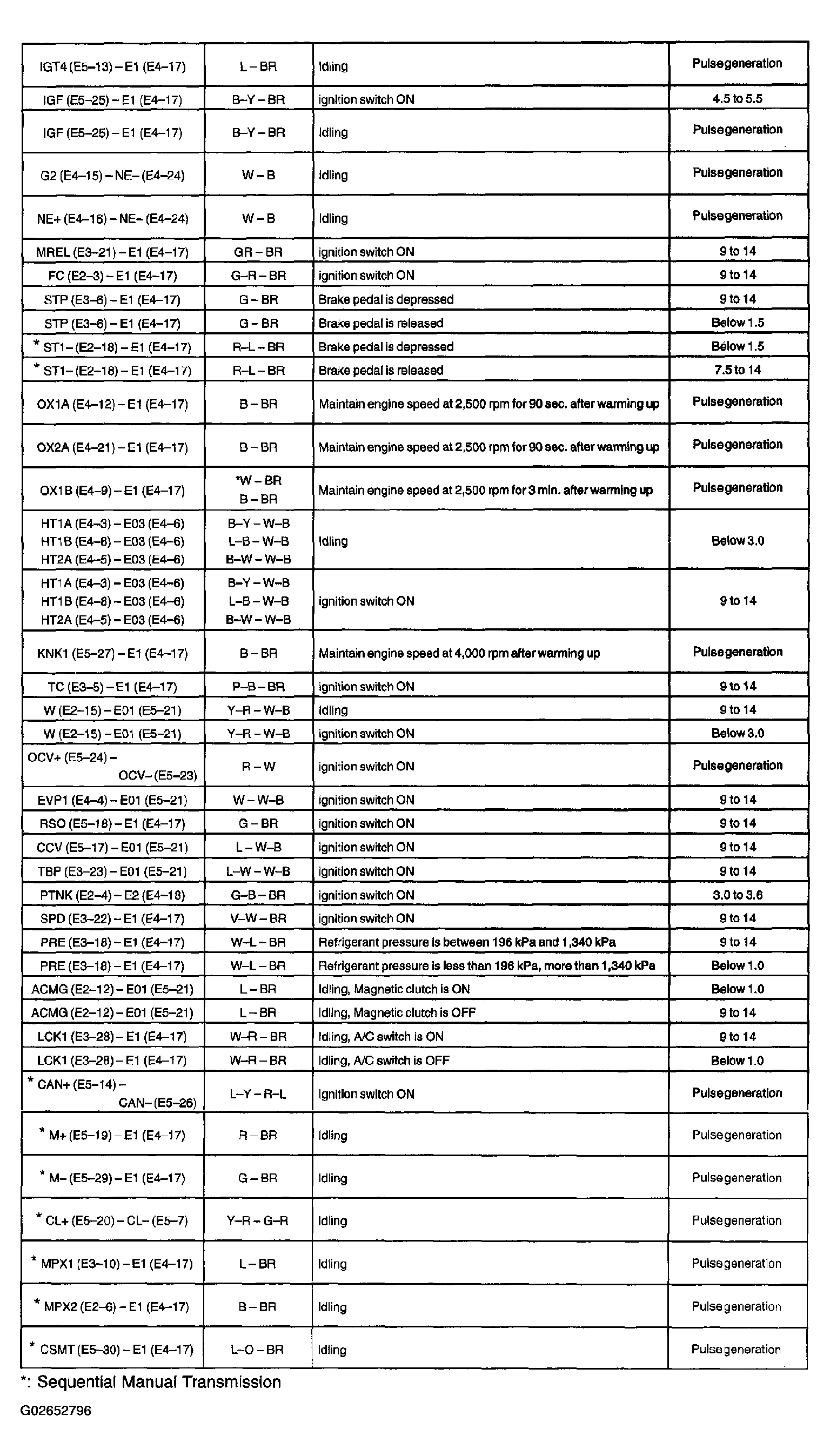

Fig 3: Terminals Of ECM Reference Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
