Engine Coolant Temperature (ECT) Sensor: Components

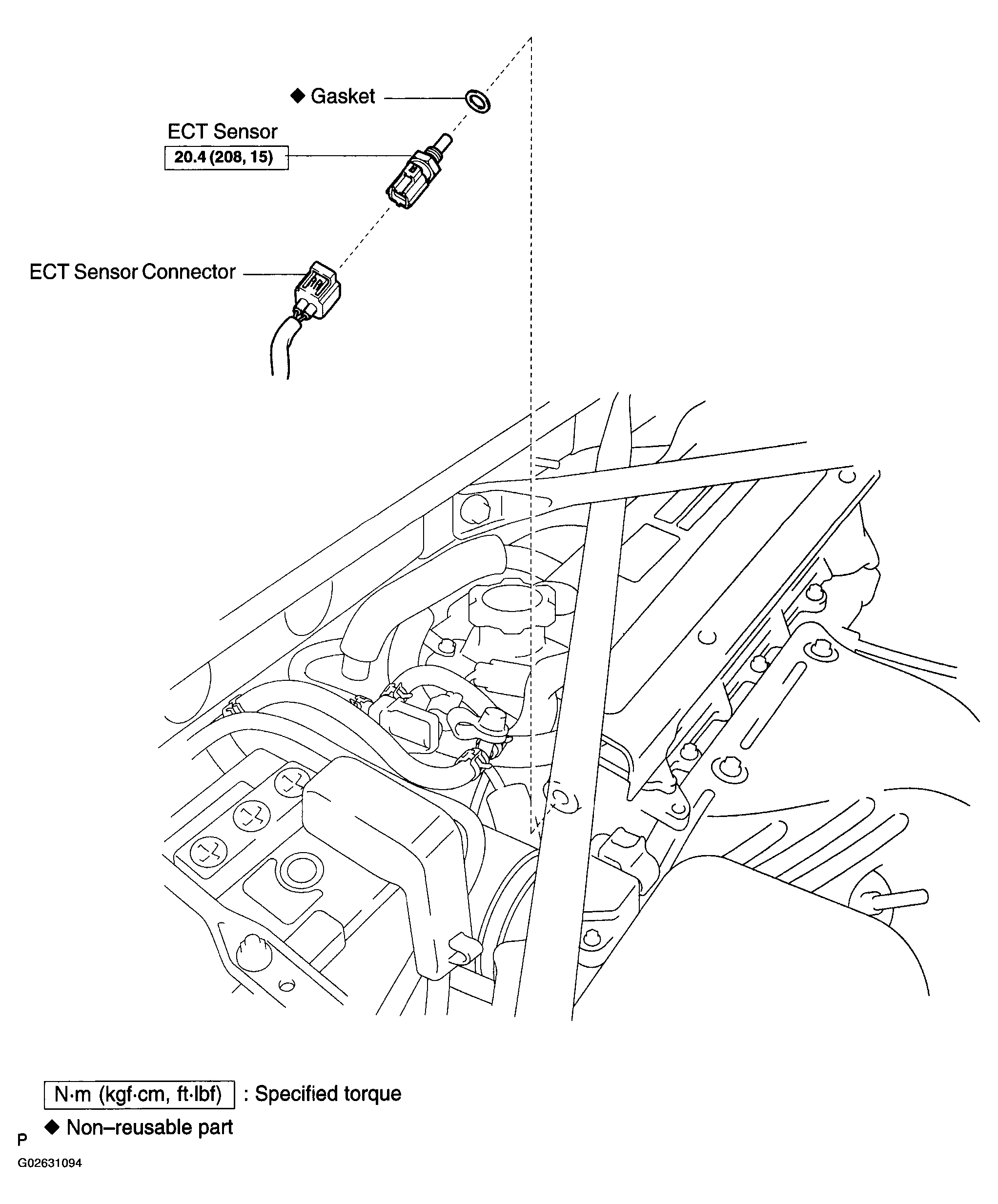

Fig 1: Identifying Engine Coolant Temperature Sensor Components
G02631094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
