Engine Control System (SFI): Injector: Removal

Disconnect the 3 wire harness clamps from the clamp brackets.

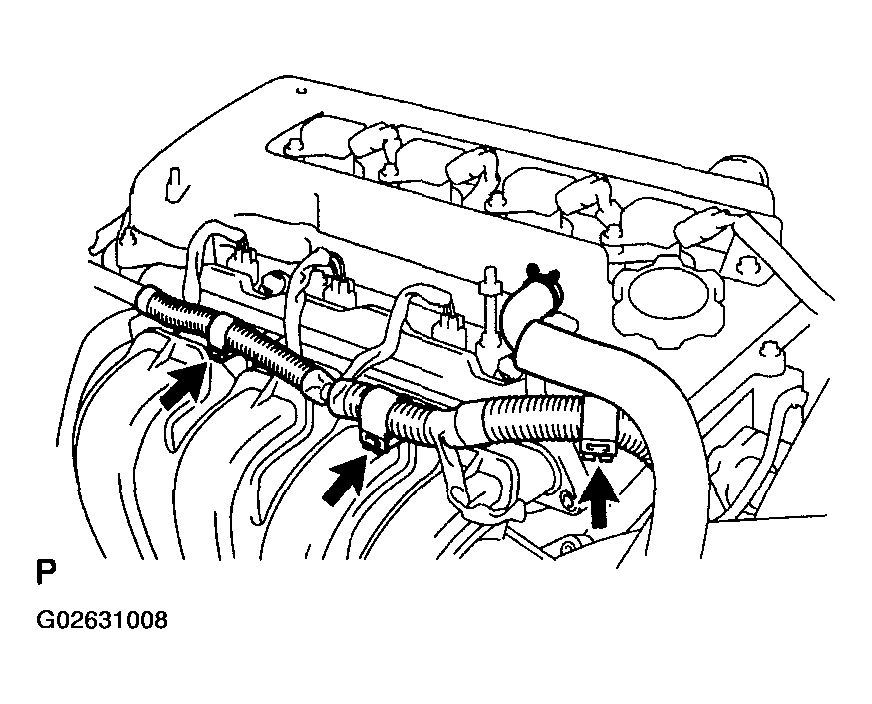

Fig 1: Disconnecting Wire Harness Clamps From Clamp Brackets

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the 4 injector connectors.
2. Remove the 2 bolts holding the delivery pipe to the cylinder head.
3. Disconnect the delivery pipe together with the 4 injectors from the cylinder head.
   NOTE: Be careful not to drop the injectors when disconnecting the delivery pipe.
4. Remove the 2 spacers and 4 grommets.
5. Pull out the 4 injectors from the delivery pipe.
6. Remove the O-ring from each injector.

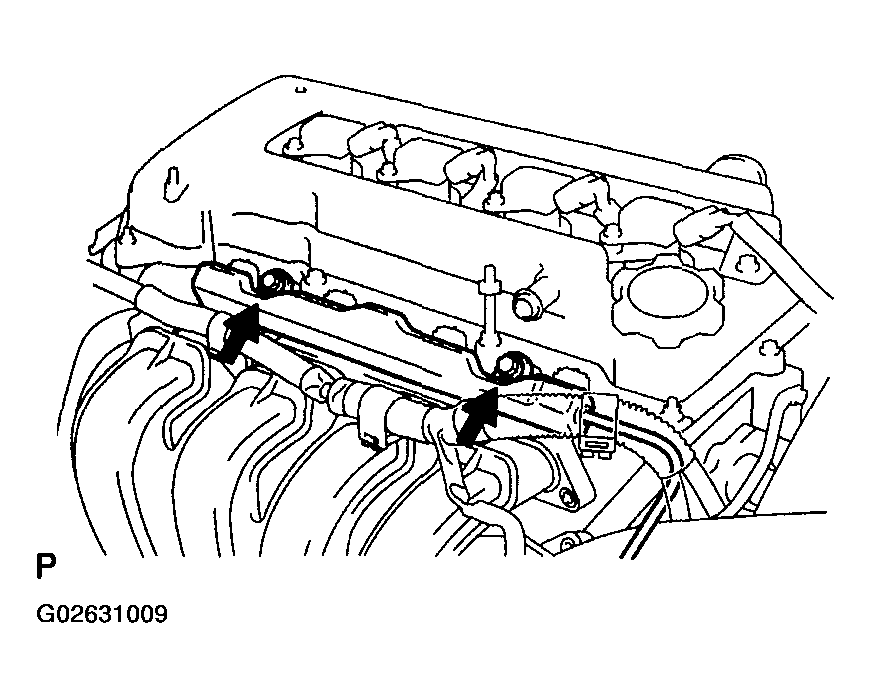

Fig 2: Identifying Delivery Pipe Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
