Knock Sensor: Components

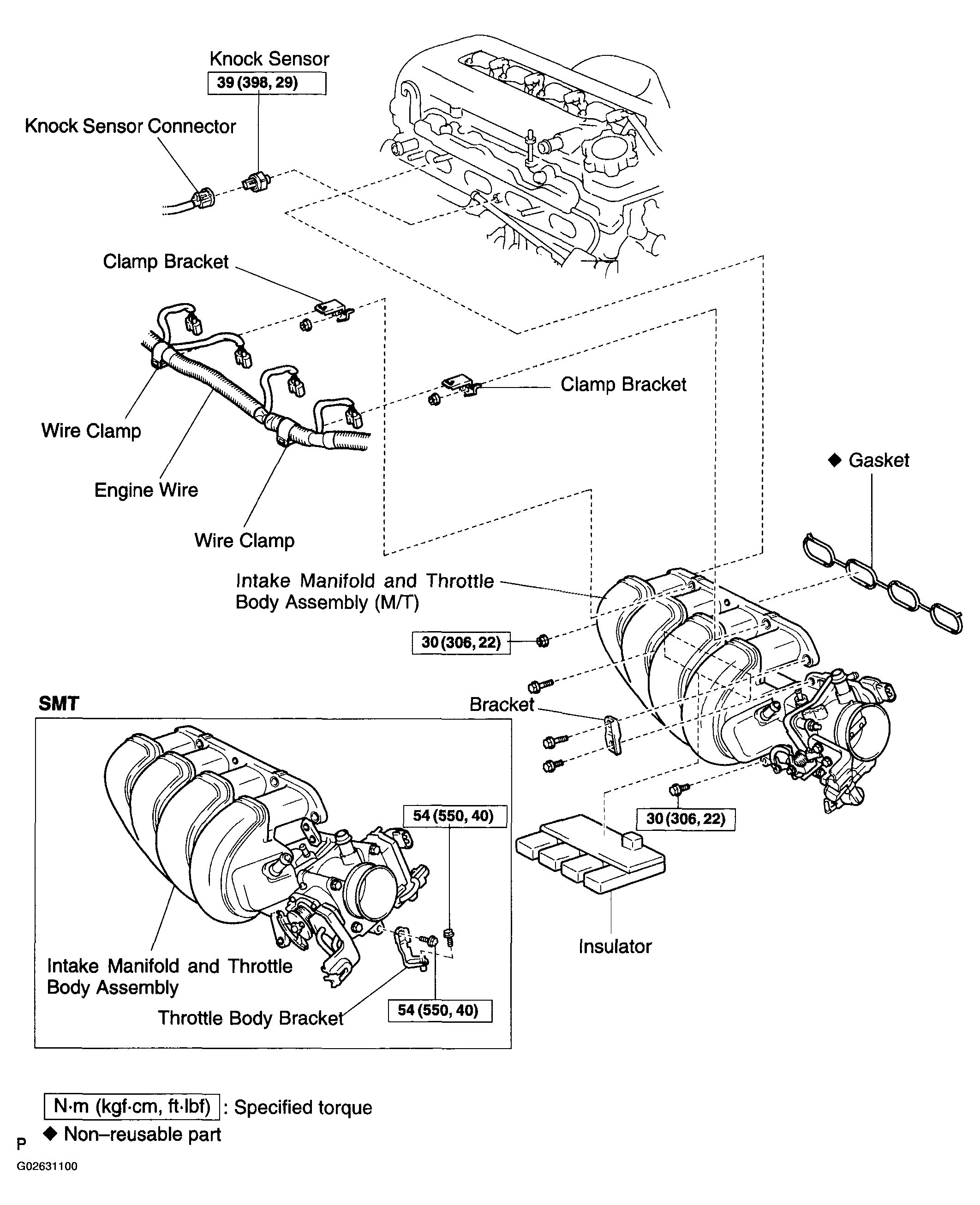

Fig 1: Identifying Knock Sensor Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
