Mass Air Flow (MAF) Meter: Inspection

Remove the 2 screws and MAF meter.

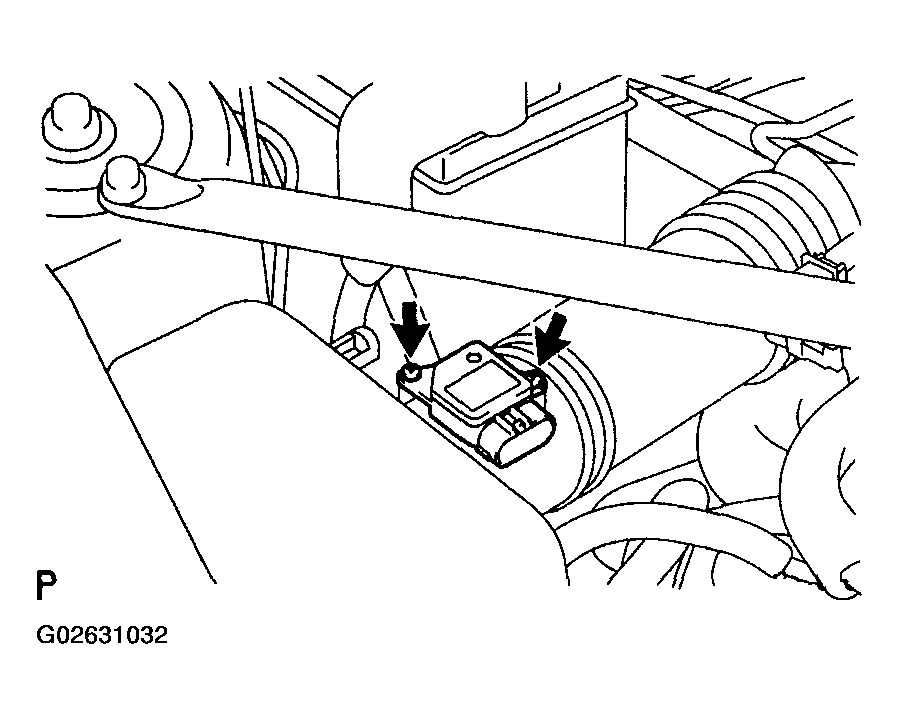

Fig 1: Identifying Screws And MAF Meter

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using an ohmmeter, measure the resistance between terminals THA and E2.

   Resistance:

   MAF METER - RESISTANCE TABLE



   -20°C(-4°F)	13.6-18.4 kΩ
   20°C(68°F)	2.21-2.69 kΩ
   60°C(140°F)	0.49-0.67 kΩ

   If the resistance is not as specified, replace the MAF meter.

   Fig 2: Measuring Resistance Between Terminals THA And E2 Using An Ohmmeter

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Inspect the operation.
   1. Connect the MAF meter connector.
   2. Connect the negative (-) terminal cable to the battery.
   3. Turn the ignition switch ON.

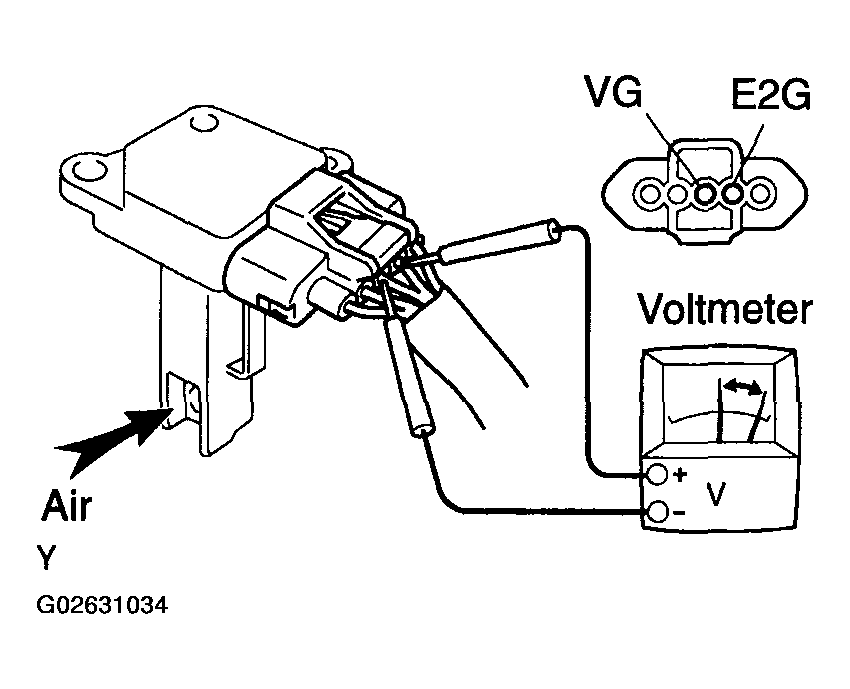

   4. Using a voltmeter, connect the positive (+) tester probe to terminal VG, and negative (-) tester probe to terminal E2G.
   5. Blow air into the MAF meter, and check that the voltage fluctuates.

      If the operation is not as specified, replace the MAF meter.

   6. Turn the ignition switch OFF.
   7. Disconnect the negative (-) terminal cable from the battery.
   8. Disconnect the MAF meter connector.

Install the MAF meter with the 2 screws.
