Throttle Body (M/T): Installation

INSTALL THROTTLE BODY
1. Install 2 new gaskets to the intake manifold as shown in the illustration.
2. Install the accelerator cable bracket to the throttle body with the 2 bolts.

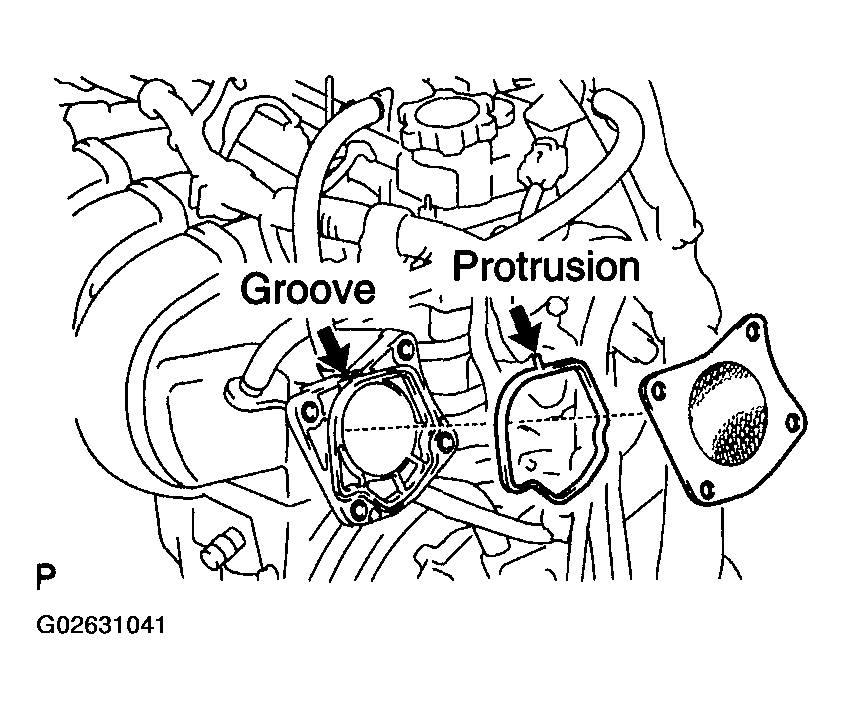

  Fig 1: Installing Gaskets To Intake Manifold
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the throttle body with the 2 bolts and 2 nuts.
  Torque: 30 N.m (306 kgf.cm, 22 ft.lbf)
4. Connect the 2 water bypass hoses to the throttle body.

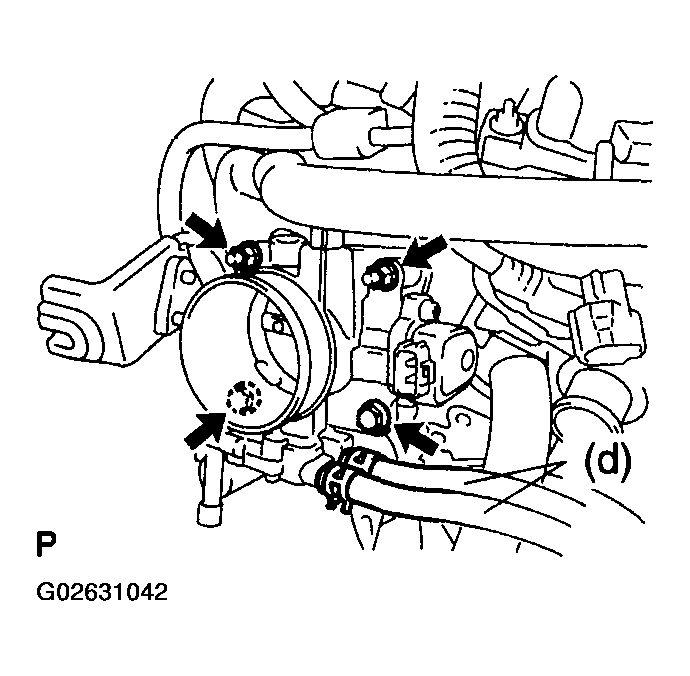

  Fig 2: Identifying Bolts, Nuts And Water Bypass Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the IAC valve connector.
6. Connect the throttle position sensor connector.
7. Connect the PCV hose to the throttle body.
CONNECT ACCELERATOR CABLE
INSTALL AIR CLEANER HOSE
INSTALL VSV FOR EVAP
INSTALL SUSPENSION UPPER BRACE
FILL RADIATOR WITH ENGINE COOLANT

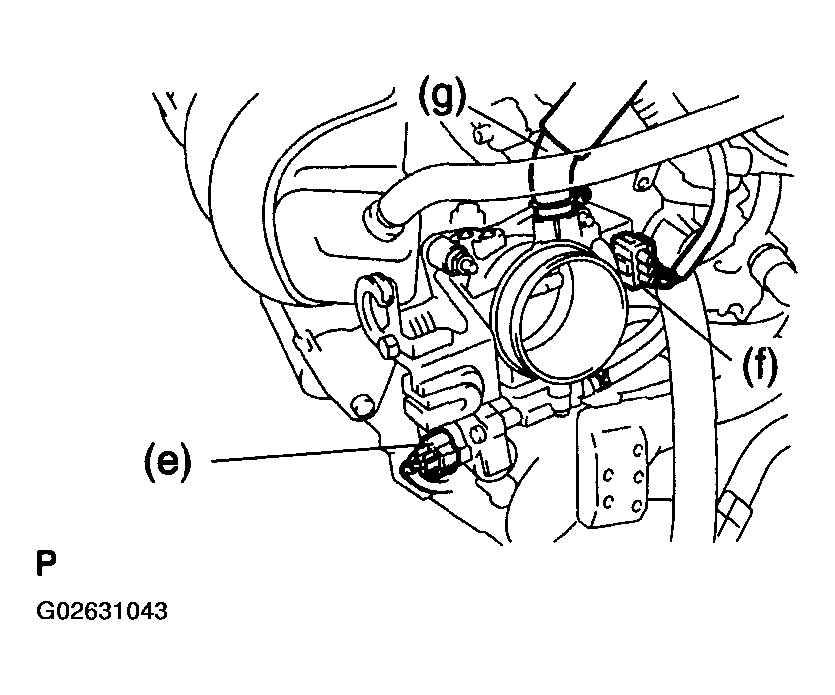

Fig 3: Identifying IAC Valve Connector, Throttle Position Sensor Connector And PCV Hose
