Throttle Body (SMT): Installation

INSTALL THROTTLE BODY
1. Install 2 new gaskets to the intake manifold as shown in the illustration.

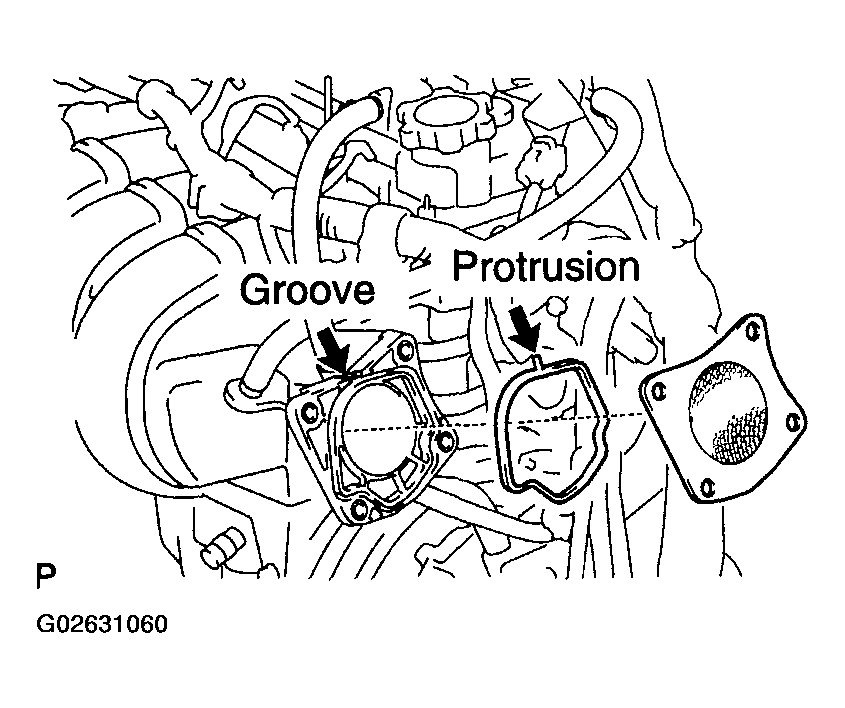

  Fig 1: Installing Gaskets To Intake Manifold
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the accelerator position sensor connector.

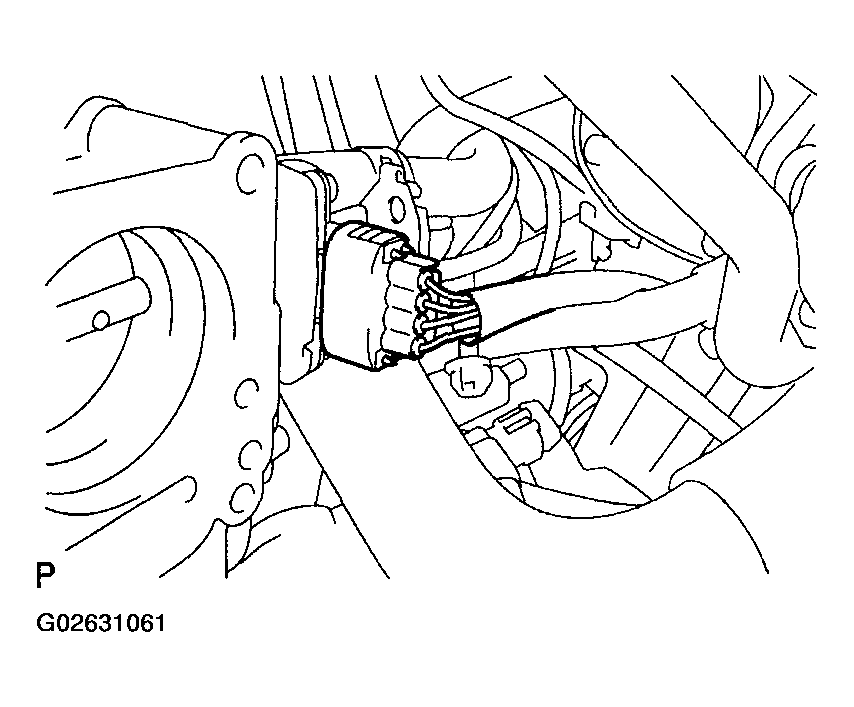

  Fig 2: Connecting Accelerator Position Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the throttle body with the 2 bolts and 2 nuts.
  Torque: 30 N.m (305 kgf.cm, 22 ft.lbf)
4. Install the throttle body bracket with the 2 bolts.
  Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
5. Connect the 2 water bypass hoses to the throttle body.

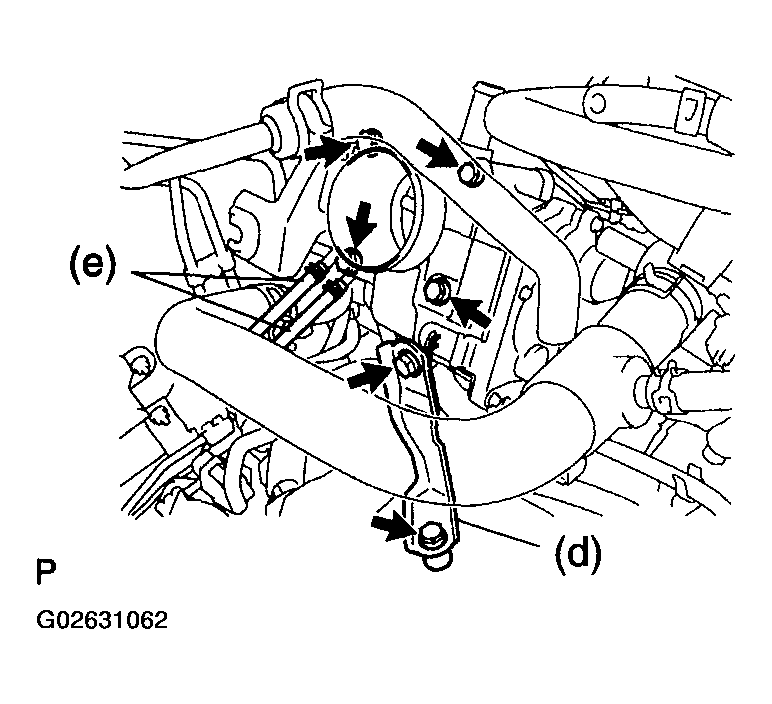

  Fig 3: Identifying Nuts, Bolts And Water Bypass Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the PCV hose to the throttle body.
7. Connect the control motor connector.
8. Connect the throttle position sensor connector.
CONNECT ACCELERATOR CABLE
INSTALL VSV FOR EVAP WITH AIR CLEANER HOSE
INSTALL VSV FOR EVAP HOSE
INSTALL SUSPENSION UPPER BRACE
FILL RADIATOR WITH ENGINE COOLANT

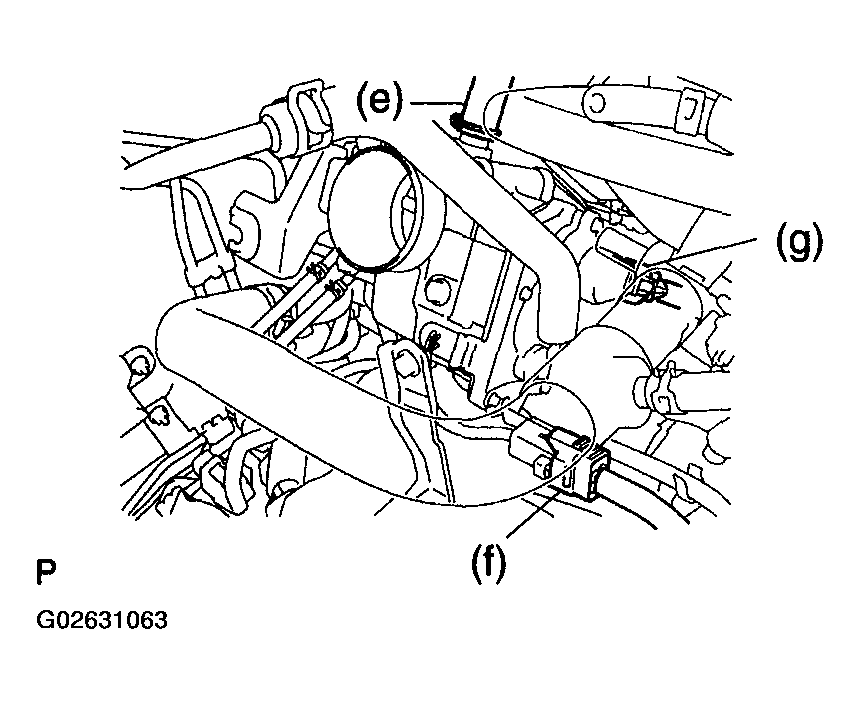

Fig 4: Connecting PCV Hose, Control Motor Connector And Throttle Position Sensor Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
