Home >> Toyota >> 2005 >> MR2 C65M >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (SFI) >> Vapor Pressure Sensor >> Components
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Vapor Pressure Sensor: Components

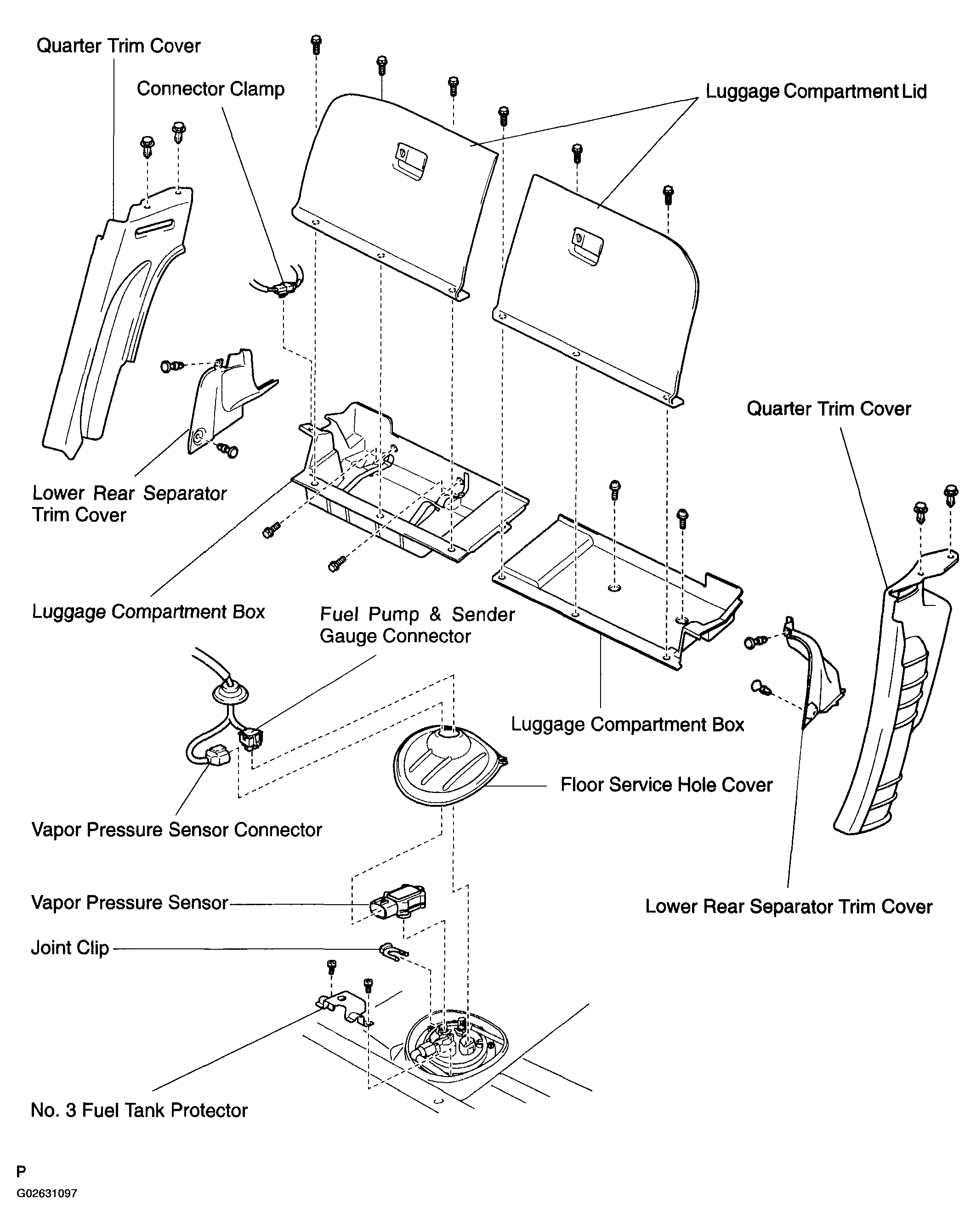

Fig 1: Identifying Vapor Pressure Sensor Components
G02631097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
