Power Mirror Control System: Inspection

  1. INSPECT OUTER MIRROR SWITCH ASSY
    1. Left side for left/right adjustment switch:

      Measure the resistance of the mirror switch.

      TESTER CONNECTION AND SPECIFIED CONDITION (1 OF 2)

      Tester Connection Switch Condition Specified Condition
      - OFF 10 kΩ or higher
      4-8
      6-7 UP Below 1 Ω
      4-7
      6-8 DOWN Below 1 Ω
      5-8
      6-7 LEFT Below 1Ω
      5-7
      6-8 RIGHT Below 1 Ω

      If the result is not as specified, replace the switch assembly.

    2. Right side for left/right adjustment switch:

      Measure the resistance of the mirror switch.

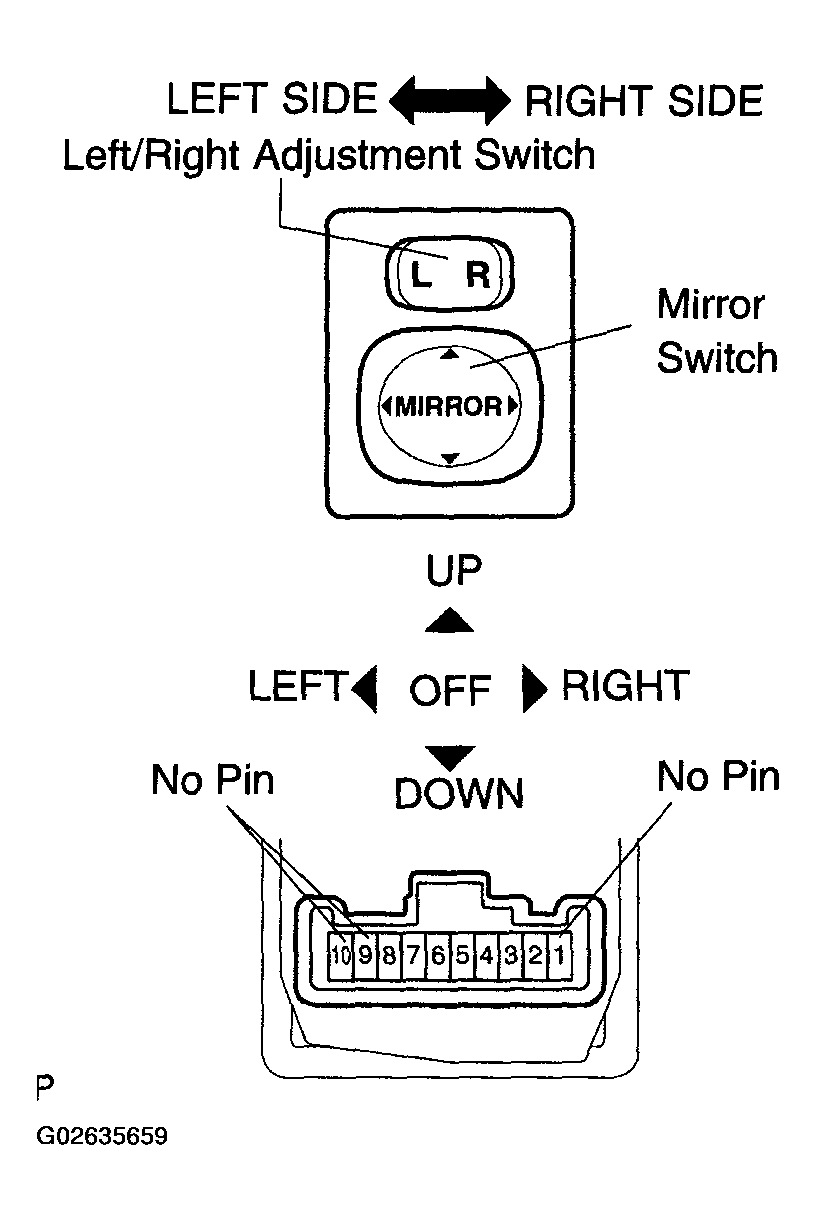

      Fig 1: Measuring Resistance Of Mirror Switch
      G02635659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TESTER CONNECTION AND SPECIFIED CONDITION (2 OF 2)

      Tester Connection Switch Condition Specified Condition
      - OFF 10 kΩ or higher
      3-8 UP Below 1 Ω
      6-7
      3-7 DOWN Below 1Ω
      6-8
      2-8 LEFT Below 1Ω
      6-7
      2-7 RIGHT Below 1Ω
      6-8

      If the result is not as specified, replace the switch assembly.

  2. INSPECT OUTER REAR VIEW MIRROR ASSY LH
    1. Disconnect the outer rear view mirror assembly LH connector.
    2. Apply battery voltage and inspect the mirror motor face operation.
      MEASUREMENT CONDITION AND SPECIFIED CONDITION (1 OF 2)

      Measurement Condition Specified Condition
      Battery positive (+) - MV (3) Turns upward (A)
      Battery negative (-) - Com (2)
      Battery positive (+) - Com (2) Turns downward (B)
      Battery negative (-) - MV (3)
      Battery positive (+) - Com (2) Turns left (C)
      Battery negative (-) - MH (1)
      Battery positive (+)-MH(1) Turns right (D)
      Battery negative (-) - Com (2)

      If the result is not as specified, replace the mirror assembly.

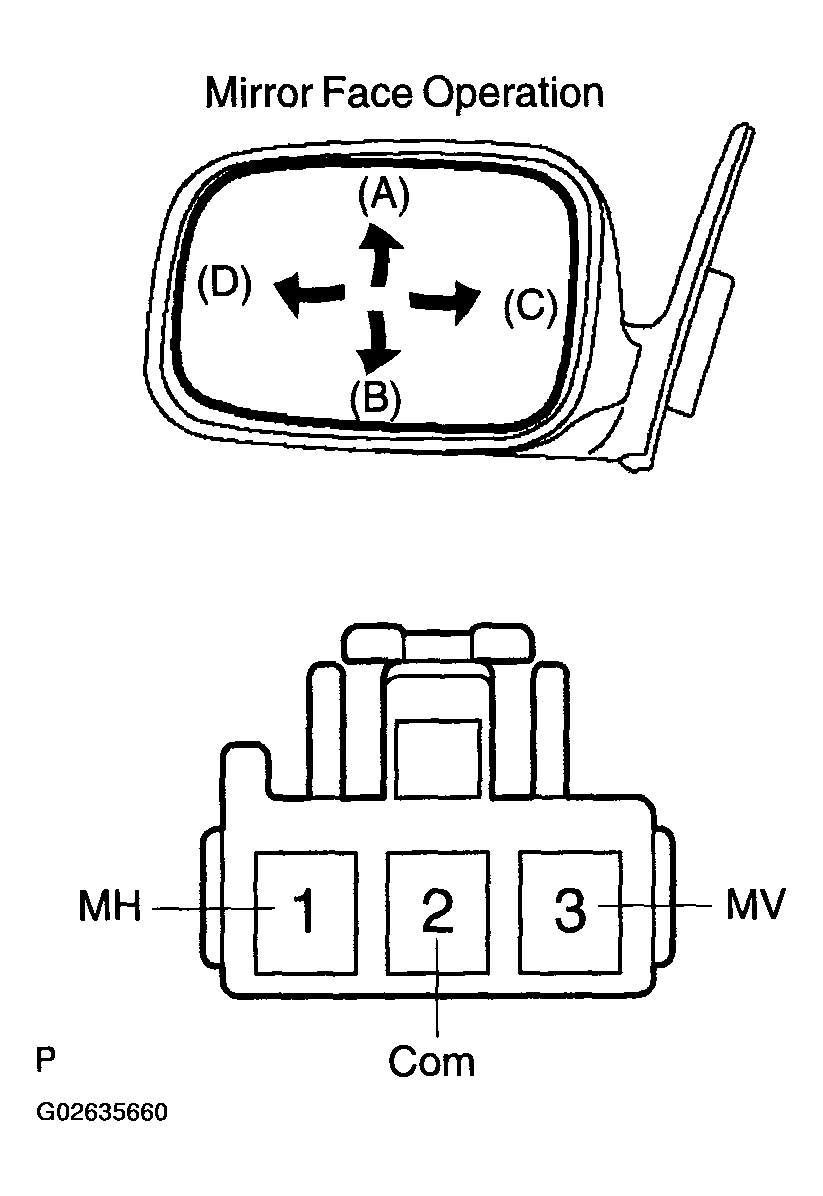

      Fig 2: Identifying Outer Rear View Mirror Assembly LH Connector
      G02635660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT OUTER REAR VIEW MIRROR ASSY RH
    1. Disconnect the outer rear view mirror assembly RH connector.
    2. Apply battery voltage and inspect the mirror motor face operation.
      MEASUREMENT CONDITION AND SPECIFIED CONDITION (2 OF 2)

      Measurement Condition Specified Condition
      Battery positive (+) - MV (3) Turns upward (A)
      Battery negative (-) - Com (2)
      Battery positive (+) - Com (2) Turns downward (B)
      Battery negative (-) - MV (5)
      Battery positive (+) - Com (2) Turns right (D)
      Battery negative (-) - MH (1)
      Battery positive (+)-MH(1) Turns left (C)
      Battery negative (-) - Com (2)

      If the result is not as specified, replace the mirror assembly.

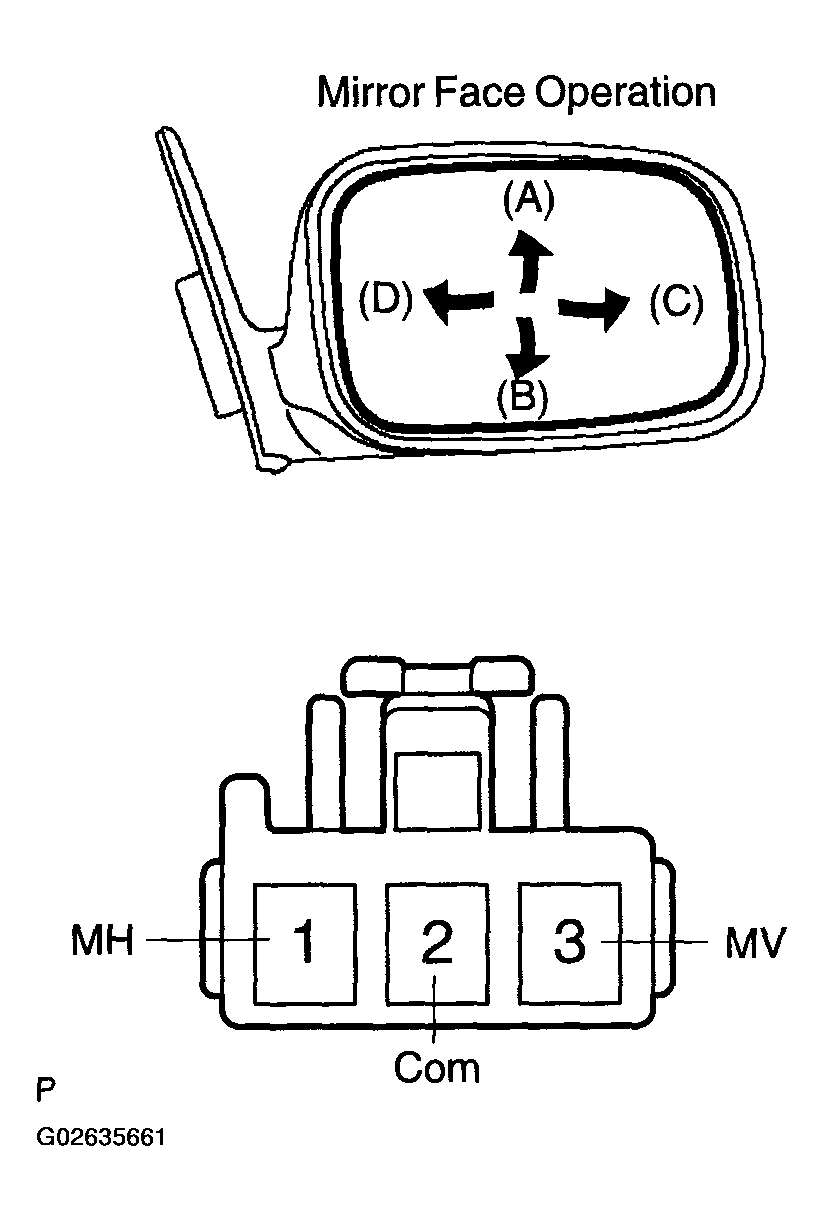

      Fig 3: Identifying Outer Rear View Mirror Assembly RH Connector
      G02635661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
