Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment (XRS)

G00257804

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

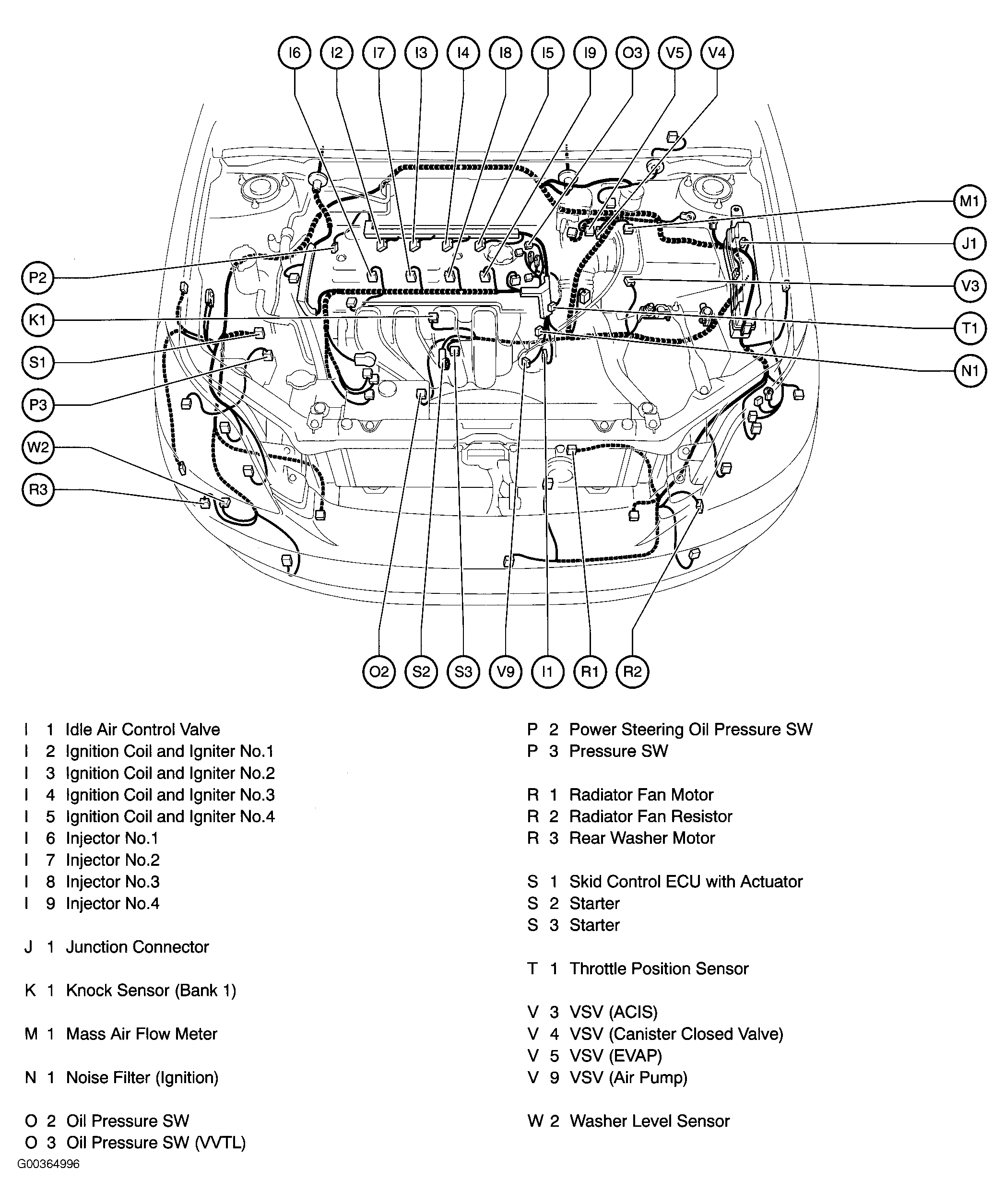

Fig 2: Engine (XRS)

G00364996

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

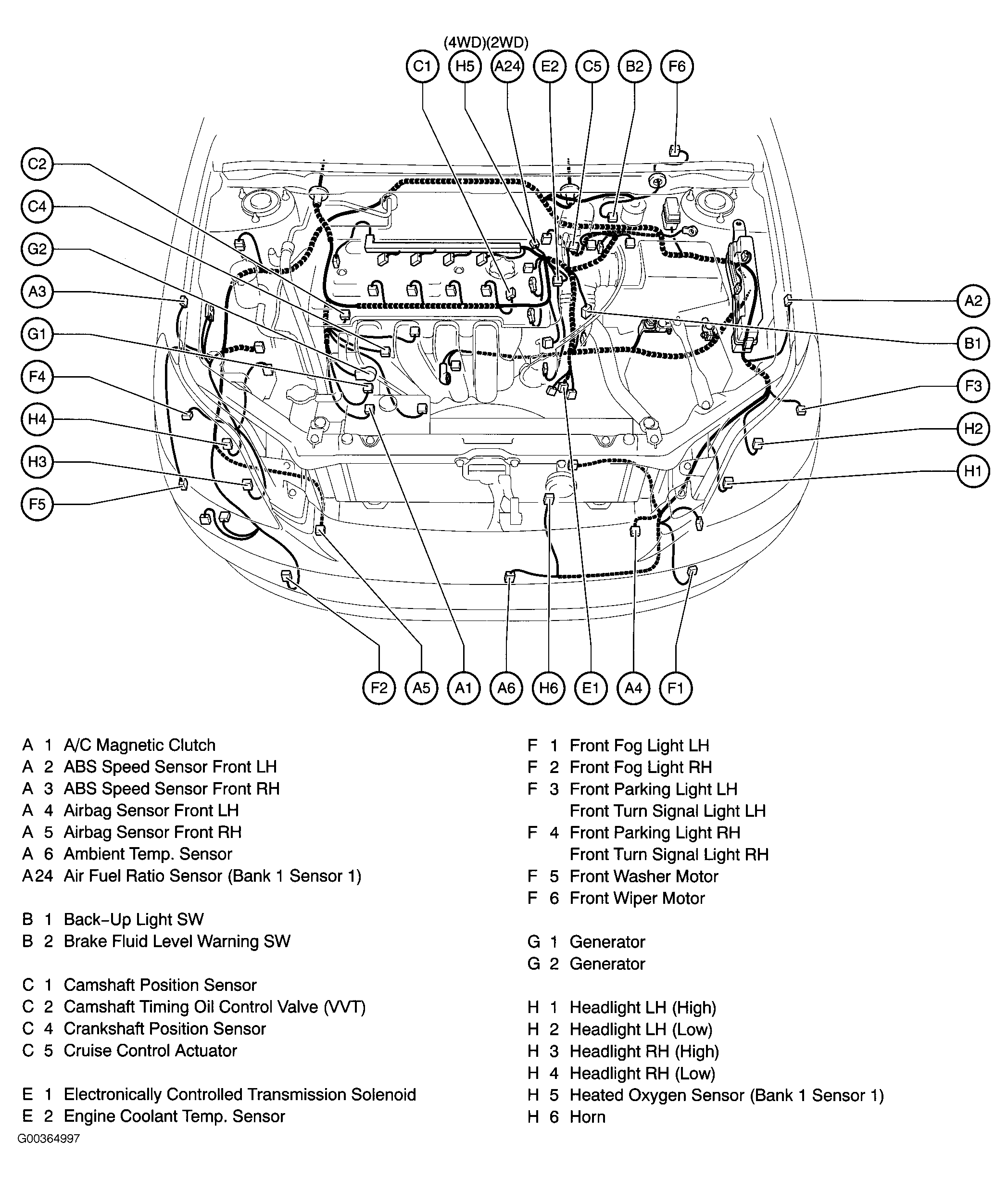

Fig 3: Engine Compartment (Except XRS)

G00364997

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

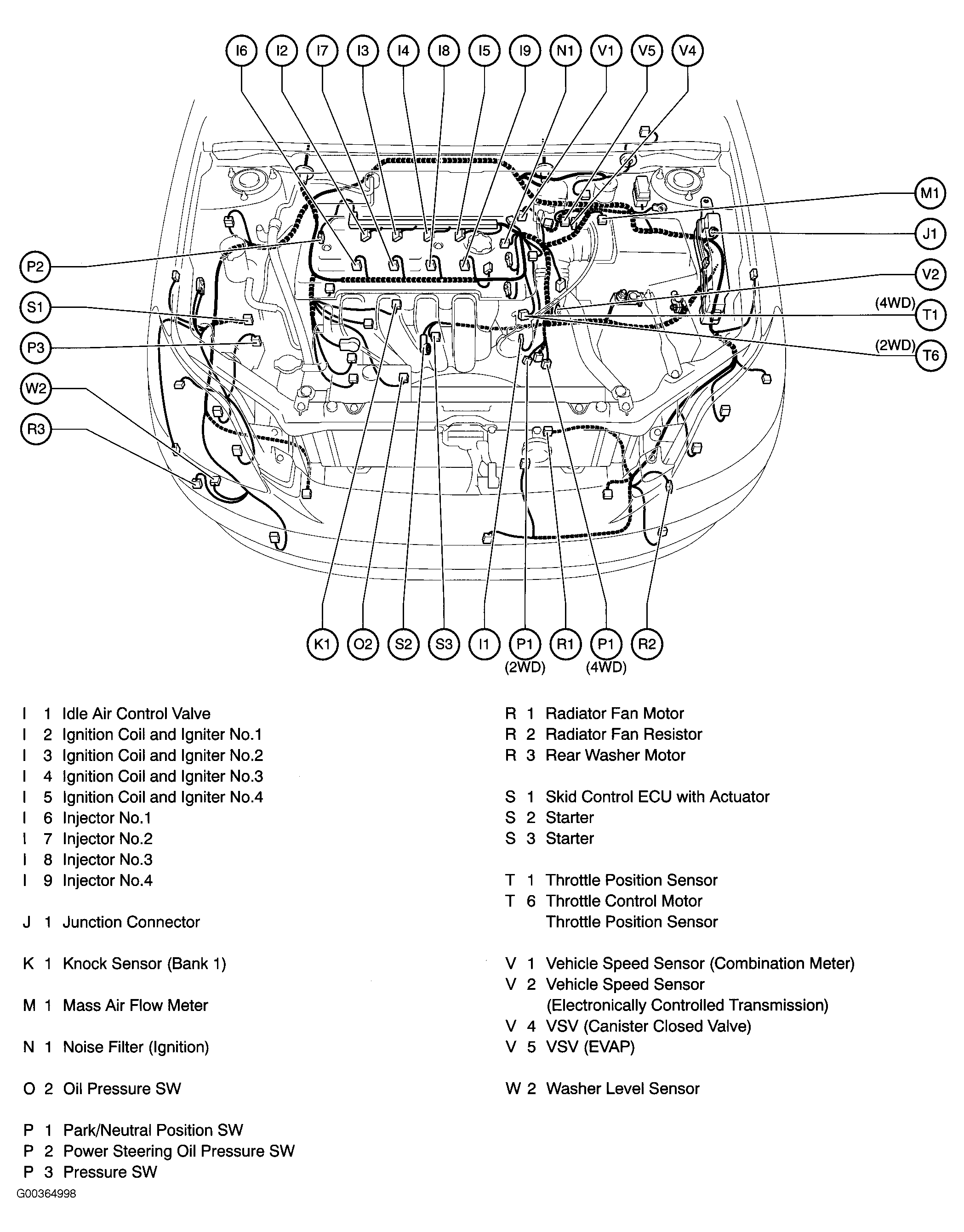

Fig 4: Engine (Except XRS)

G00364998

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

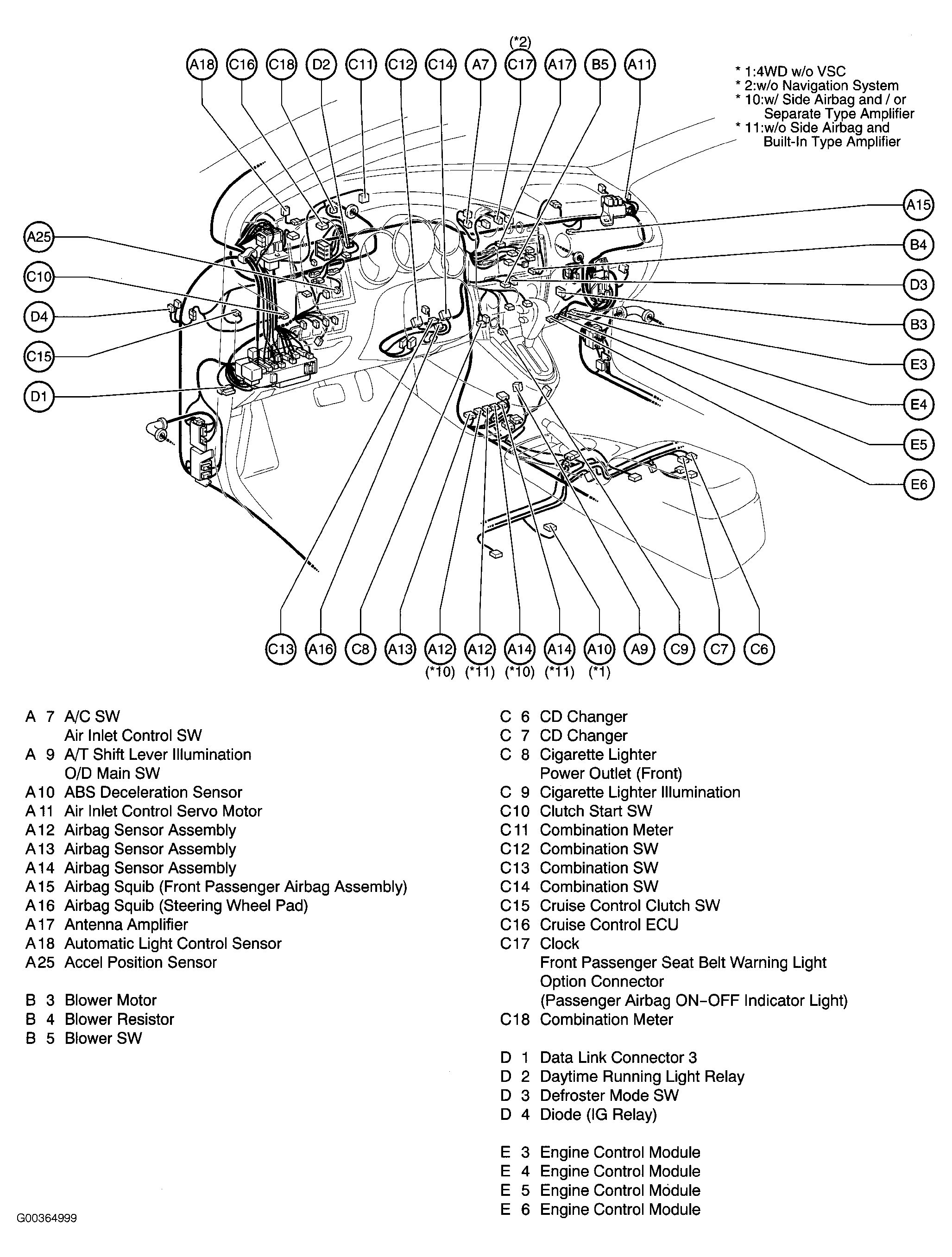

Fig 5: Dash & Center Console

G00364999

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

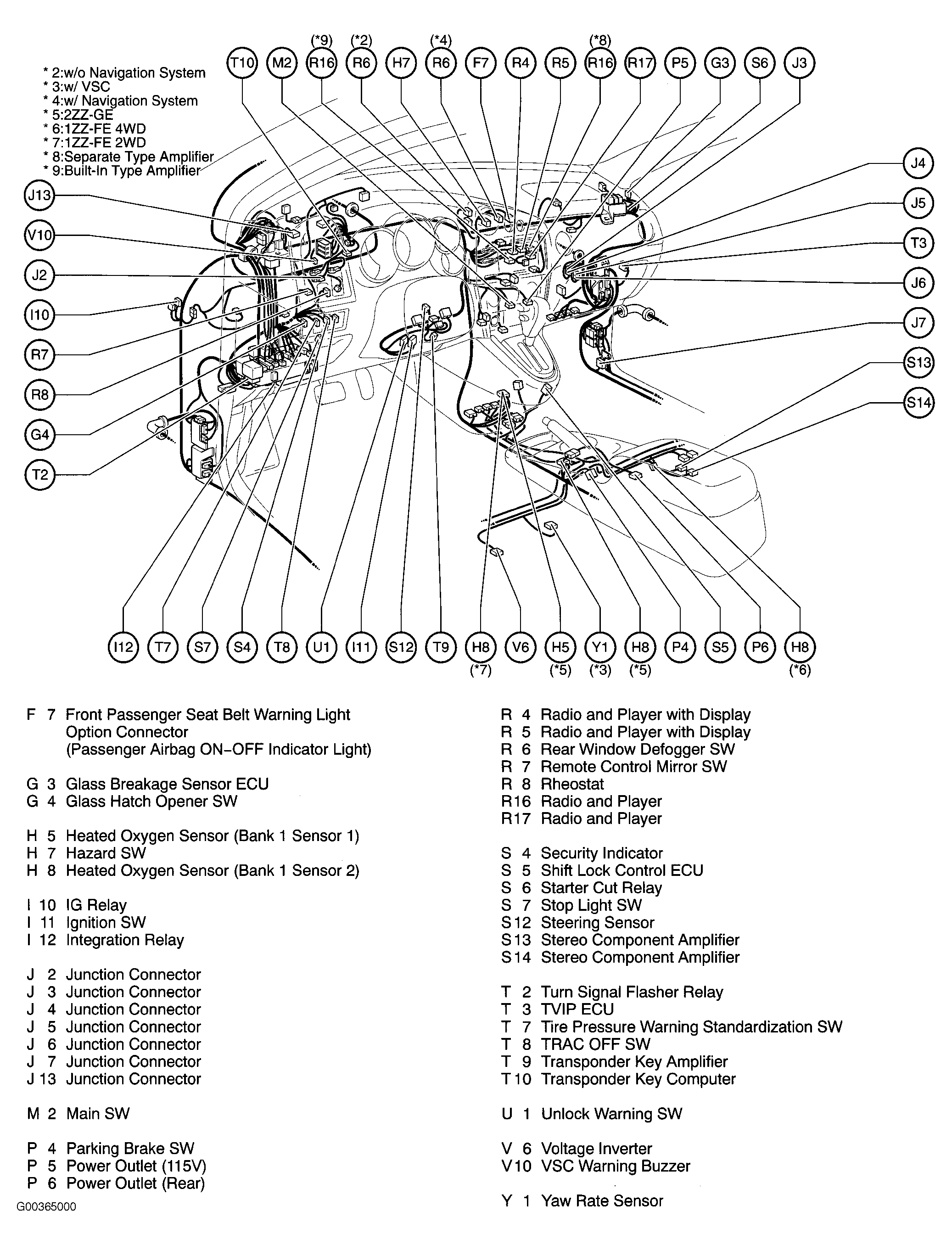

Fig 6: Dash & Center Console

G00365000

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Vehicle Overview

G00365001

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

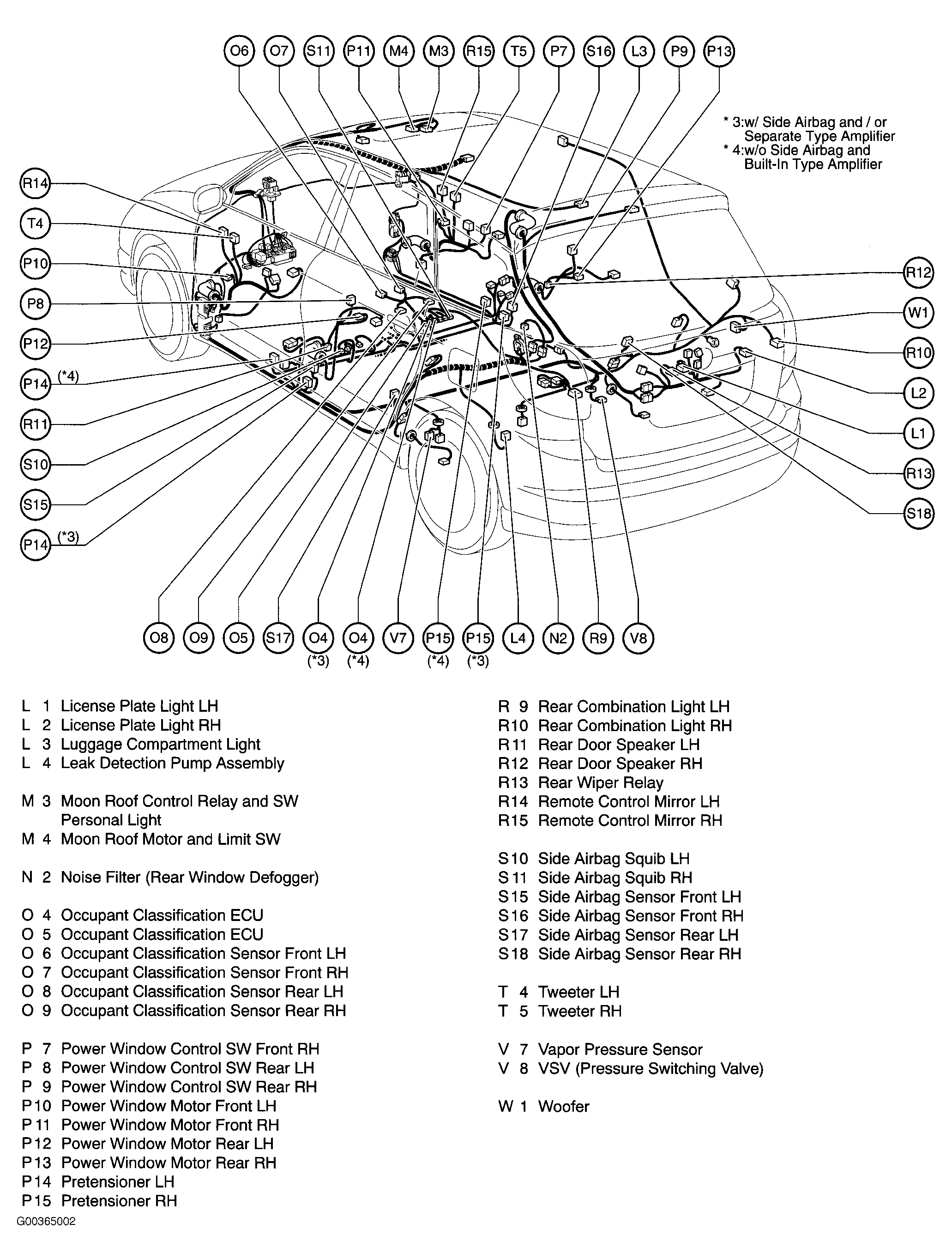

Fig 8: Vehicle Overview

G00365002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

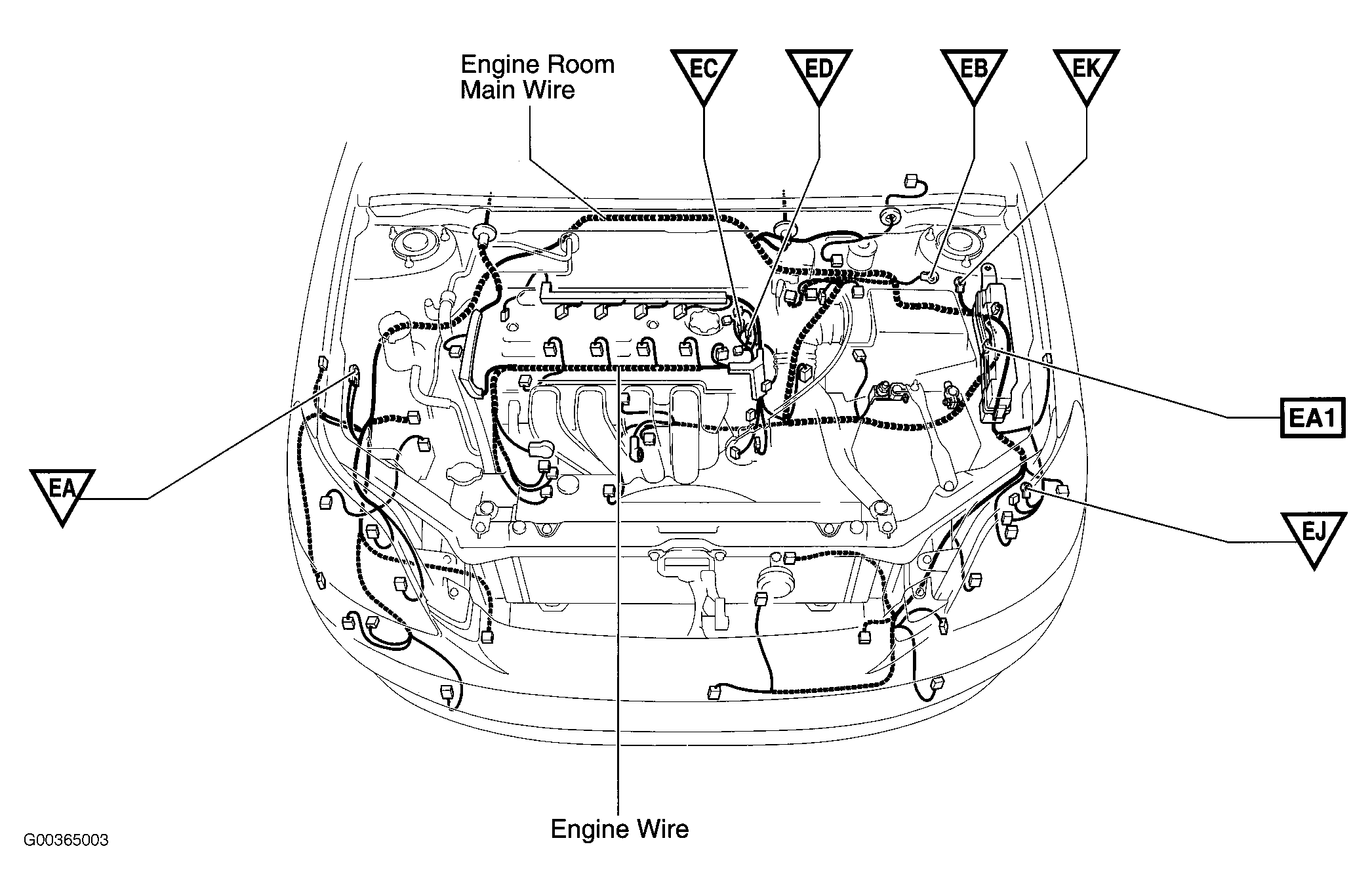

Fig 9: Engine Compartment

G00365003

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Compartment

G00365005

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Dash & Center Console

G00365008

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

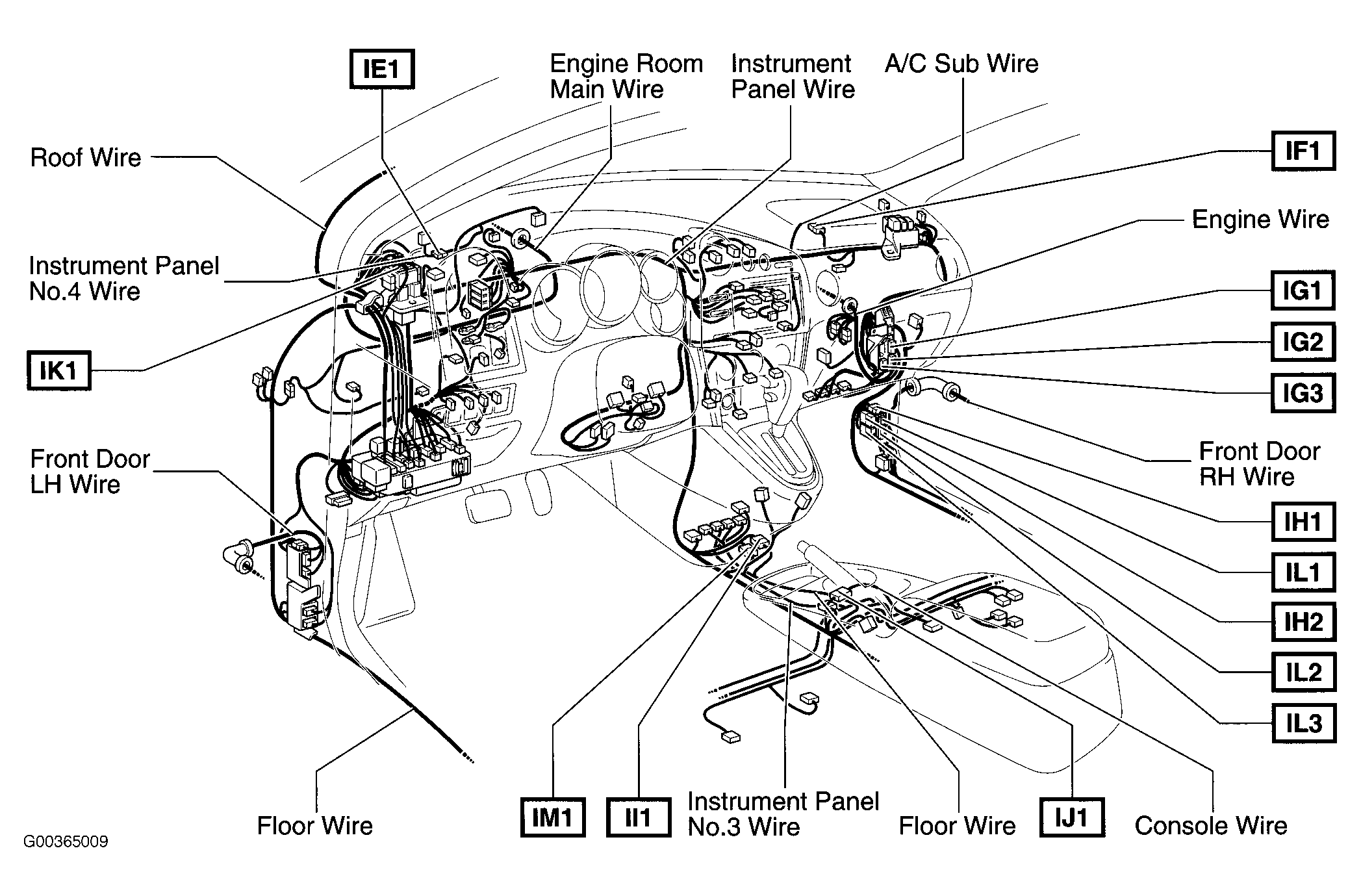

Fig 12: Dash & Center Console

G00365009

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

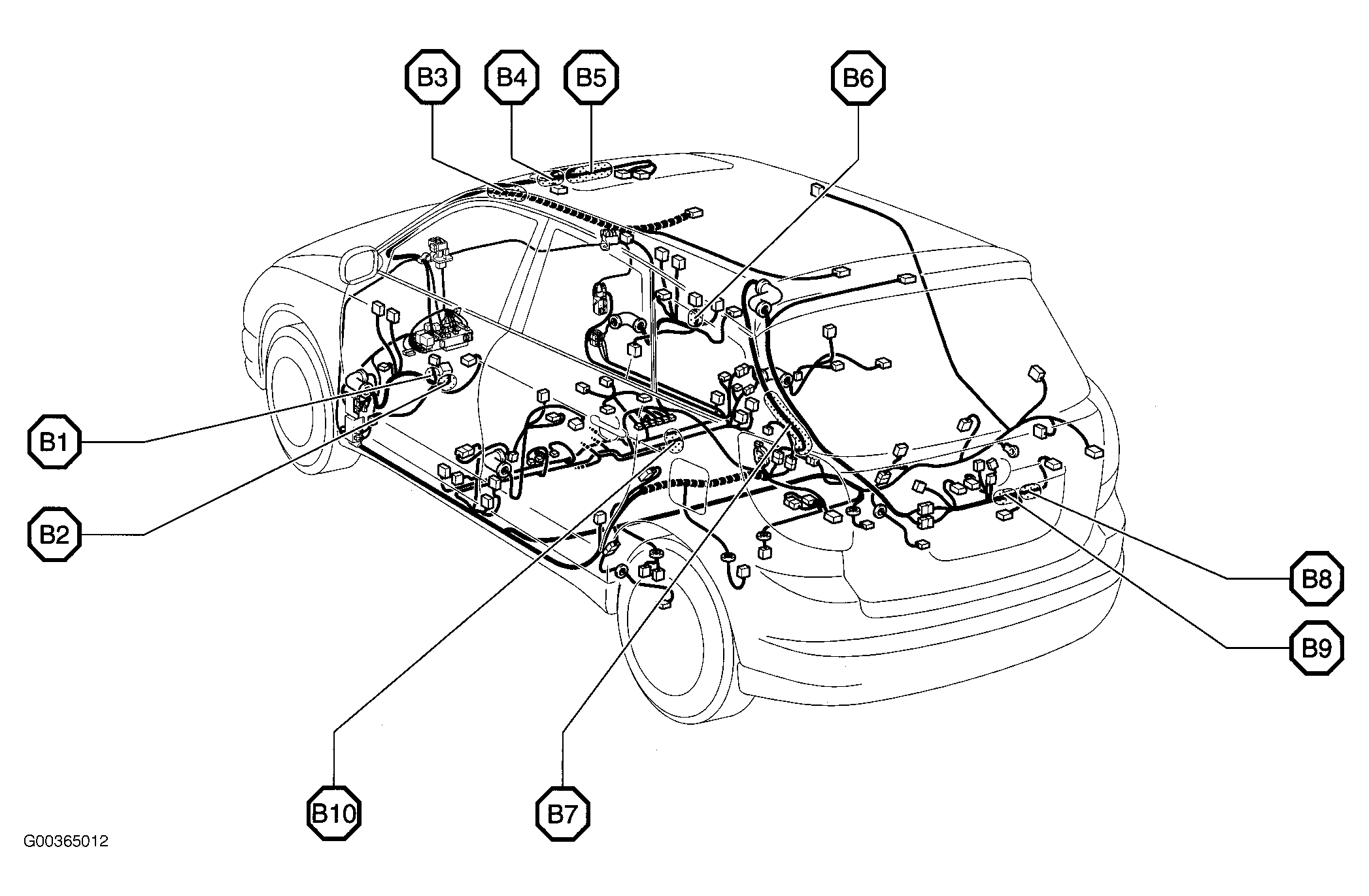

Fig 13: Vehicle Overview

G00365012

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Engine Compartment

G00364992

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE COMPARTMENT RELAY IDENTIFICATION

RELAY DESCRIPTION
Air Pump Relay

Fig 15: Dash

G00364993

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTRUMENT PANEL RELAY IDENTIFICATION

RELAY DESCRIPTION
IG Relay
Daytime Running Light Relay
Starter Cut Relay
Integration Relay
Turn Signal Flasher Relay

Fig 16: Vehicle Overview

G00364994

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REAR VEHICLE RELAY IDENTIFICATION

RELAY DESCRIPTION
Moon Roof Control Relay and SW
Rear Wiper Relay

Fig 17: Engine Room R/B

G00262639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 18: Instrument Panel J/B

G00262640

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 19: Instrument Panel J/B

G00262641

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 20: RH R/B

G00262642

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

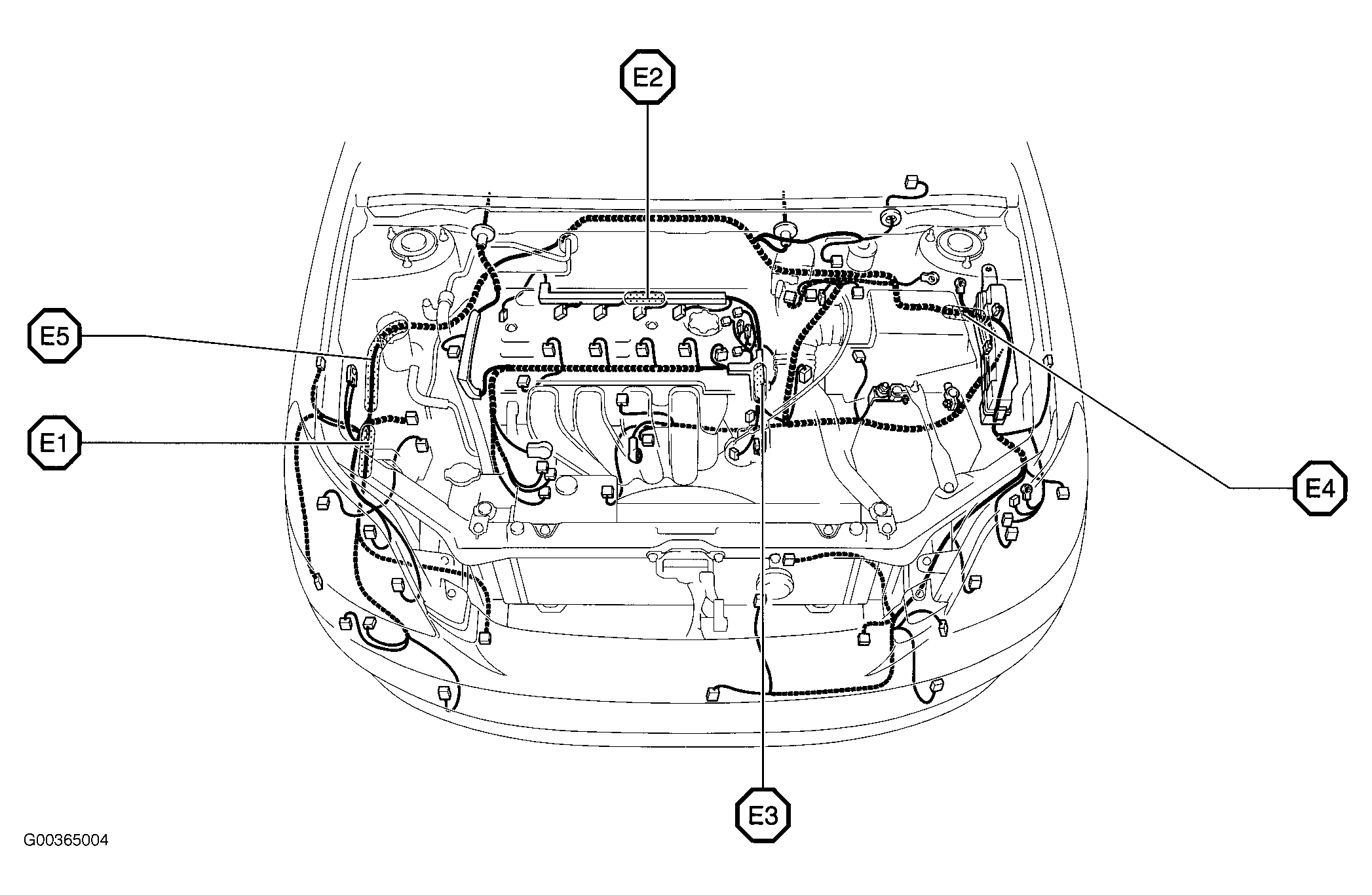

Fig 21: Engine Compartment

G00365004

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

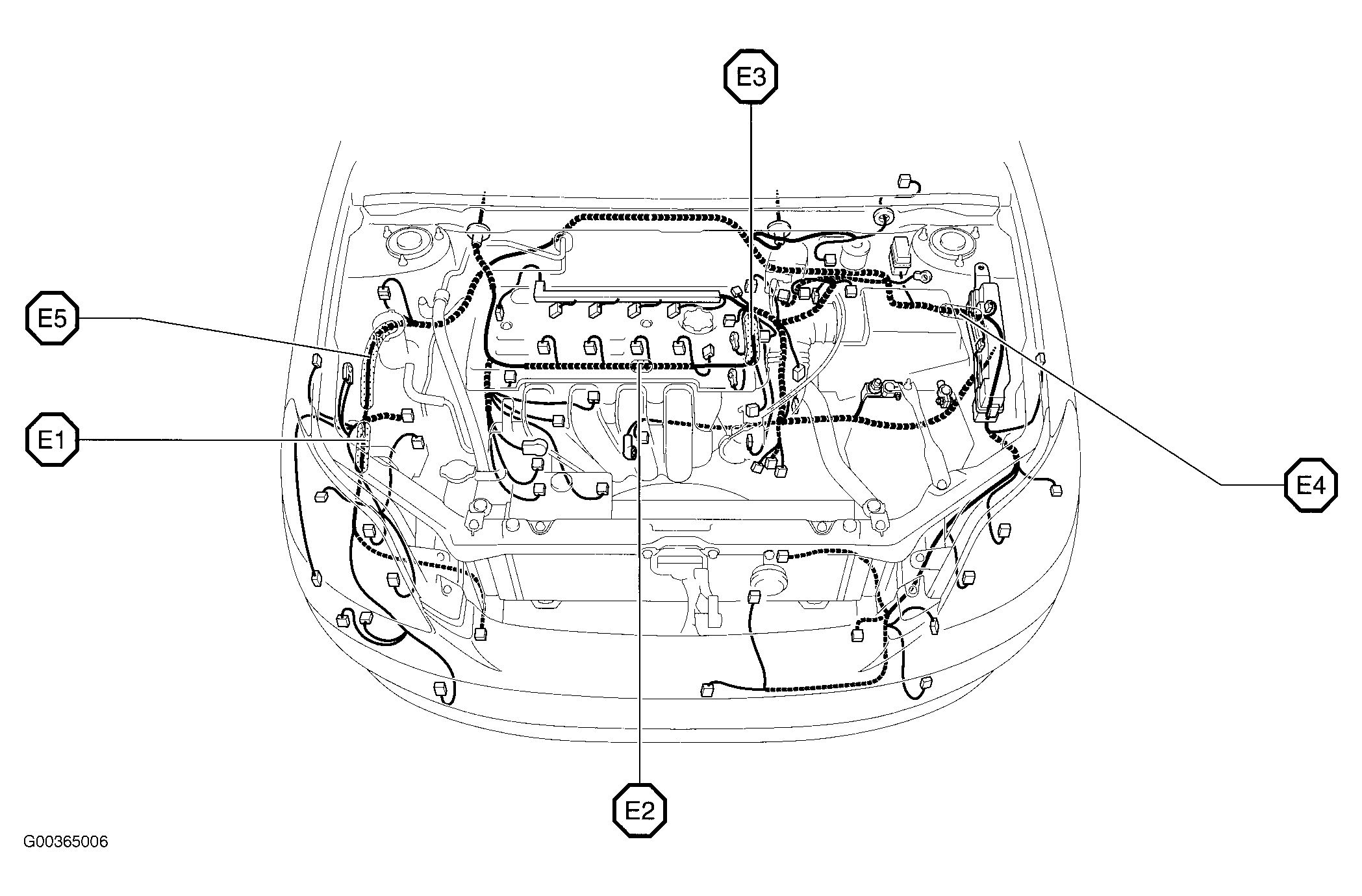

Fig 22: Engine Compartment

G00365006

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 23: Dash

G00365007

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

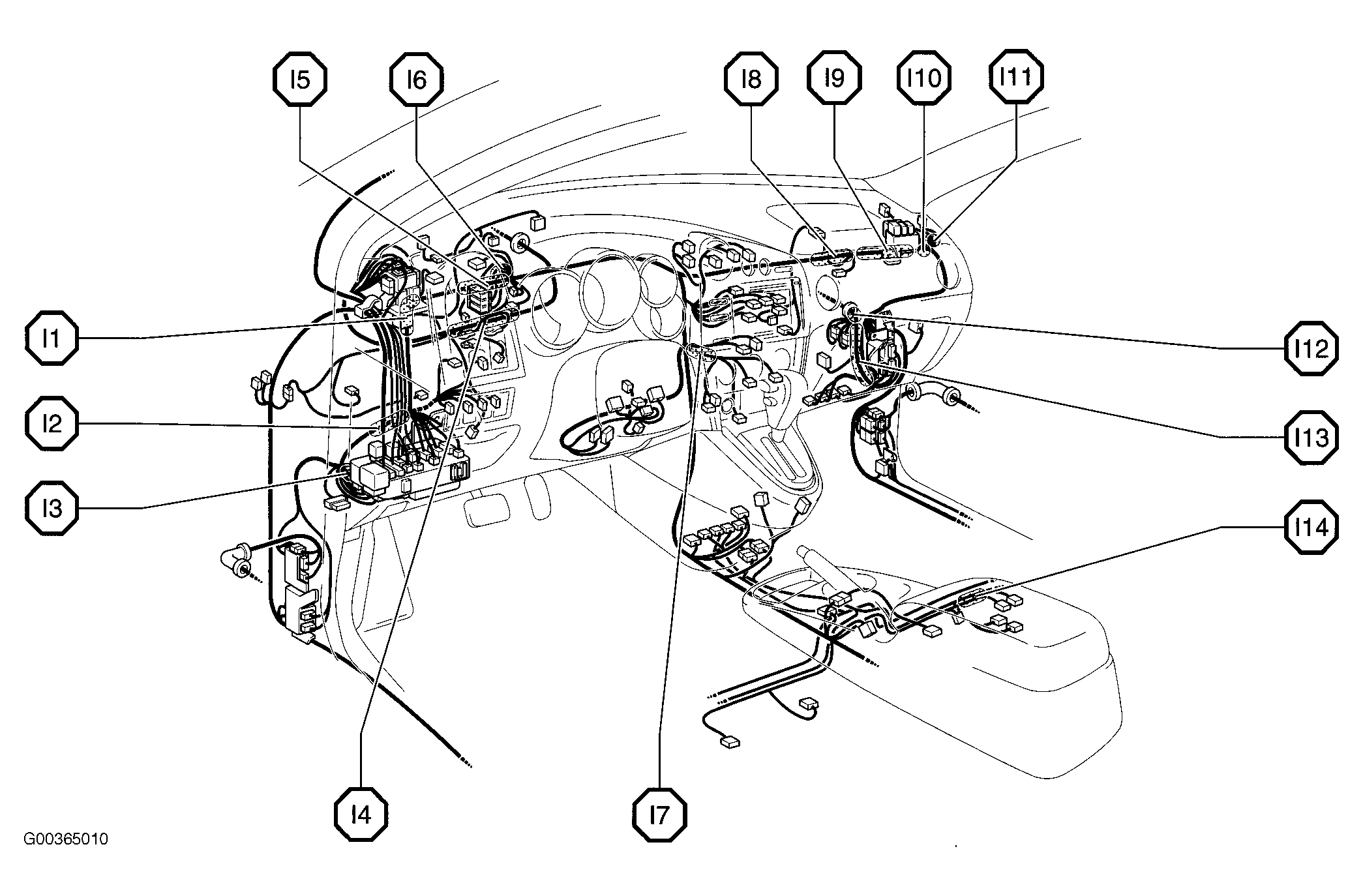

Fig 24: Dash

G00365010

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

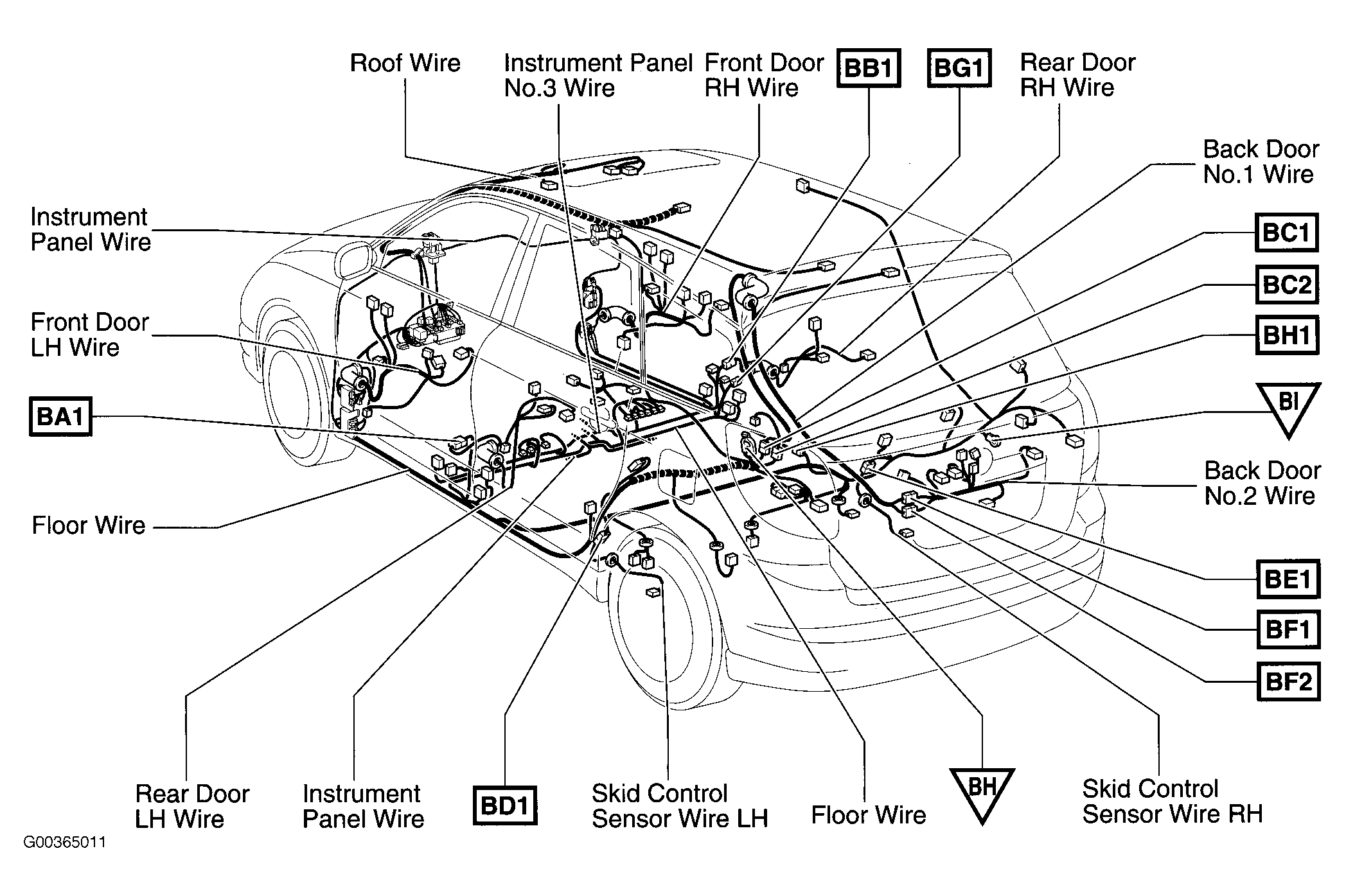

Fig 25: Vehicle Overview

G00365011

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 26: ABS R/B

G00364995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
