Clock ASSY: Replacement

HINT: Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE  REPLACEMENT  )
2. REMOVE CLOCK ASSY
   1. Disengage the 4 claws, and then remove the clock assy, as shown in the illustration.

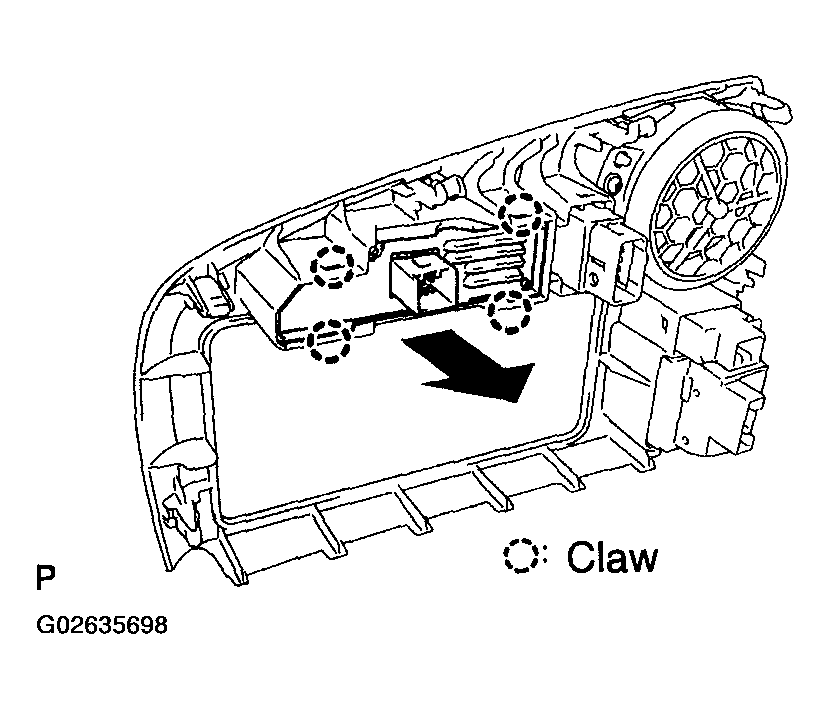

   Fig 1: Disengaging Claws, And Removing Clock Assy

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
