Combination Meter ASSY: Overhaul

HINT:

• COMPONENTS: See INSTRUMENT PANEL/METER .
• Installation is in the reverse order of removal.

1. REMOVE METER HOOD SUB-ASSY (SEE  REPLACEMENT  )
2. REMOVE COMBINATION METER ASSY
   1. Remove the screw.
   2. Disengage the 2 claws as shown in the illustration.

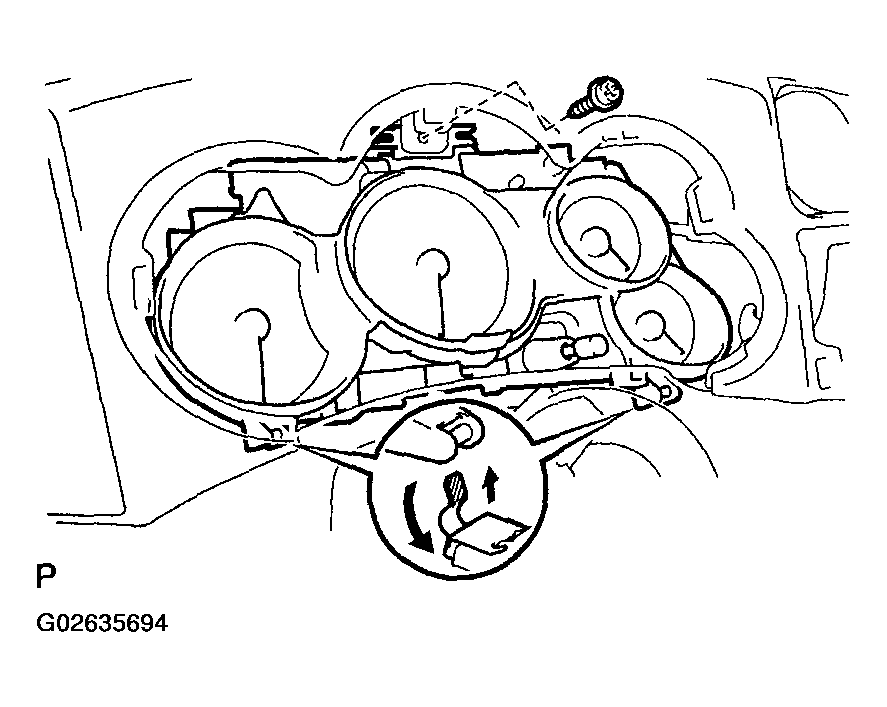

      Fig 1: Disengaging Claws (2 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Disconnect connector, then remove the combination meter assy, as shown in the illustration.

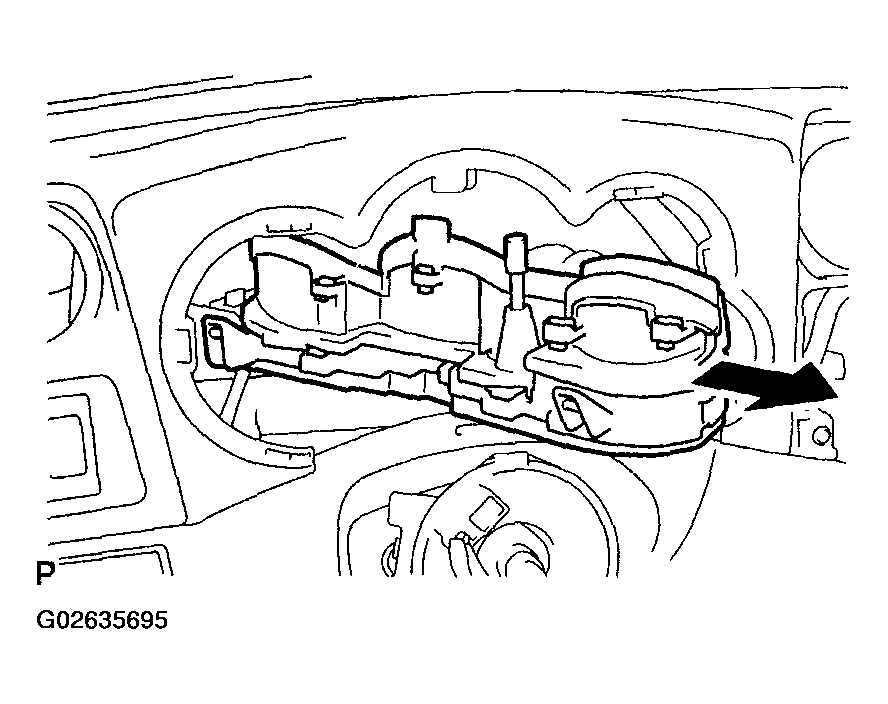

   Fig 2: Disconnecting Connector And Removing Combination Meter Assy (2 Of 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE COMBINATION METER GLASS
   1. Remove the trip knob.
   2. Disengage the 10 claws and remove the window plate.

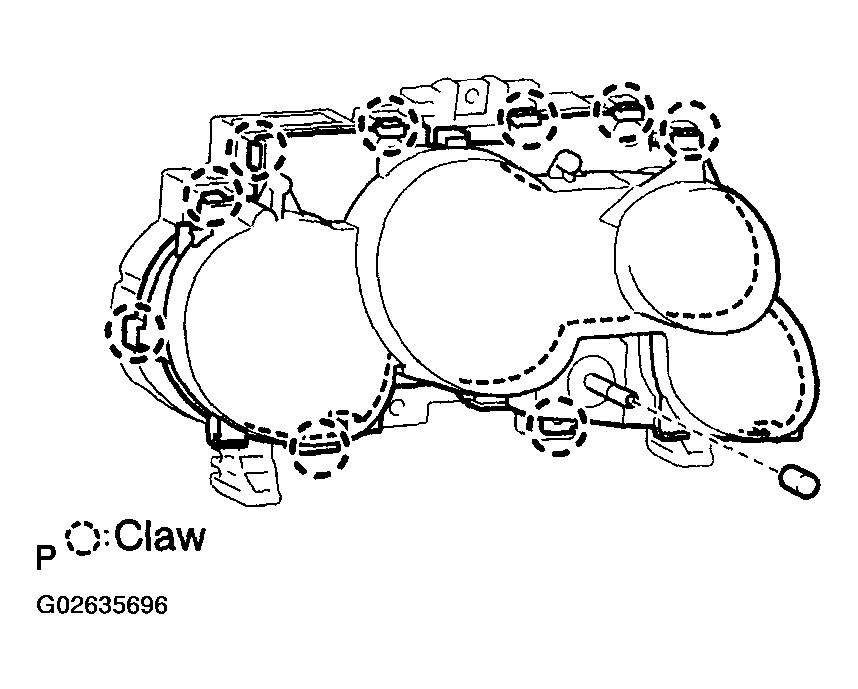

      Fig 3: Disengaging Claws And Removing Window Plate

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Disengage the 8 claws and remove the combination meter glass.
      Fig 4: Disengaging Claws And Removing Combination Meter Glass

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
