Fuel Tank ASSY (4WD): Components: Notes

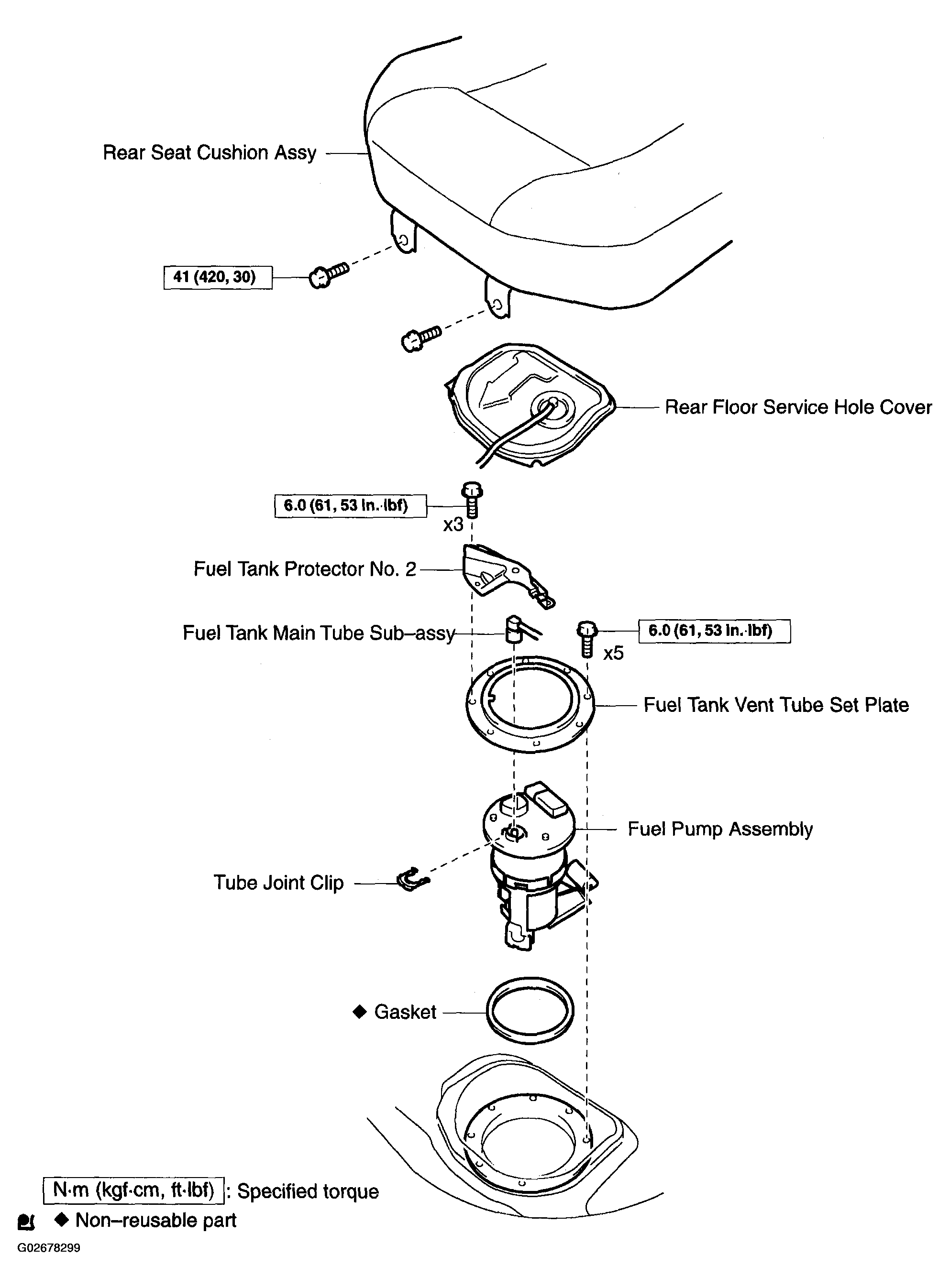

Fig 1: Exploded View Of Fuel Tank Assy Components (4WD) With Torque Specifications (1 Of 4)
G02678299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

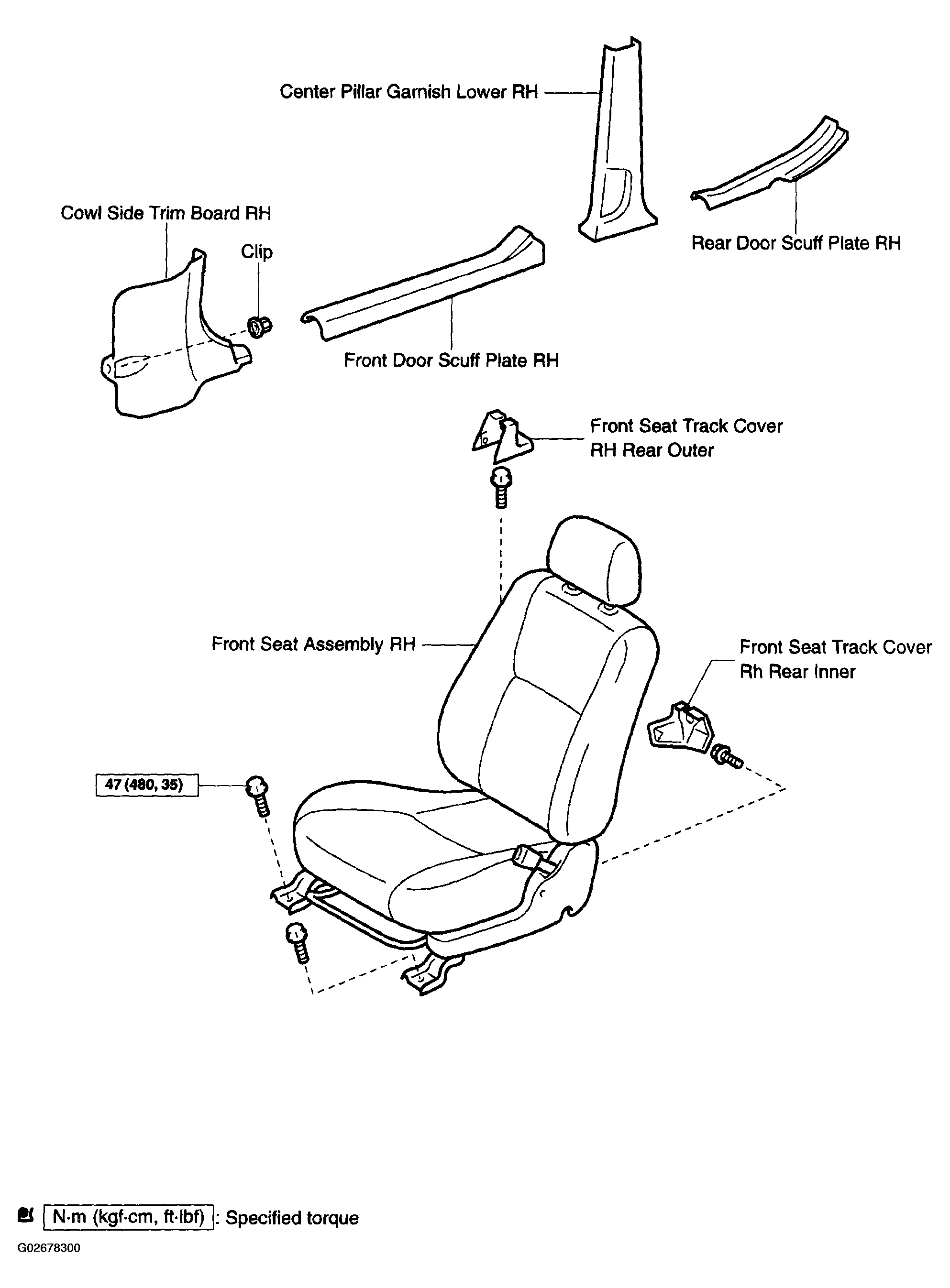

Fig 2: Exploded View Of Fuel Tank Assy Components (4WD) With Torque Specifications (2 Of 4)
G02678300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

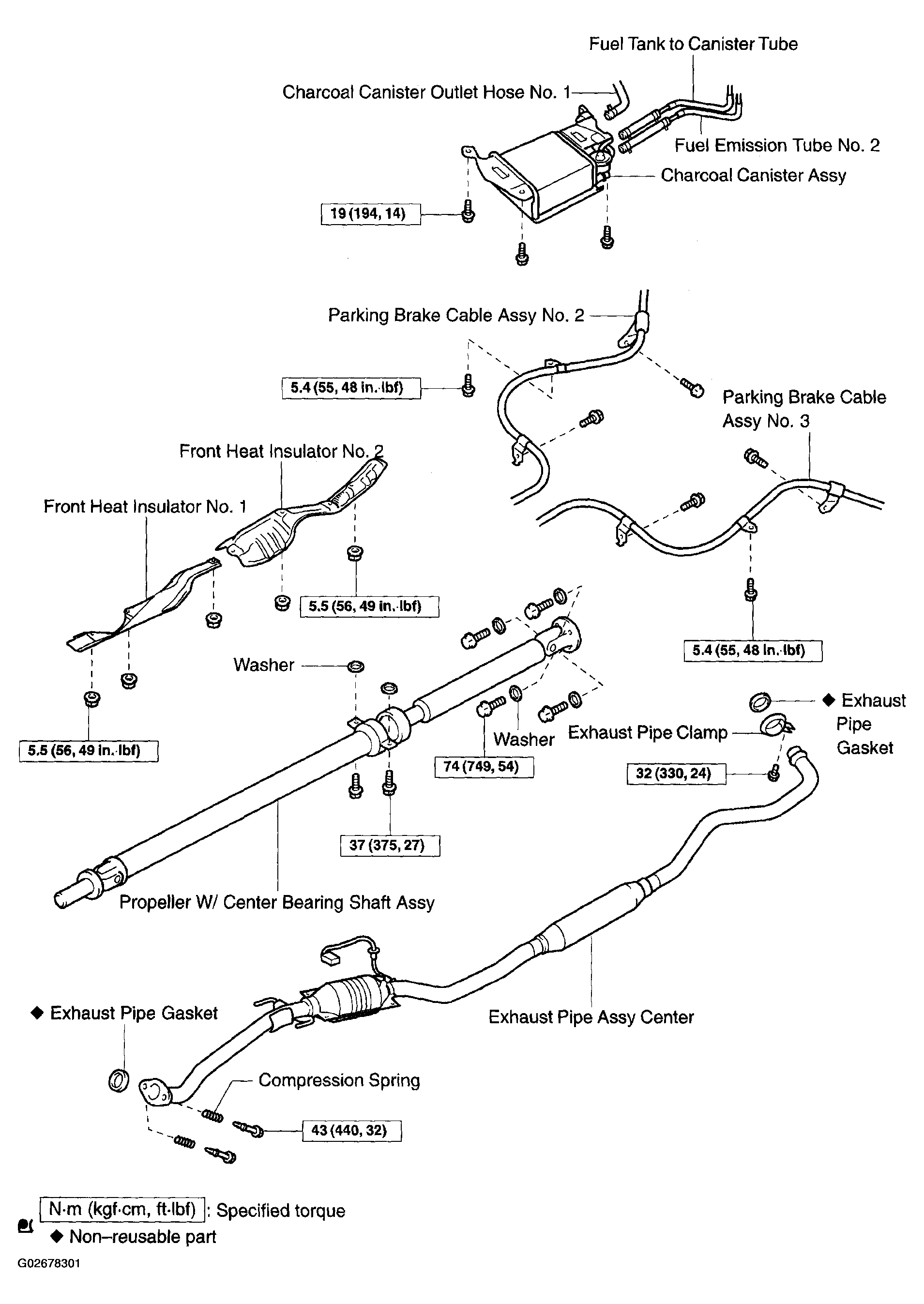

Fig 3: Exploded View Of Fuel Tank Assy Components (4WD) With Torque Specifications (3 Of 4)
G02678301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

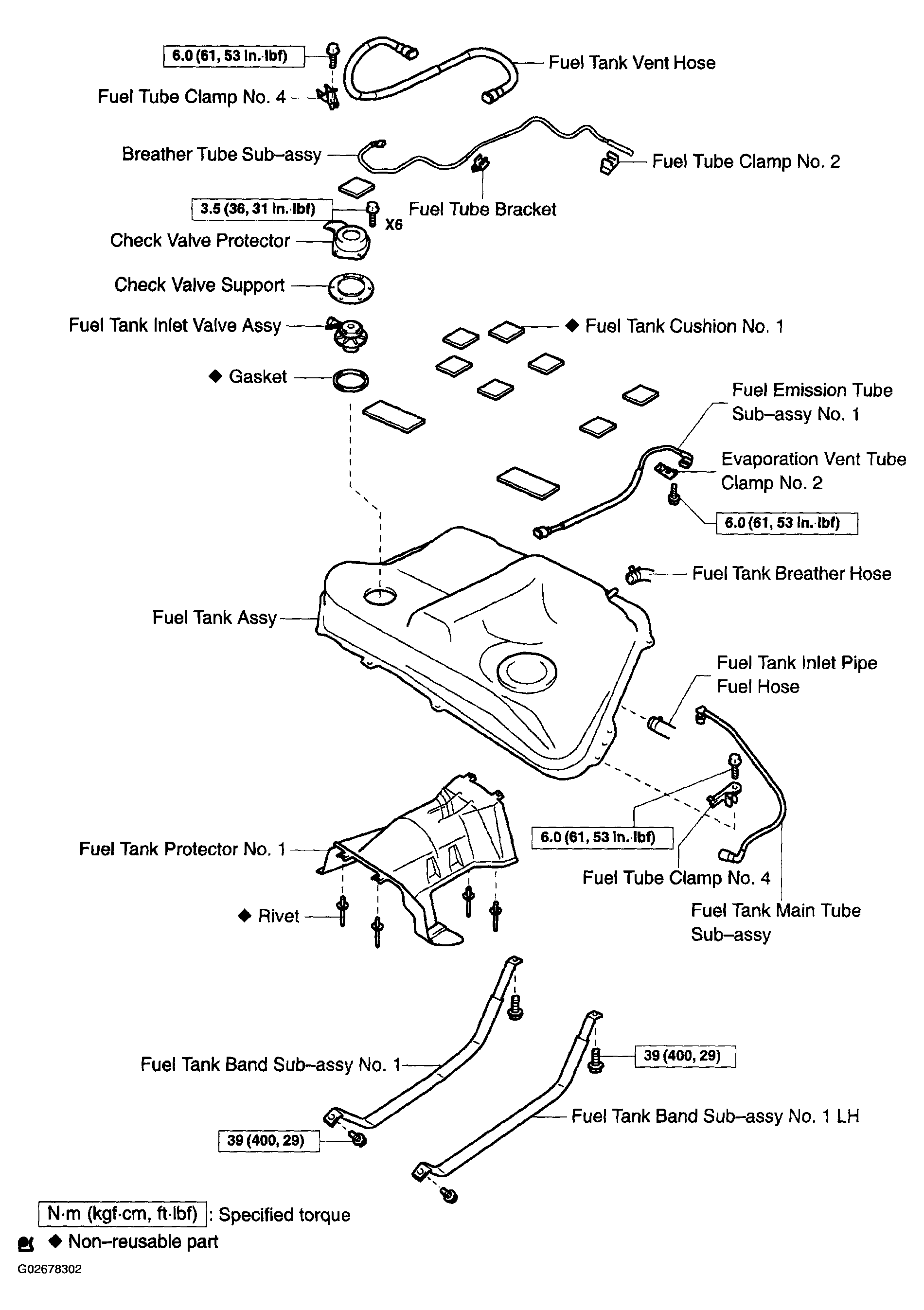

Fig 4: Exploded View Of Fuel Tank Assy Components (4WD) With Torque Specifications (4 Of 4)
G02678302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
