Service Date
1ZZ-FE(2WD)/2ZZ-GE:
Service Specifications - Exhaust - 1ZZ-FE(2WD)/2ZZ-GE
| Compression spring (Exhaust pipe assy front x Exhaust manifold) | ||
| Free length | Minimum | 41.5 mm (1.634 in.) |
| Compression spring (Exhaust pipe assy tail x Exhaust pipe assy front) | ||
| Free length | Minimum | 38.5 mm (1.516 in.) |
1ZZ-FE(4WD):
Service Specifications - Exhaust - 1ZZ-FE(4WD)

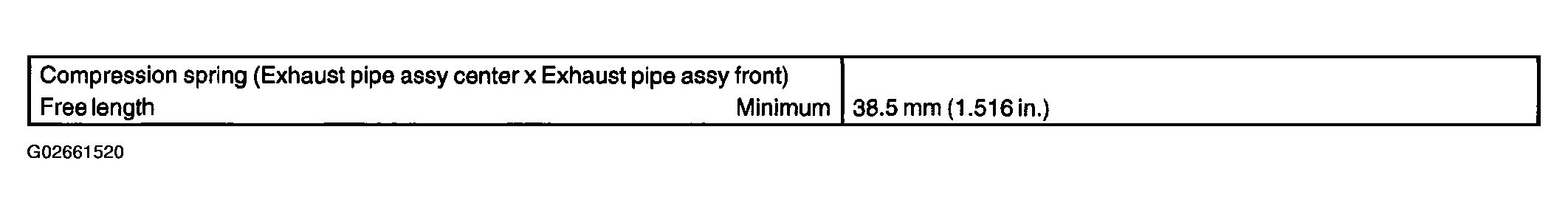

| Compression spring (Exhaust pipe assy center x Exhaust pipe assy front) | ||
| Free length | Minimum | 38.5 mm (1.516 in.) |
