Front Suspension: Components

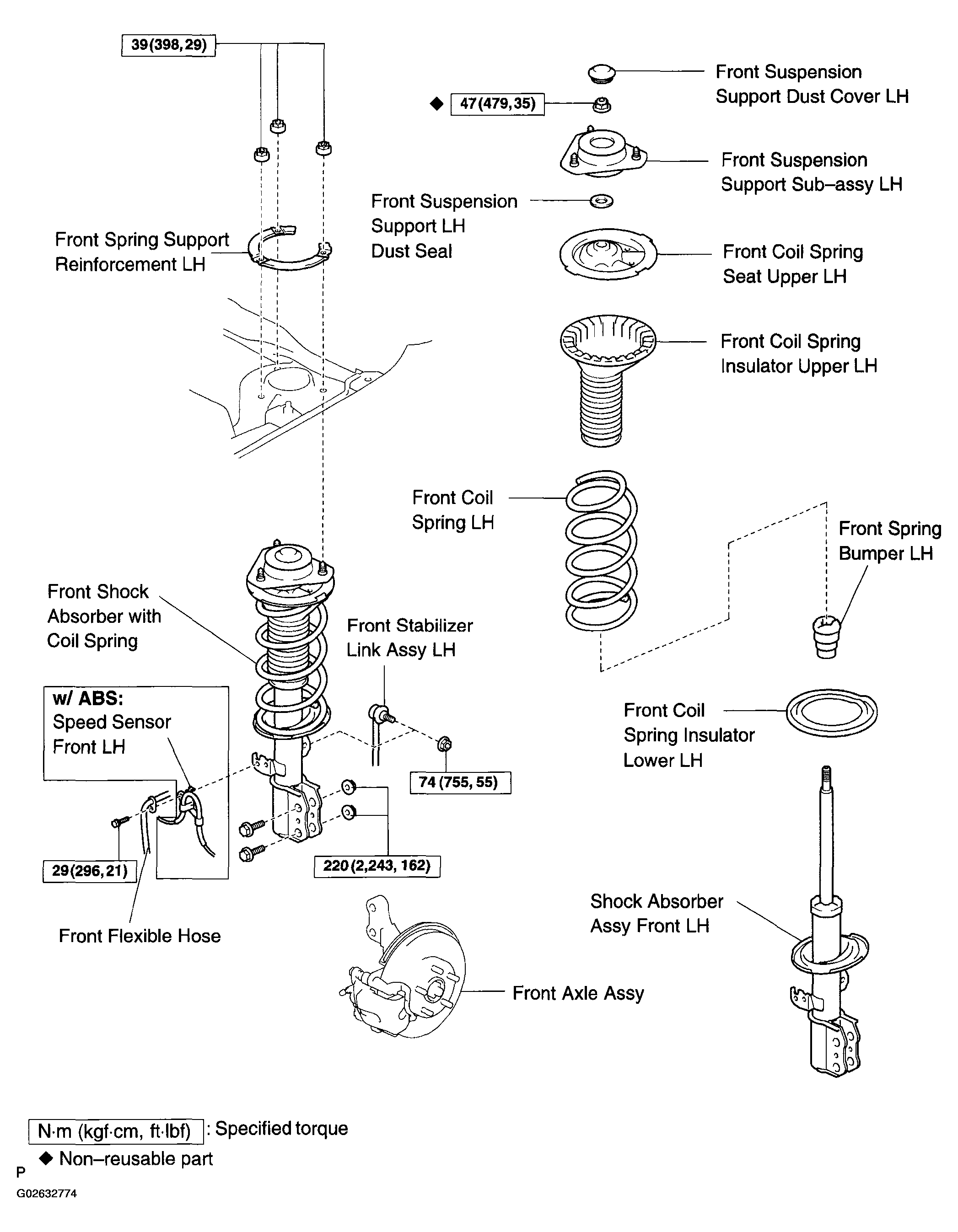

Fig 1: Front Suspension Replacement Components With Torque Specifications
G02632774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

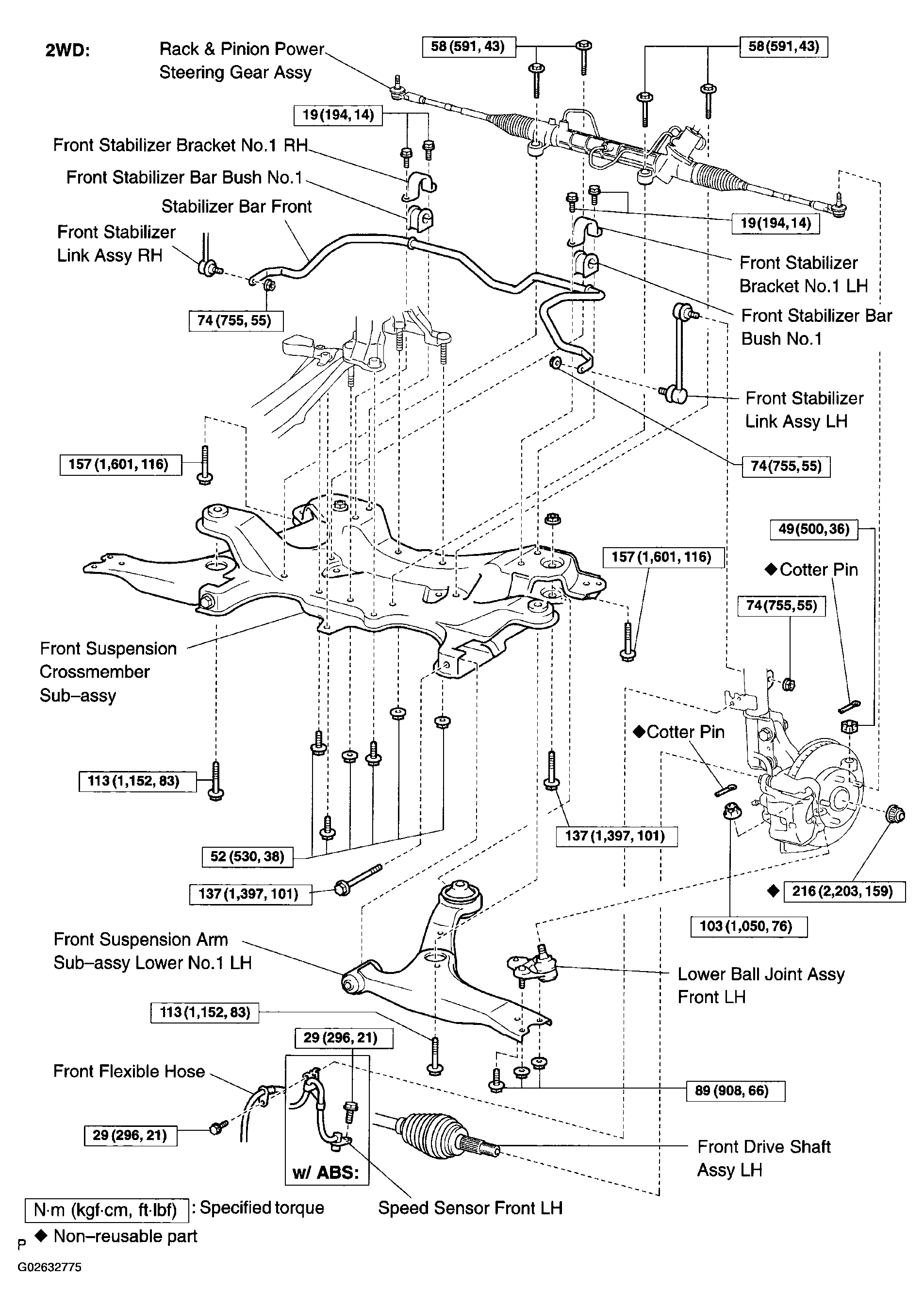

Fig 2: Front Suspension Replacement Components (2WD) With Torque Specifications
G02632775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

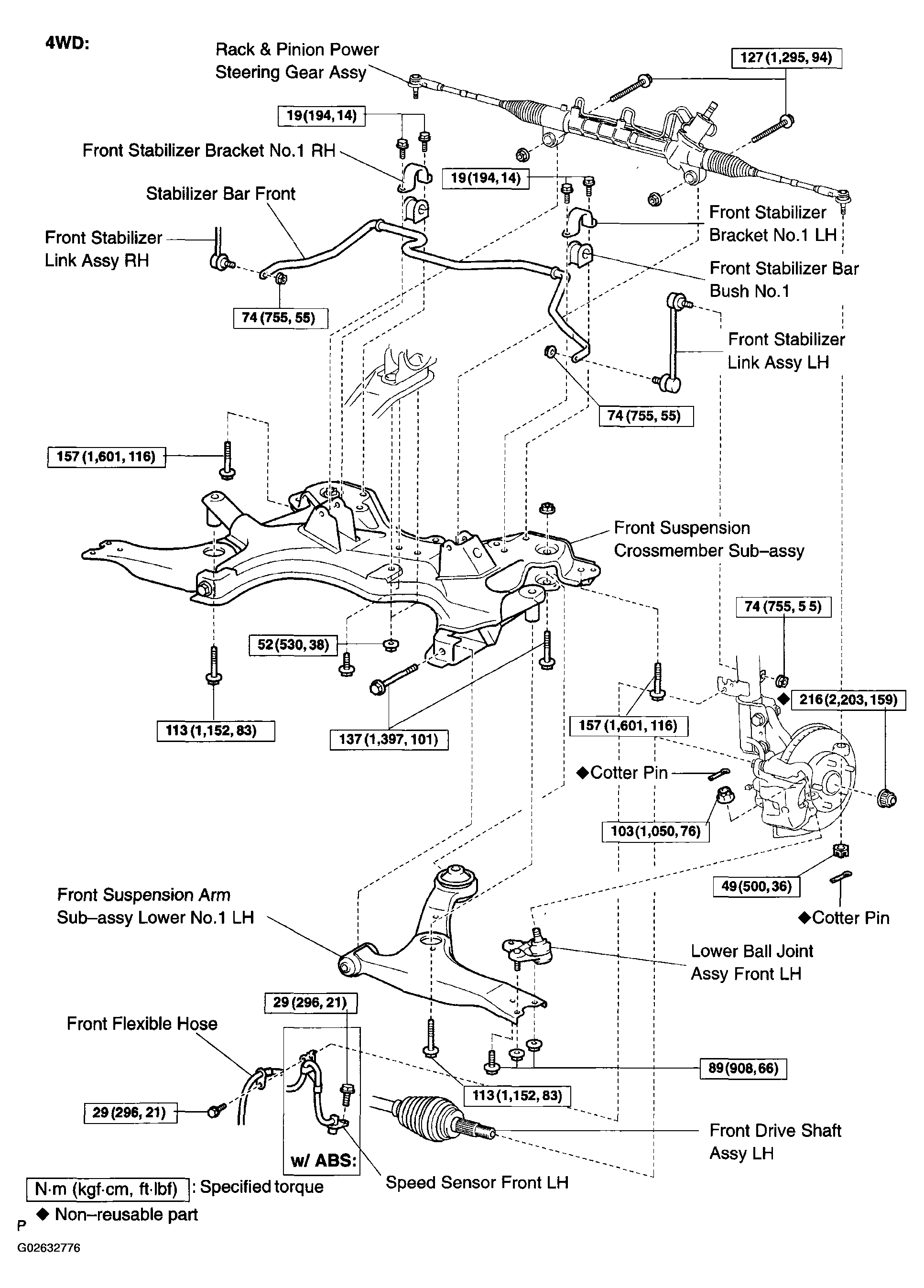

Fig 3: Front Suspension Replacement Components (4WD) With Torque Specifications
G02632776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
