Back Window Stay ASSY LH: Replacement

HINT:

• The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
• Use the same procedures for the RH side and LH side.

1. REMOVE BACK WINDOW STAY ASSY LH
   1. Using a screwdriver, remove the back door stay from the back door panel.
   2. Remove the 2 bolts and back door stay from the body.

   HINT: While supporting the back door by hand, remove the back door stay.

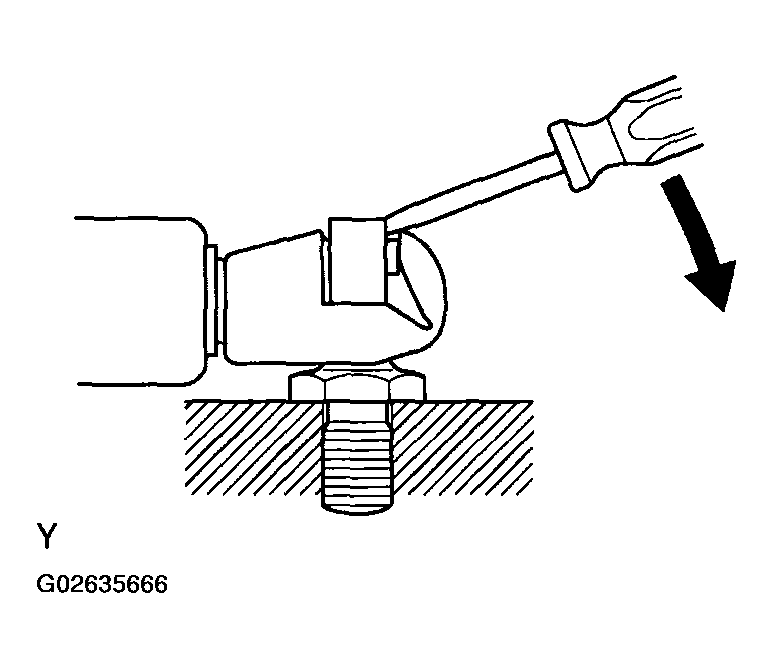

   Fig 1: Removing Back Door Stay From Back Door Panel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
