Power Window Control System: Location

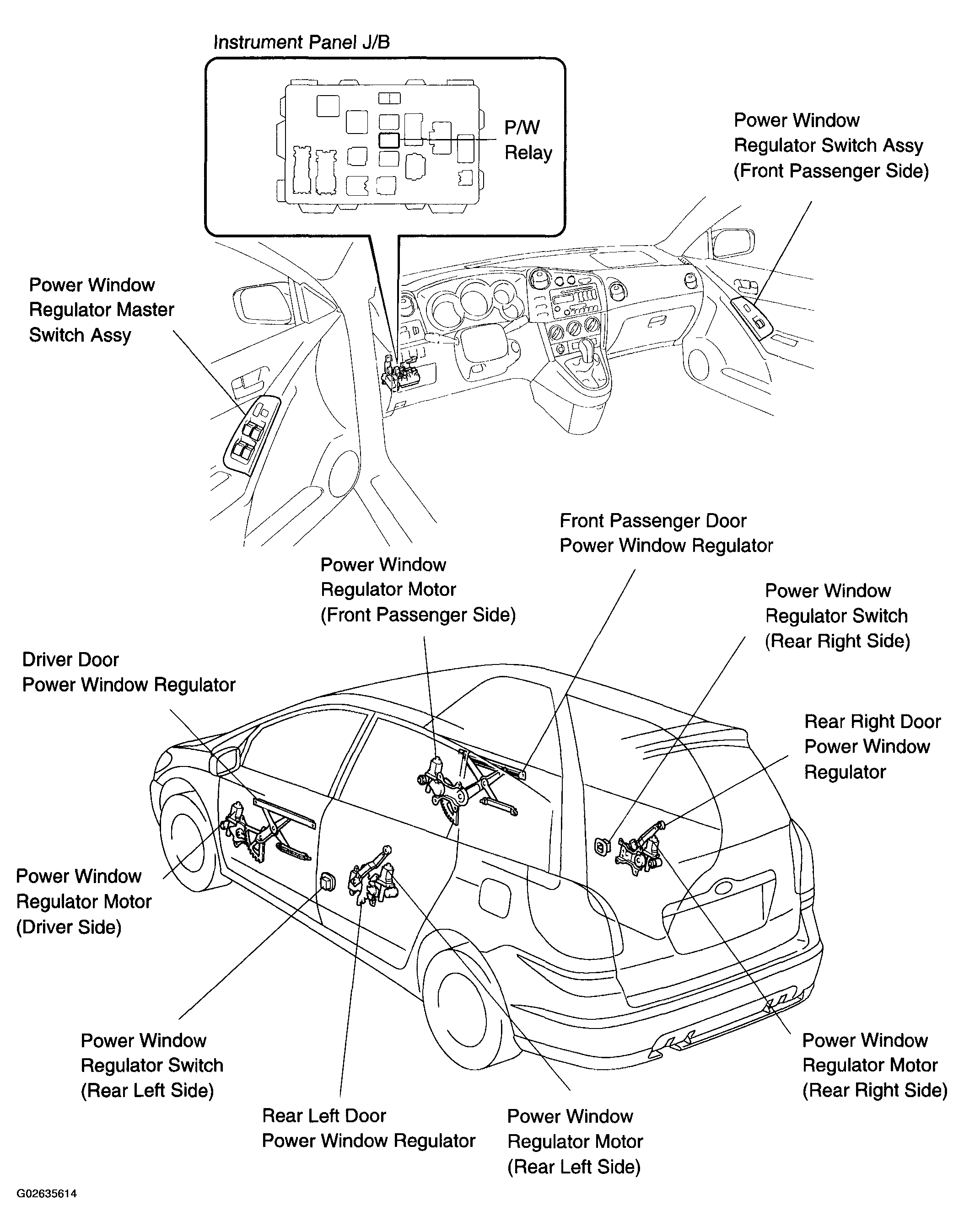

Fig 1: Identifying Power Window Control System Components Location
G02635614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
