Throttle Body ASSY (2ZZ-GE): Components: Notes

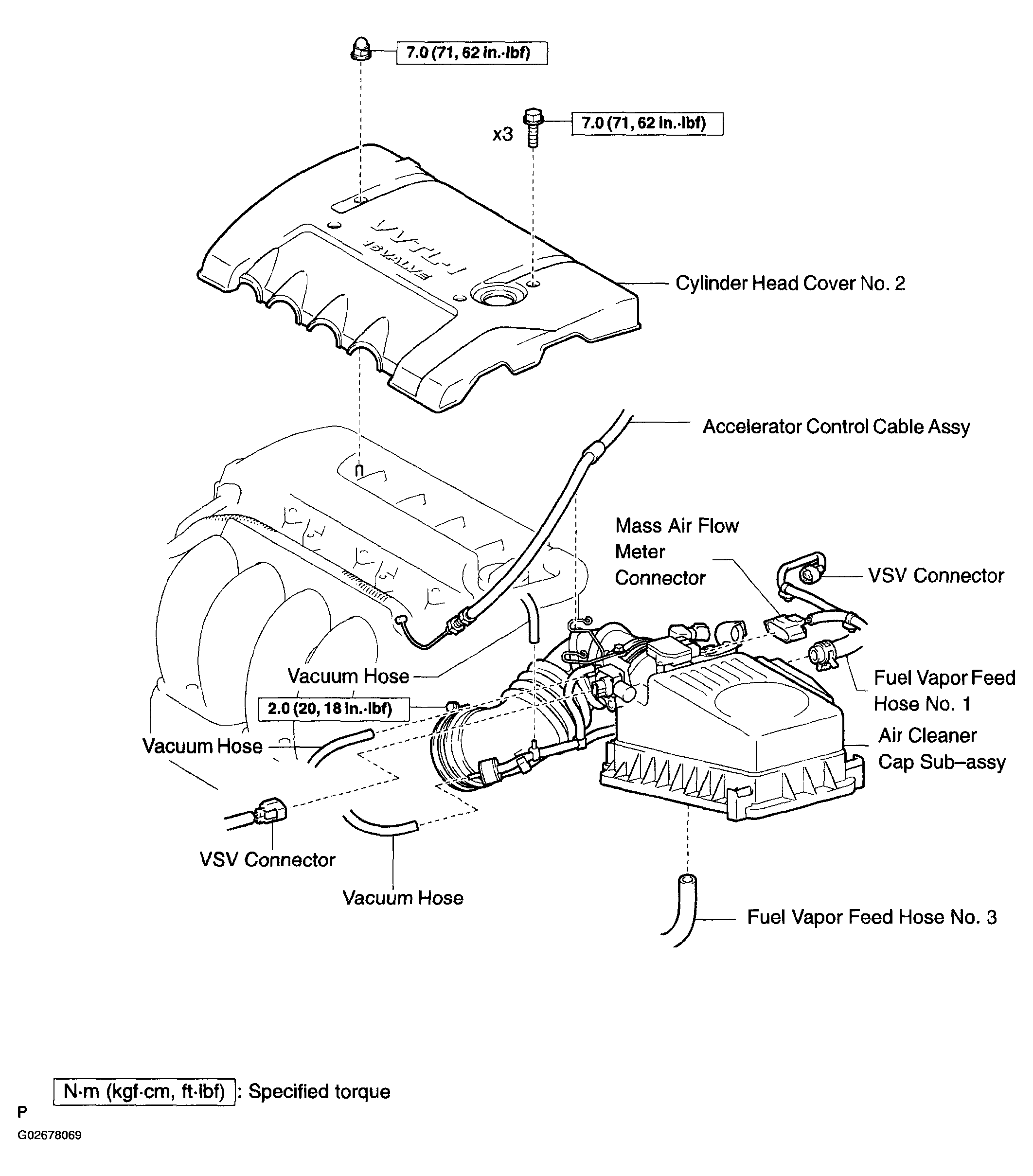

Fig 1: Exploded View Of Throttle Body Components With Torque Specifications (1 Of 2)
G02678069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

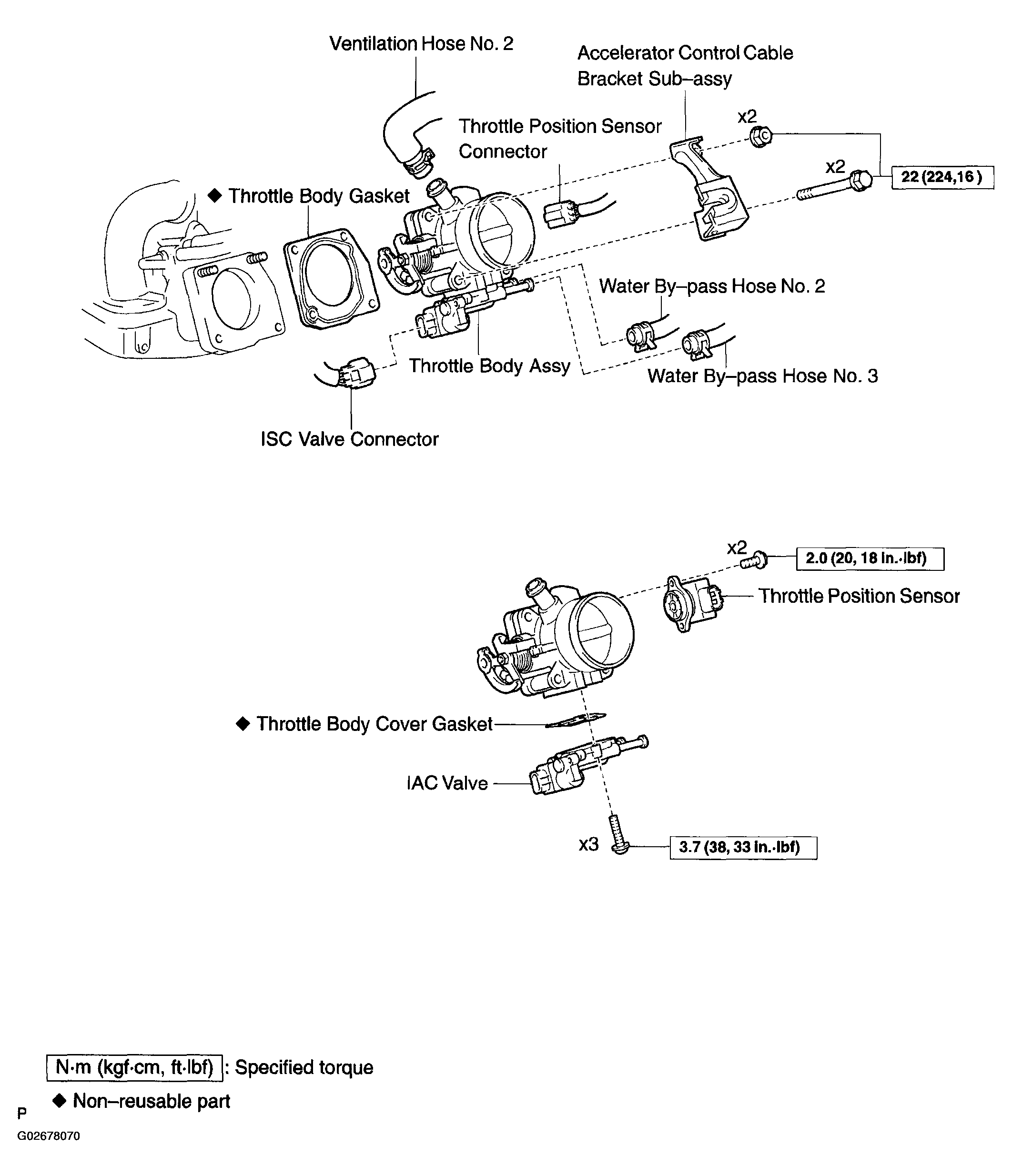

Fig 2: Exploded View Of Throttle Body Components With Torque Specifications (2 Of 2)
G02678070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
