Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Control Assembly | Front of center console. See Figure. |
| Airbag Sensor Assembly | Behind lower center of dash. See Figure. |
| Battery Blower Motor Controller | On left side of luggage compartment. See Figure. |
| Battery ECU | Above left rear wheelwell, near system main relay. See Figure. |
| Blower Motor Controller | Behind right center of dash. See Figure. |
| Body ECU | On right side of instrument panel J/B. See Figure. |
| Engine Control Module | Behind right end of dash. See Figure. |
| Gateway ECU | Behind upper center of dash. See Figure. |
| Headlight Beam Level Control ECU | Above right kick panel. See Figure. |
| Hybrid Vehicle Control ECU | Behind right side of dash. See Figure. |

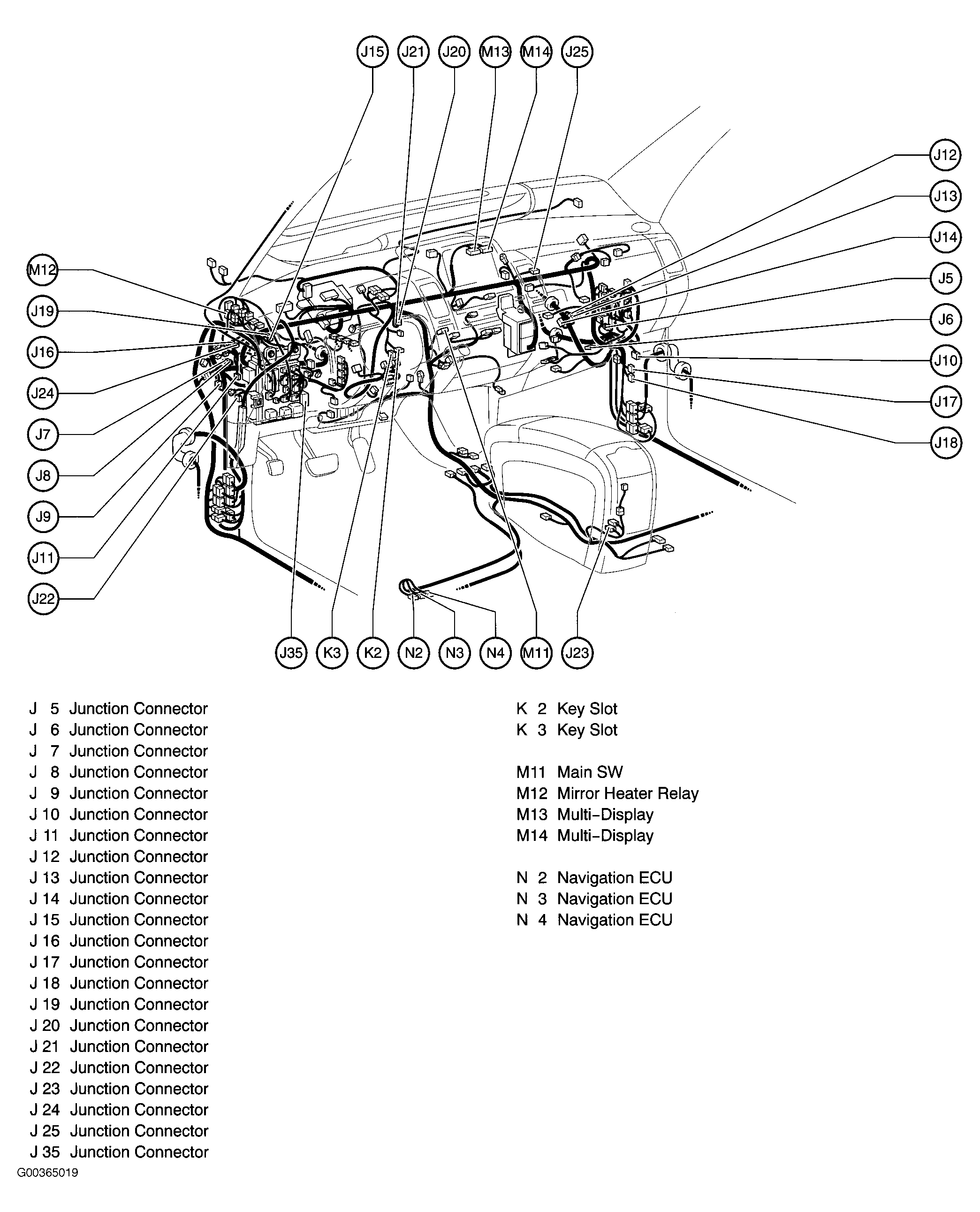

| Navigation ECU | Below driver's seat. See Figure. |
| Power Source Control ECU | Behind left side of dash. See Figure. |
| Power Steering ECU | Behind left side of dash. See Figure. |
| Skid Control ECU | Behind left side of dash. See Figure. |
| Smart Key ECU | Behind left side of dash. See Figure. |
| Transmission Control ECU | Behind right side of dash. See Figure. |
| Transponder Key Computer | Behind upper left side of dash. See Figure. |
