Engine Mechanical: Preparation: SST

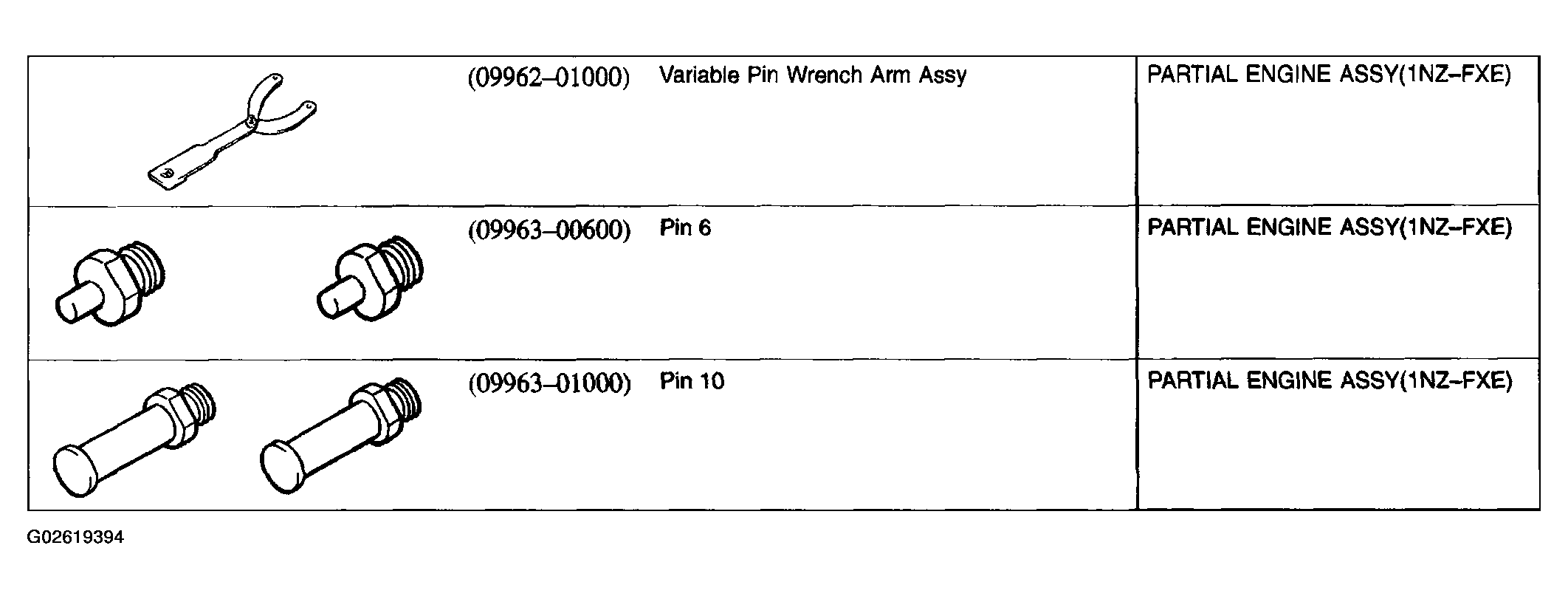

Fig 1: Identifying SST - Engine Mechanical (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

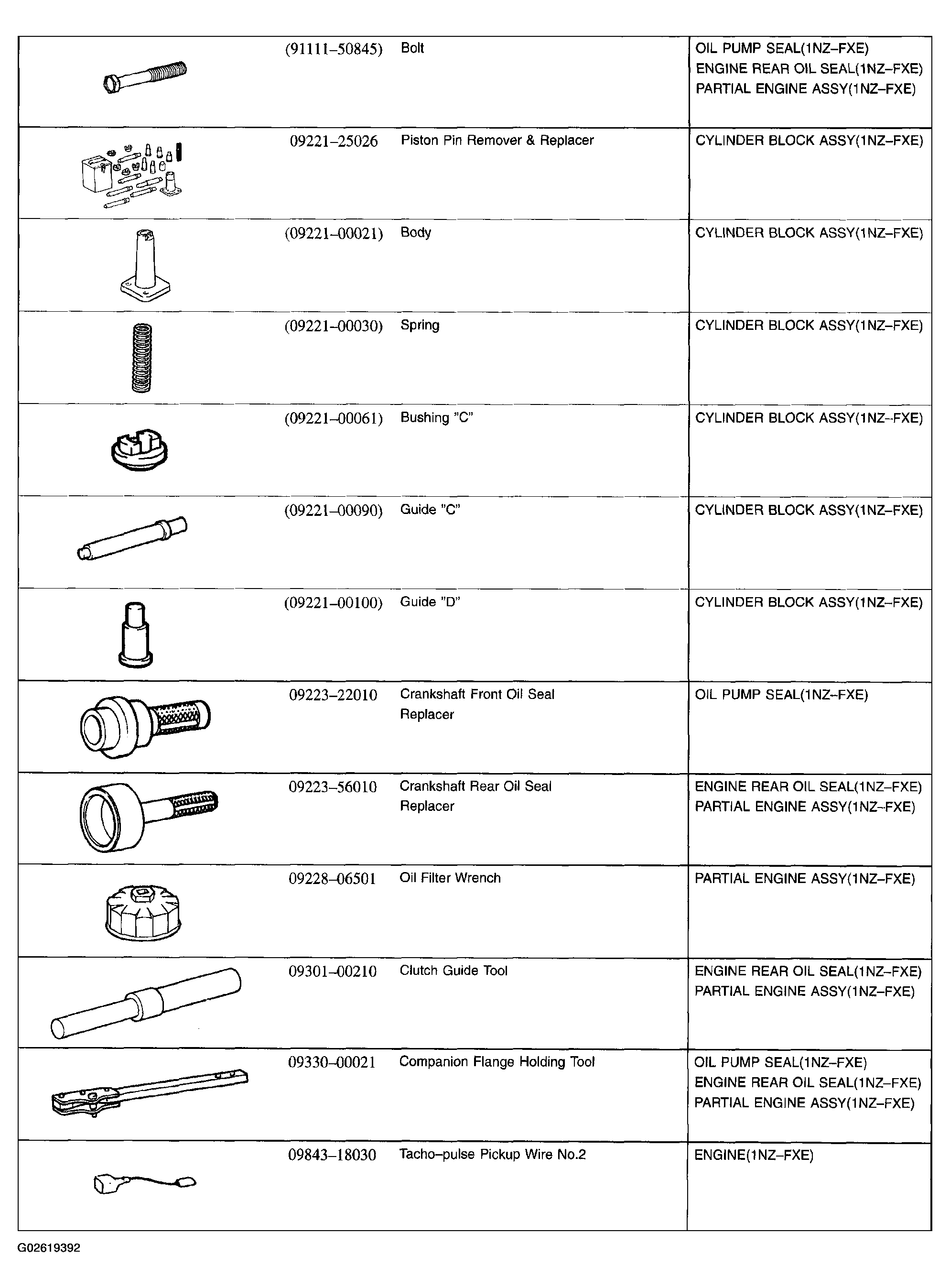

Fig 2: Identifying SST - Engine Mechanical (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

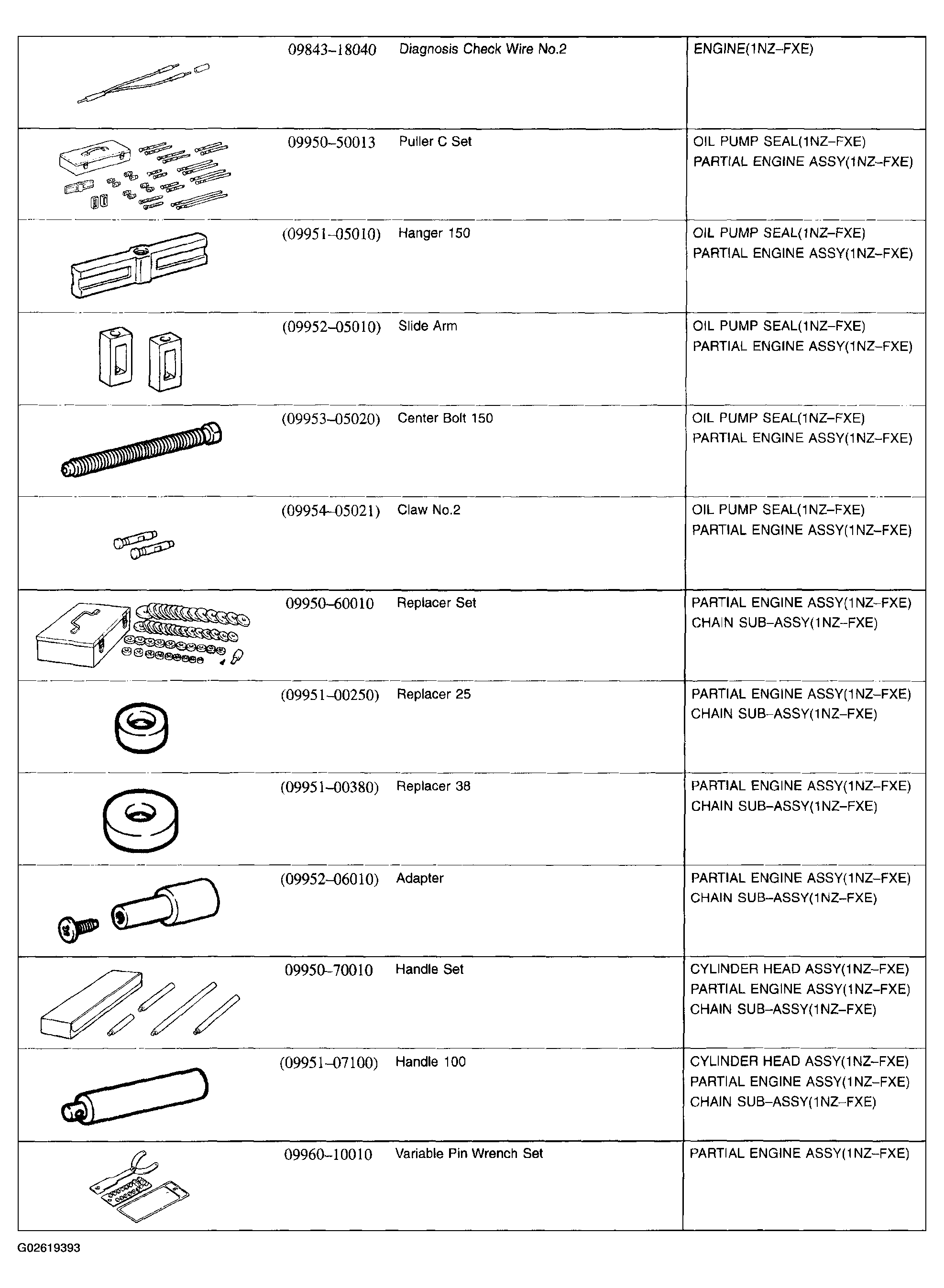

Fig 3: Identifying SST - Engine Mechanical (3 Of 4)

Fig 4: Identifying SST - Engine Mechanical (4 Of 4)
