Hybrid Transaxle: Preparation: SST

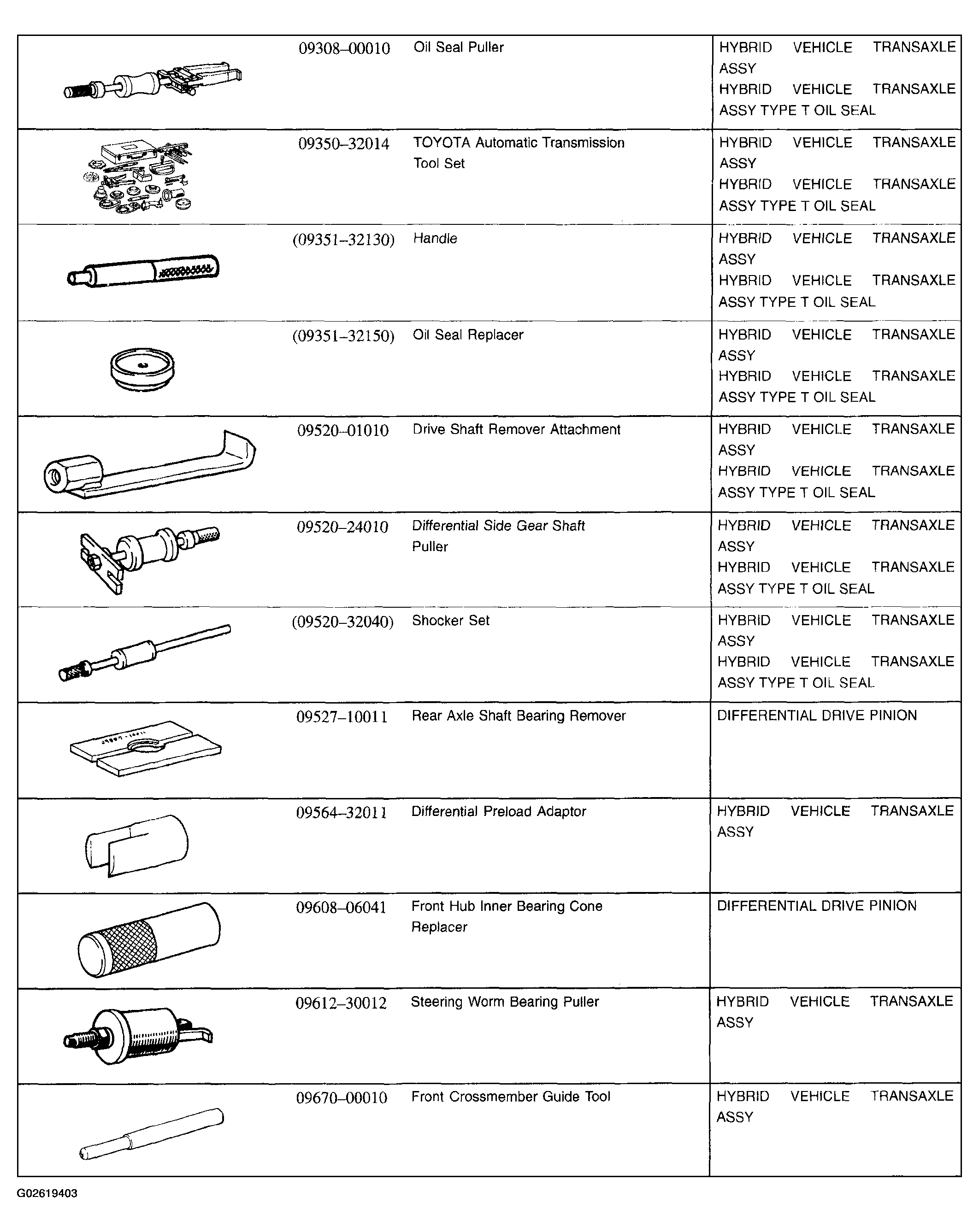

Fig 1: Identifying SST - Hybrid Transaxle (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

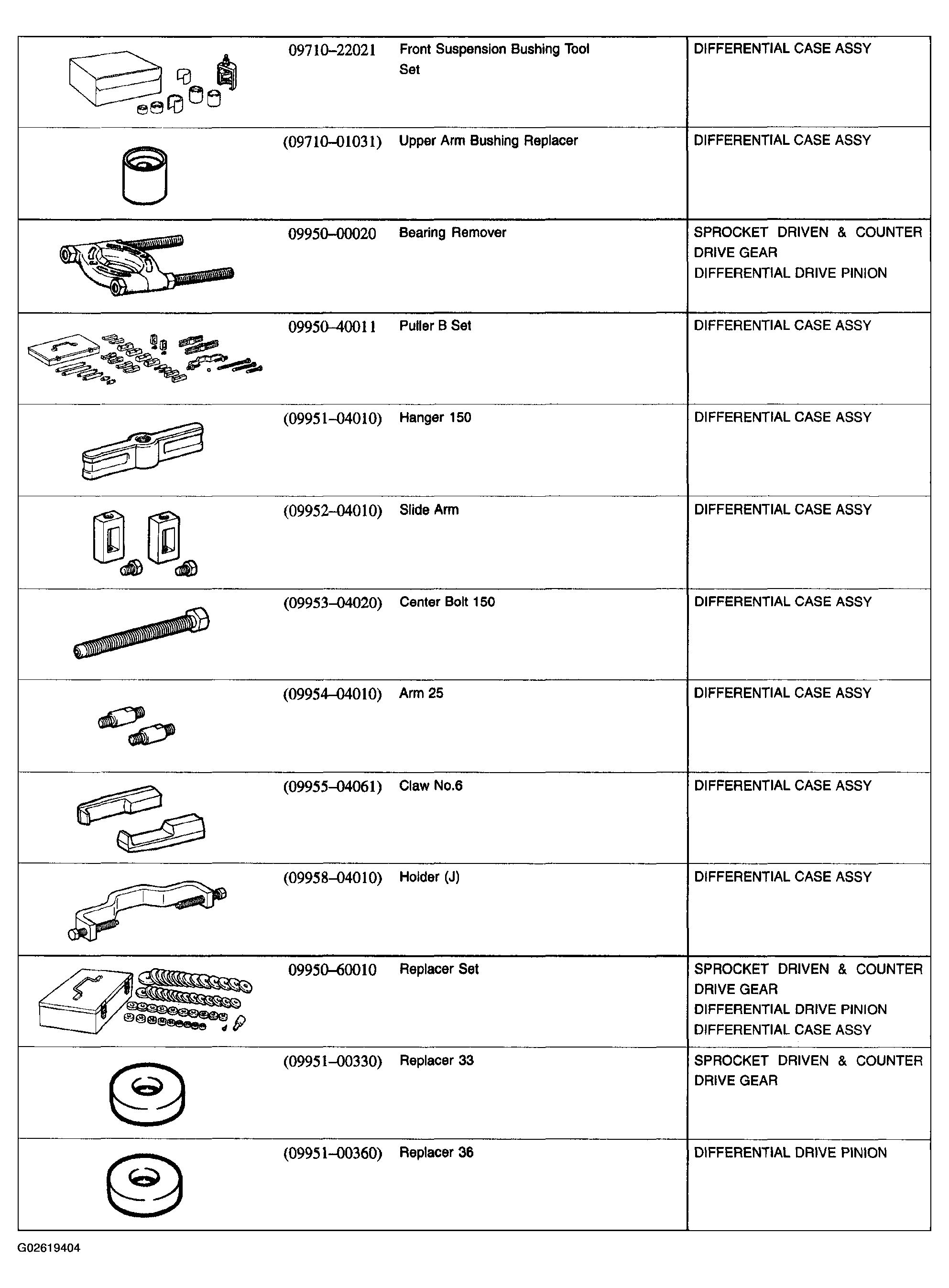

Fig 2: Identifying SST - Hybrid Transaxle (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

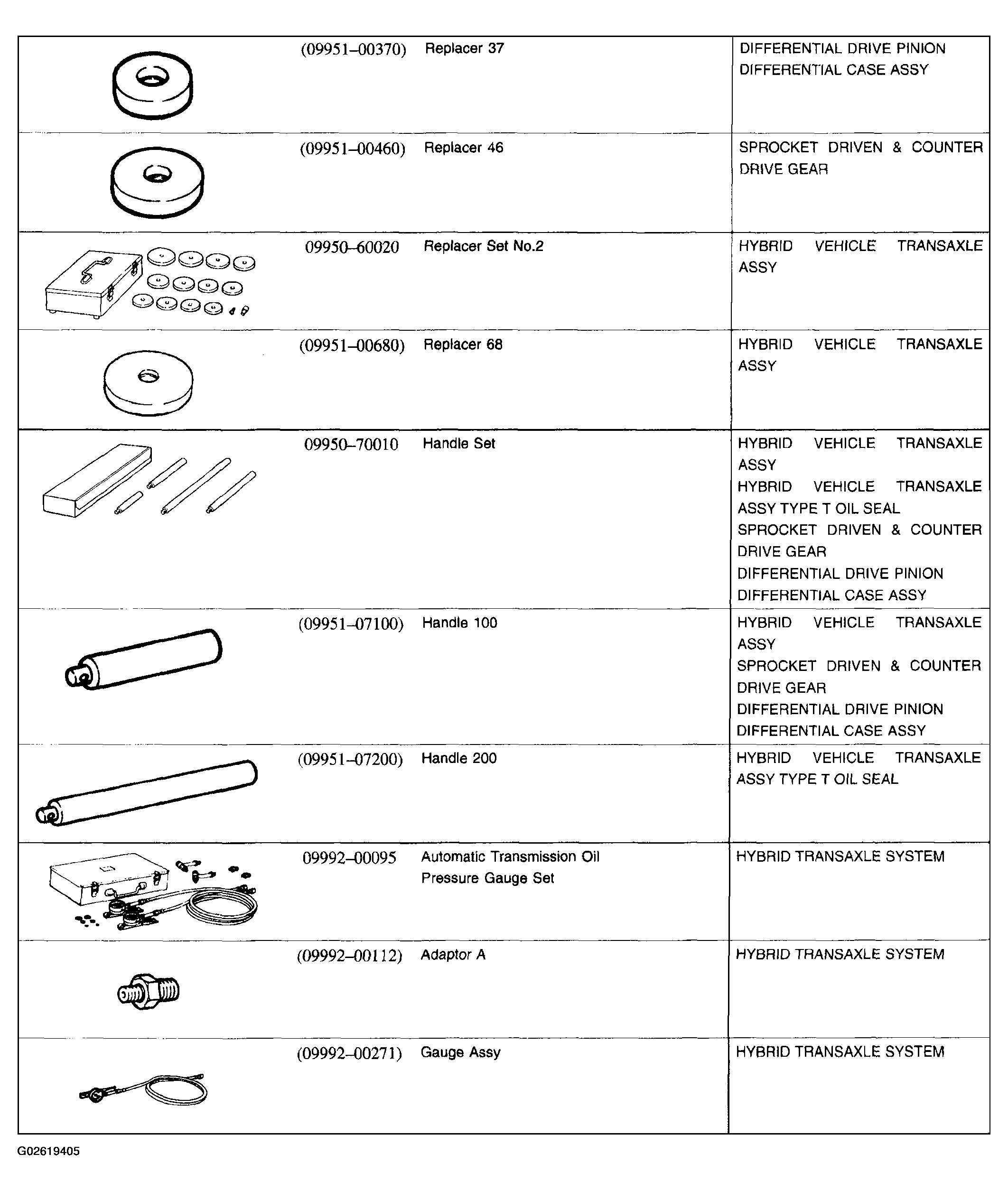

Fig 3: Identifying SST - Hybrid Transaxle (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Recommended Tools

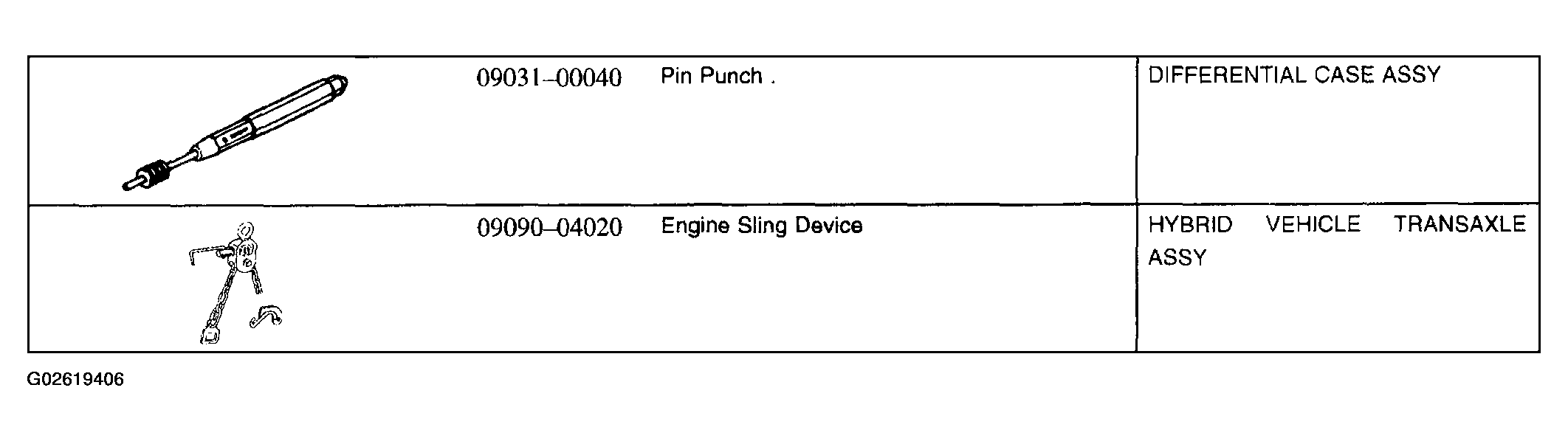

Fig 4: Identifying Recommended Tools - Hybrid Transaxle (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

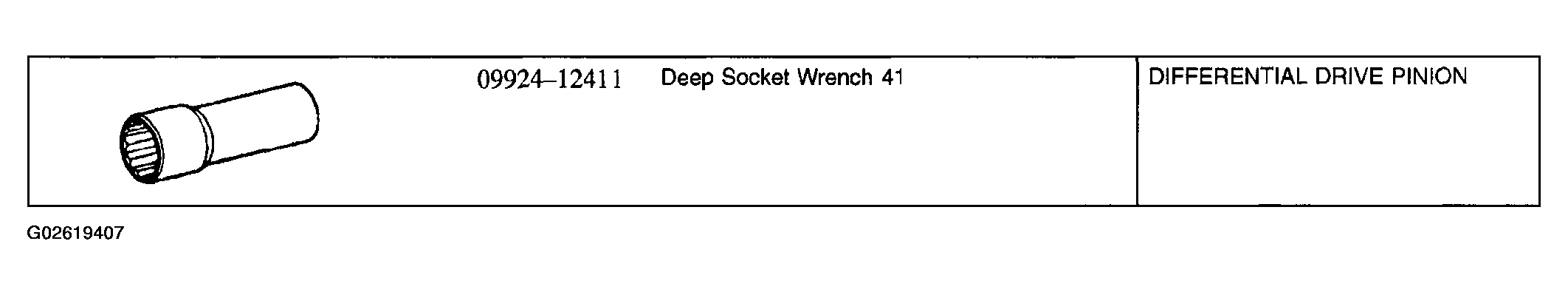

Fig 5: Identifying Recommended Tools - Hybrid Transaxle (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
