Parking Brake: Preparation: SST

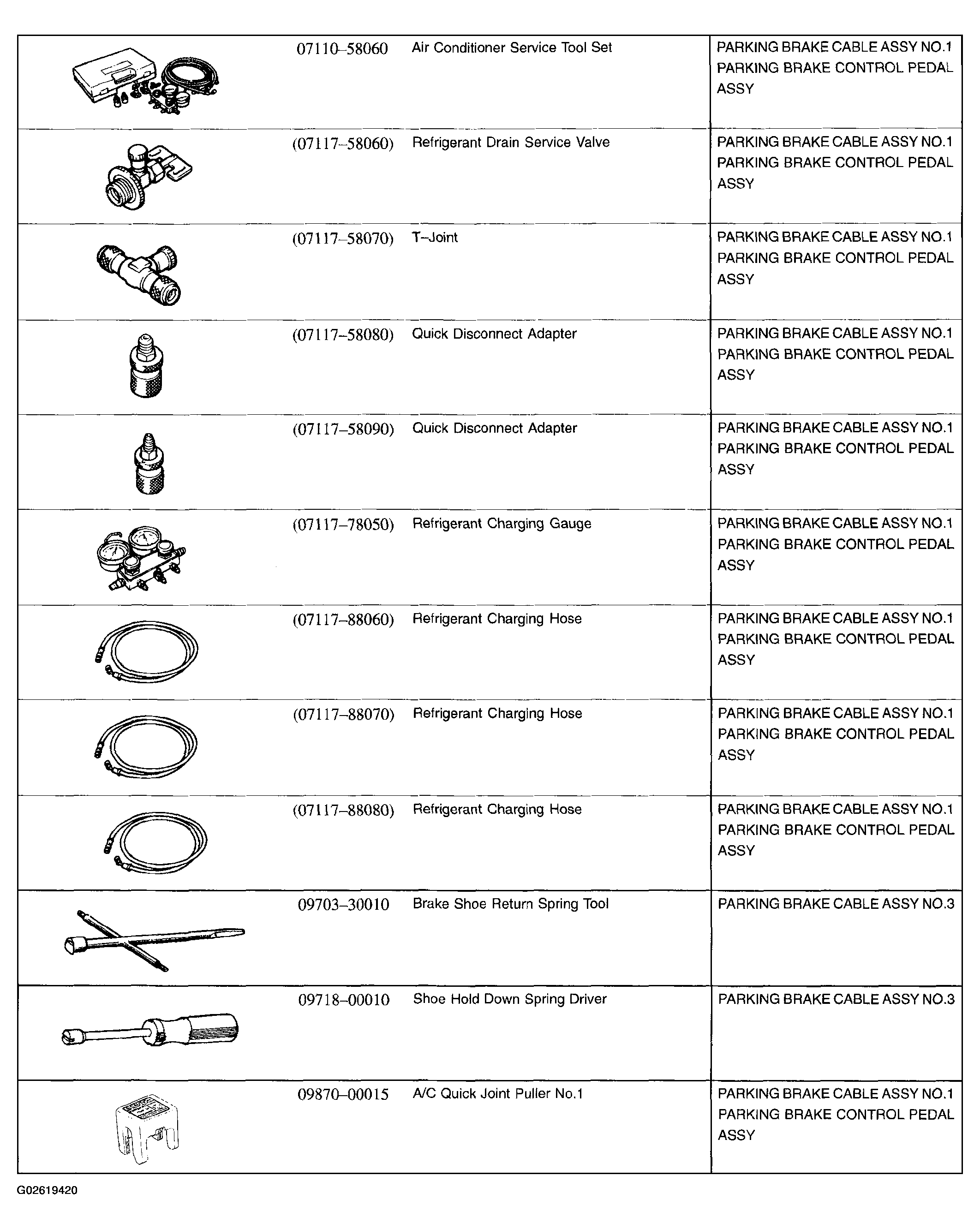

Fig 1: Identifying SST - Parking Brake (1 Of 2)
G02619420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

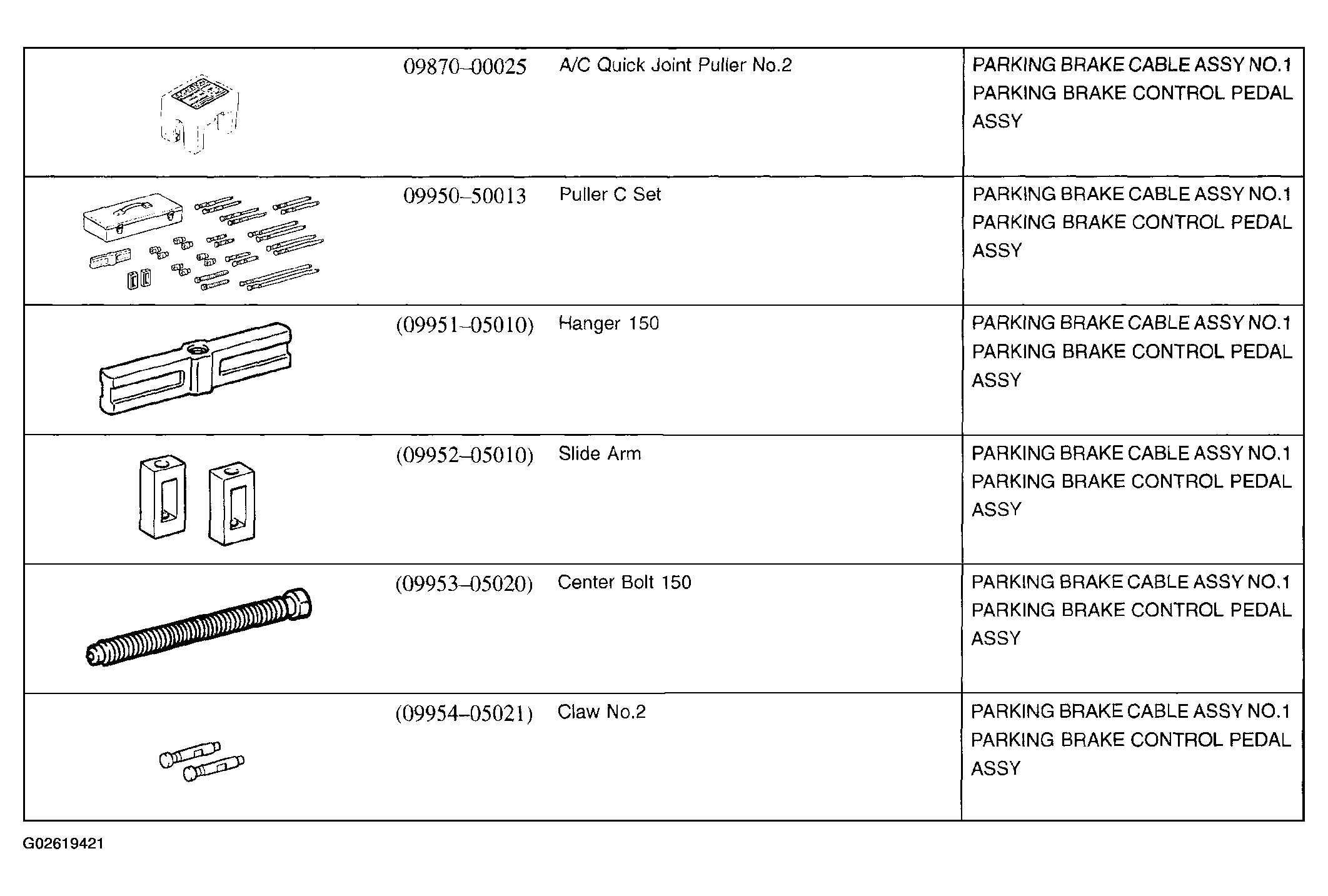

Fig 2: Identifying SST - Parking Brake (2 Of 2)
G02619421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
