Ignition System (1NZ-FXE): Location

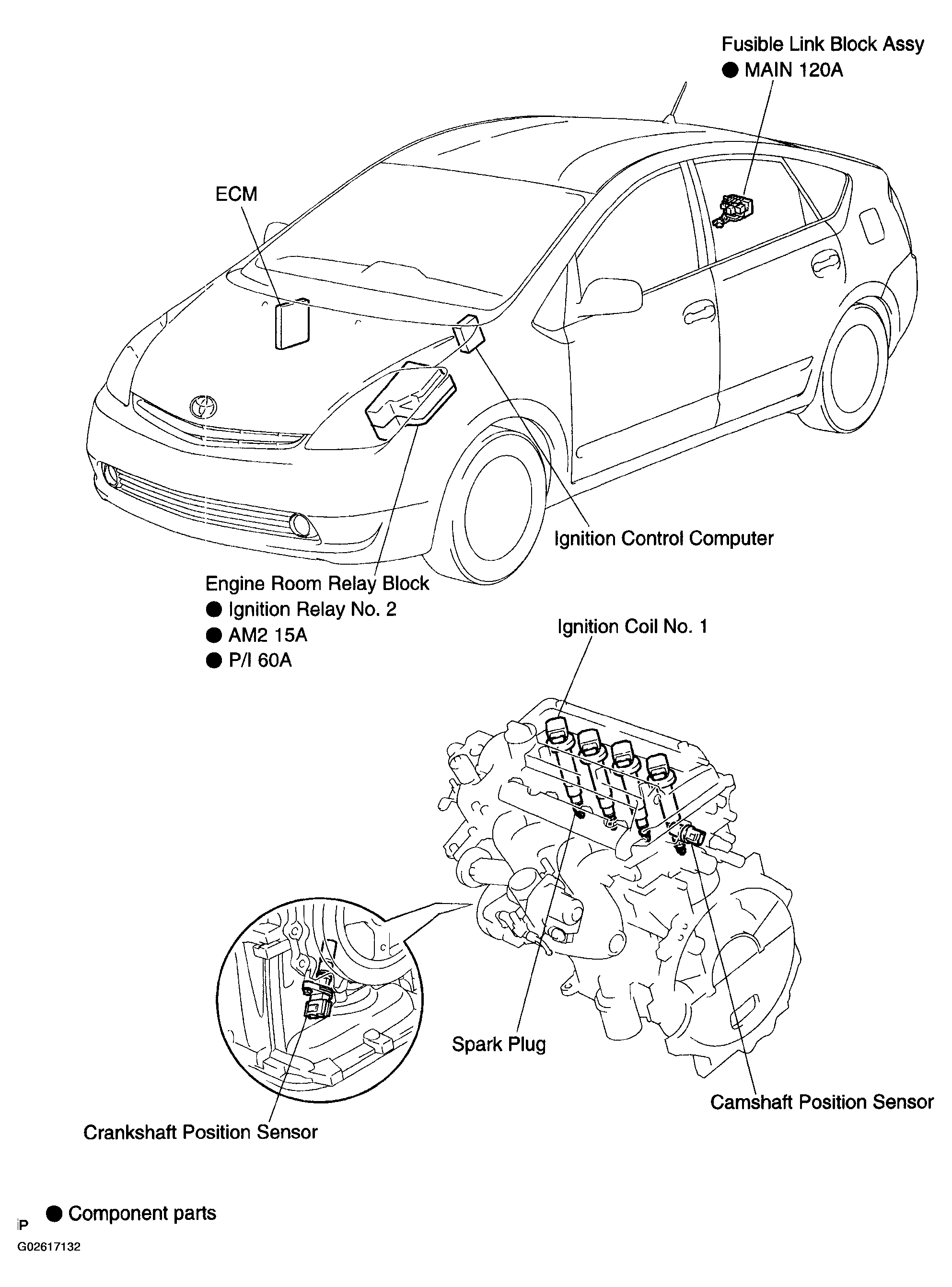

Fig 1: Identifying Ignition System (1NZ-FXE) Components
G02617132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
