Remove Coil No.1 (1NZ-FXE): Replacement

REAR FLOOR BOARD NO. 2 (See BATTERY (1 NZ-FXE) )
REMOVE DECK FLOOR BOX REAR (See BATTERY (1 NZ-FXE) )
REMOVE REAR FLOOR BOARD NO. 3 (See BATTERY (1 NZ-FXE) )
DISCONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL) (See BATTERY (1 NZ-FXE) )
REMOVE IGNITION COIL NO. 1
1. Remove the 2 bolts, then remove the engine room relay block No.

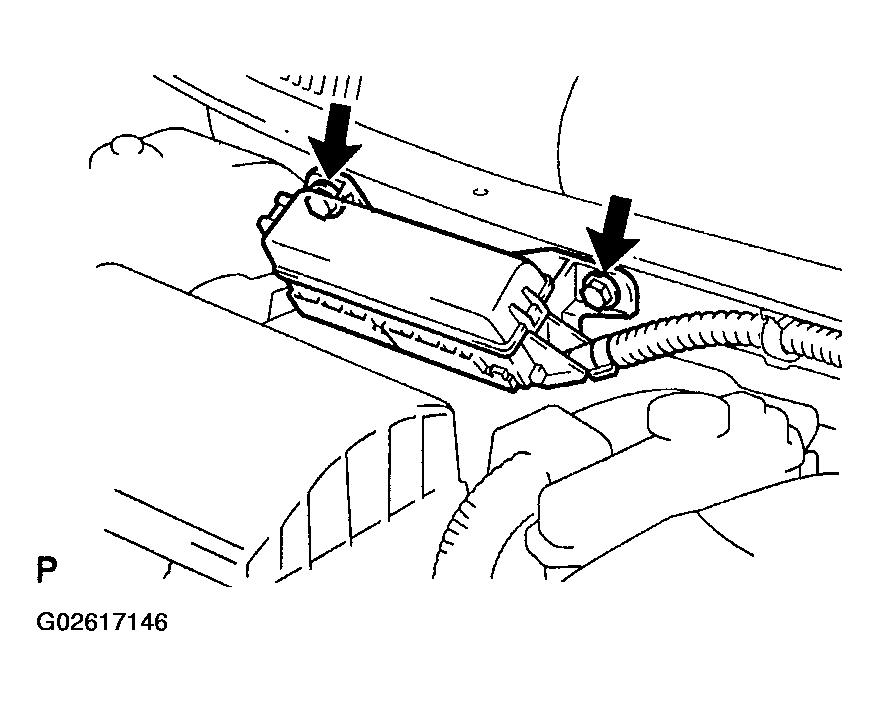

  Fig 1: Removing Engine Room Relay Block
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 4 ignition coil connectors.
3. Remove the 4 bolts, then remove the 4 ignition coils.

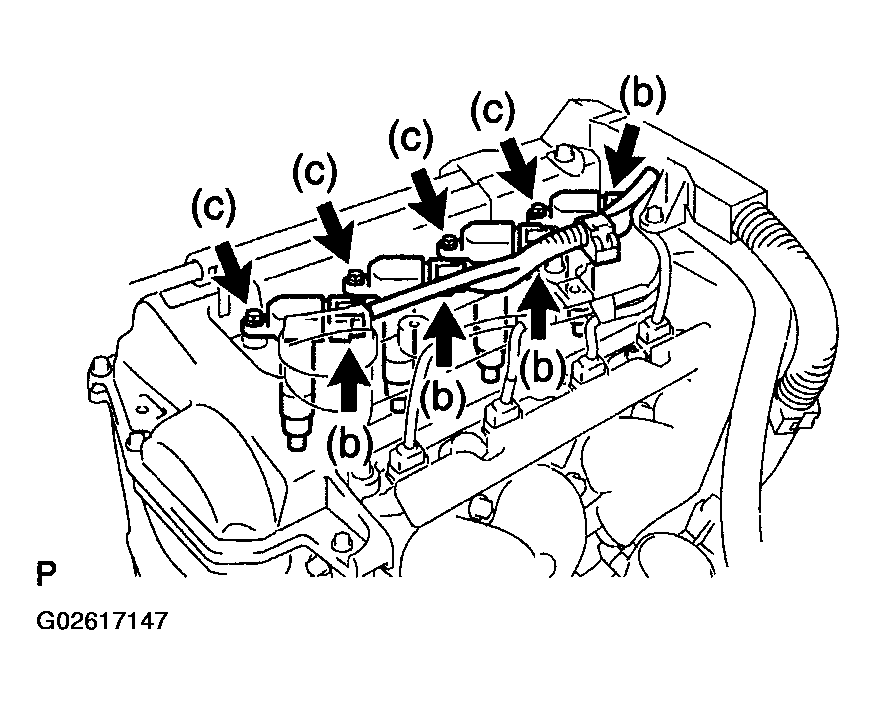

  Fig 2: Disconnecting Ignition Coil Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Each ignition coil is installed with 1 bolt.
INSTALL IGNITION COIL NO. 1
1. Install the 4 ignition coils with the 4 bolts.
  Torque: 9.0 N.m (92 kgf.cm, 82 in.lbf)

  HINT:

  Each ignition coil is installed with 1 bolt.
2. Connect the 4 ignition coil connectors.
3. Install the engine room relay block No. 2 with the 2 bolts.
  Torque: 8.4 N.m (86 kgf.cm, 74 in.lbf)
CONNECT ENGINE WIRE NO. 3 (BATTERY NEGATIVE TERMINAL) (See BATTERY (1 NZ-FXE) )
INSTALL REAR FLOOR BOARD NO. 3
INSTALL DECK FLOOR BOX REAR
INSTALL REAR FLOOR BOARD NO. 2
POWER WINDOW CONTROL SYSTEM INITIALIZE (See INITIALIZATION )
